Honeywell Power Adapter Board MC-TLPA02 MU-T Series 51309204-175

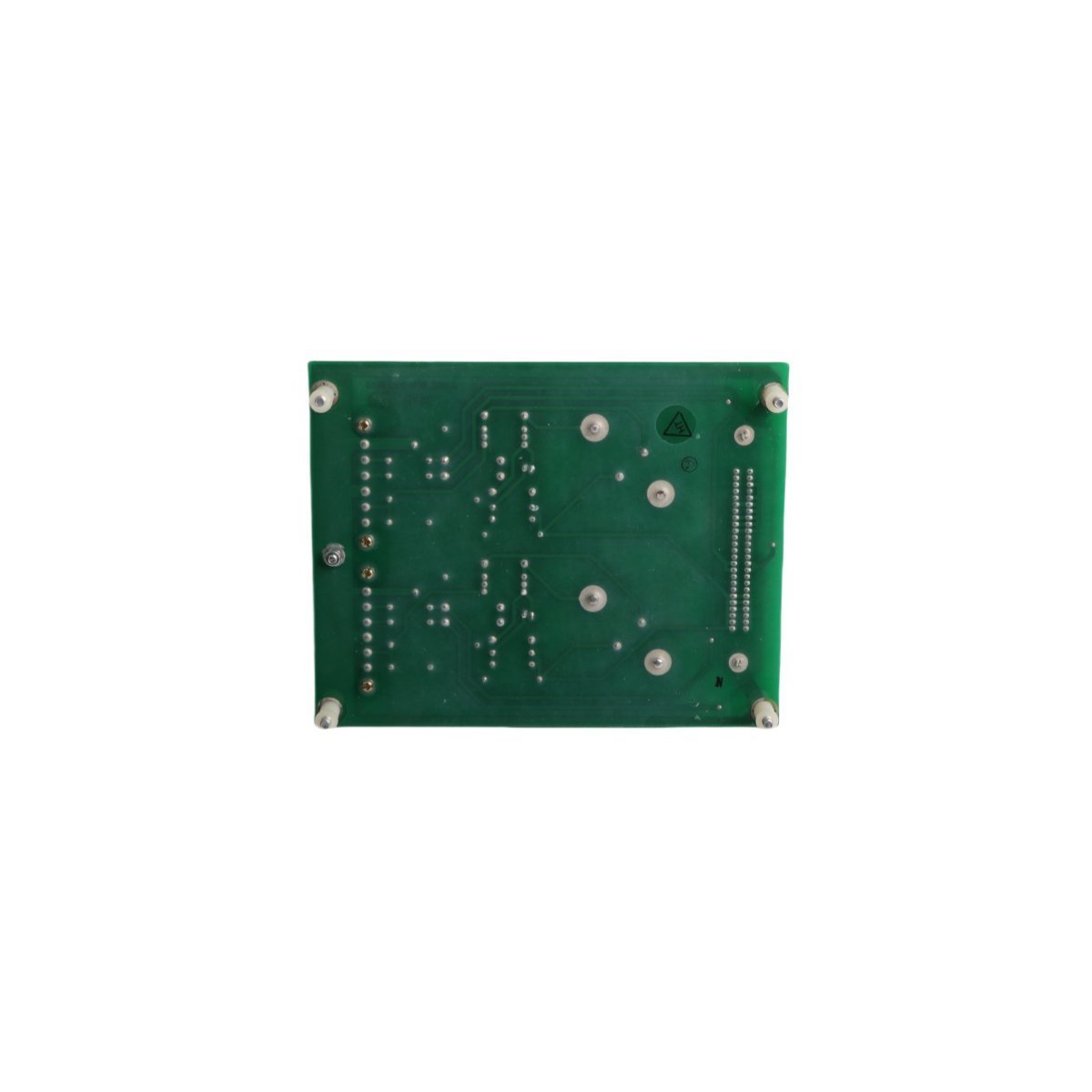

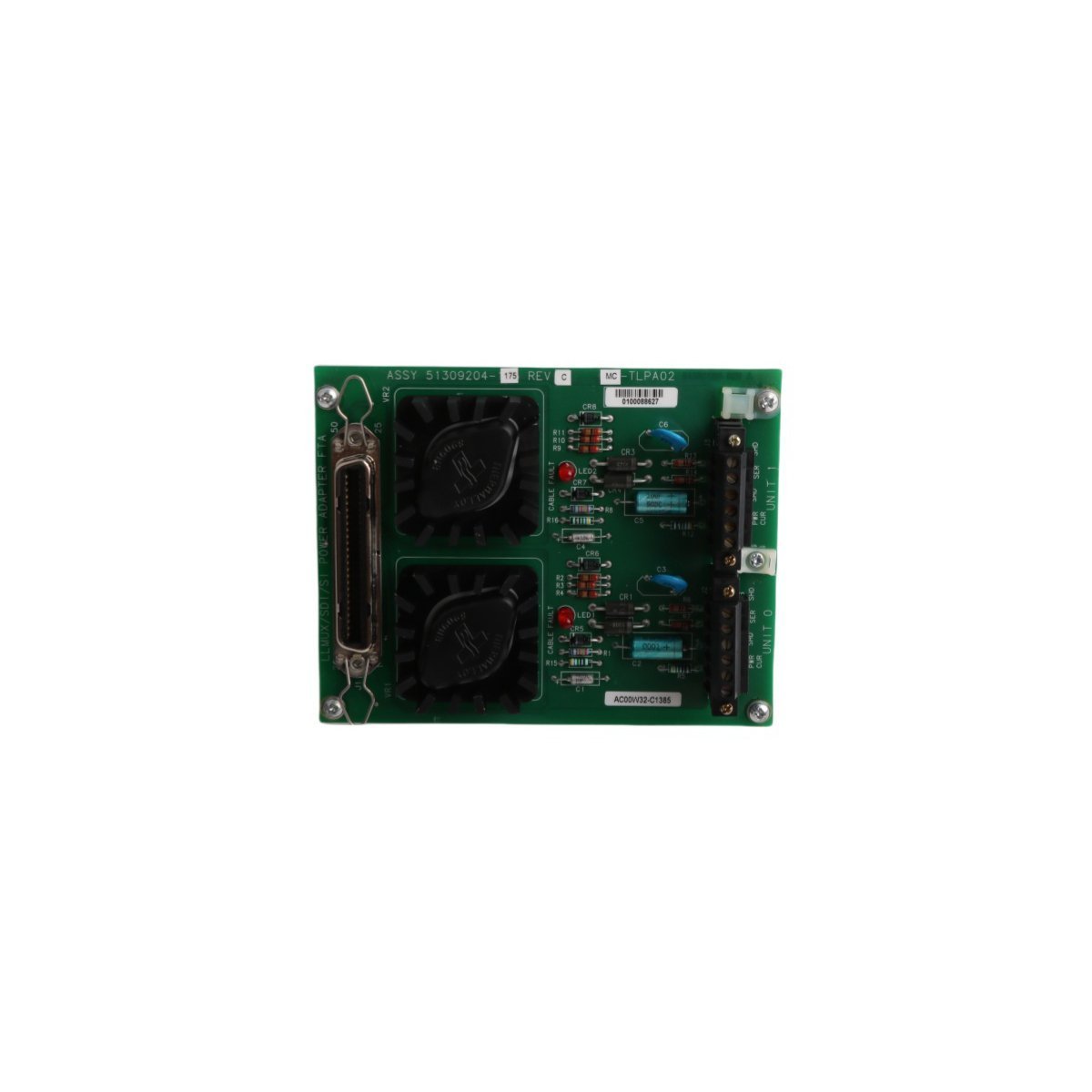

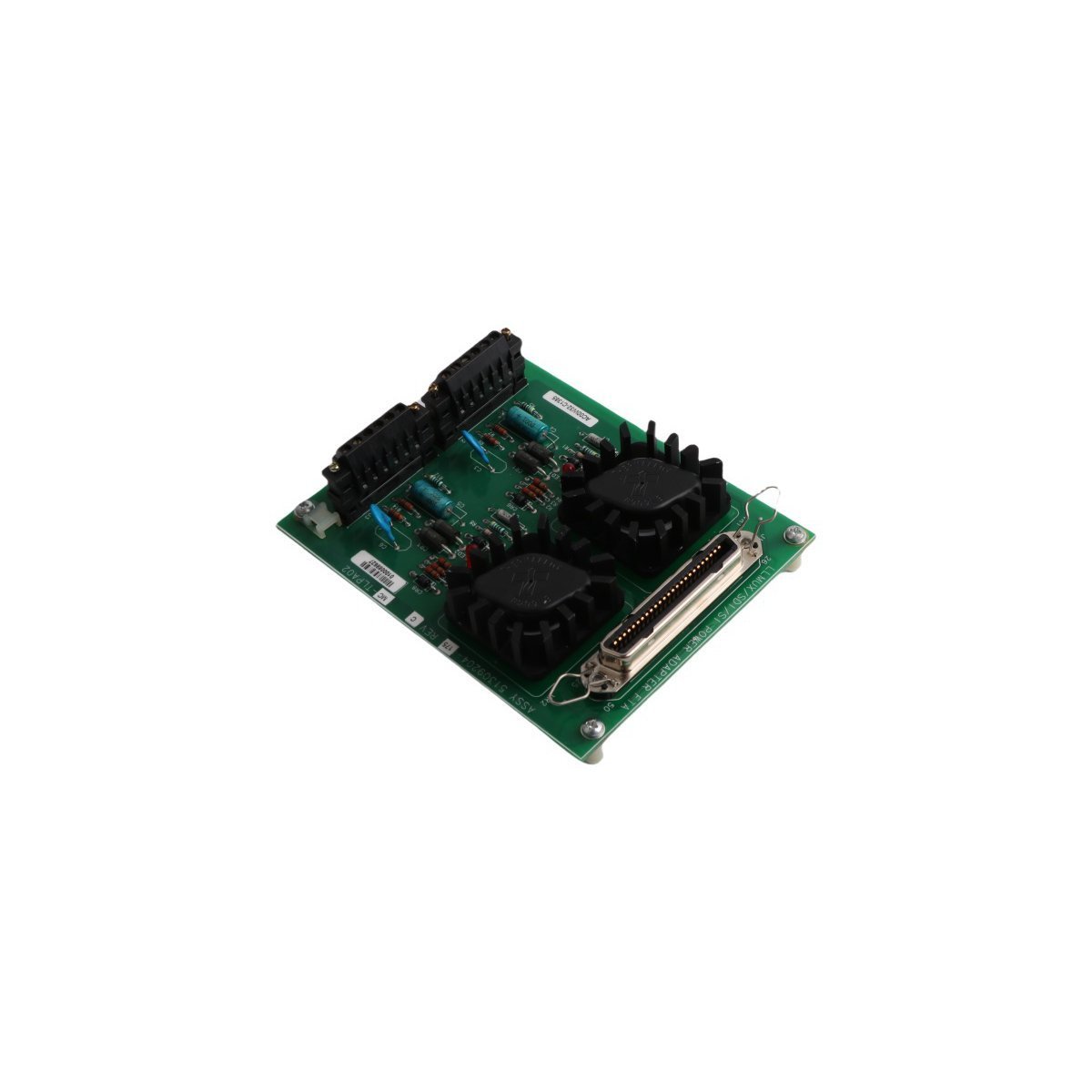

HONEYWELL MC-TLPA02 Power Adapter Board

The HONEYWELL MC-TLPA02 51309204-175, also cataloged as the MC-TLPA02 Power Adapter Board, operates as a dedicated hardware component for power distribution and voltage regulation within MU-T series DCS architectures.

Suffix Breakdown & Model Matrix

• MC-TLPA02: Designates the specific power adapter board configuration within the MU-T series family.
• 51309204-175: Represents the unique Honeywell part number variant defining the electrical pinout and power handling capacity for integration into process control racks.

Hardware Specifications

Process Control and DCS Connectivity

The MC-TLPA02 facilitates power delivery to connected digital and analog modules, which ensures system-wide signal integrity. It incorporates channel-to-channel isolation to prevent electrical noise from propagating throughout the backplane. Furthermore, the board manages cold junction compensation (CJC) for integrated thermocouple inputs, which maintains high measurement precision in 4-20 mA HART loops.

Frequently Asked Questions

Q: Does the board incorporate surge protection for downstream I/O modules?

A: The MC-TLPA02 utilizes transient voltage suppression circuitry to protect electronic components from standard industrial power fluctuations.

Q: Can the module support redundant power feed configurations?

A: The architecture supports dual-feed power inputs, which allows the board to maintain supply continuity if a primary power source fails.

Q: Does the module allow for hot-swapping during active system operation?

A: Technicians may remove or replace the board while the system remains powered, provided they follow established DCS maintenance safety protocols to prevent backplane arcing.

Field Installation Guidelines

• Backplane Seating: Technicians must align the board with the guide rails on the MU-T series mounting frame. They should push the board firmly until the backplane connectors seat completely to ensure a low-resistance path.
• Grounding: Installers ought to secure the chassis mounting screws to the grounded enclosure frame. A solid earth connection remains mandatory to preserve electromagnetic compatibility (EMC) and surge protection performance.
• Power Wiring: Operators should use adequately sized copper conductors for the primary voltage input to minimize voltage drop. They must torque all screw terminals to the specified settings to prevent thermal heating at connection points.
• Environment: Users should avoid mounting the board directly above high-heat generating components. This placement maximizes the operational lifespan of the internal capacitors.
