51196742-200 Honeywell Experion PKS DCS Cable Cordset Module Assembly

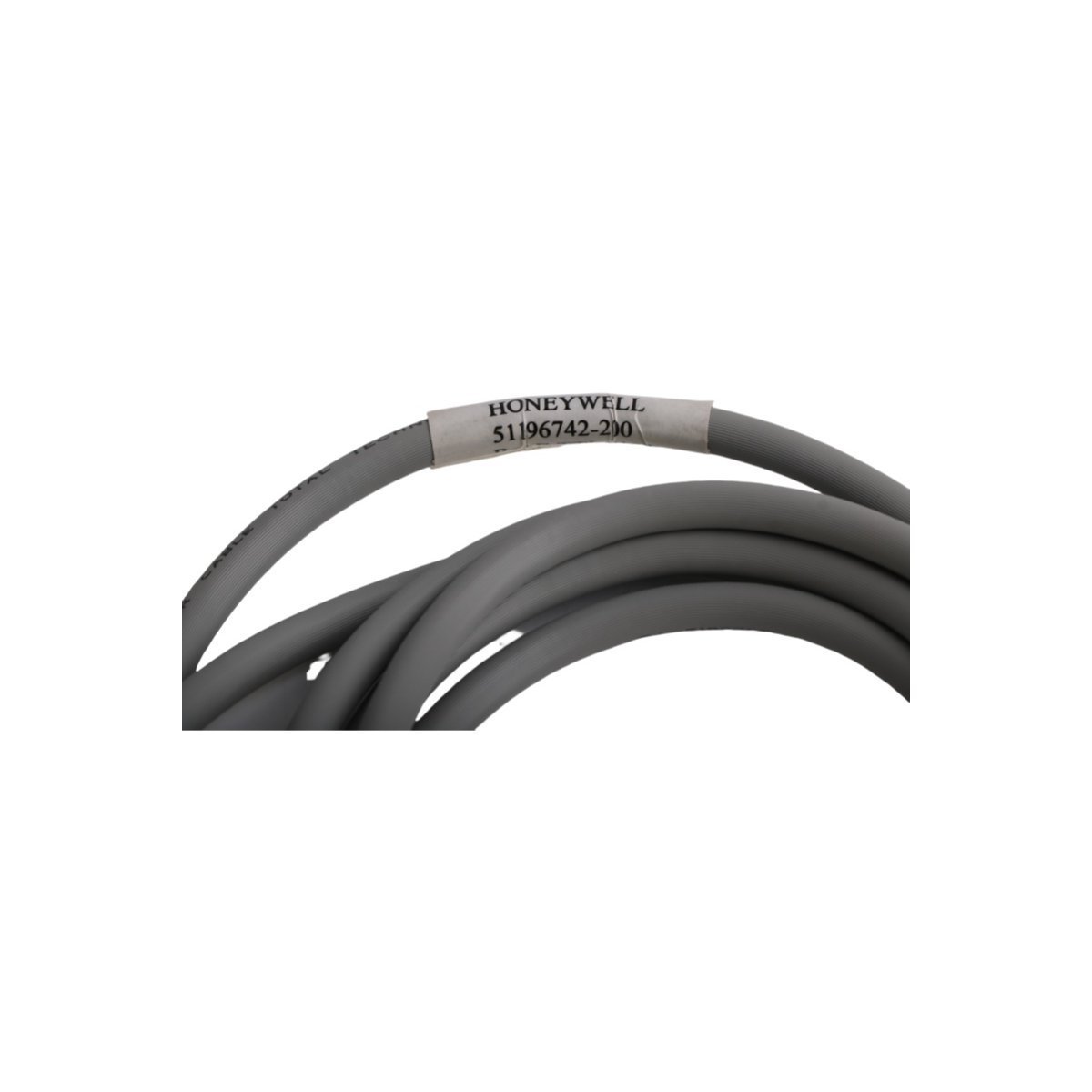

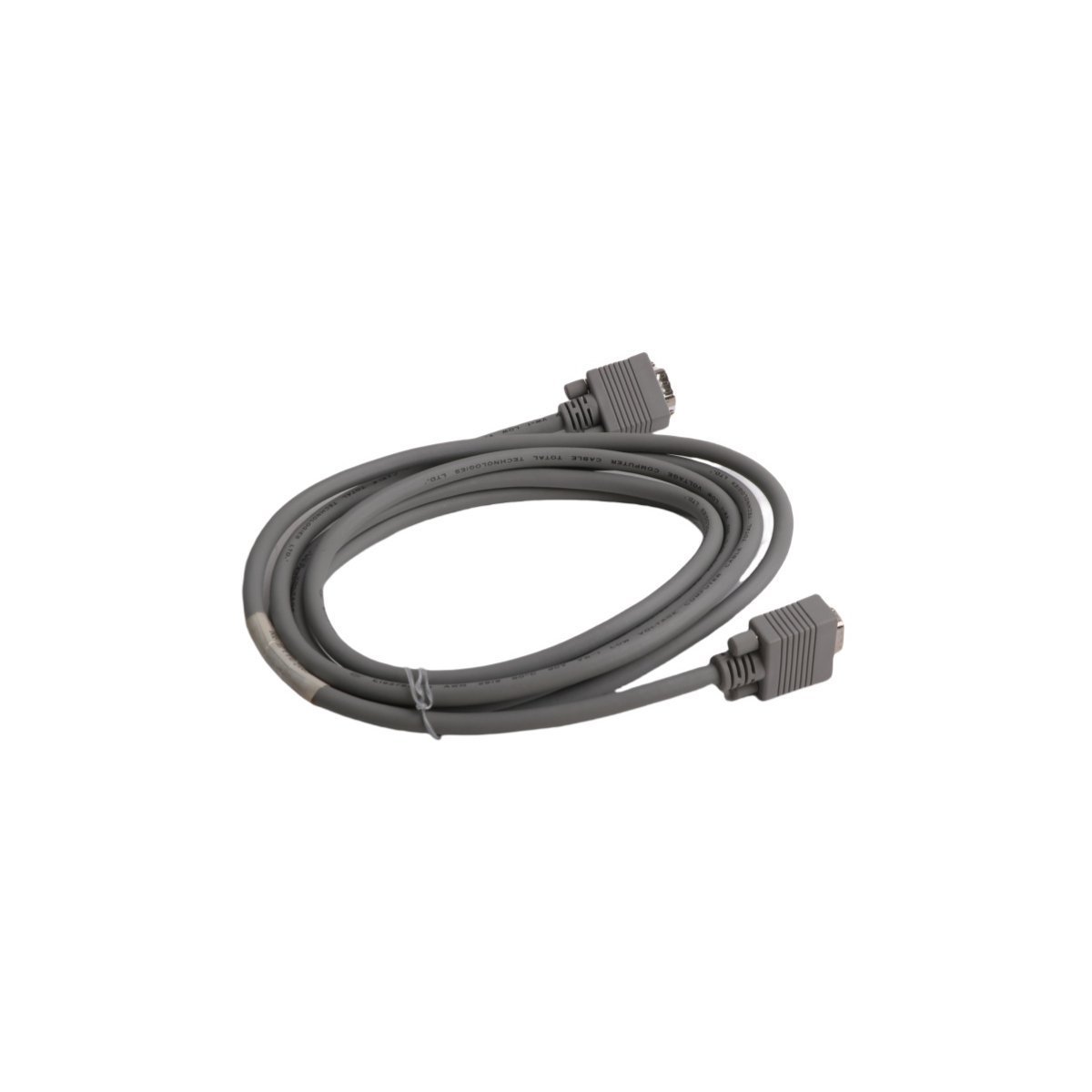

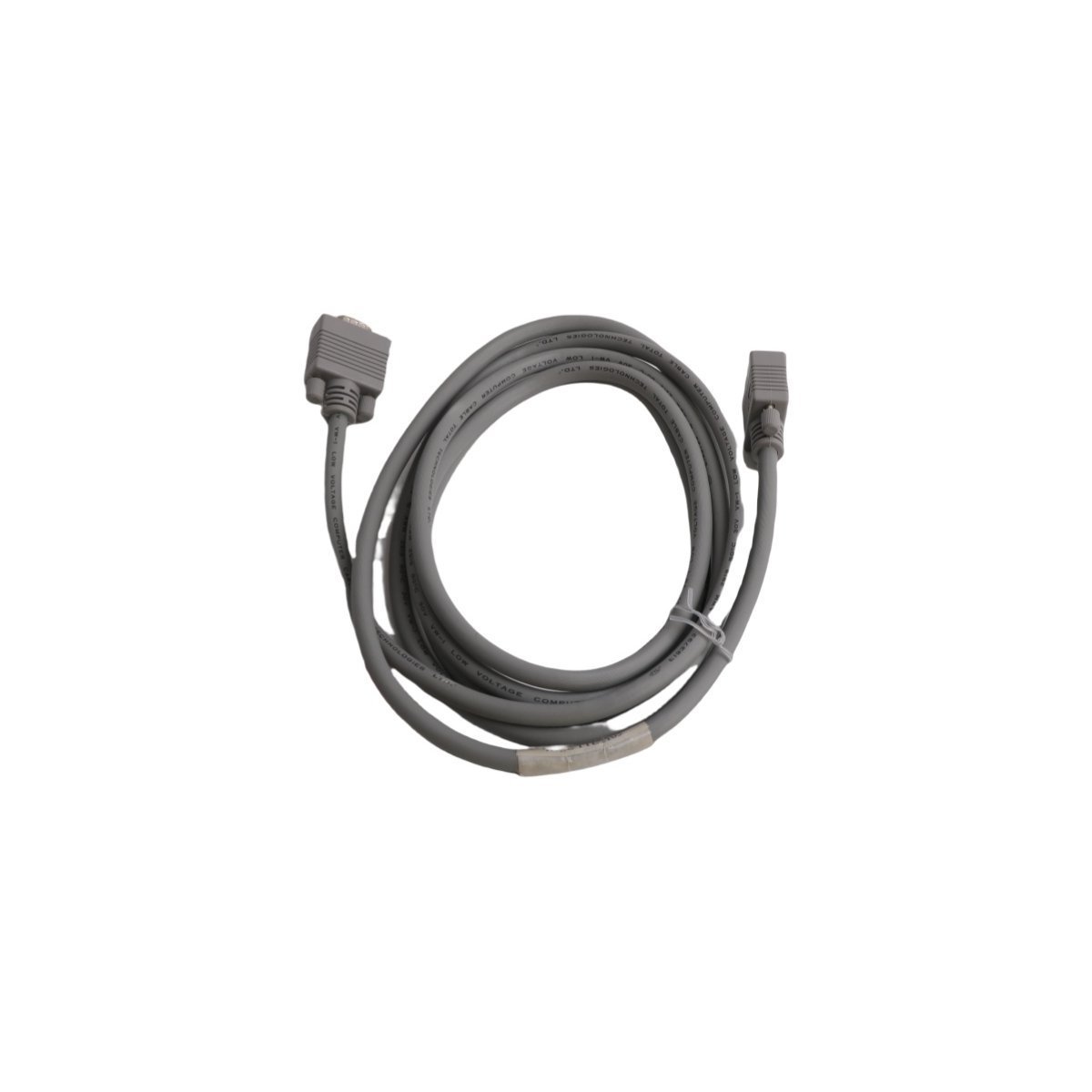

Honeywell 51196742-200 Experion PKS Cable Cordset

The Honeywell 51196742-200 REV E, also cataloged as the 51196742-200 Cable Cordset, operates as a dedicated hardware component for point-to-point electrical interconnection and signal transmission within Honeywell Experion PKS DCS networks.

Hardware Specifications

DCS Bus Connectivity & Signal Isolation

The 51196742-200 REV E cordset establishes shielded electrical pathways that connect Experion PKS I/O modules and controller racks. Internal conductors maintain low signal attenuation during high-frequency communications, while outer braided shielding suppresses electromagnetic interference (EMI) generated by adjacent power equipment. Moreover, the molded connector heads provide physical strain relief and channel-to-channel isolation, which prevents cross-talk and common-mode noise propagation across 4-20 mA HART analog loops and digital control buses.

Frequently Asked Questions

Q: Can technicians disconnect the 51196742-200 cable while the Experion PKS controller remains powered?

A: Technicians can disconnect the signal cable during live operations if the connected I/O channels support hot-swapping, provided that maintenance personnel handle the strain relief latches carefully to avoid momentary short circuits on adjacent pin contacts.

Q: How does the cable construction prevent signal degradation across long cabinet runs?

A: The cordset integrates twisted-pair conductors enclosed within a continuous aluminum-foil and tinned-copper shield, which maintains uniform characteristic impedance and mitigates high-frequency noise induced by nearby AC power wiring.

Q: What indicates physical wear or conductor stress on the REV E cordset?

A: Maintenance engineers inspect the outer jacket for discoloration, micro-cracking, or deformed strain relief boots, since mechanical bending beyond the minimum bend radius degrades internal conductor continuity over time.

Field Installation Guidelines

1. Technicians must verify that the minimum static bending radius exceeds 50 mm during cable routing inside control cabinets to protect internal conductors from mechanical fatigue.
2. Route the 51196742-200 cordset through dedicated low-voltage instrument raceways, maintaining at least 300 mm clearance from 230 VAC or 480 VAC power lines to prevent electromagnetic coupling.
3. Connect the shield drain wire directly to the designated cabinet earth ground bus at a single point, which eliminates ground loop currents across distributed DCS racks.
4. Align the connector keyways carefully before applying insertion force, and engage all retention screws or locking clips to secure the electrical interface against vibrational loosening.
