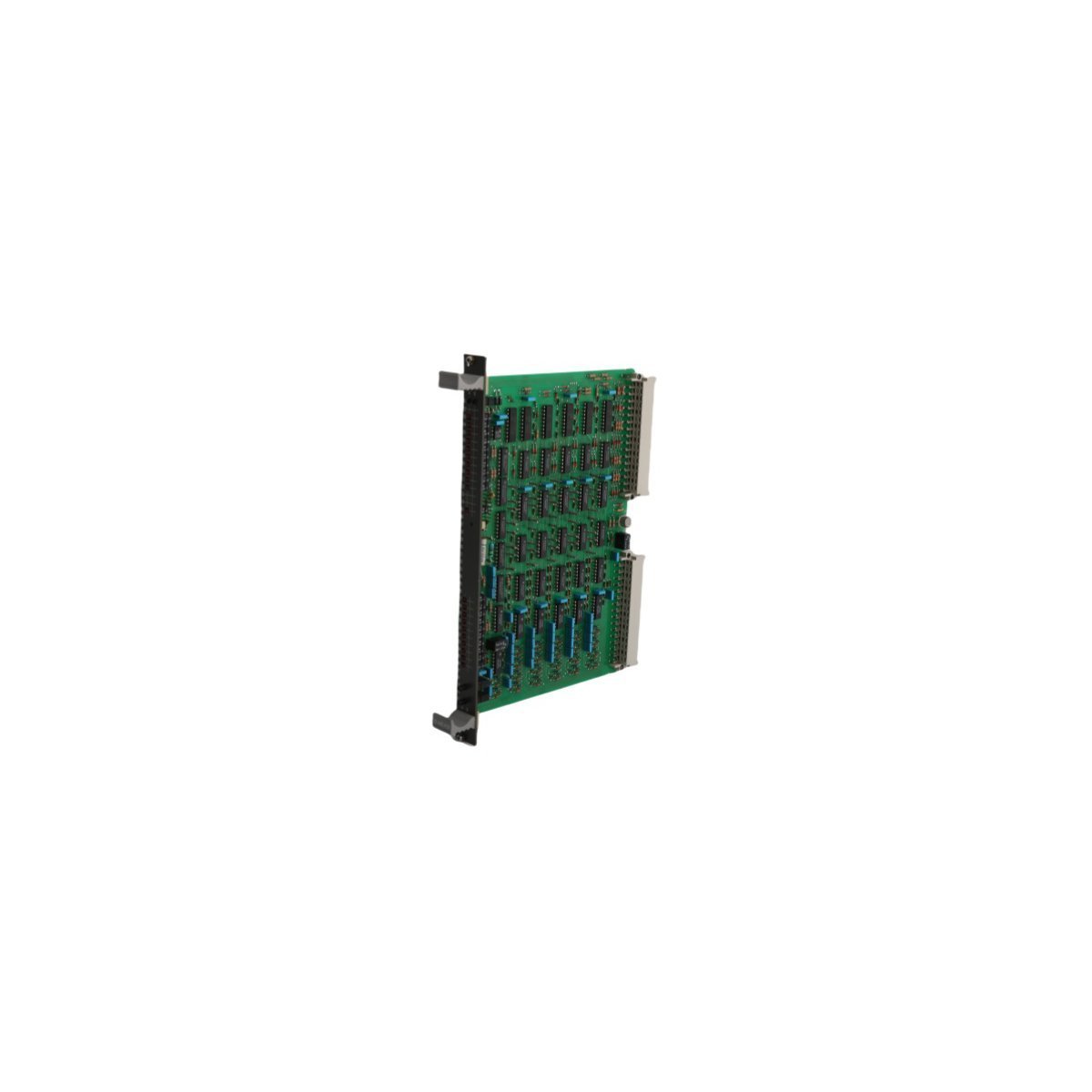

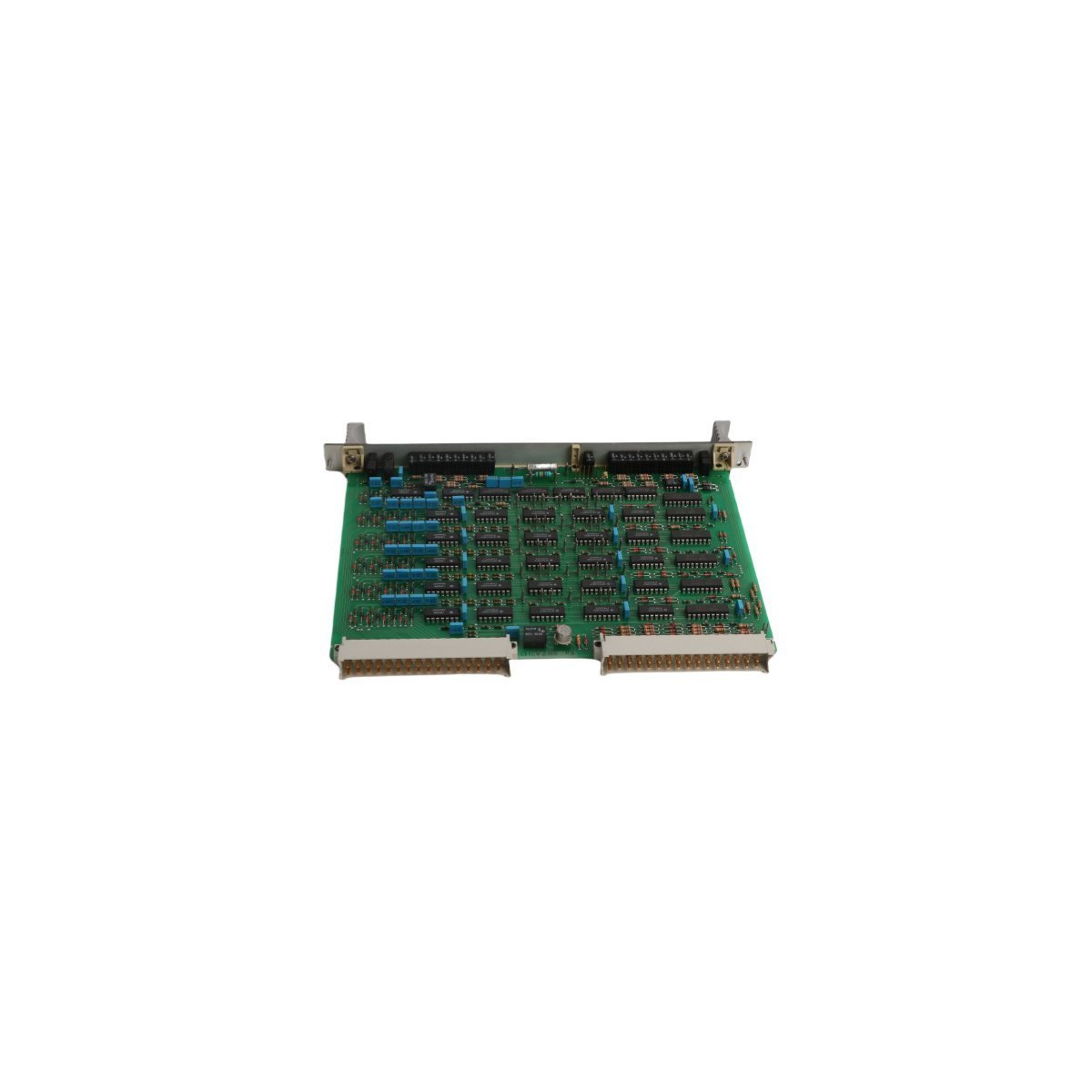

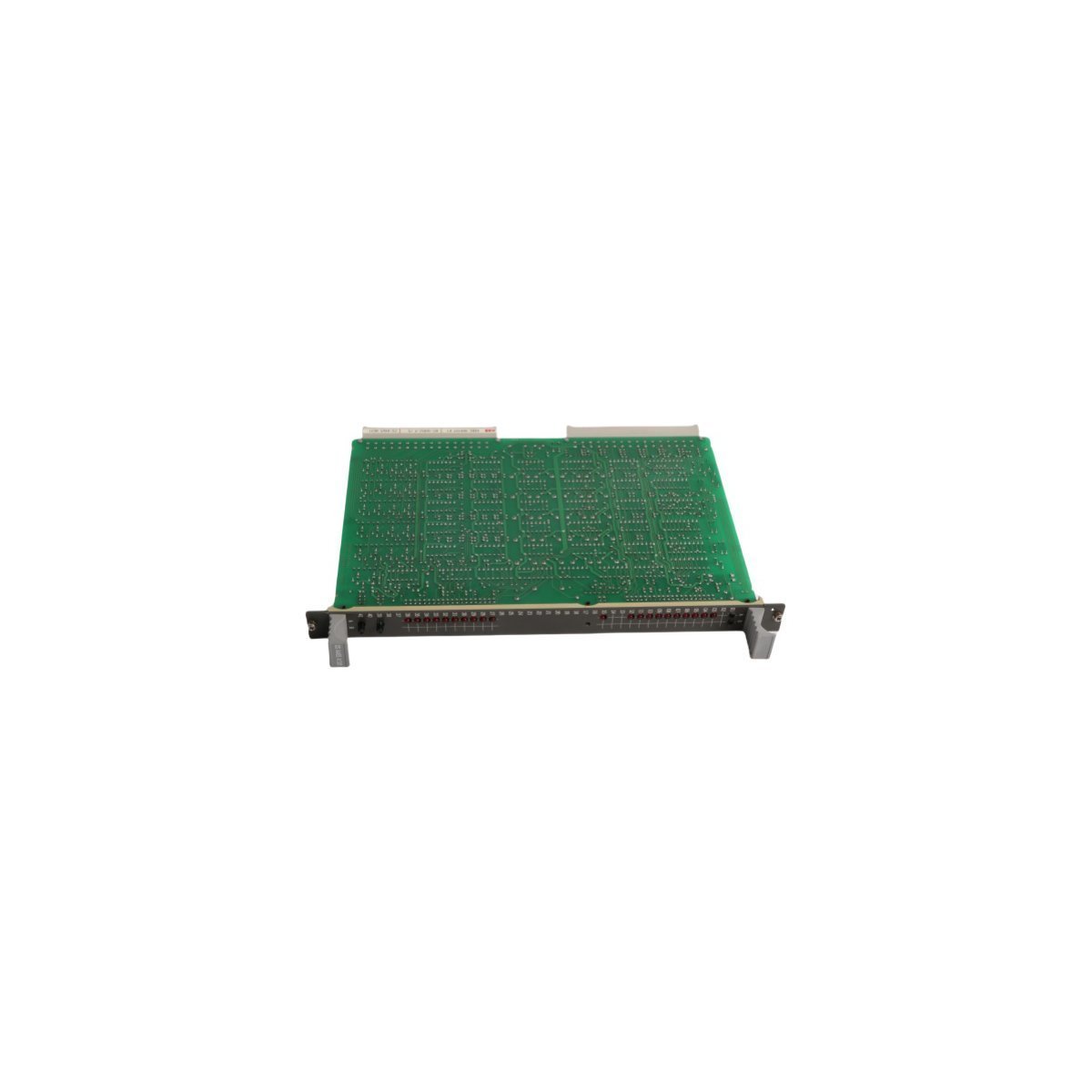

ABB HIEE400109R1 CS A465 AE01 UNITROL Circuit Board

ABB HIEE400109R1 CS A465 AE01 Circuit Board

Configured for determinist communication routing in UNITROL Excitation Systems, the ABB HIEE400109R1, also cataloged as the HIEE400109R1 Circuit Board, provides direct physical/electrical execution. The unit handles synchronous data processing and physical layer interface translation to sustain deterministic control loops. It maintains system link integrity across dedicated industrial networks by eliminating propagation delays between distributed node stations.

Hardware Specifications

Industrial Control & Drive Processing Architecture

Engineered specifically for UNITROL platforms, this assembly interfaces directly with high-velocity backplane bus communication velocity networks. The board incorporates dedicated hardware logic that mitigates protocol conversion latencies during multi-node transmissions. It maintains strict alignment with Profinet and EtherNet/IP deterministic networks, ensuring that high-density I/O routing does not introduce jitter into excitation control loops. The underlying gate array executes real-time data frame filtering while matching critical firmware flash compatibility baselines for synchronized system deployments.

Frequently Asked Questions

Q: How does the module manage protocol translation between RS-485 and Ethernet interfaces?

A: The on-board logic controller ingests asynchronous RS-485 serial frames and maps the data payload directly into deterministic Ethernet packets, minimizing buffer delays.

Q: What are the restrictions regarding firmware flash compatibility during field replacement?

A: The replacement module must match the exact firmware revision of the redundant companion board to prevent backplane bus initialization faults and synchronization rejection.

Field Installation Guidelines

• Ensure complete isolation of primary and auxiliary power supplies before inserting or removing the circuit board from the subrack.
• Maintain a minimum of 5 threads of engagement on all retaining screws to secure the module against high-frequency industrial vibration.
• Connect the RS-485 shielded twisted-pair drain wire directly to the central functional earth bar; do not create ground loops by terminating the shield at both cable ends.
• Verify that the routing paths for low-voltage signal cables maintain at least 100 mm of clearance from high-current AC excitation lines.
