ABB HIEE300025R2 VDA330 A02 UNITROL 5000 Circuit Boards

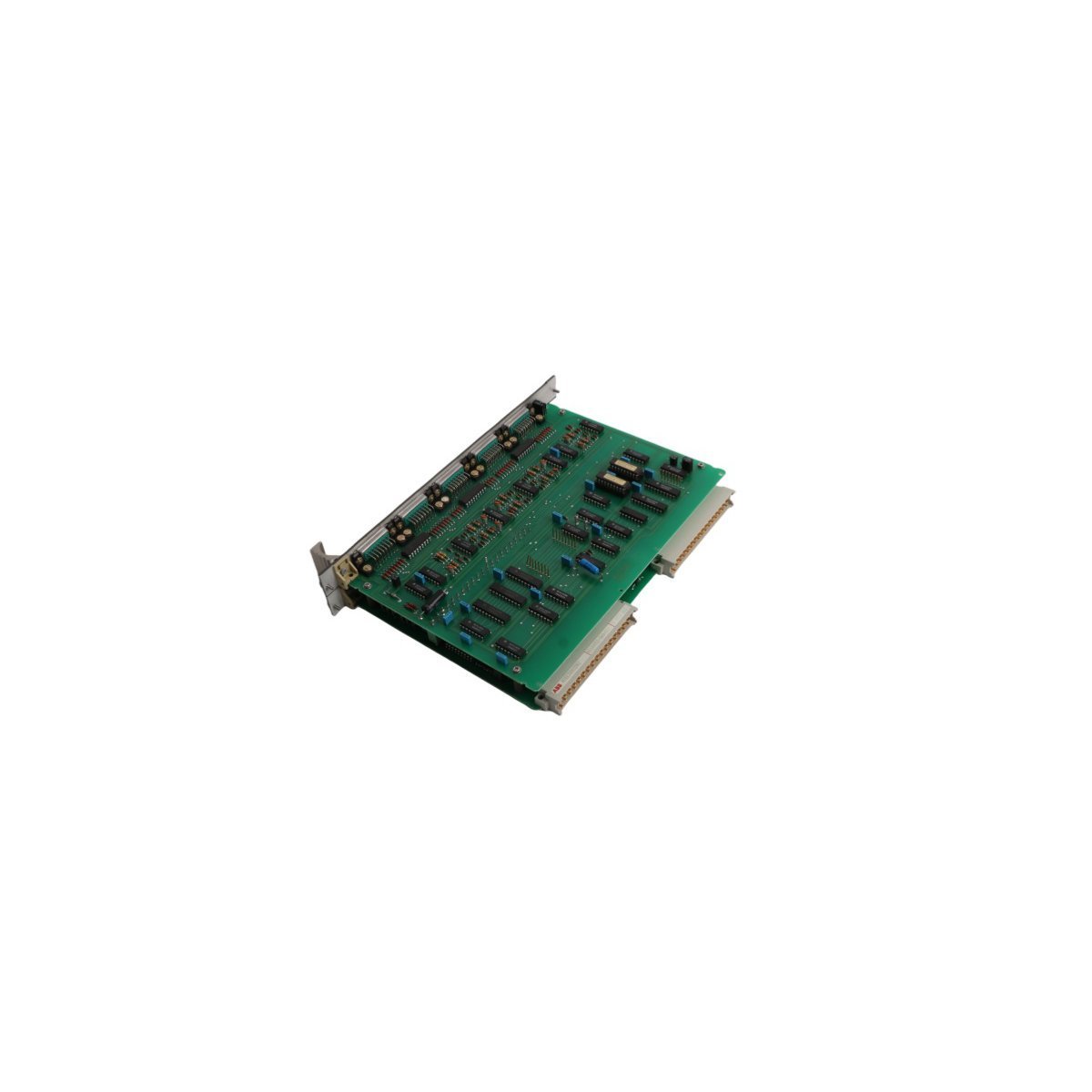

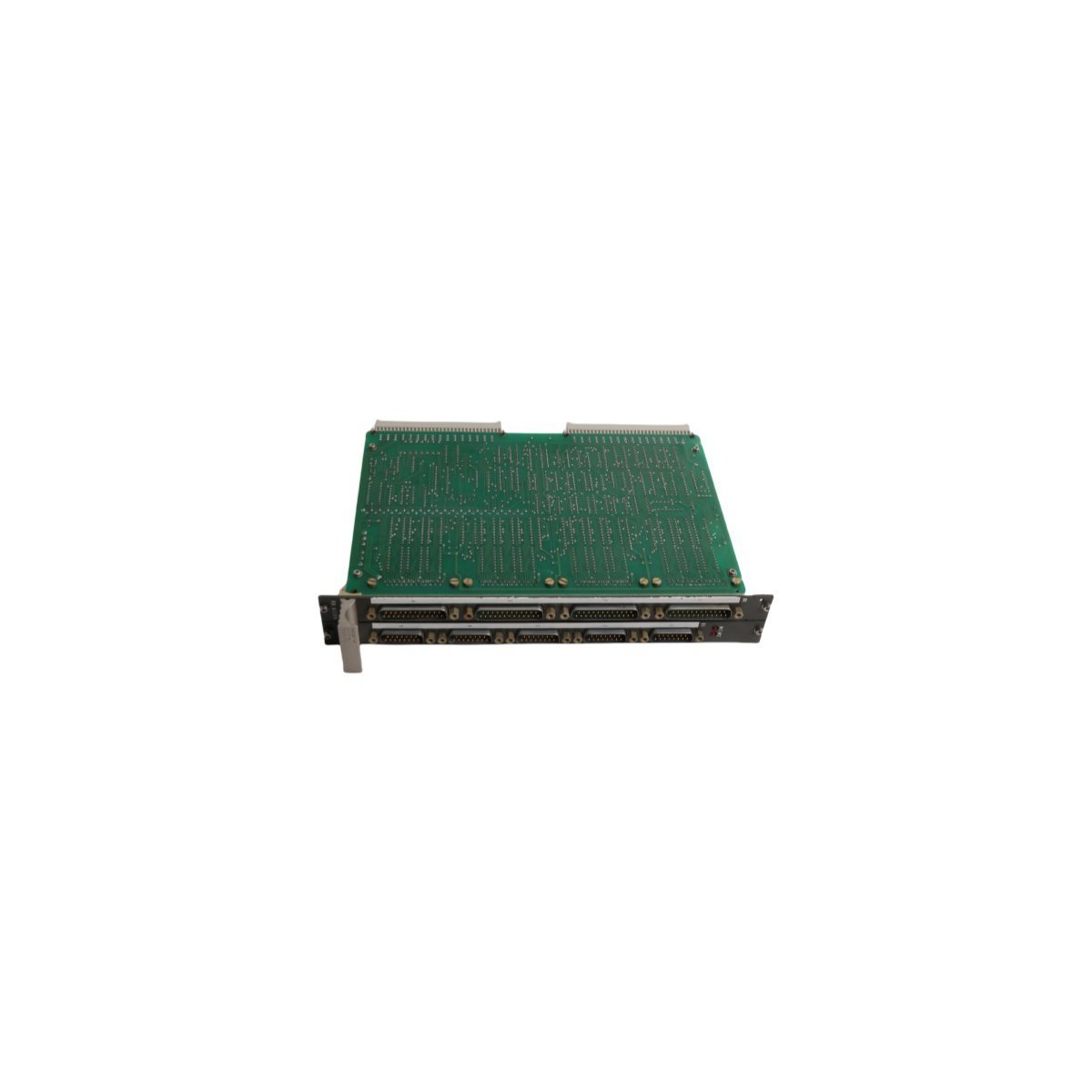

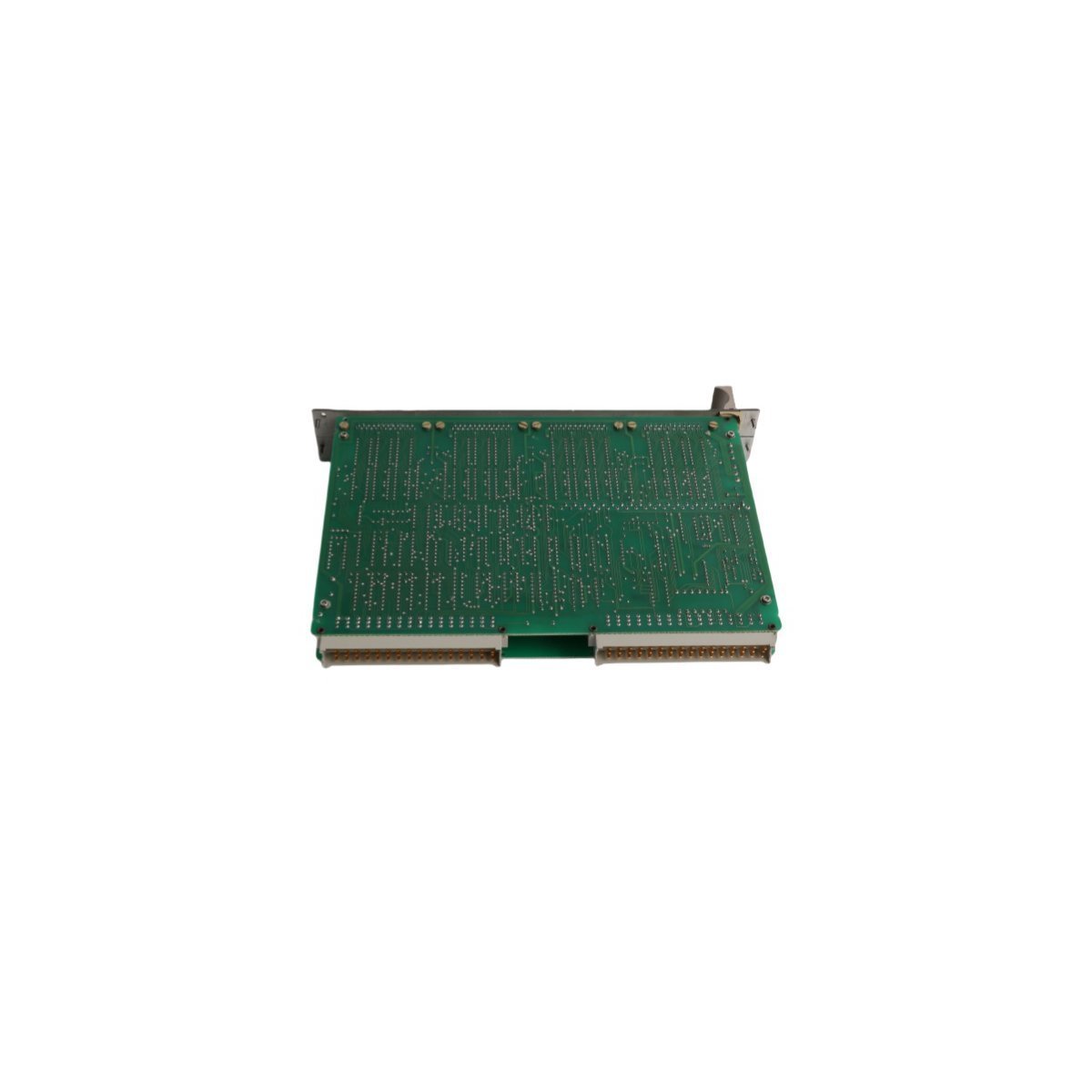

ABB HIEE300025R2 VDA330 A02 Circuit Board

Configured for high-power distribution control in excitation and drive applications, the ABB HIEE300025R2 (HIEE300025R2 Circuit Board) provides direct physical and electrical execution. The unit regulates control signals within the UNITROL 5000 platform while maintaining high thermal efficiency and load stability under continuous operations.

Hardware Specifications

ABB Specific Industrial Controls Integration

The module implements determinism via high-speed backplane bus communication networks. Engineers coordinate the firmware flash compatibility matrix to align with existing controller nodes in the DCS, which prevents version conflicts during cold starts. The integrated backplane architecture supports channel-to-channel isolation and dynamic physical resource allocation, reducing data transmission jitter below 1 ms.

Frequently Asked Questions

Q: What is the primary function of the communication service routing on this board?

A: The onboard routing logic routes high-frequency control signals and system telemetry between the UNITROL excitation controller and the central DCS via the standard Ethernet interface, maintaining deterministic cycle times.

Q: Does the module support hot-swap insertion within an active UNITROL chassis?

A: No, field installation guidelines dictate complete isolation of input power before replacing the HIEE300025R2 VDA330 A02 board to prevent damage to the backplane contacts and ensure signal safety.

Field Installation Guidelines

Mount the assembly vertically onto standard chassis guides to facilitate optimal heat dissipation over the passive heat sink structures. Installers must ground the chassis frame to the master protective earth using a low-impedance copper strap of at least 4 mm2. Ensure that minimum clearances of 50 mm are maintained on top and bottom faces to prevent thermal concentration exceeding 50 deg C. Verify that all field wiring terminals are tightened to a torque rating of 0.5 Nm maximum to prevent structural damage to the PCB substrate traces.
