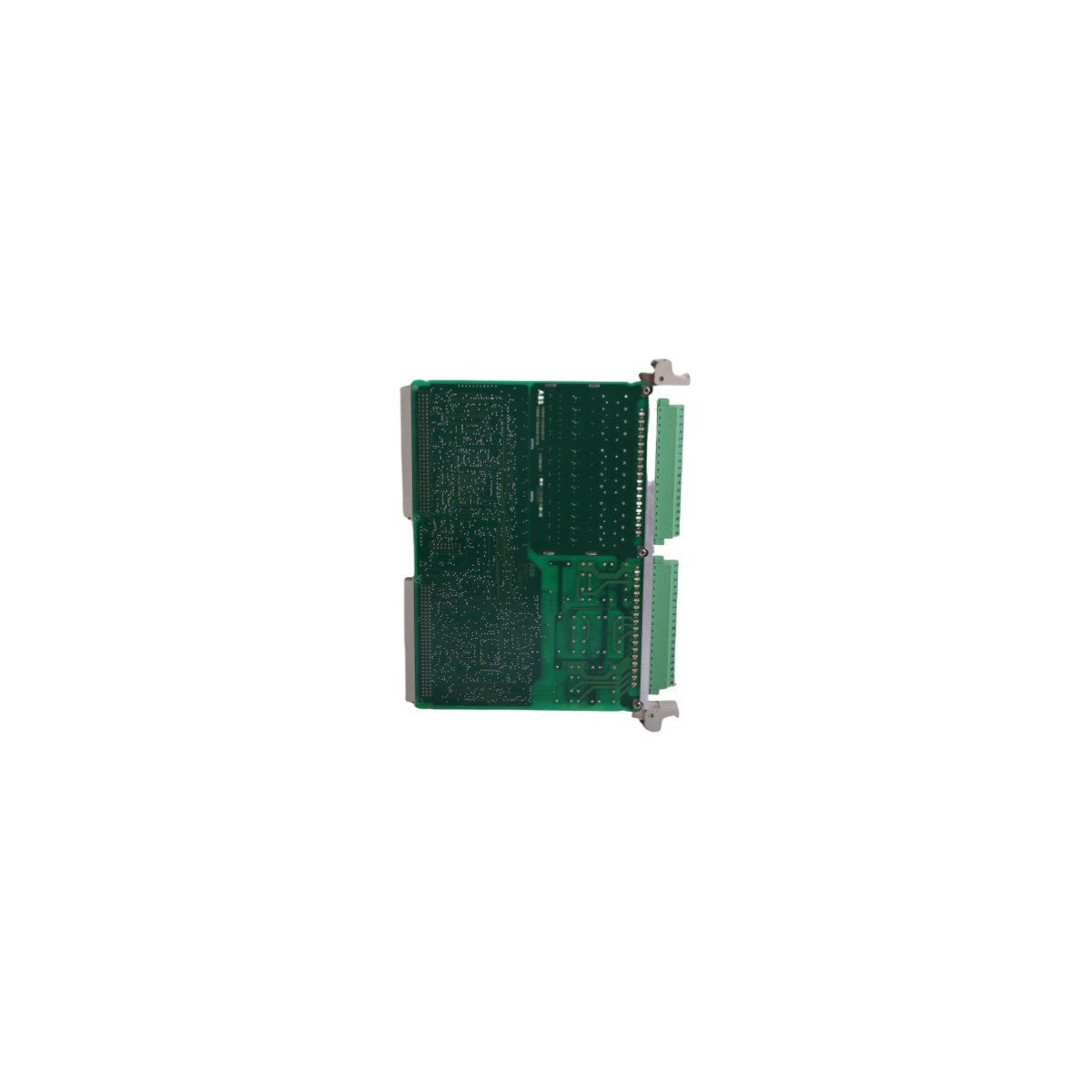

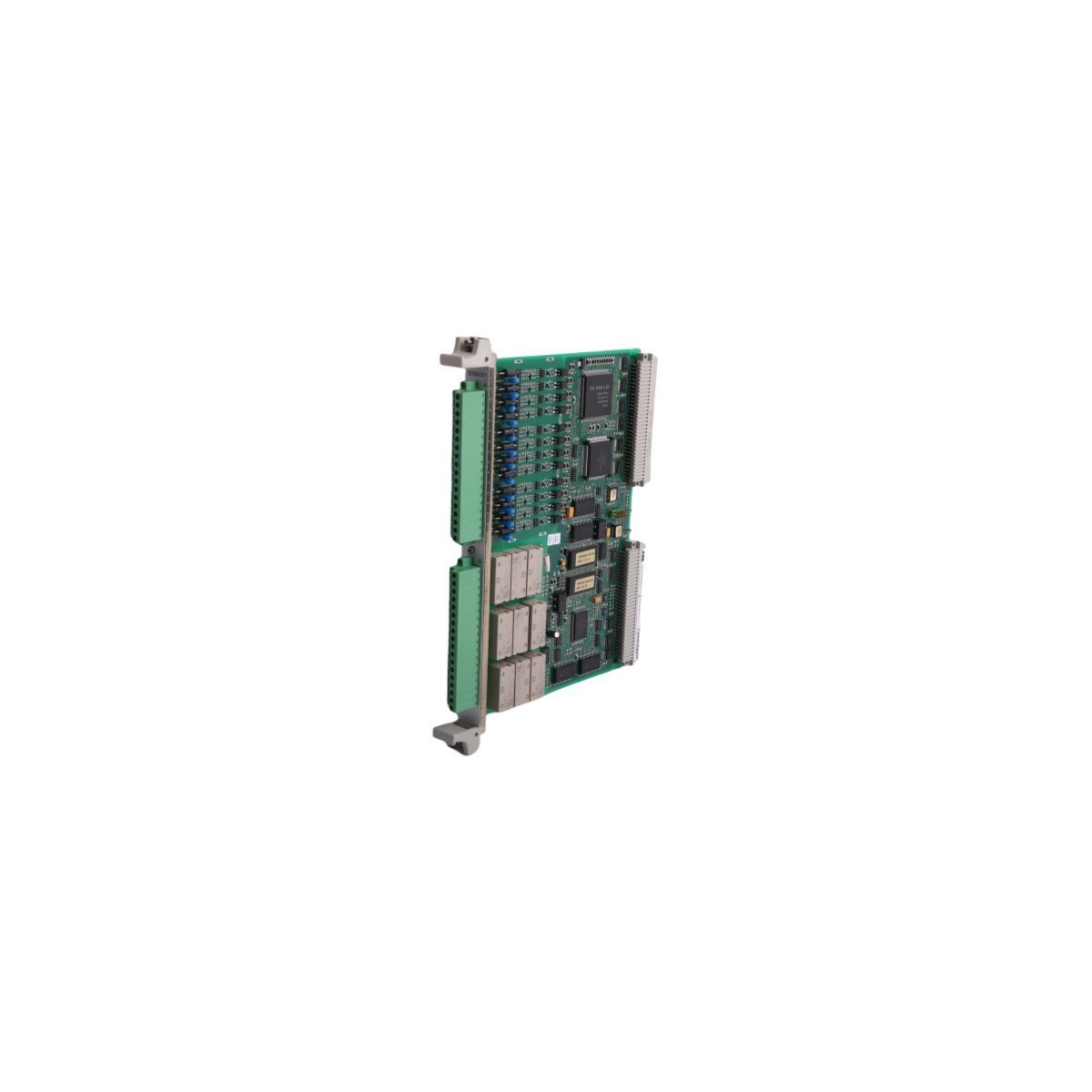

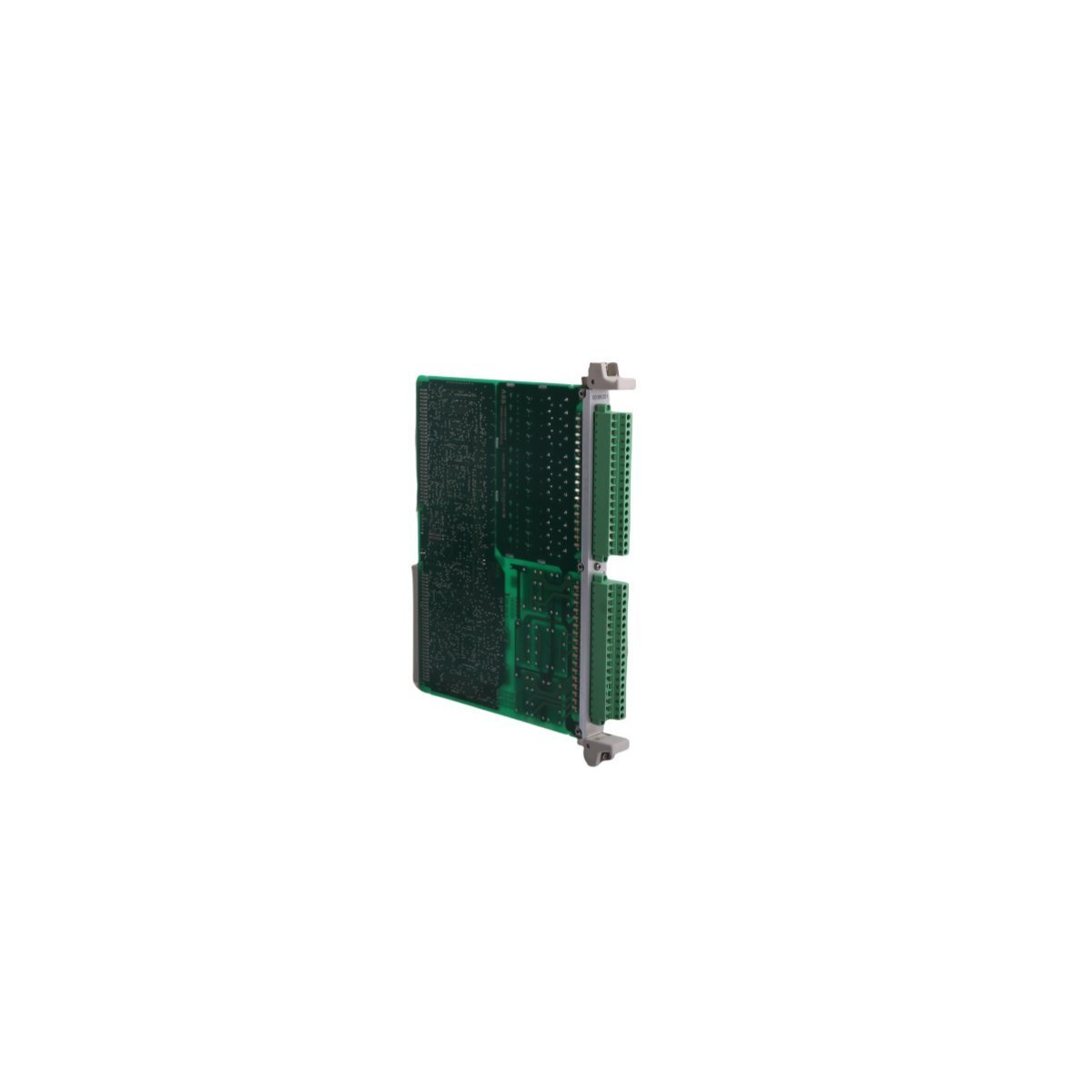

1MRB150082R0103 ABB 500CU-BIO01 Binary I/O Expansion Module

ABB 1MRB150082R0103 500CU-BIO01 I/O Expansion Module

Configured for binary signal acquisition and discrete field device execution in ABB Bay Control System networks, the ABB 1MRB150082R0103 500CU-BIO01 (500CU-BIO01 Binary I/O Module) provides direct physical/electrical execution. Technicians integrate this card into sub-rack assemblies where it routes discrete field inputs and switches binary output circuits. The unit manages onboard power distribution across its channel interfaces while executing serial data exchange via an RS-485 physical layer. Additionally, stainless steel housing shields internal logic components from industrial ambient interference.

Hardware Specifications

Backplane Bus Communication Velocity and System Integration

Engineers engineer the module to maintain deterministic backplane bus communication velocity across bay control racks. The circuit architecture enforces galvanic isolation between field terminals and internal logic buses, which prevents ground loop currents from destabilizing central processing routines. High-speed backplane traces route input status bits directly to the main system CPU, and field-side optocouplers isolate high-voltage spikes during switching operations. Consequently, the hardware maintains low transfer latency during sudden voltage transients or heavy system bus traffic.

Frequently Asked Questions

Q: How does the module control heat dissipation during continuous high-load switching?

A: The board utilizes low-power field interface drivers that cap current draw at 20 mA per channel. Additionally, the stainless steel frame acts as a passive heat conductor, transferring thermal energy away from internal components into the rack enclosure.

Q: Can maintenance teams hot-swap the 1MRB150082R0103 500CU-BIO01 card during active system operation?

A: Standard bay control racks require field technicians to de-energize the 24 VDC loop power supply and safely isolate the RS-485 bus before extracting the board. Pulling the module under live power risks generating serial bus timing faults and voltage arcs across backplane pins.

Field Installation Guidelines

Field installation requires strict adherence to standard industrial wiring and grounding protocols:

1. Mount the module vertically into the designated rack slot, verifying that backplane connectors align perfectly before applying seating force.
2. Secure all retaining screws on the front panel to establish solid chassis ground grounding through the stainless steel housing.
3. Route 24 VDC power conductors and signal cables through separate conduit channels to suppress electromagnetic interference (EMI).
4. Terminate the RS-485 communication loop using 120 ohm shield-matched twisted-pair cable, and ground the overall cable shield at one end only.
5. Verify field contacts match the voltage limits of the 8 input channels prior to energizing the main power source.
