Bently Nevada 330130-080-12-RU 3300 XL Standard Extension Cable

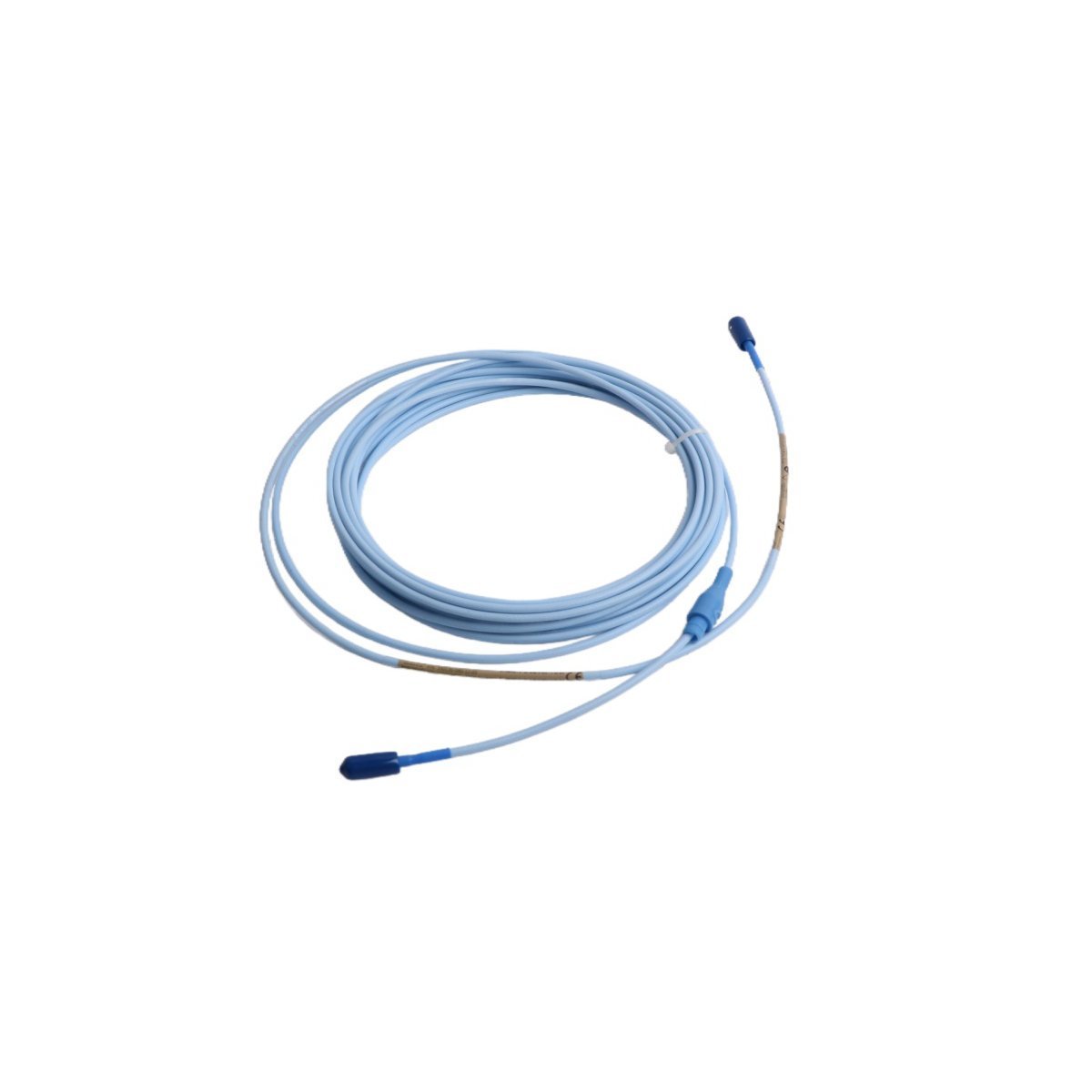

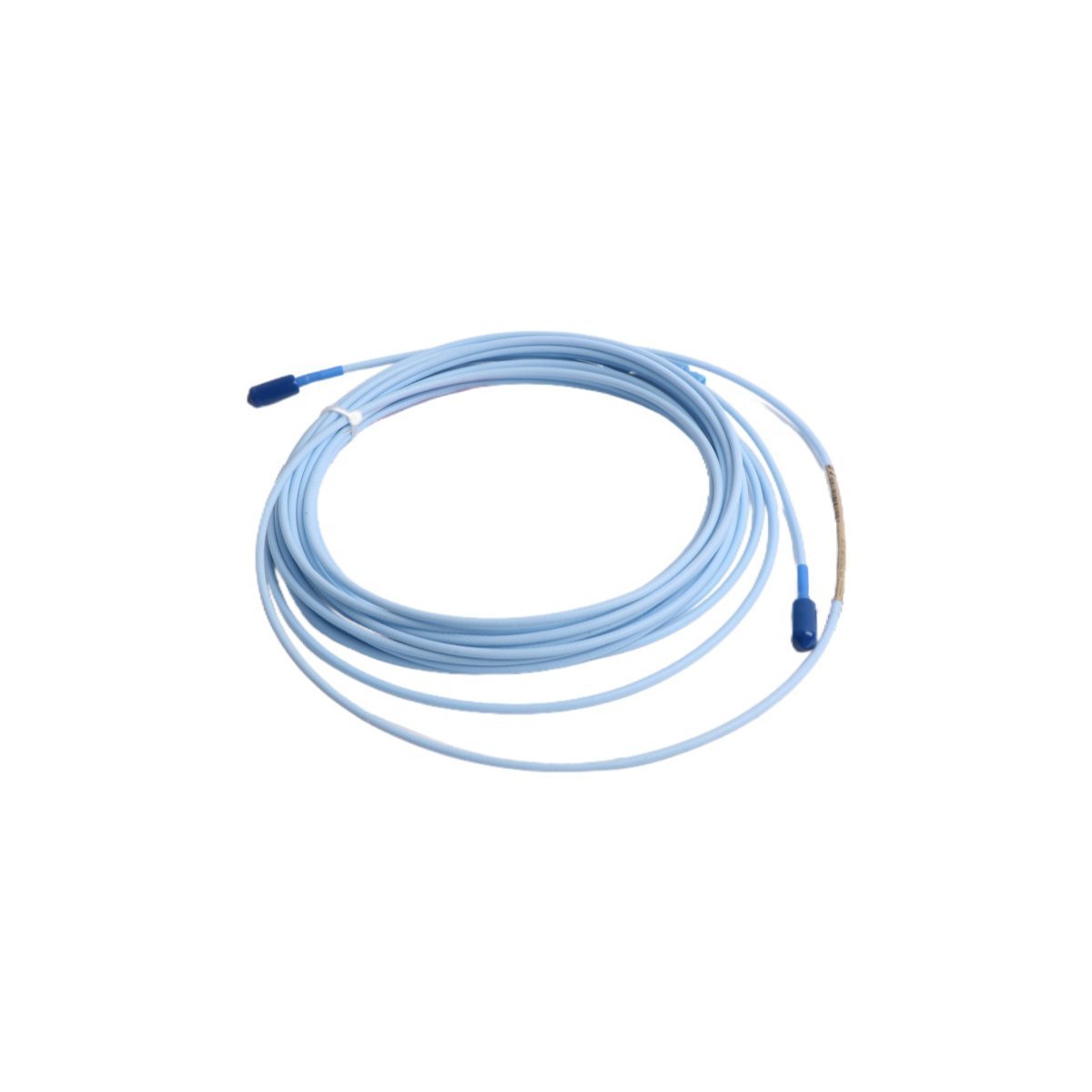

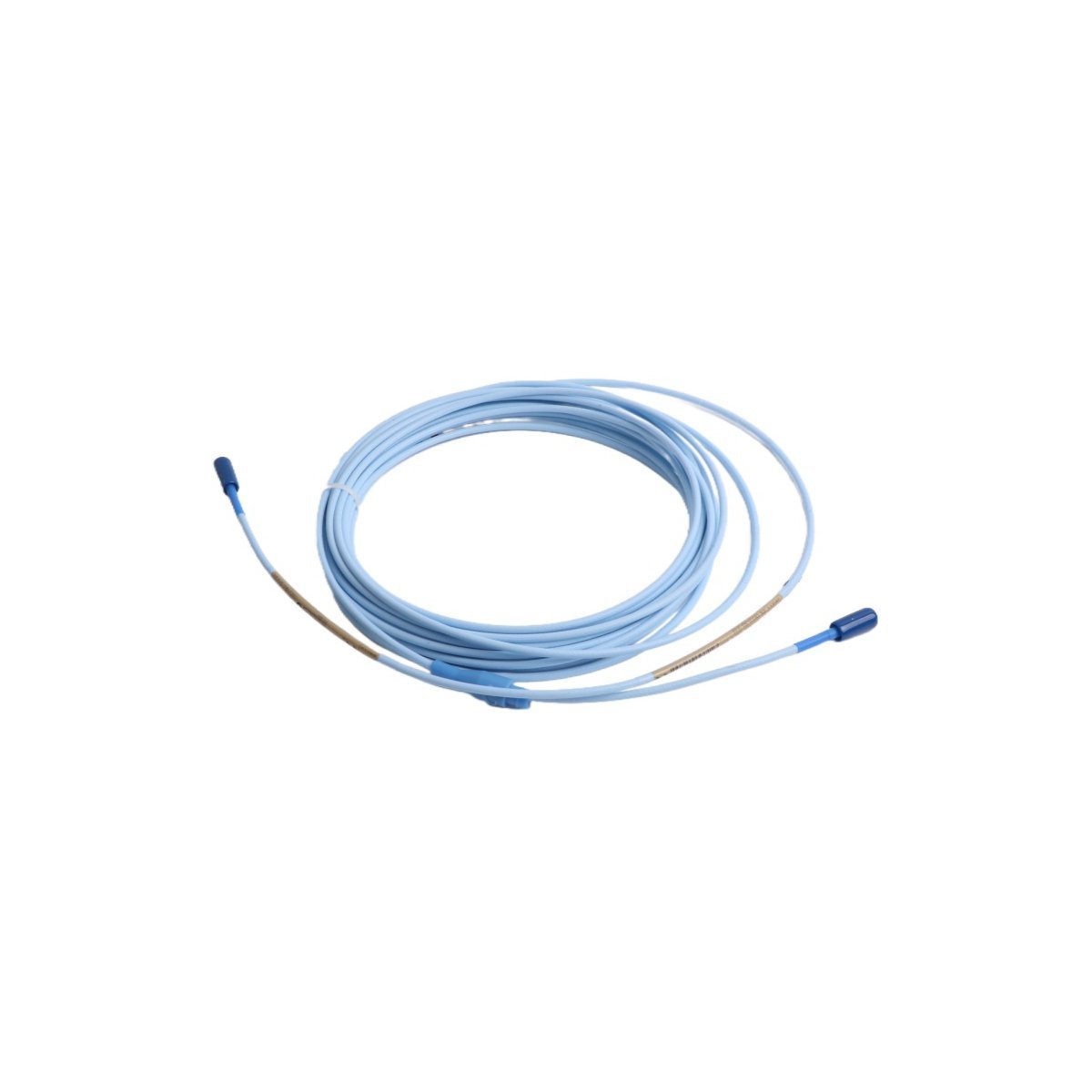

The Bently Nevada 330130-080-12-RU, also cataloged as the 330130 Extension Cables, operates as a dedicated hardware component for high-frequency signal routing and impedance matching within TSI platforms. The cable connects an 8 mm proximity probe to a 3300 XL Proximitor Sensor, maintaining an overall system physical length of 9.0 m (8.0 m extension cable plus 1.0 m probe cable). Equipped with standard ClickLoc coaxial connectors, brass coupling nuts, and a flexible protective sleeve, this component transmits high-frequency radio-frequency signals across harsh mechanical environments without signal decay.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

The 330130-080-12-RU extension cable preserves strict eddy-current probe scaling accuracy across the physical separation distance between the probe tip and Proximitor sensor. Because proximity transducer circuits depend on tuned inductance-capacitance resonance, altering or mismatching cable length shifts the factory calibration curve away from 7.87 V/mm (200 mV/mil). Engineers perform gap voltage validation (-10 VDC targets) at the Proximitor output terminals to verify proper installation geometry. By maintaining precise internal capacitance and resistance profiles, the cable eliminates high-frequency signal attenuation, allowing the monitoring system to capture rapid shaft orbit shifts and high-amplitude vibration during complex rotor dynamics events.

Frequently Asked Questions

Q: How do field technicians verify that the ClickLoc connectors are fully locked during installation?

A: Field technicians push the coaxial connectors together until they feel and hear an audible tactile snap. Afterwards, technicians slide the integrated rubber boot completely over the mating joint to prevent oil, water, or conductive dust from contaminating the electrical contacts.

Q: Can maintenance staff alter or shorten the 330130-080-12-RU cable in the field?

A: No, technicians must never trim, splice, or alter the cable length. The 3300 XL Proximitor sensor requires a precise total system cable length (typically 5.0 m or 9.0 m) to maintain electrical resonance and linear voltage scaling.

Field Installation Guidelines

1. Connector Cleaning and Engagement: Inspect connector pin faces for dirt or oil prior to mating. Firmly press the ClickLoc coaxial connectors together until they click into place, then thread the brass lock ring securely hand-tight.
2. Protective Boot Positioning: Slide the rubber connector protector fully over the joined connectors. Wrap the outer boot seams with self-vulcanizing silicone tape if installing the junction inside oily or high-moisture machine housings.
3. Tray Routing and Cable Bend Radius: Route the extension cable inside dedicated grounded metallic conduit or instrument trays. Maintain a minimum bend radius of 25.4 mm (1.0 in) along the run to avoid crushing the internal coaxial shield braid.
4. Shield Isolation Practices: Verify that the coaxial shield remains floating at the probe junction and ground the shield braid strictly at the Proximitor sensor terminal box to eliminate ground loops.
