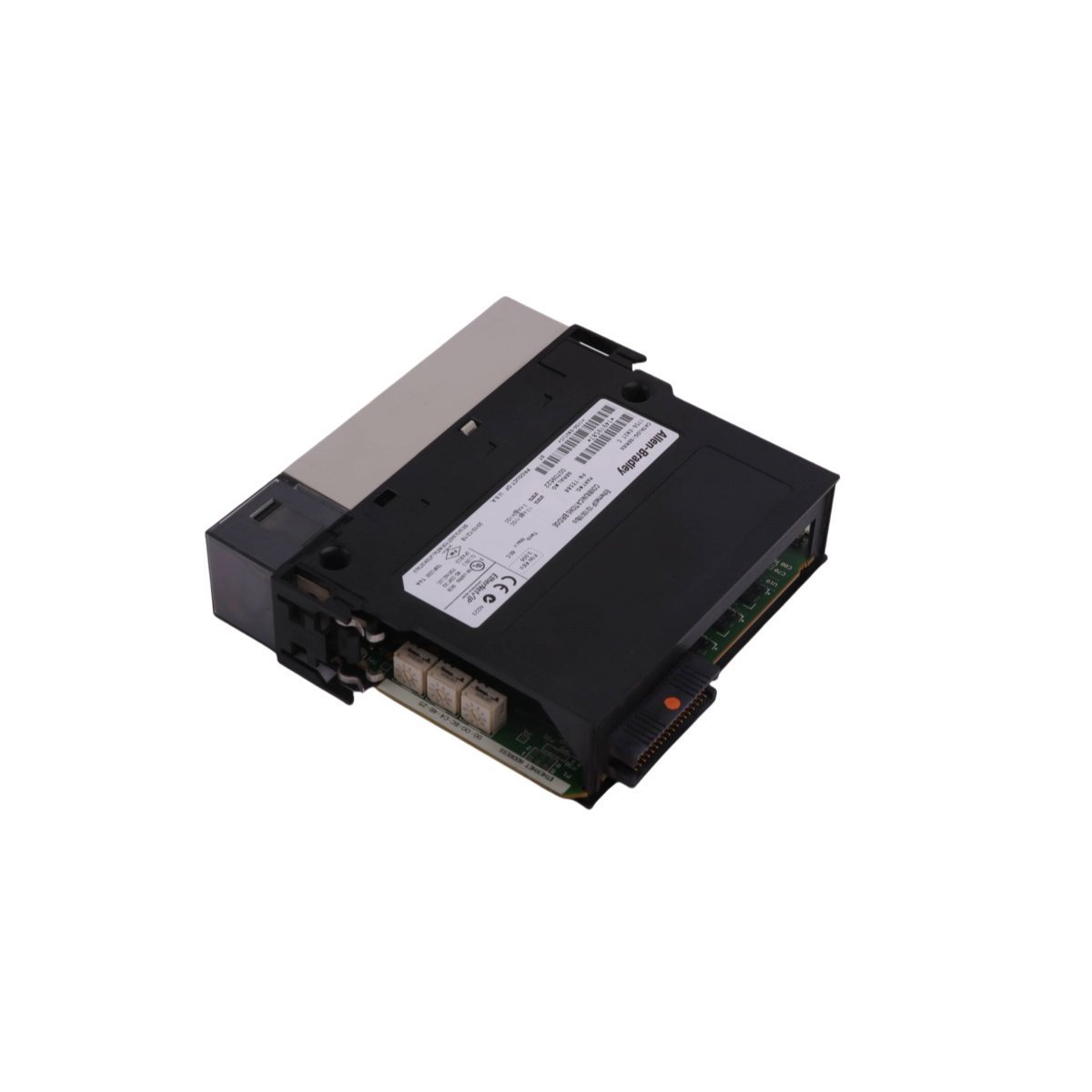

Brief Product Description
The Allen-Bradley 1756-EN2T serves as a high-capacity communication interface that bridges a ControlLogix chassis to an EtherNet/IP network. It enables real-time data exchange between controllers, I/O devices, and supervisory systems while supporting advanced features like CIP Safety and integrated motion.

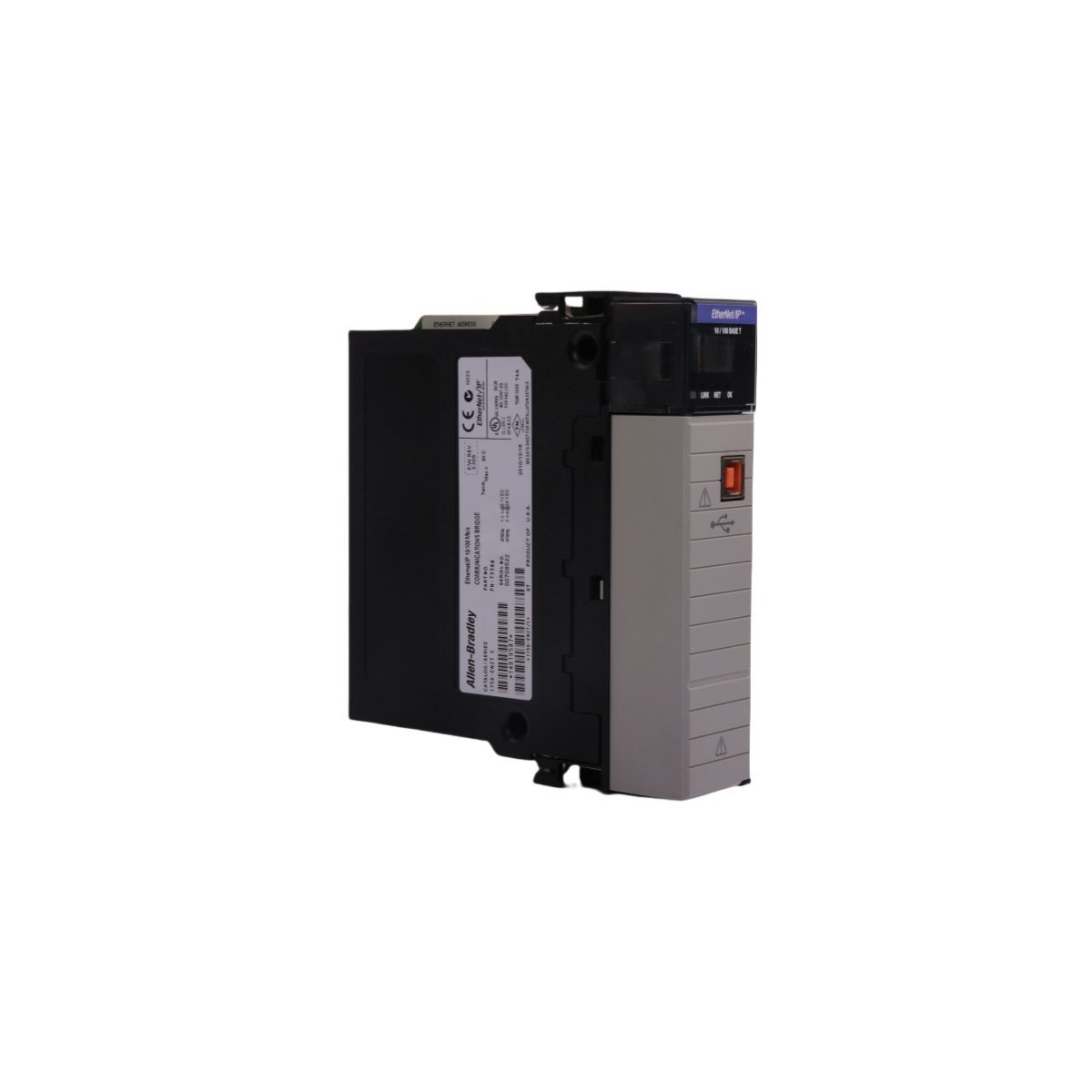

Technical Overview and Functional Capability
The 1756-EN2T module functions as a critical gateway within the Rockwell Automation Integrated Architecture, facilitating seamless data transparency across the plant floor. By utilizing standard TCP/IP and UDP/IP protocols, this module eliminates the need for proprietary network scheduling, thereby accelerating system deployment. It effectively manages high-volume traffic, supporting up to 128 TCP/IP connections and 256 Logix communication connections, which ensures stable performance even in data-intensive SCADA and MES environments.
Beyond standard data messaging, the module excels in high-speed control tasks. It supports integrated motion on EtherNet/IP for up to 8 axes, allowing engineers to synchronize drive movements directly through the Ethernet port. Furthermore, the unit facilitates CIP Safety, which permits the simultaneous transmission of safety and standard control data over the same physical cable, reducing hardware overhead and simplifying safety system certification.
Core Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model Number: 1756-EN2T
- Module Type: EtherNet/IP Bridge Interface
- Communication Speed: 10/100 Mbps (Auto-negotiating)
- Logix Connections: 256
- TCP/IP Connections: 128
- Integrated Motion Axes: Up to 8 axes
- Backplane Current: 1A @ 5.1V DC
- Power Dissipation: 5.1 Watts
- Thermal Dissipation: 17.4 BTU/hr
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Isolation Voltage: 30V (continuous), tested at 1500V AC for 60 seconds

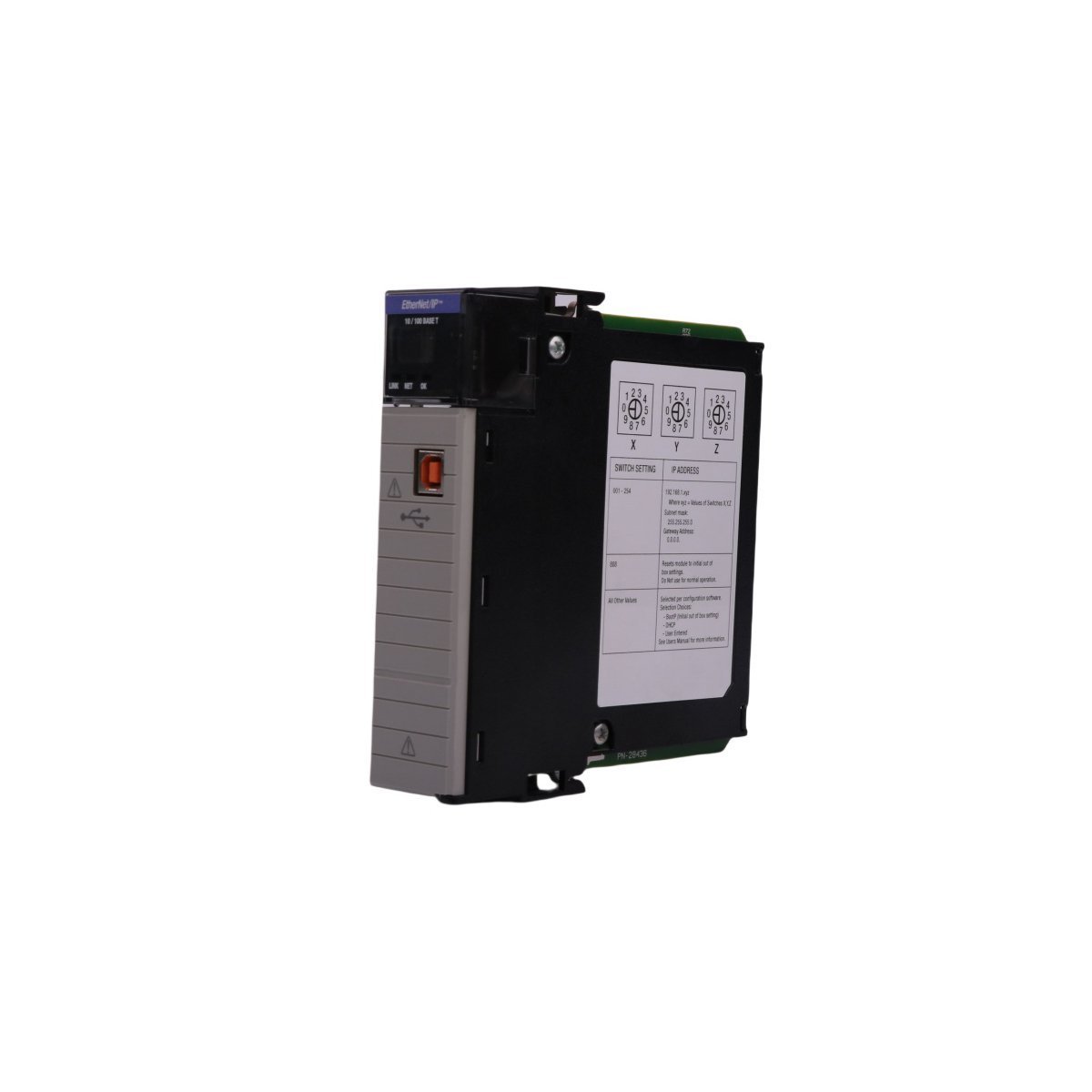

Network Architecture and Security
The 1756-EN2T module supports versatile network topologies, including linear and star configurations, providing flexibility for various plant layouts. While the original text mentioned a discontinuation date, this module remains a widely utilized standard in existing industrial infrastructures due to its reliability and broad compatibility with 1756-A4 through 1756-A17 chassis. Its hardware design includes an RJ45 port for Category 5 twisted-pair cabling, ensuring cost-effective connectivity.
Security remains a primary focus for this bridge module. It incorporates electronic keying to prevent the accidental installation of incorrect module versions, which protects the integrity of the control system. Additionally, the protected mode operation limits unauthorized access to the control network, a vital feature for modern IIoT implementations where plant-floor data must be securely integrated with enterprise-level systems.
Primary Industrial Applications
- Controller-to-controller data synchronization in multi-chassis systems
- Real-time interface for HMI, SCADA, and Historiant software
- High-speed distributed I/O control for manufacturing lines
- Coordinated motion control for packaging and material handling
- Bridge for CIP Safety devices in hazardous area monitoring
