16710-16 Bently Nevada 16-Channel Shielded Transducer Interconnect Cable

Bently Nevada 16710-16 Interconnect Cables

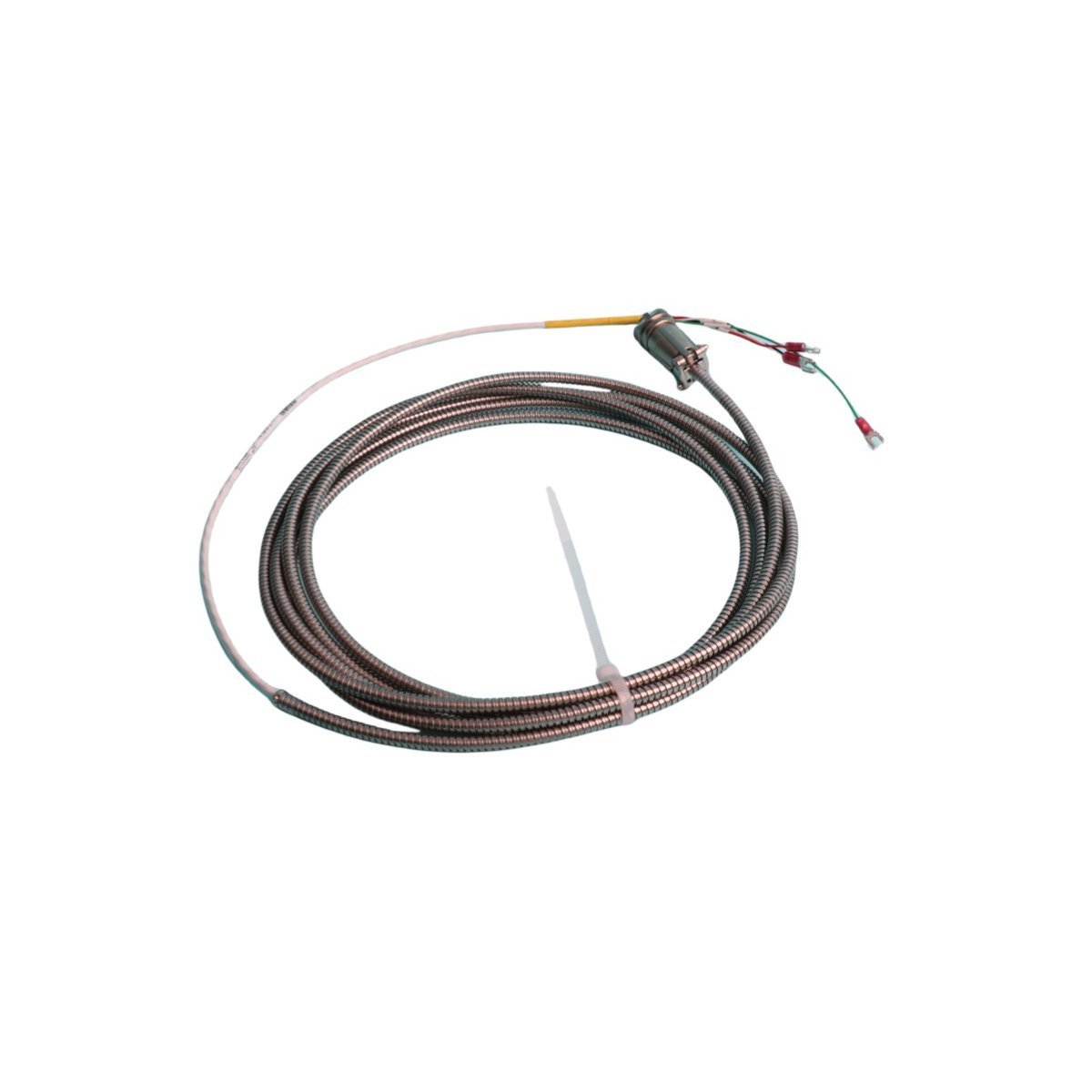

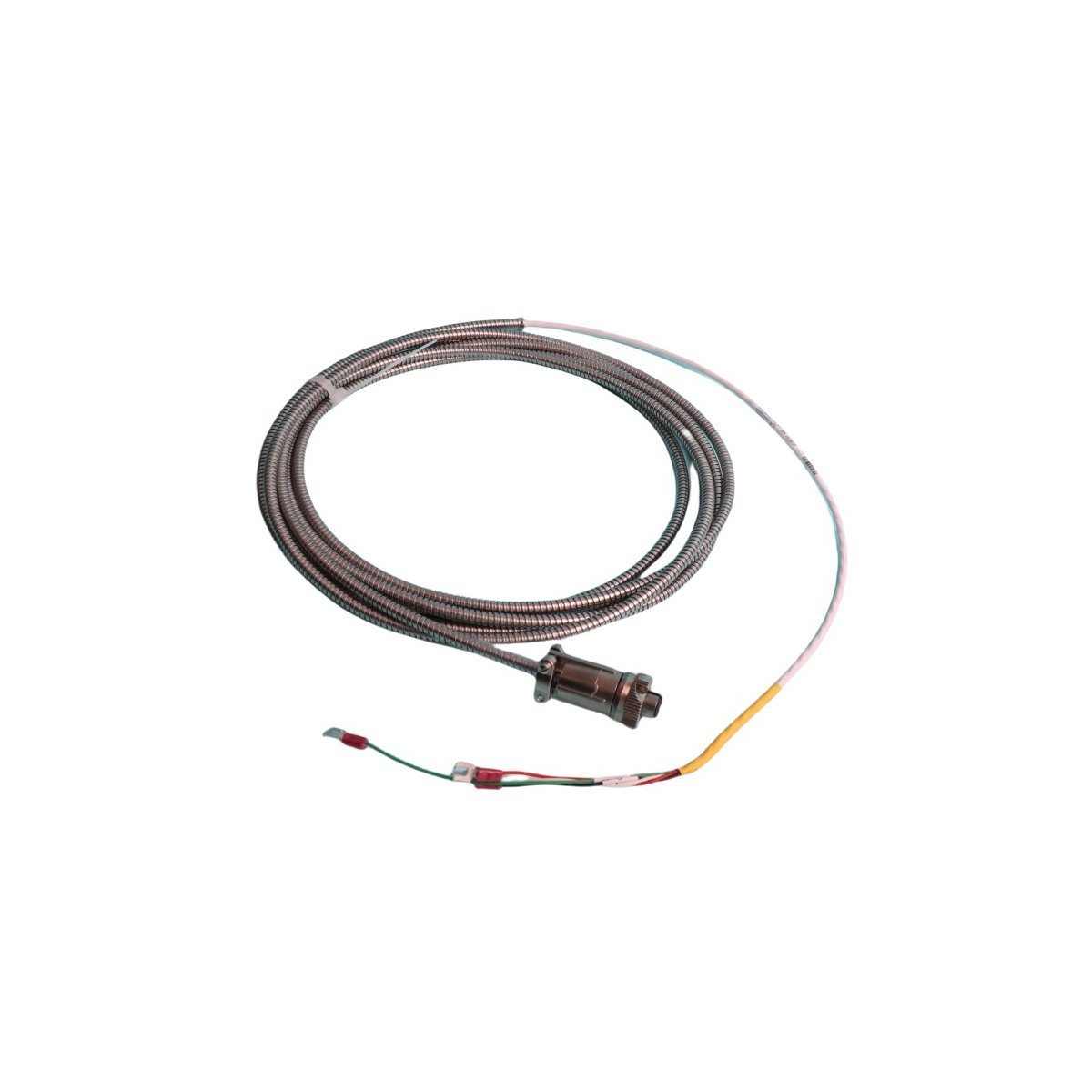

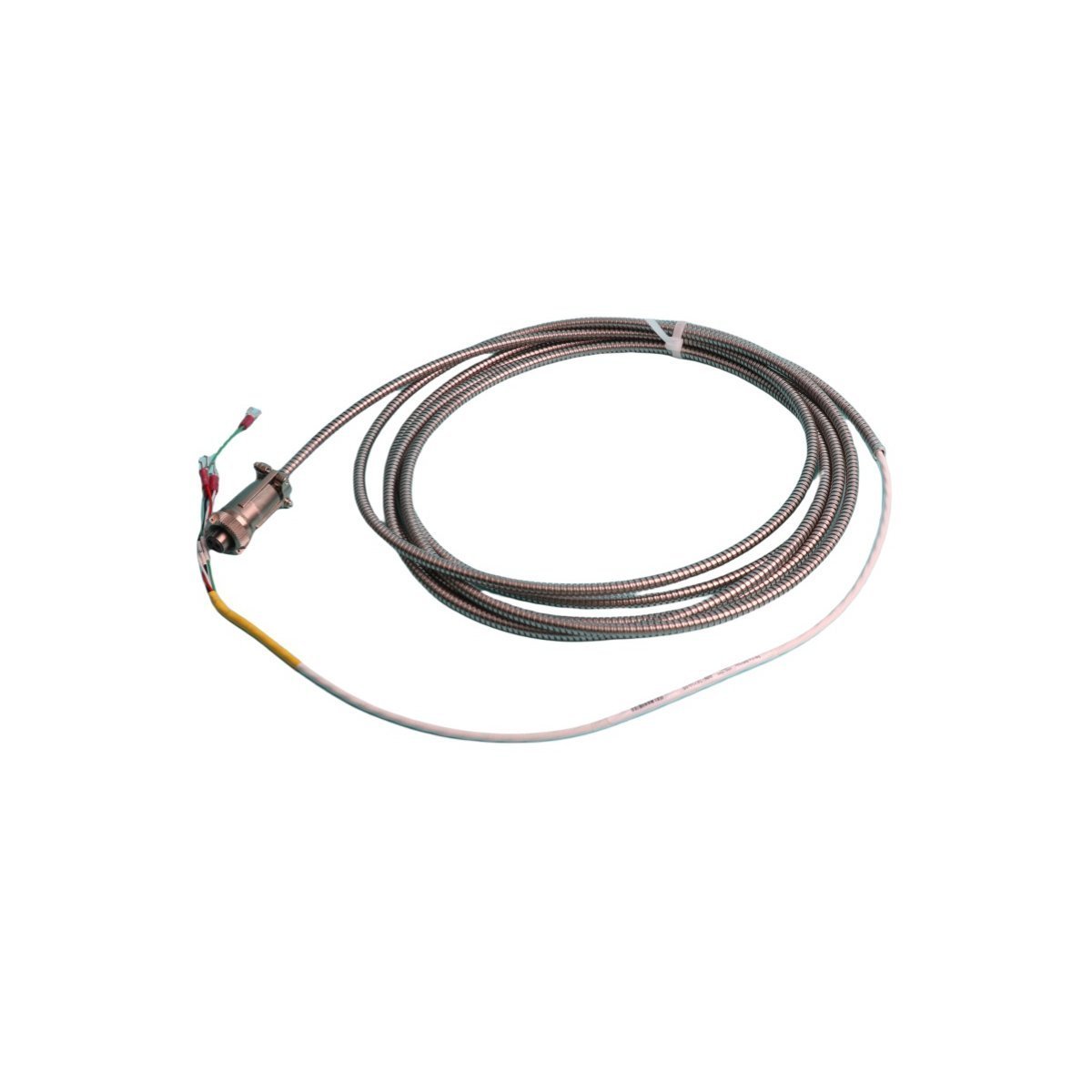

The Bently Nevada 16710-16, also cataloged as the 16710 Interconnect Cable, operates as a dedicated hardware component for multi-channel signal routing within TSI platforms. The assembly contains 16 individually shielded twisted pairs that carry low-voltage dynamic sensor data from field-mounted transducers back to instrument racks. Engineers utilize this assembly to complete electrical pathways between proximity sensors, velocity sensors, or accelerometers and localized machinery protection monitors.

Hardware Specifications

Mechanical Monitoring & TSI Product Attributes

The multi-channel link maintains strict electrical parameters to ensure accurate eddy-current probe scaling over long transmission runs. By maintaining low internal capacitance, the cable prevents attenuation during signal transmission, which facilitates proper gap voltage validation (-10 VDC targets) at the receiver card. The structural twisted-pair geometry delivers high-efficiency cross-talk suppression between adjacent monitoring loops, preventing data corruption across adjacent measurement channels. This shielding profile preserves the transient frequency responses required for real-time rotor dynamics analysis on high-speed industrial machinery.

Frequently Asked Questions

Q: How does the internal shield structure prevent signal degradation across the 16 channels?

A: Each individual channel utilizes independent foil shielding wrapped around a 22 AWG twisted pair, which isolates low-voltage sensor outputs from neighboring channel frequencies and external electromagnetic noise.

Q: Can this cable bundle withstand chemical exposure in demanding field environments?

A: Yes, the outer fluorinated ethylene propylene (FEP) jacket resists corrosive industrial solvents, moisture, and oils while maintaining flexible physical properties across the entire -40 to +105 deg C temperature range.

Field Installation Guidelines

• Connector Engagement: Align the pins of the rack-end 16-pin male connector with the monitor panel receptacle carefully. Thread the retaining collar manually until it seats completely to prevent physical detachment or intermittent contact points.
• Conduit Routing Limits: Pull the multi-pair cable assembly through dedicated industrial wireways. Maintain a steady bend radius greater than ten times the overall cable diameter to prevent stress fractures in the internal 22 AWG stranded copper conductors.
• Shield Grounding Infrastructure: Connect the main outer drain wire exclusively to the clean instrument ground bus inside the rack enclosure. Keep the field-end shields isolated at the junction box to eliminate ground loop currents that disturb position measurements.
• Separation from Power Circuits: Maintain a minimum physical distance of 300 mm (12 inches) between these signal conductors and high-voltage AC motor power lines. Use grounded metallic barriers inside shared trays to block external voltage induction.
