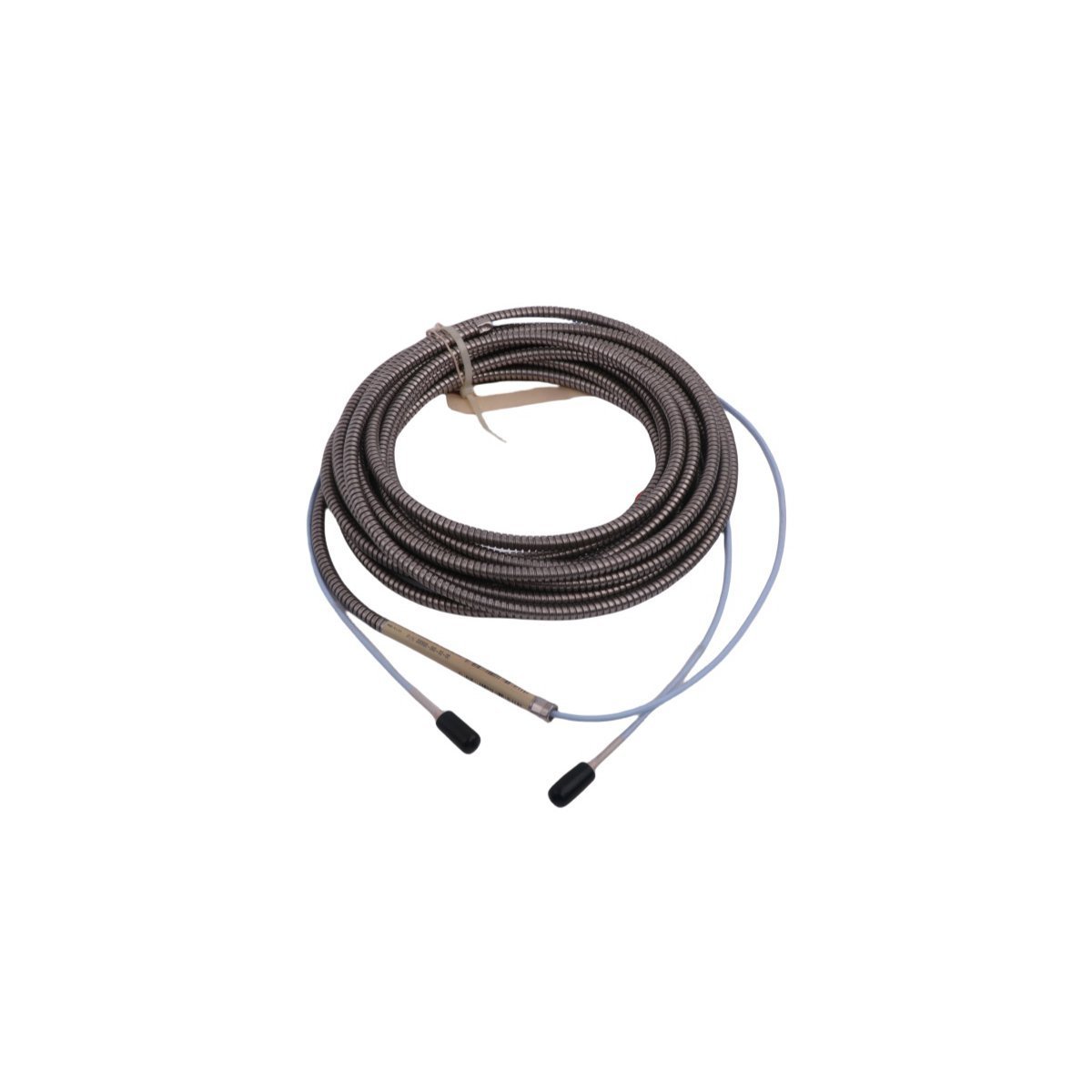

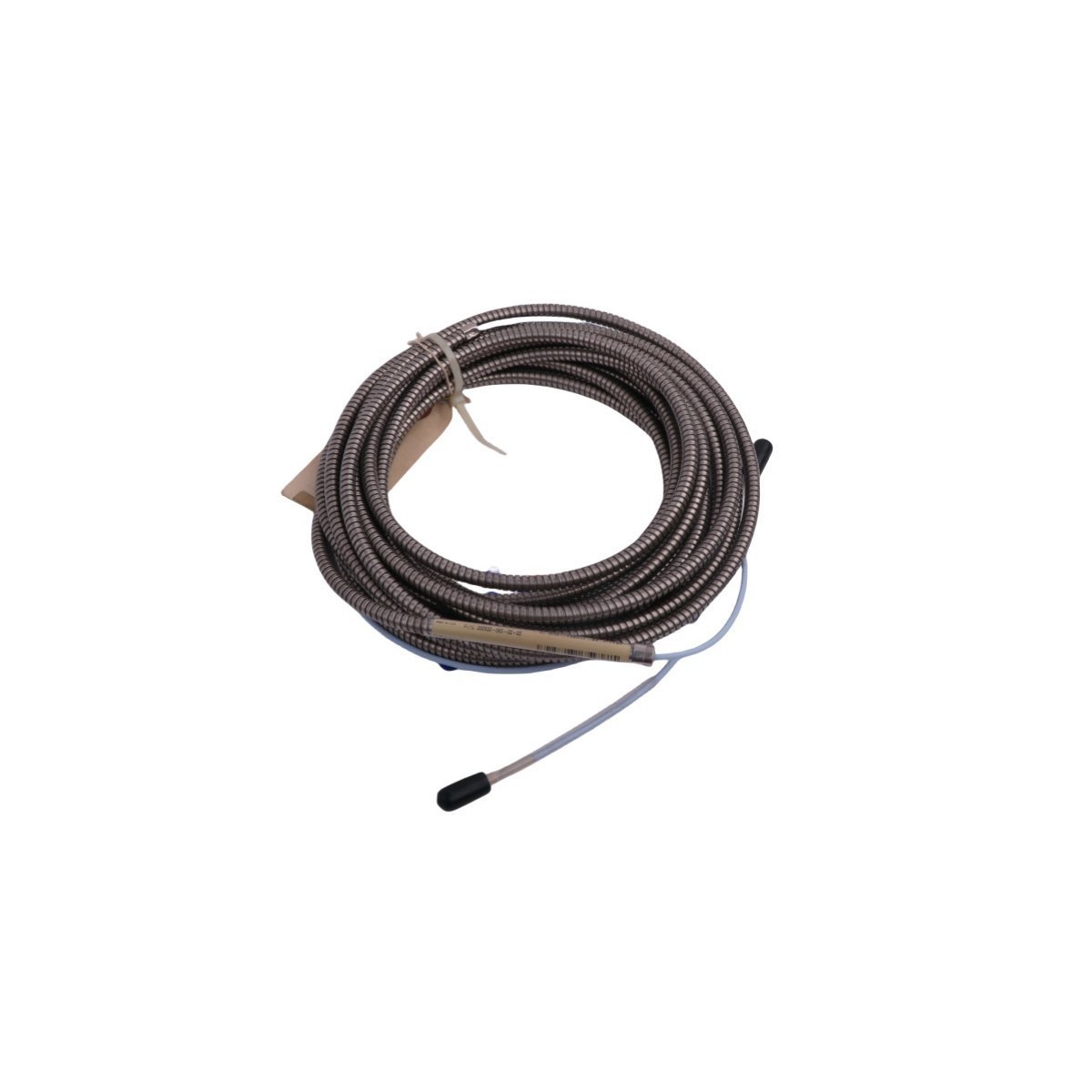

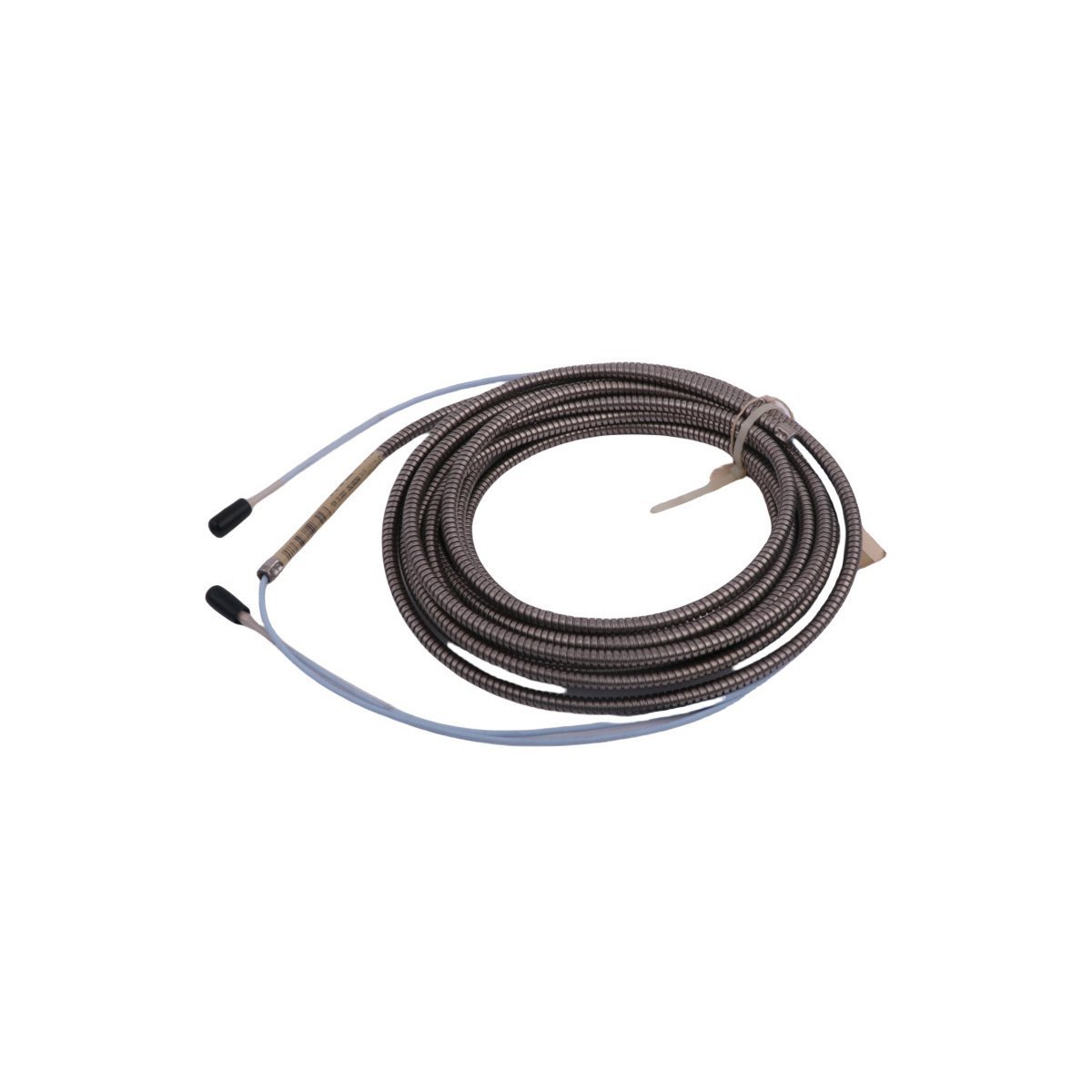

Bently Nevada 330930-065-02-00 3300 XL NSv Extension Cable

The Bently Nevada 330930-065-02-00, also cataloged as the 330930 Extension Cable, operates as a dedicated hardware component for high-frequency signal routing within TSI platforms. The assembly completes the electrical path between a 3300 XL NSv proximity probe and a localized proximity sensor driver card. By transmitting low-voltage eddy-current signals over an extended physical distance, this cable enables precise displacement tracking on machines with strict mounting limitations.

Hardware Specifications

Mechanical Monitoring & TSI Product Attributes

The coaxial extension line maintains strict electrical impedance parameters to uphold precise eddy-current probe scaling across the 6.5 meter run. Maintaining low signal degradation allows the downstream driver to perform accurate gap voltage validation (-10 VDC targets) during continuous machine operation. The physical construction provides robust cross-talk suppression when engineers route multiple extension lines together through narrow wireways. This architecture preserves the phase and amplitude accuracy required for comprehensive rotor dynamics analysis on high-speed process compressors.

Frequently Asked Questions

Q: How does the 6.5 meter length affect the overall calibration of the proximity sensor loop?

A: The system calibration requires matching the combined length of the proximity probe and this extension cable to the exact physical length specified by the proximitor driver tuning parameter.

Q: Does the presence of the stainless steel armor degrade the high-frequency response of the internal signal conductor?

A: No, the external stainless steel armor provides mechanical shielding against crushing forces while the internal coaxial spacing preserves a clean 7.87 V/mm transmission profile.

Field Installation Guidelines

• Connector Mating Integrity: Ensure the miniature coaxial ClickLoc joints remain free of dust, grease, and moisture before assembly. Push the male and female ends together firmly until the internal mechanical lock clicks into place.

• Armor Bend Constraints: Route the 6.5 meter armored housing through structural pathways carefully. Maintain a continuous bend radius greater than 30 mm to avoid internal conductor deformation and insulation stress.

• Terminal Insulation Procedures: Slide a length of oil-resistant heat-shrink tubing over the mated ClickLoc connection point. Seal the connection completely to prevent the metal body from contacting the grounded machine frame or conduit panels.

• Conduit Noise Isolation: Maintain distinct routing separation between these sensor lines and heavy industrial AC electricity lines. House the sensor extension leads inside continuous metal conduits to eliminate high-frequency electromagnetic field interference.
