Bently Nevada 16710-09 Proximitor Sensor Interconnect Cable

Bently Nevada 16710-09 Interconnect Cable

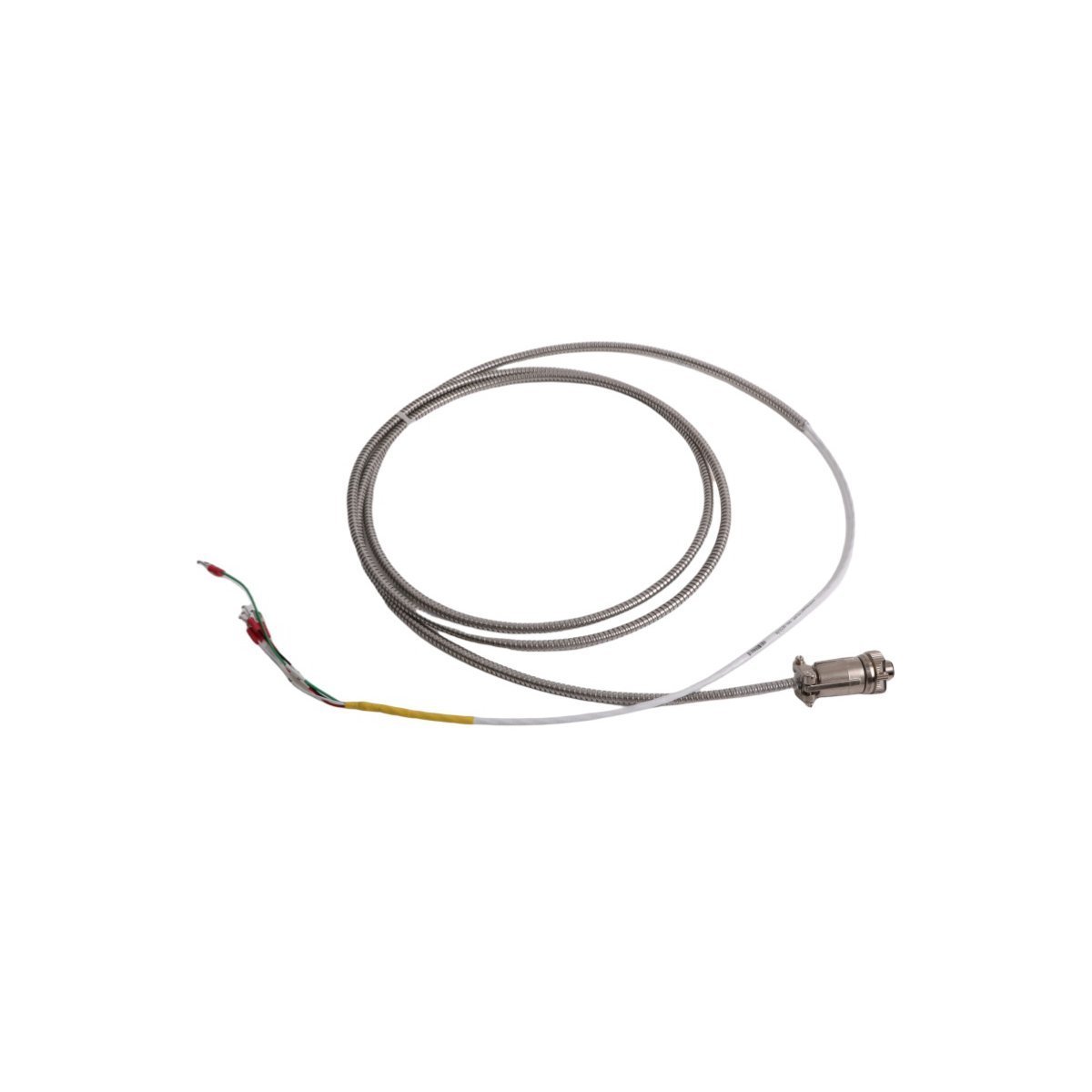

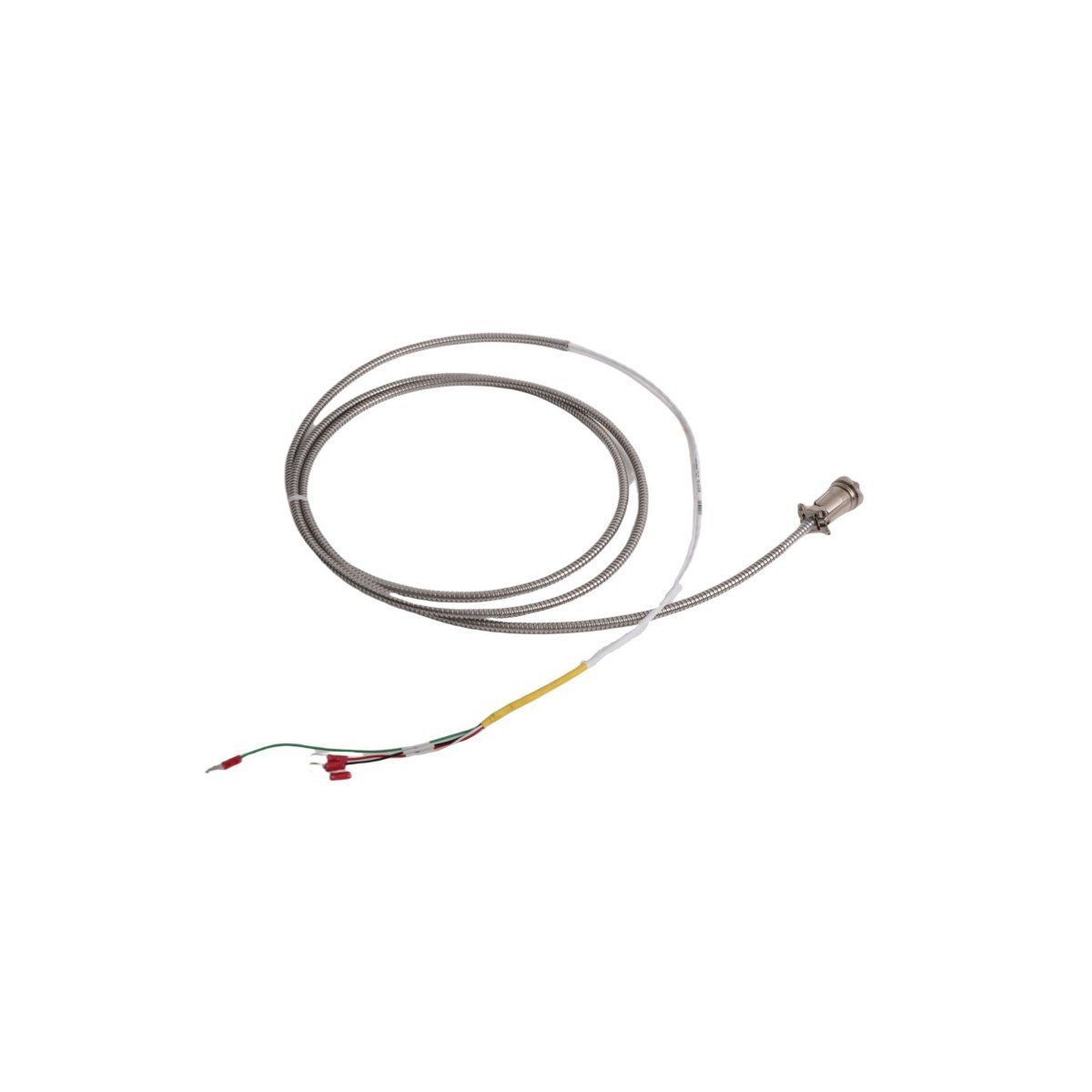

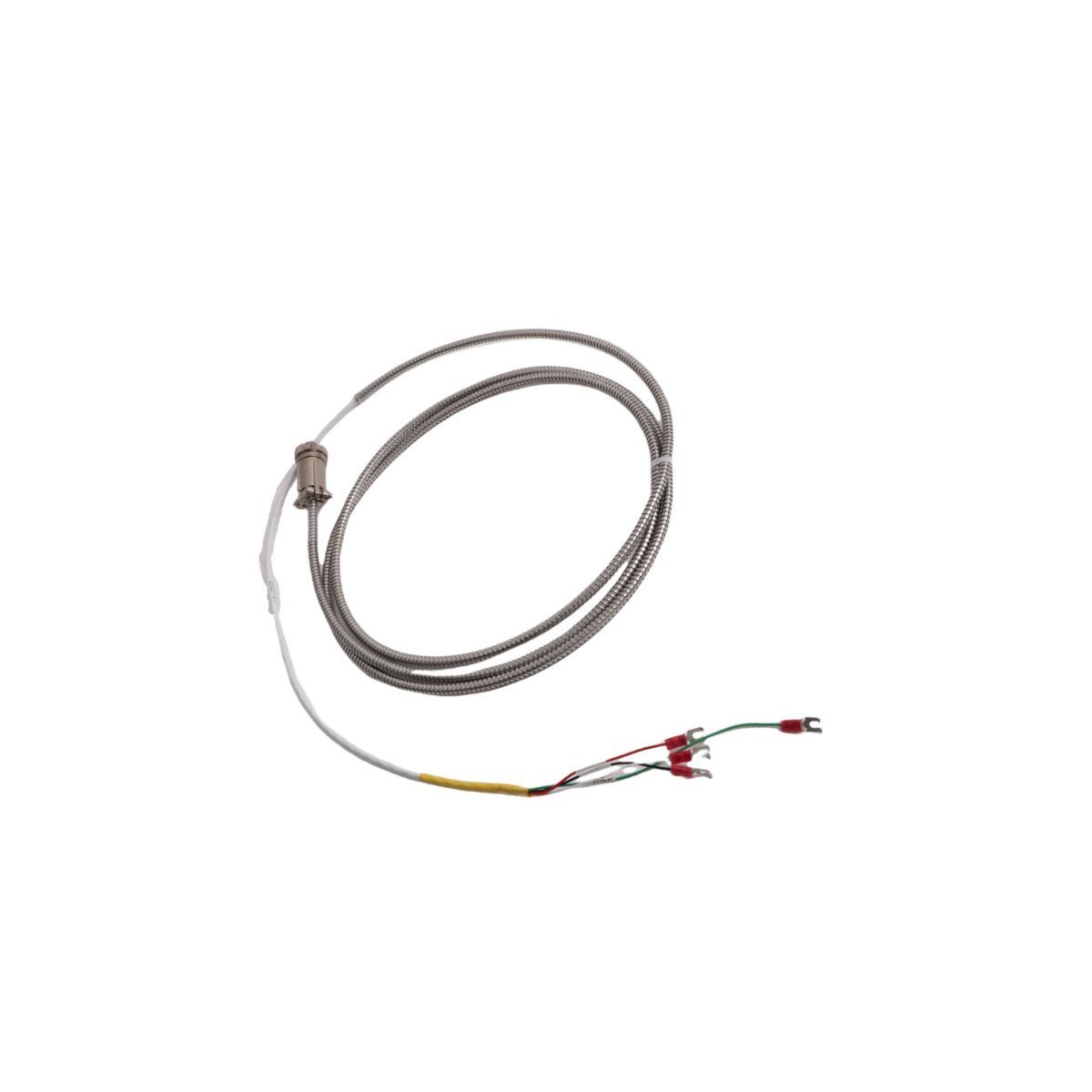

Configured for low-loss signal routing in TSI rack platforms, the Bently Nevada 16710-09 (16710 Interconnect Cable) provides direct physical/electrical execution between Proximitor sensors and machinery protection monitors.

Hardware Specifications

Rotor Dynamics & Signal Validation

The 16710-09 interconnect cable routes high-frequency raw dynamic signals without altering phase accuracy or amplitude scaling. Field technicians perform gap voltage validation across the interconnect loop to verify that DC bias signals maintain the required -10 VDC baseline targets at the Proximitor output terminals. Stable characteristic impedance suppresses high-frequency reflections across the transmission line, which prevents signal distortion during rapid rotor dynamics evaluation and ensures precise cross-talk suppression between neighboring sensor channels.

Frequently Asked Questions

Q: How does conductor capacitance affect measurement accuracy over extended run lengths?

A: The cable maintains a mutual capacitance below 50 pF/ft, which prevents phase shift and signal attenuation across dynamic vibration frequencies up to the monitor bandwidth limits.

Q: What insulation features allow this cable to withstand harsh field wiring environments?

A: The cable utilizes Fluorinated Ethylene Propylene (FEP) insulation, which preserves dielectric strength and resists chemical degradation across an operational temperature envelope of -40 deg C to +105 deg C.

Q: Can installation crews field-terminate this cable assembly without specialized calibration equipment?

A: Technicians can strip and land the 22 AWG stranded copper conductors on standard terminal blocks, provided they preserve twisted-pair geometry to maintain the 100 ohm characteristic impedance.

Field Installation Guidelines

Technicians must pull the 16710-09 cable through grounded metallic conduits to isolate signal paths from adjacent high-voltage power lines. Field crews should enforce a minimum bend radius of 50 mm during pull-through operations to prevent physical conductor deformation. Installers must trim drain wires cleanly and ground cable shielding at a single point inside the main monitoring enclosure, which prevents ground loops from corrupting critical shaft position readings.
