HIEE300885R0101 PPC380AE0101 ABB UNITROL 5000 PC Boards

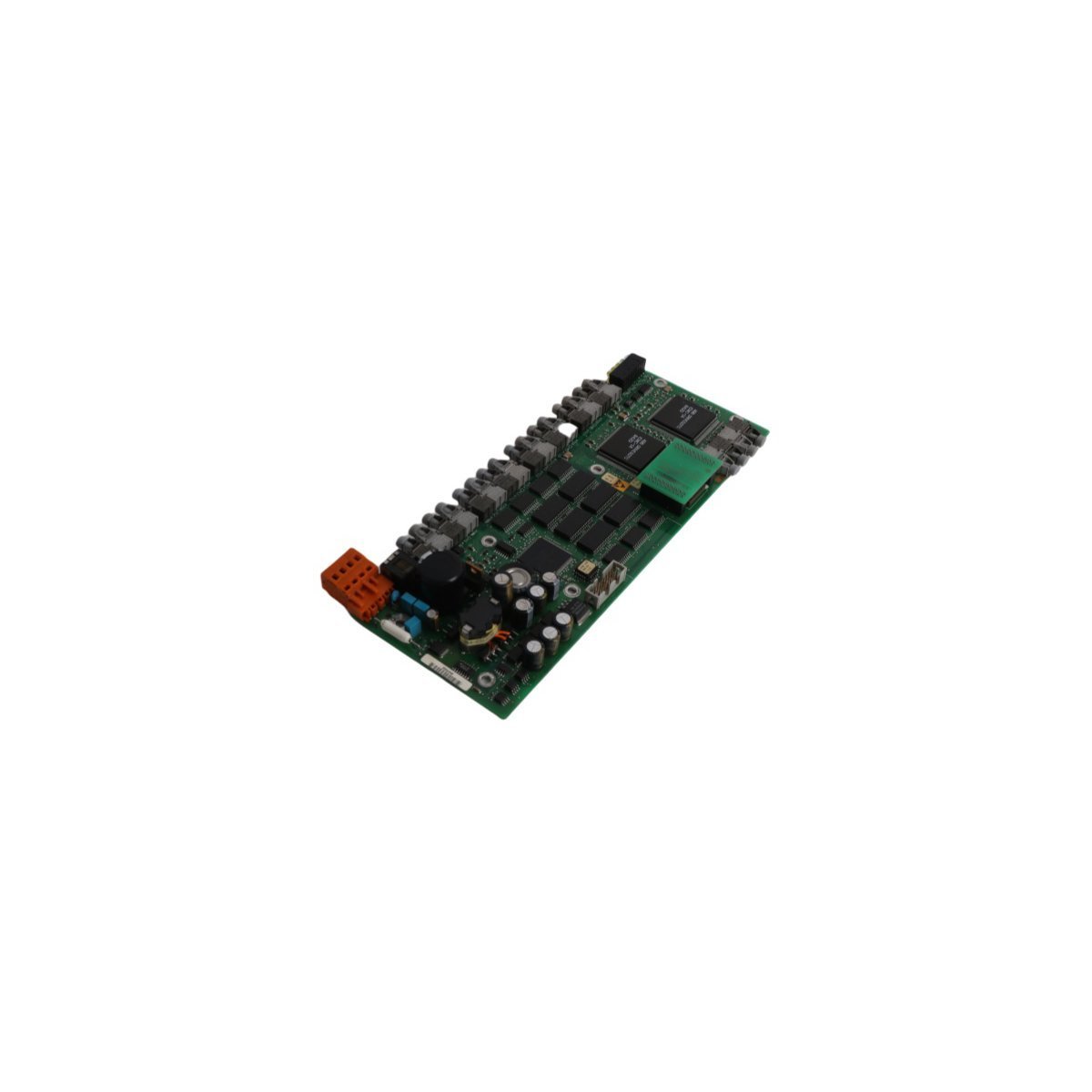

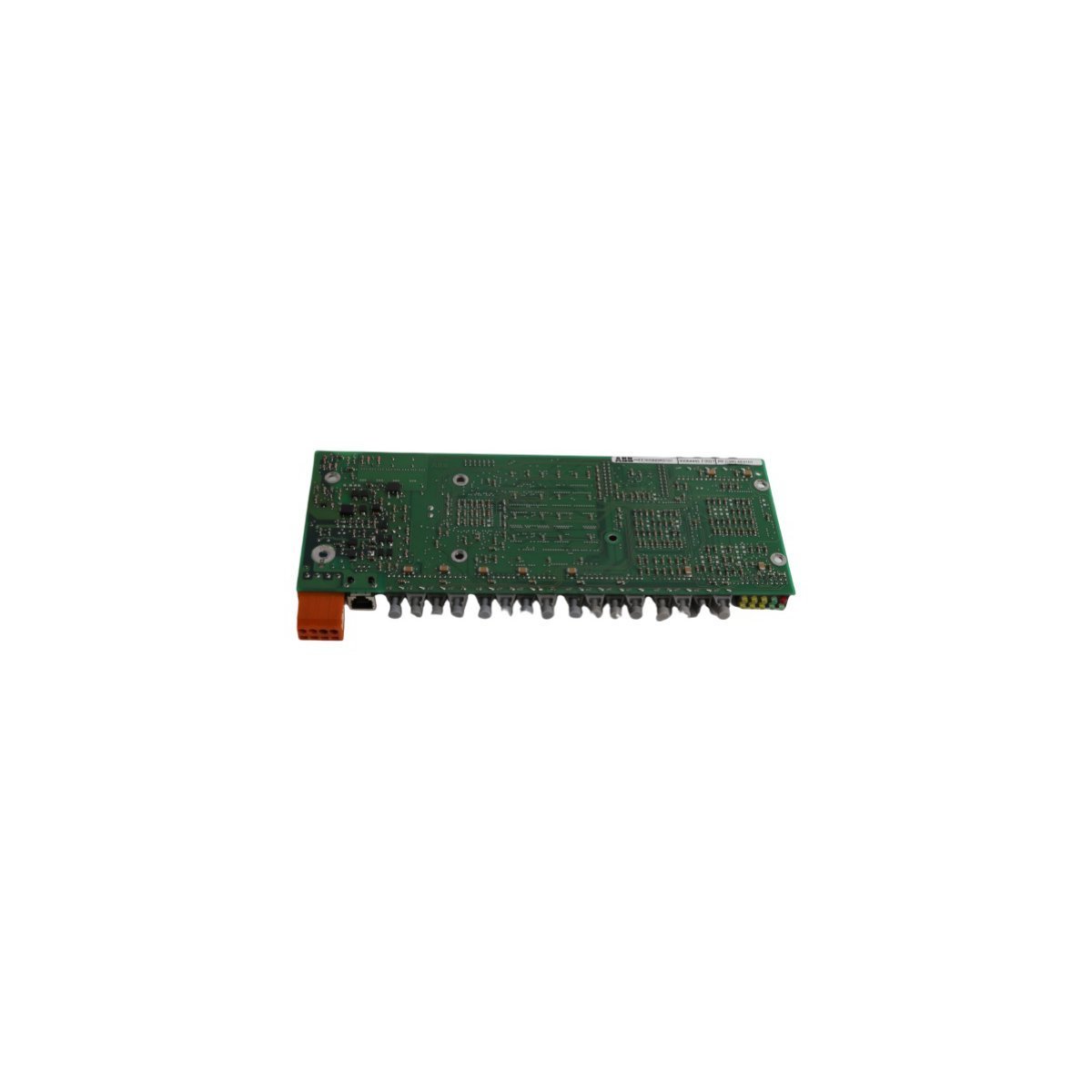

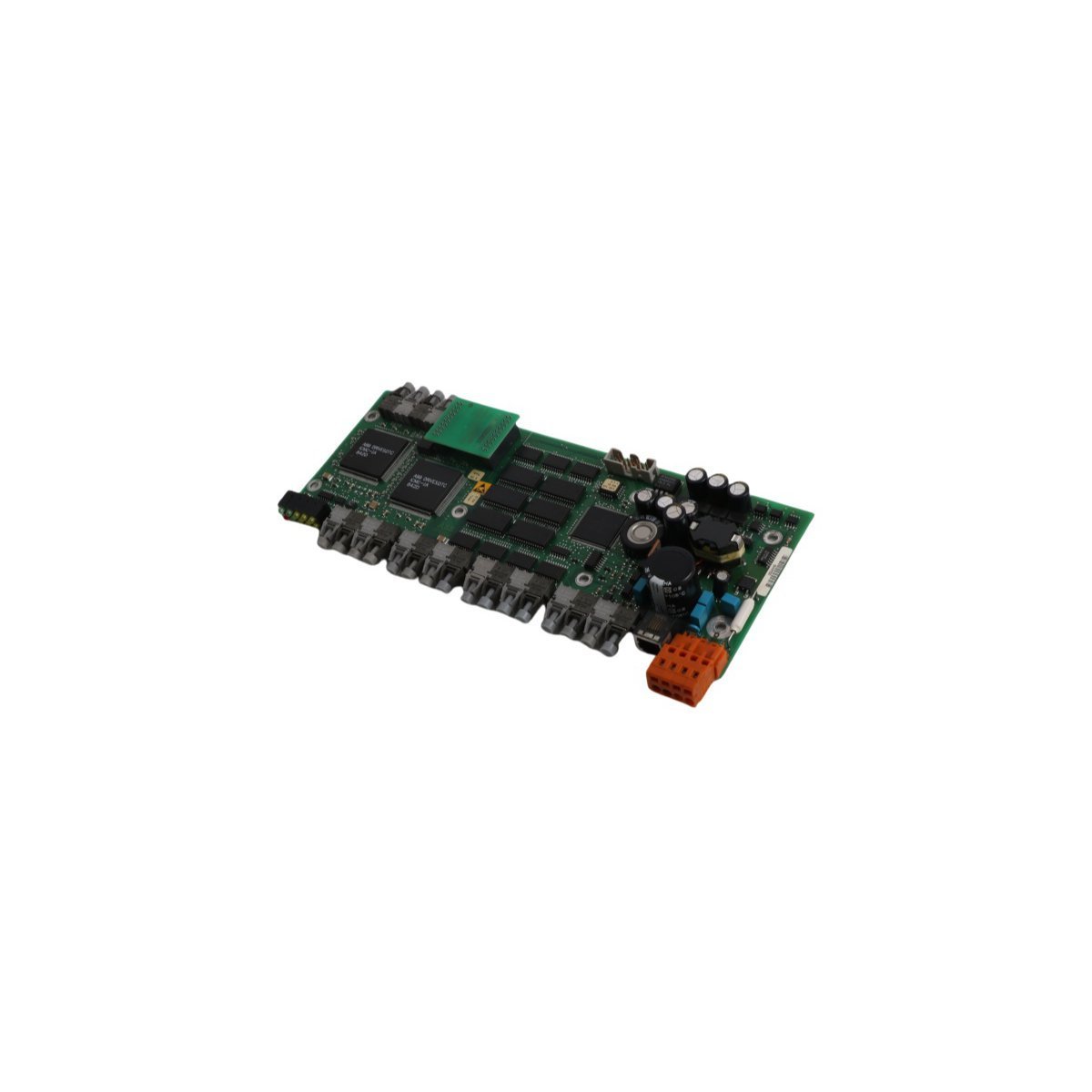

ABB HIEE300885R0101 PPC380AE0101 PC Board Module

Configured for high-power drive processing and real-time system control in UNITROL 5000 excitation systems, the ABB HIEE300885R0101 PPC380AE0101 (PPC380AE0101 PC Board) provides direct physical/electrical execution across DCS communication networks. Engineers implement this board to process fast control loops and manage signal distribution between master processing units and power electronic stacks.

Suffix Breakdown & Model Matrix

The designation HIEE300885R0101 PPC380AE0101 breaks down into specific hardware variants and revision identifiers:

• HIEE300885R0101: Represents the commercial part number marking the physical circuit board assembly, component revision level, and backplane pin layout.
• PPC380AE0101: Designates the functional board type within the UNITROL 5000 architecture, defining its processing capability and I/O interface layout.

Hardware Specifications

Backplane Bus Communication Velocity and Deterministic Control

ABB designed the HIEE300885R0101 PPC380AE0101 controller board to optimize backplane bus communication velocity during high-speed process execution. Consequently, the internal logic bus maintains low-latency data arbitration while executing critical control tasks. Furthermore, strict firmware flash compatibility protocols verify system firmware baselines during module startup, which prevents communication mismatches across redundant processor channels and stabilizes real-time node synchronization.

Frequently Asked Questions

Q: How do technicians ensure proper firmware flash compatibility when replacing a board?

A: Technicians must verify the system firmware revision level on the main controller prior to insertion, and subsequently, the system automatically checks compatibility parameters during the power-on boot sequence.

Q: What precautions prevent backplane signal disruption during physical installation?

A: Field personnel must de-energize the rack frame or follow hot-swap protocol limits, because unaligned edge connectors can disrupt backplane bus communication velocity and trigger immediate bus fault alarms.

Field Installation Guidelines

Technicians must strictly observe electrostatic discharge (ESD) protection measures by wearing grounded wrist straps while handling the HIEE300885R0101 PPC380AE0101 board. Align the card edge guides carefully within the UNITROL sub-rack frame, and subsequently push the module inward using firm, uniform force until the rear connectors seat entirely into the backplane socket.

Secure the front retaining screws to maintain mechanical chassis ground continuity and prevent vibration damage. In addition, route field communication wiring through dedicated trays separated from high-voltage motor or excitation cables, and ensure adequate clearance around the card cage so that cooling airflow remains unobstructed.
