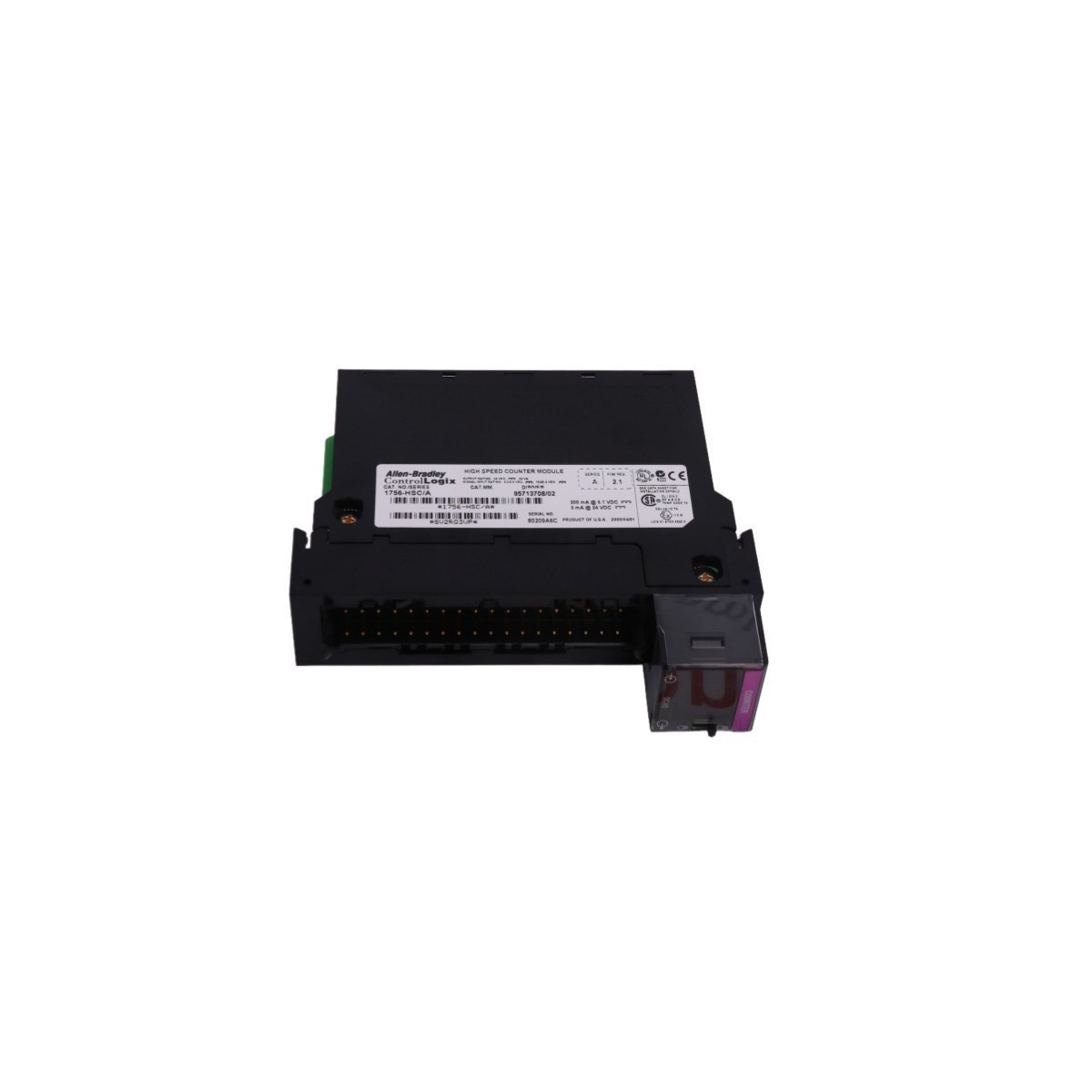

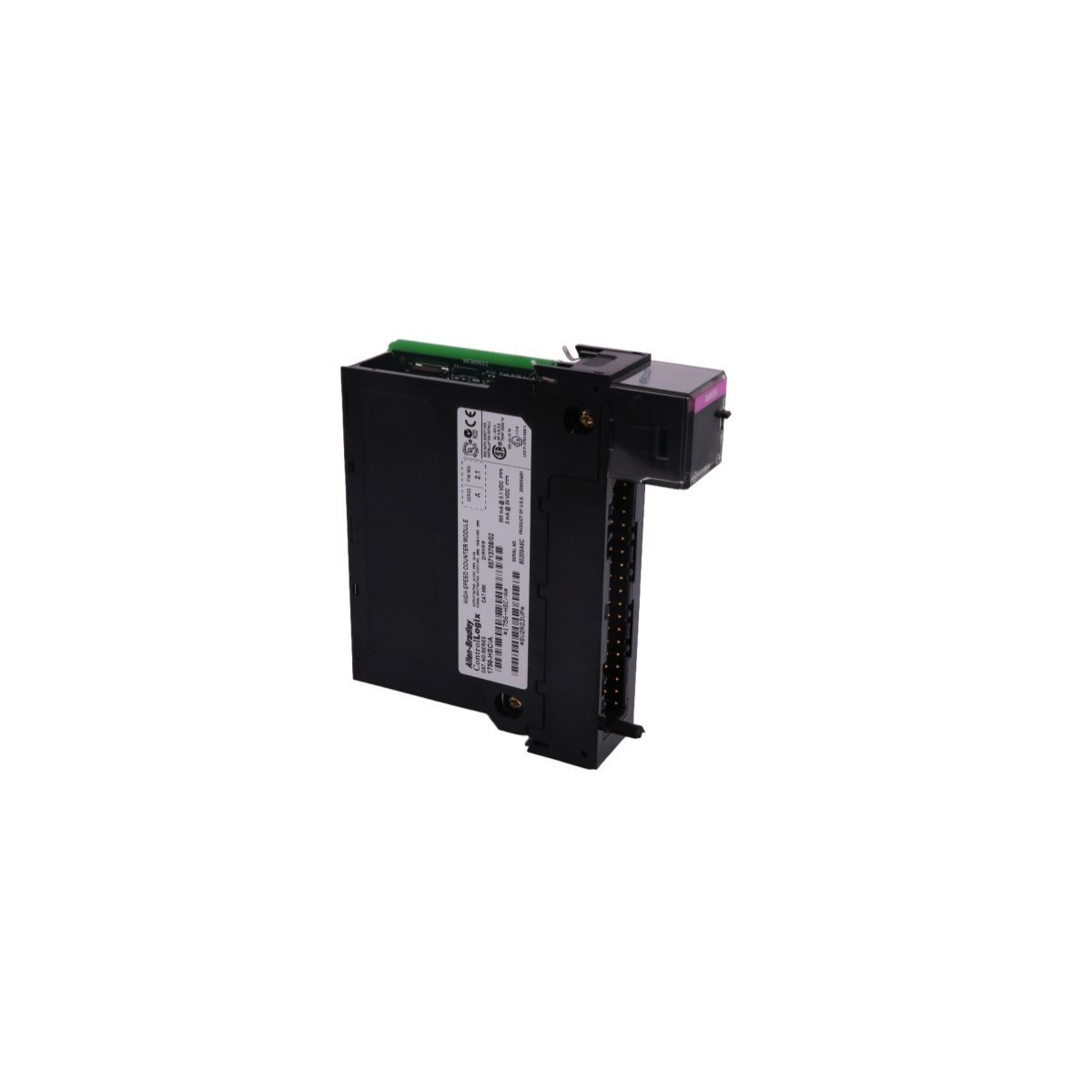

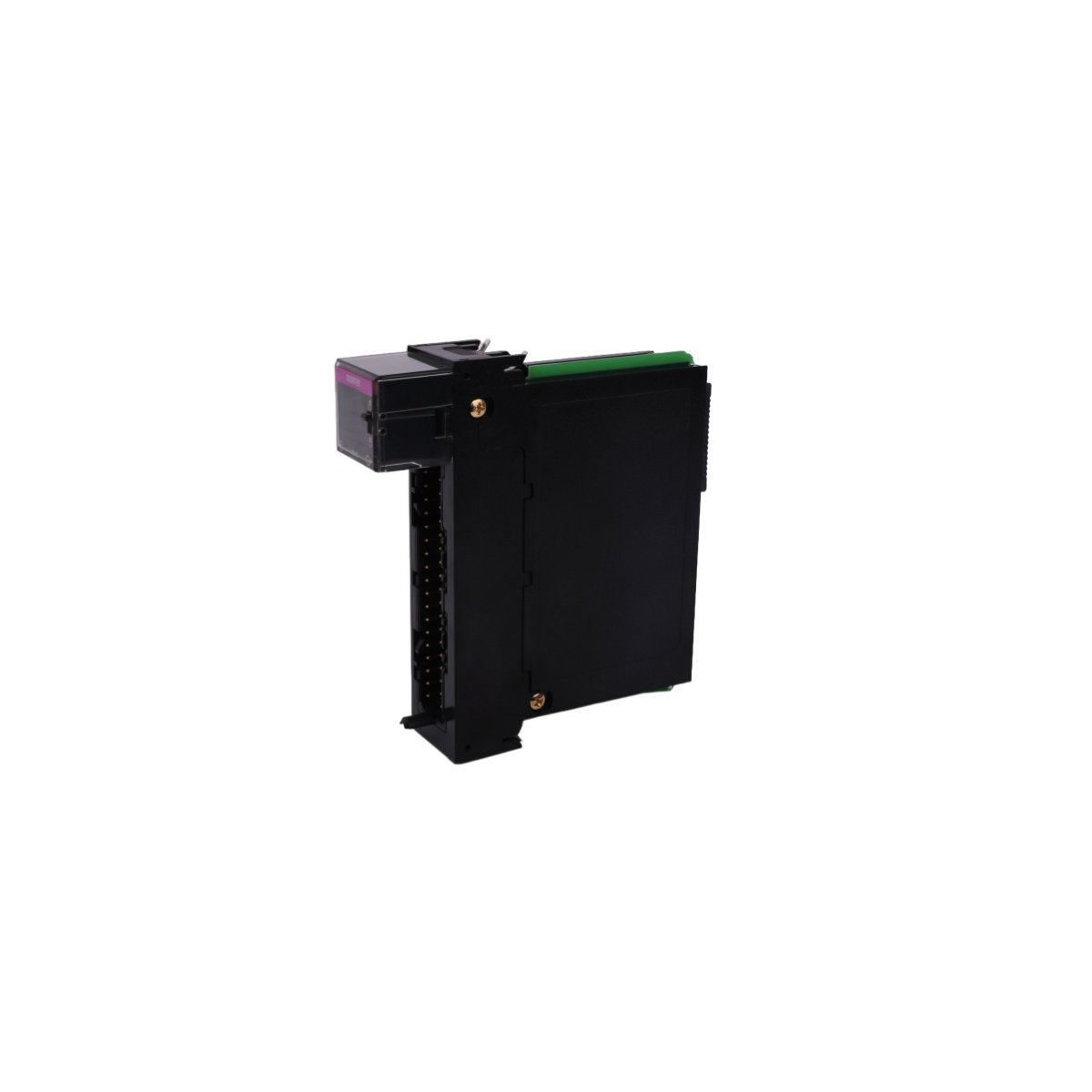

Allen-Bradley 1756-HSC 1 MHz High Speed Counter Module for PLC Systems

Brief Product Description

The 1756-HSC functions as a specialized input module that captures high-frequency pulses from encoders and sensors that exceed the standard I/O processing speed of a PLC. It enables the ControlLogix system to perform real-time position tracking, flow metering, and velocity measurements with microsecond precision.

Technical Functionality and Signal Processing

The 1756-HSC module provides two independent high-speed counters, each capable of processing input frequencies up to 1 MHz in pulse/direction mode or 250 kHz in encoder quadrature mode (X4). By offloading the counting logic from the main controller CPU, the module ensures that pulse counts remain accurate even during high-speed hardware transitions. The module specifically accommodates 5V, 12V, and 24V DC signal levels, allowing it to interface with a broad spectrum of industrial instrumentation.

Beyond simple accumulation, the 1756-HSC incorporates on-board “windows” and “outputs” that trigger based on specific count values. This hardware-level response allows the module to activate physical outputs in less than 10 microseconds, which is significantly faster than the standard RPI (Requested Packet Interval) of the backplane. Consequently, this makes the module indispensable for applications requiring instantaneous reaction to position data, such as high-speed labeling, cutting-to-length, and rotary hardware synchronization.

Core Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model Number: 1756-HSC
• Module Type: High Speed Counter (2 Channels)
• Maximum Frequency: 1 MHz (Pulse/Direction); 250 kHz (Quadrature X4)
• Input Voltage Range: 4.5V DC to 31.2V DC
• Input Number: 6 (3 per counter: A, B, and Z/Gate)
• Output Number: 4 (2 per counter: Sourcing)
• Current Draw: 560 mA @ 5.1V DC; 2.8 mA @ 24V DC
• Backplane Isolation: 250V (continuous), Basic Insulation Type
• Operational Temperature: 0°C to 60°C (32°F to 140°F)
• Vibration Resistance: 2.0g @ 10–500 Hz

Sensor Compatibility and System Integration

The 1756-HSC module demonstrates extensive versatility by supporting various sensor architectures, including differential and single-ended inputs. It interfaces directly with Allen-Bradley 845 Series incremental encoders, as well as 3-wire DC proximity sensors and high-speed photoelectric eyes like the Photoswitch 10,000 series. Because the module supports multiple counting modes—including Up/Down, Pulse/Direction, and Quadrature—engineers can adapt the hardware to virtually any motion feedback requirement.

Furthermore, the integration within the Studio 5000 environment simplifies configuration through descriptive tags and intuitive properties pages. The module facilitates real-time velocity calculation and rate measurement, which the controller can use for closed-loop flow control or motor speed regulation. This hardware-based velocity estimation provides a much smoother signal than software-calculated rates, improving overall system stability.

Primary Industrial Applications

• High-speed turbine and flow meter monitoring
• Precision position tracking for material handling and conveyors
• Cut-to-length and web tension control systems
• Encoder feedback for synchronized multi-axis machinery
• Packaging applications requiring rapid-response registration marks
