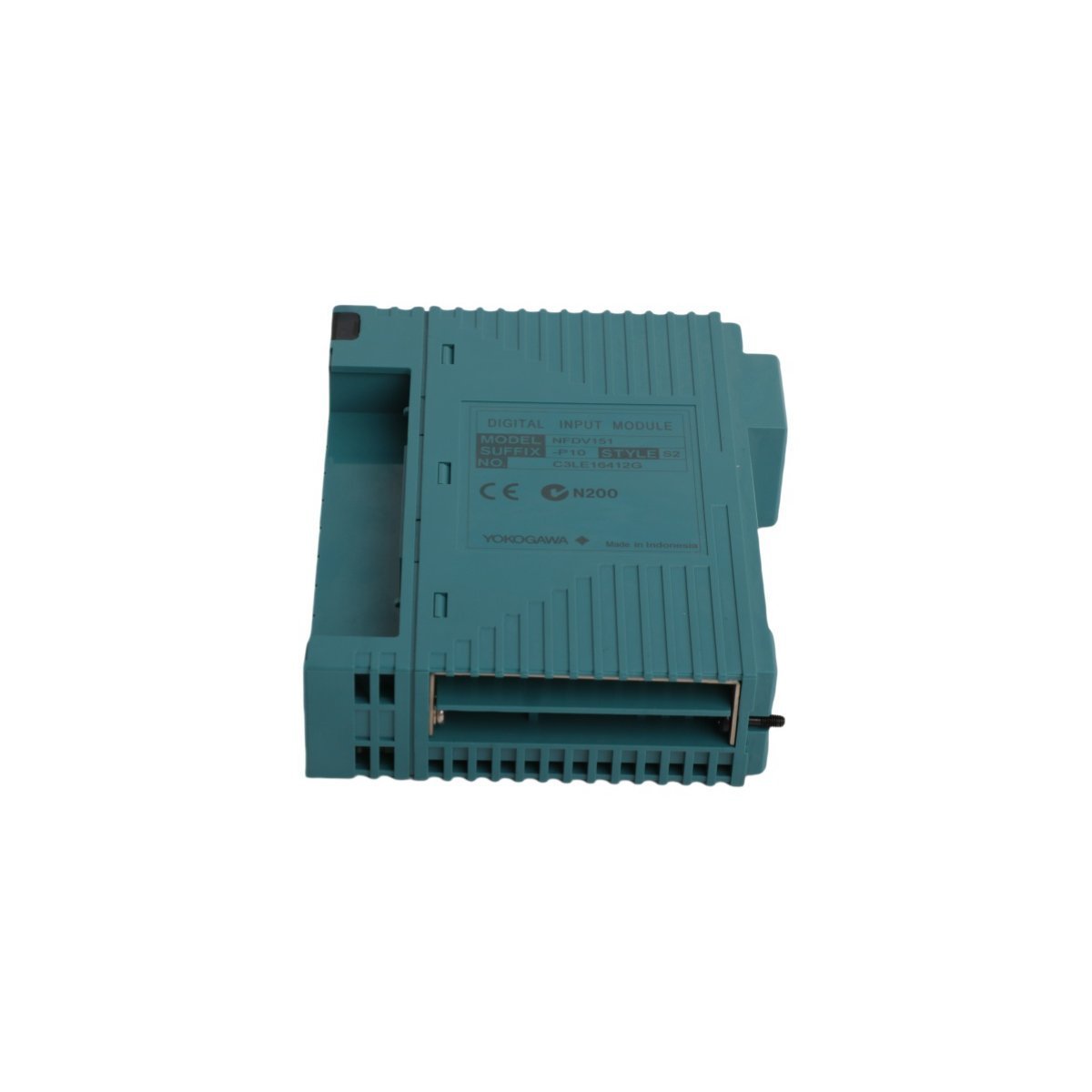

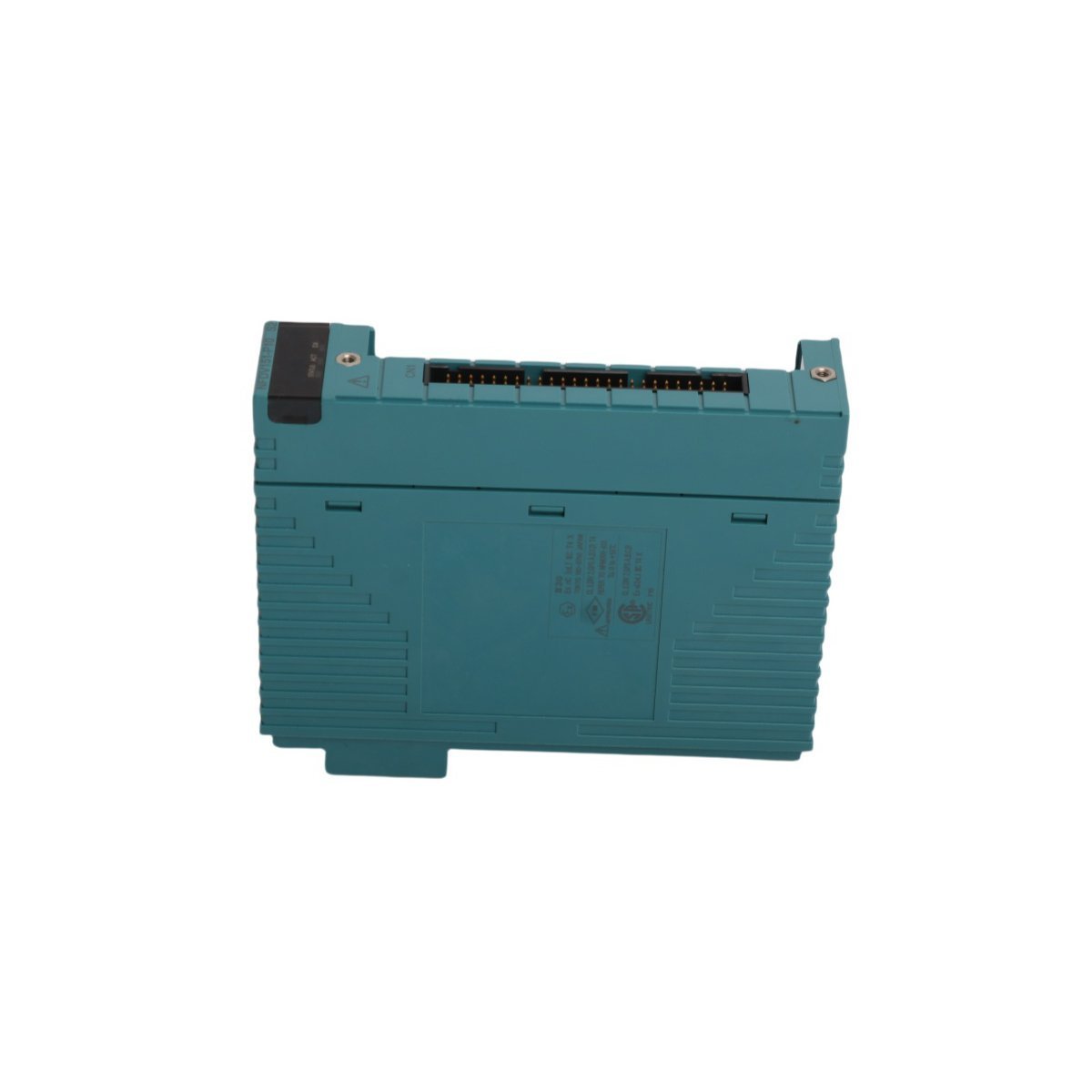

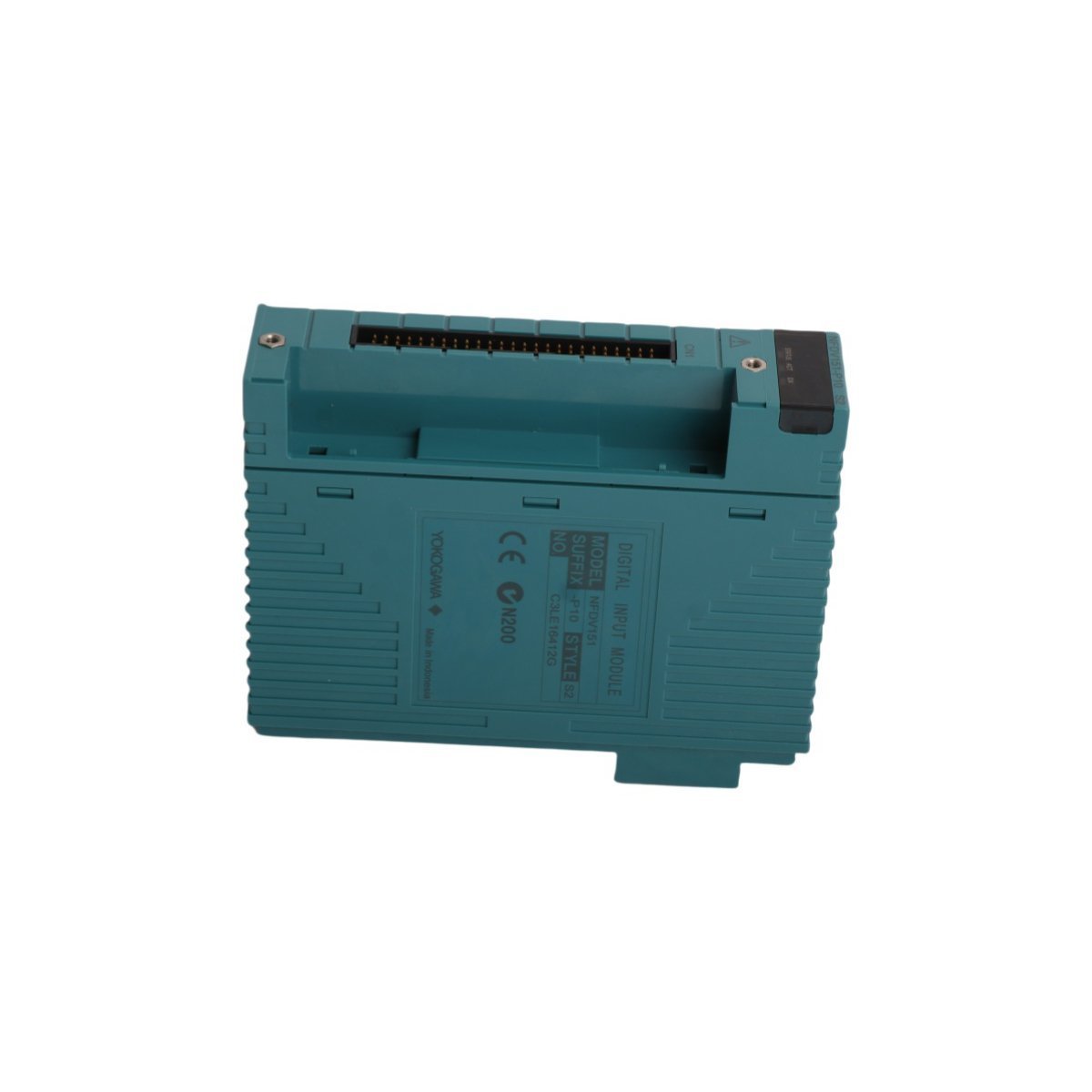

Yokogawa NFDV151-P10 S2 Digital Input Module

Technical Specifications Summary

Lifecycle and Application Versatility

Because it belongs to the active FA-M3 and CENTUM VP hardware families, the NFDV151-P10 S2 provides a future-proof solution for both brownfield upgrades and greenfield installations. It excels in diverse sectors such as chemical processing, power generation, and water treatment. By implementing this module, facilities gain a reliable, high-speed bridge between physical field signals and digital automation logic, thereby enhancing overall plant safety and operational transparency.

Precise Detection Thresholds and Response Dynamics

In order to maintain signal integrity in complex electrical environments, the NFDV151-P10 S2 utilizes a strict voltage threshold architecture. The module recognizes an “ON” state when field voltage remains between 18 and 26.4 VDC, while it identifies any signal dropping below 5.0 VDC as “OFF.” Furthermore, the hardware features a rapid input response time of 8 ms or less, allowing the DCS to react nearly instantaneously to field changes.⁵ These dynamic characteristics make the module particularly suitable for high-speed industrial applications where timing accuracy remains paramount.

Key performance features include:

• 32-point high-density binary signal processing.
• 24 VDC nominal input voltage with 30.0 VDC maximum tolerance.
• Low power consumption at approximately 4.1 mA per channel.
• Maximum operational frequency of 25 Hz for dynamic cycling.
• Minimum pulse detection width of 20 ms for reliable state capture.

Hardware Resilience and Diagnostic Features

The Japanese-manufactured NFDV151-P10 S2 prioritizes durability and continuous uptime. The module’s compact 3.2cm width facilitates dense rack configurations, while its 0.25 kg lightweight design reduces mechanical stress on the backplane. Integrated diagnostics allow the module to monitor its internal health and signal consistency, reporting faults back to the Field Control Station (FCS). Additionally, the module supports hot-swapping under power, which ensures that maintenance teams can perform hardware replacements without necessitating a complete system shutdown.
