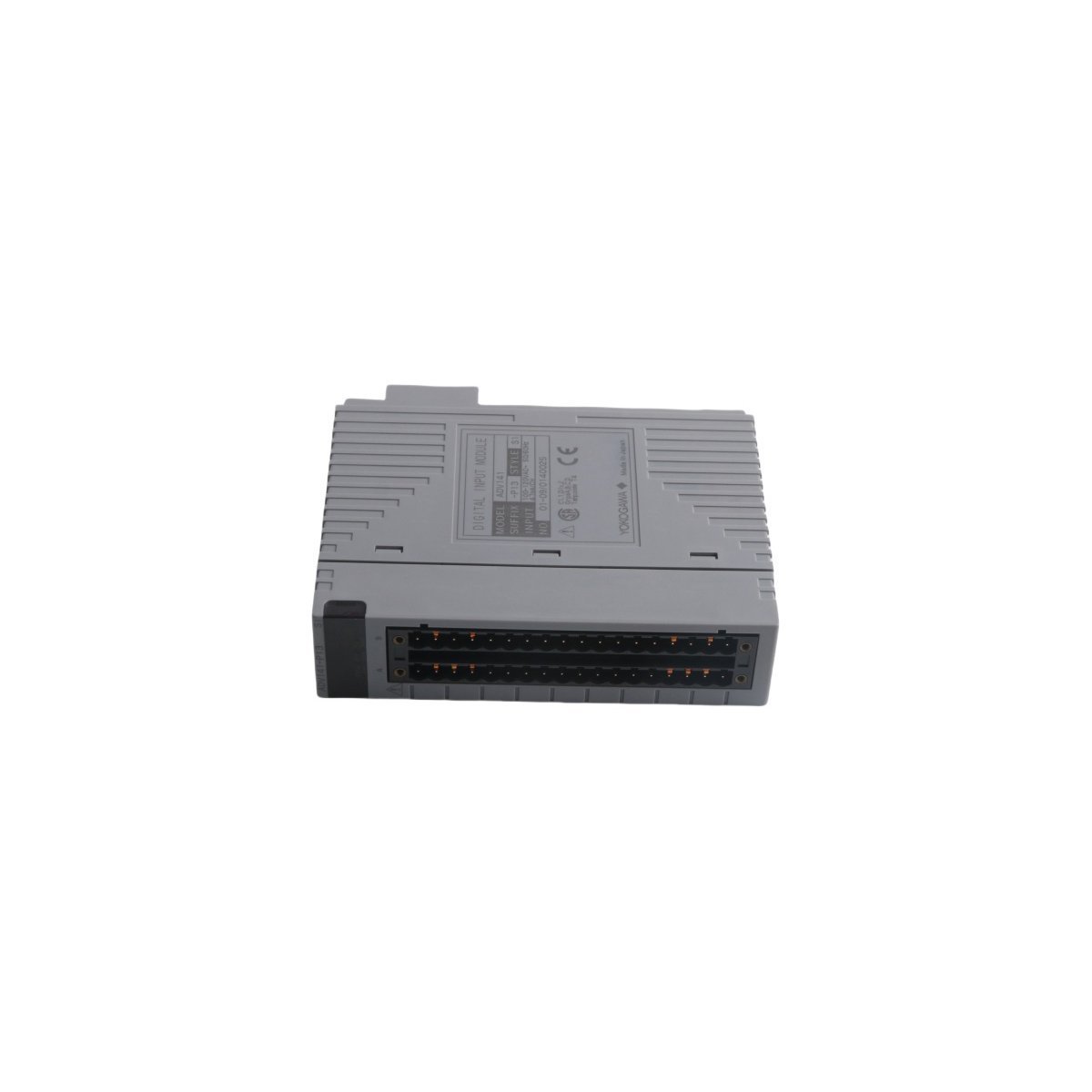

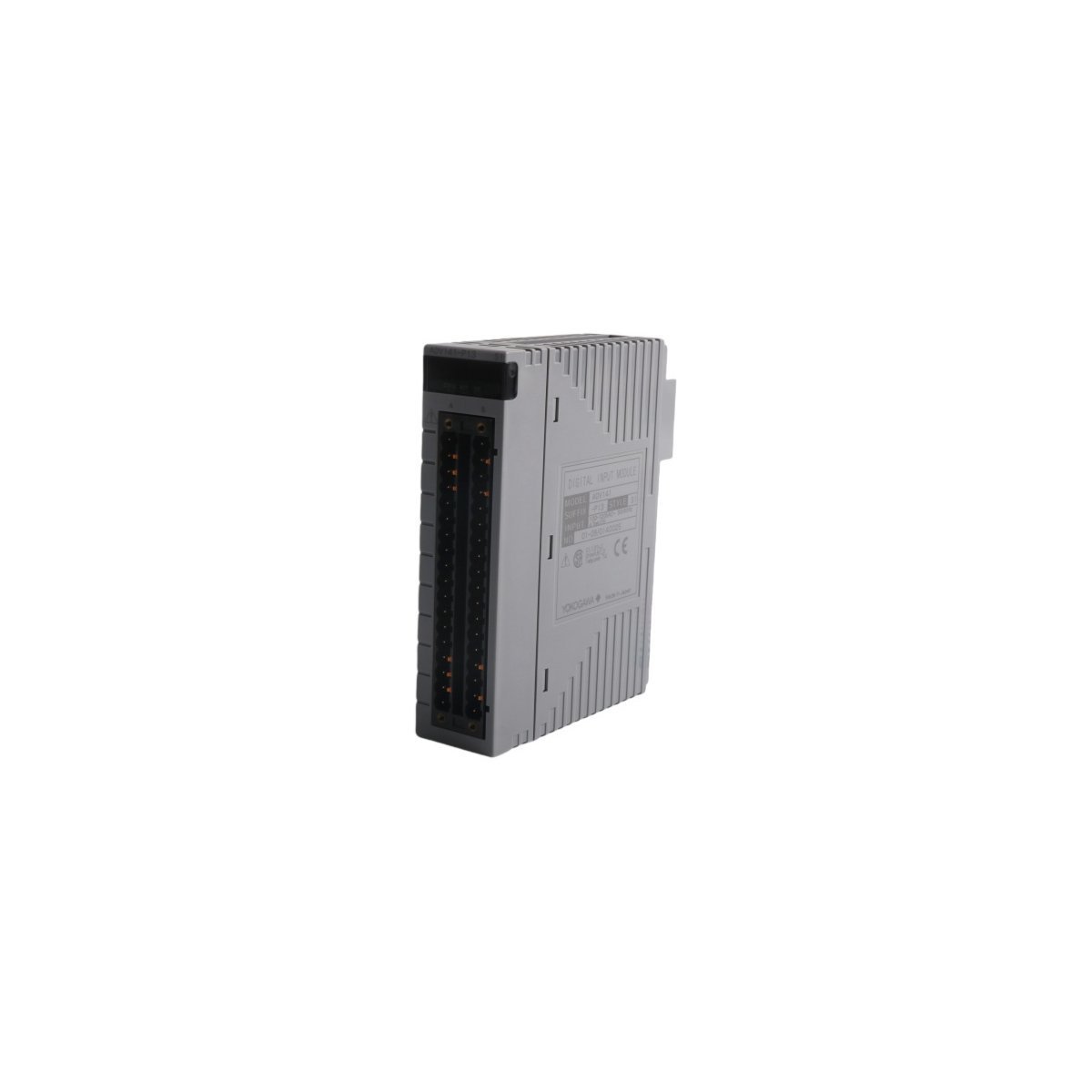

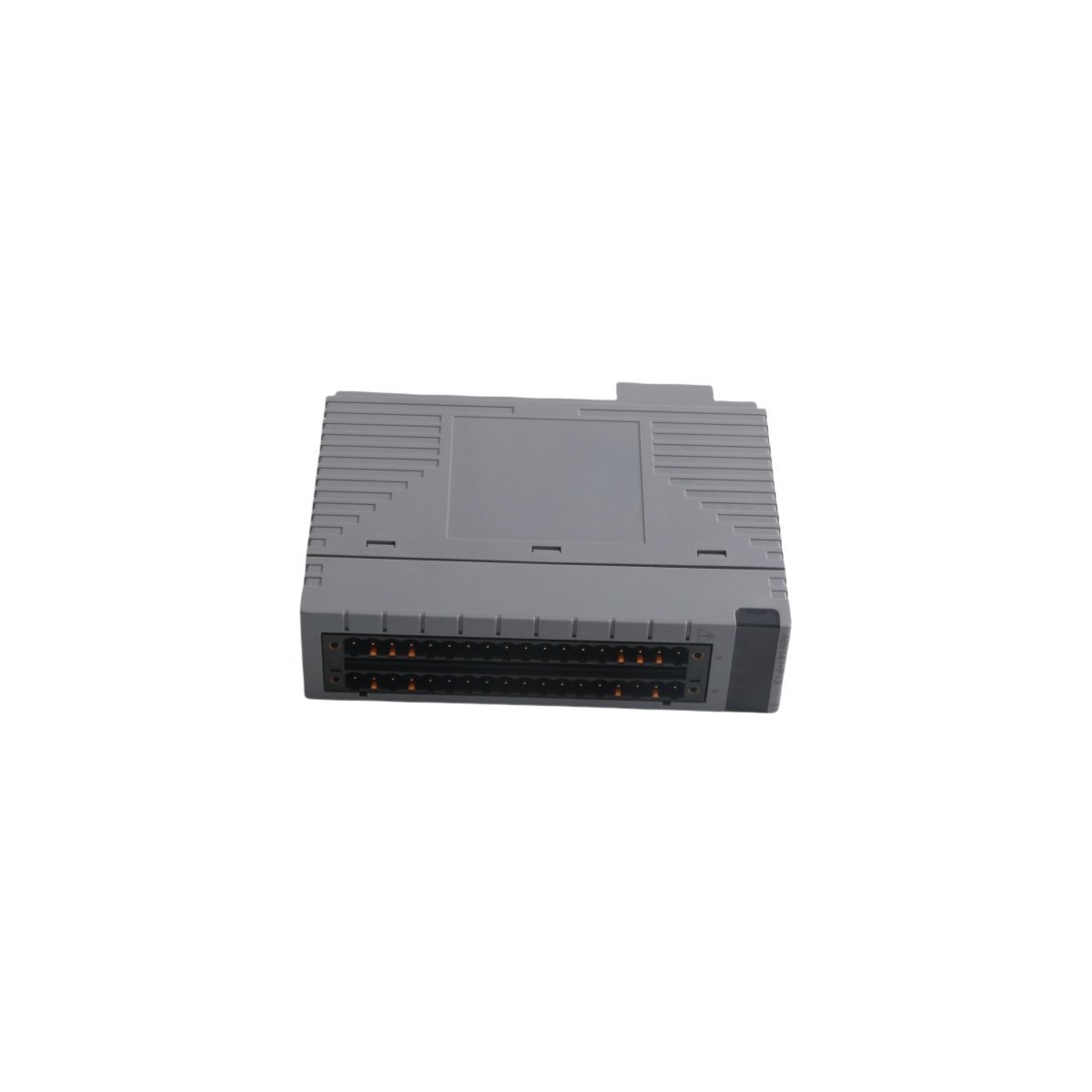

Yokogawa ADV141-P13 S1 Digital Input Module

The Yokogawa ADV141-P13 S1 serves as a high-performance digital interface within the CENTUM VP Distributed Control System (DCS) architecture. This module provides 16 independent channels designed to capture discrete signals from field-mounted equipment such as limit switches, relay contacts, and proximity sensors. By translating physical contact states into digital logic, the ADV141-P13 S1 enables real-time monitoring and sequence control for critical industrial processes. Its sophisticated design ensures that signal transitions are recorded with high accuracy and minimal latency, supporting the overall stability of the automation network.

Advanced Isolation and Signal Protection

Operational safety remains a priority in the design of the ADV141-P13 S1 hardware. The module incorporates high-level electrical isolation between the field-side circuitry and the internal system bus. This barrier effectively shields the control system from external electrical noise, transients, and voltage surges that often occur in heavy industrial environments. Consequently, the module maintains superior signal integrity, preventing data corruption and protecting expensive controller components from potential damage. These protective features make it particularly suitable for high-availability applications in the power, petrochemical, and manufacturing sectors.

Environmental Resilience and Physical Architecture

Designed to operate in diverse climates, the ADV141-P13 S1 performs reliably across a temperature gradient from -20°C to 70°C. The module’s compact physical footprint allows for high-density installation in standard I/O nests, maximizing cabinet space efficiency. Furthermore, the lightweight 0.28kg construction simplifies handling and maintenance. Because the module supports hot-swapping, maintenance personnel can replace units without de-energizing the system, ensuring that process control remains continuous and uninterrupted during hardware updates.

Technical Specifications Summary
