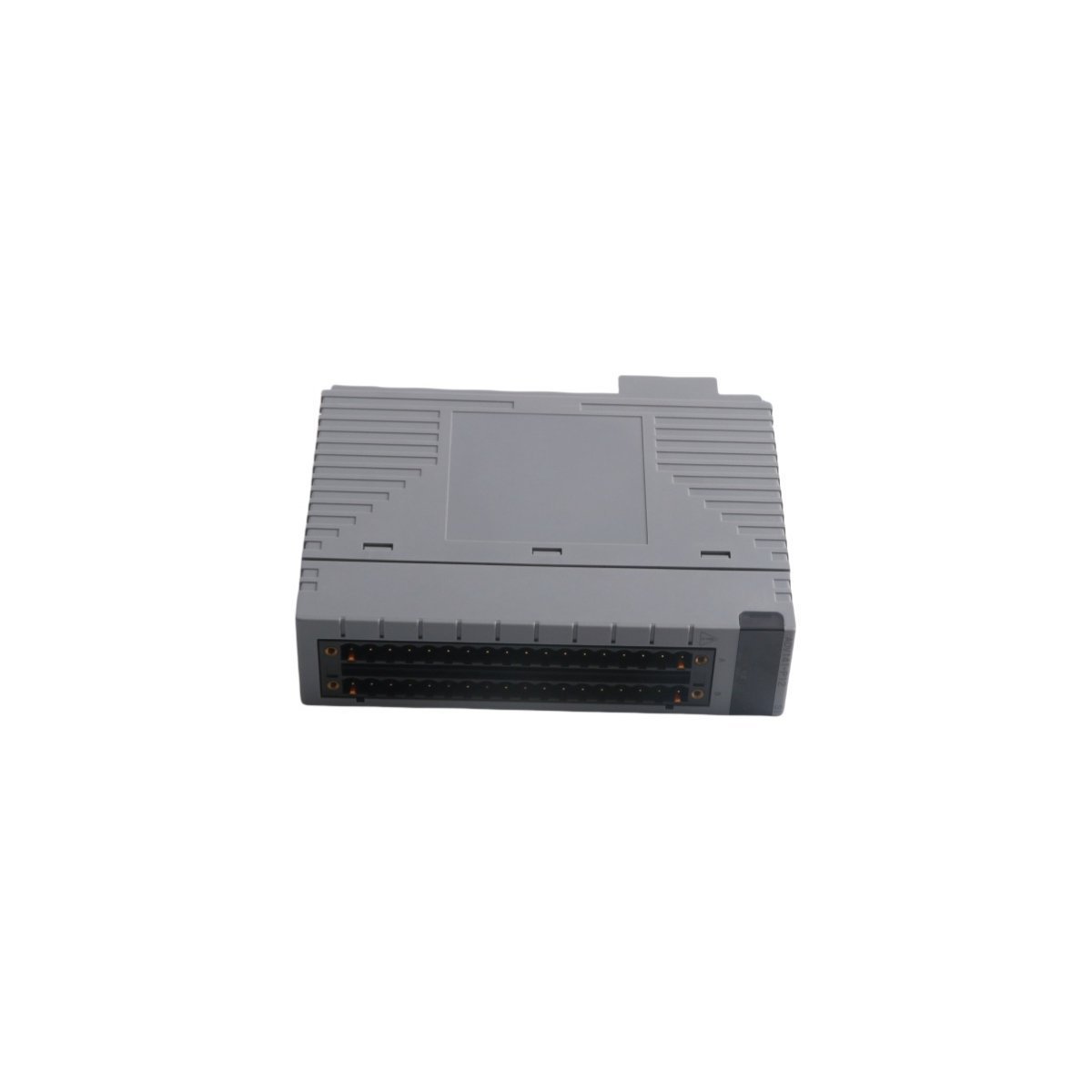

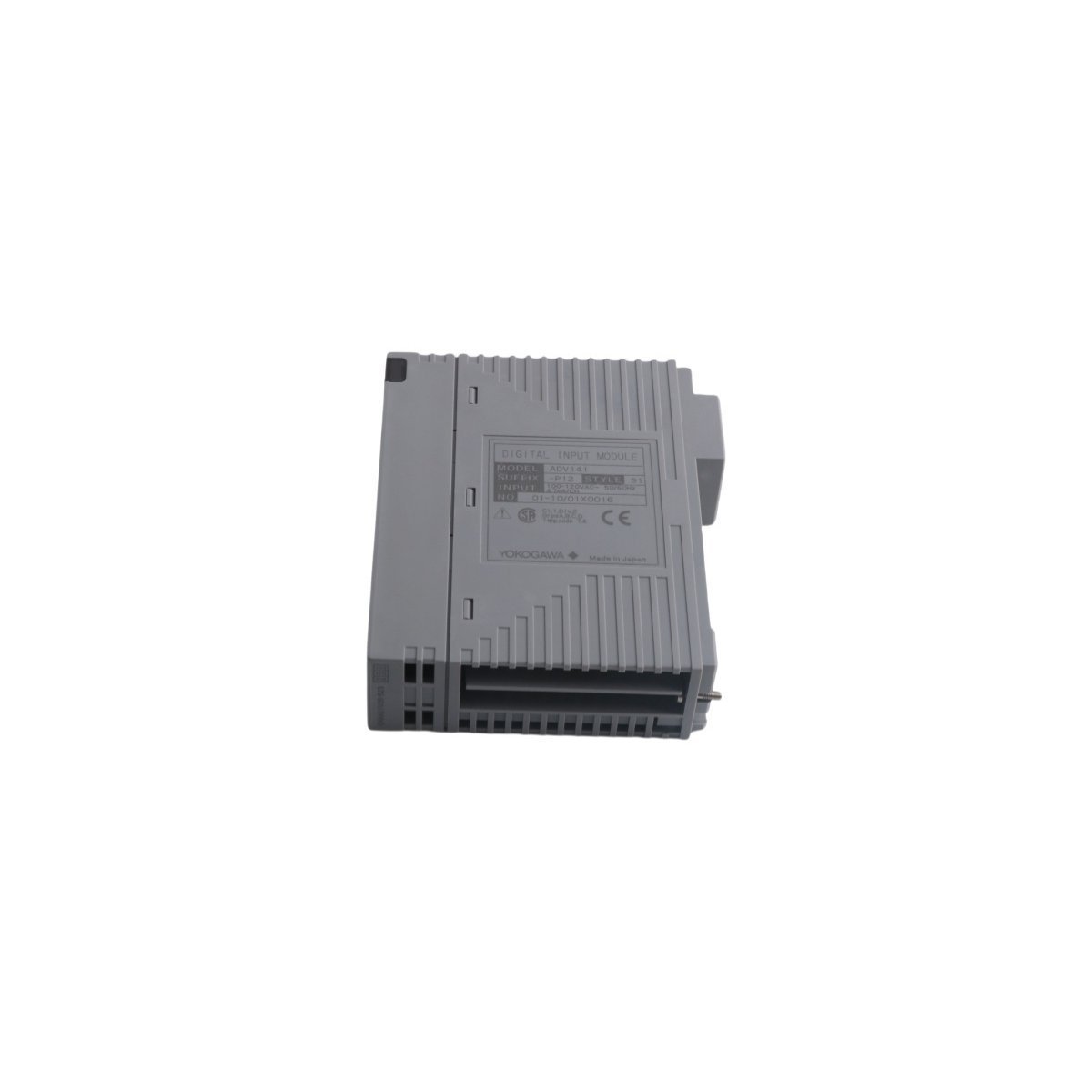

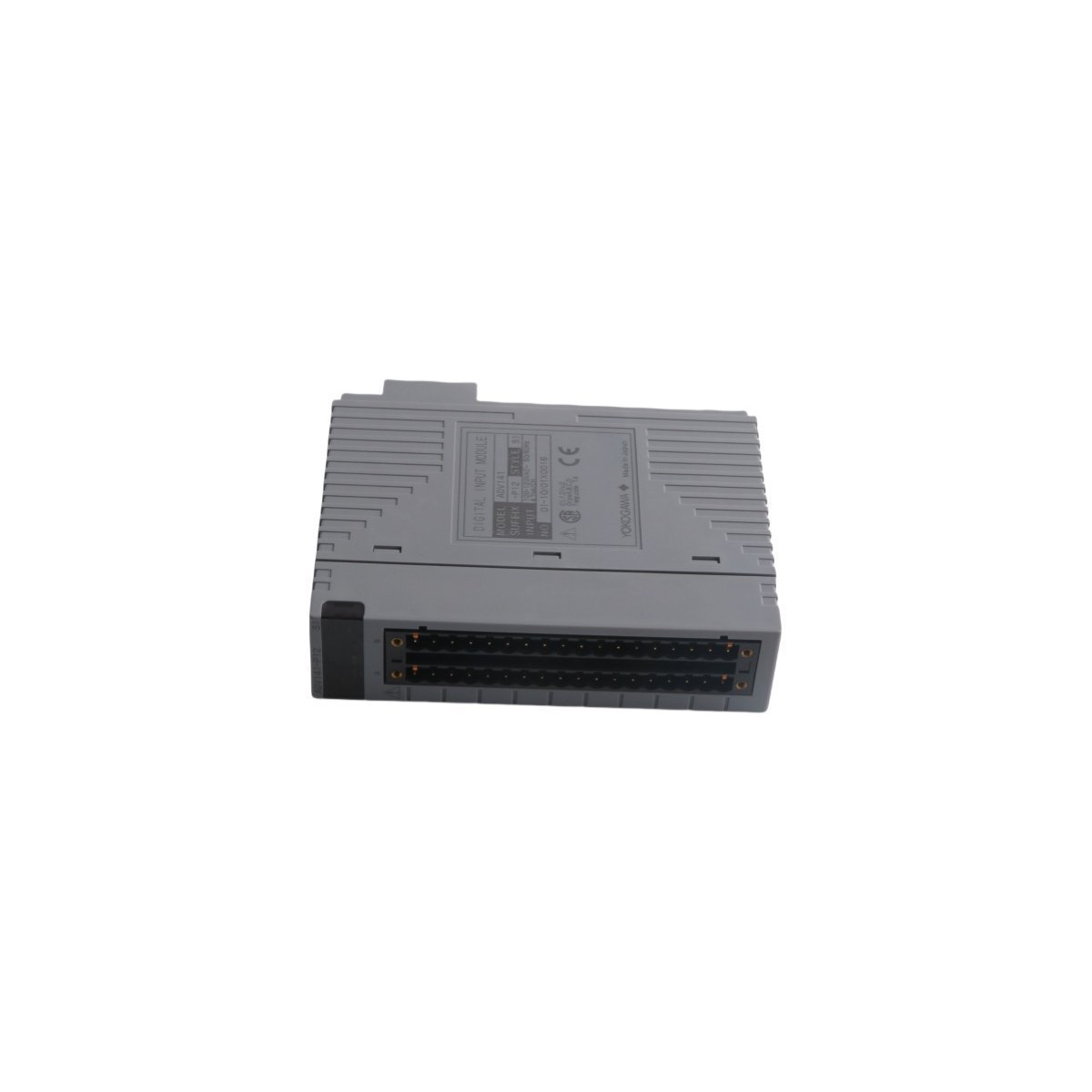

Yokogawa ADV141-P12 S1 Digital Input Module

The Yokogawa ADV141-P12 S1 functions as a specialized discrete signal interface within the CENTUM VP Distributed Control System. This module captures field states from switches and relay contacts across 16 individual channels. It converts these external physical signals into digital data for real-time process logic. Engineers primarily use this unit in high-precision automation environments. Its architectural design ensures rapid response times for critical monitoring tasks.

Advanced Signal Protection and Performance

This digital input module utilizes high-performance opto-isolation to protect internal DCS circuitry. It creates a secure electrical barrier between the field-side wiring and the system bus. This protection prevents transient surges from damaging sensitive controller components. Furthermore, the ADV141-P12 S1 manages various voltage levels to accommodate different sensor types. Every channel maintains signal purity through sophisticated hardware filtering.

Operational Versatility and Integration

The ADV141-P12 S1 integrates directly into the standard FIO bus structure for easy installation. It supports seamless communication through Yokogawa’s Ethernet-based control routers. This compatibility simplifies the expansion of existing automation infrastructure. Additionally, the module operates reliably across a wide ambient temperature spectrum. These features allow for deployment in diverse climates and heavy industrial settings.

Technical Specification Overview
