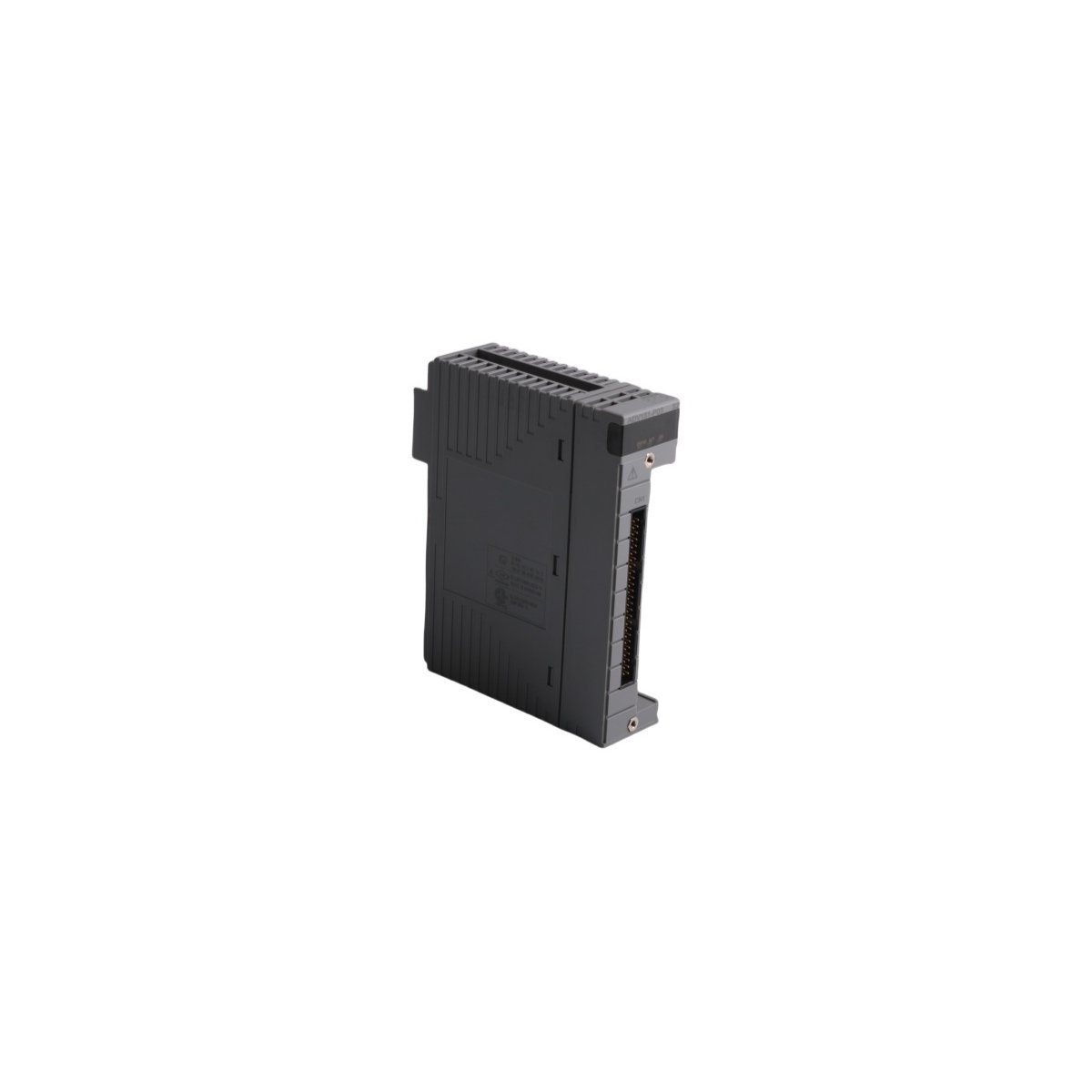

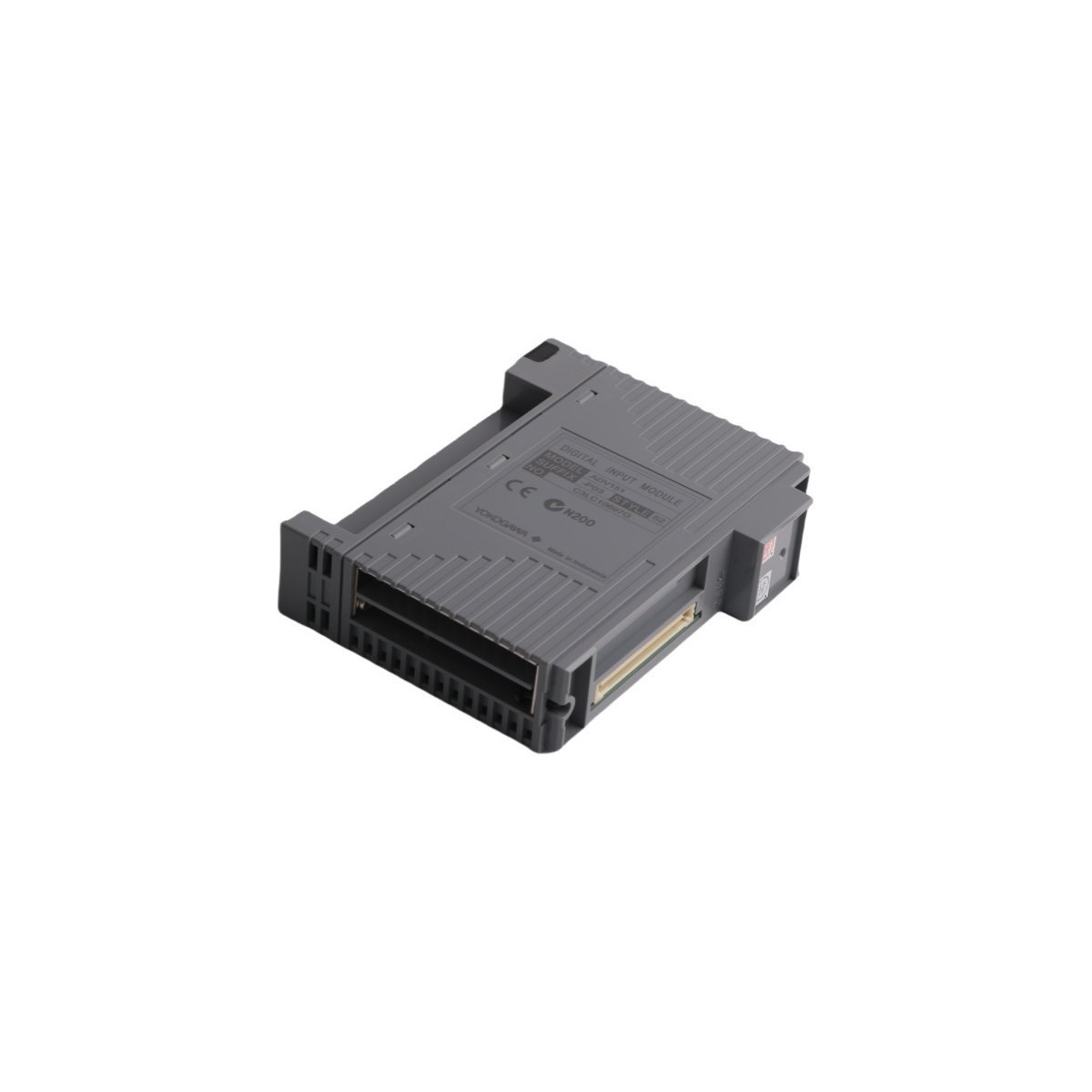

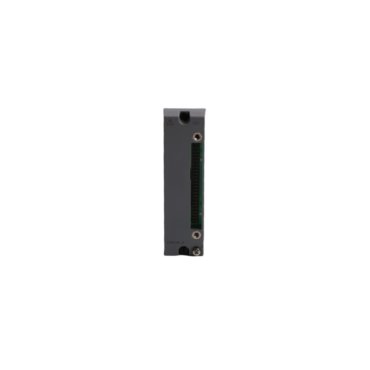

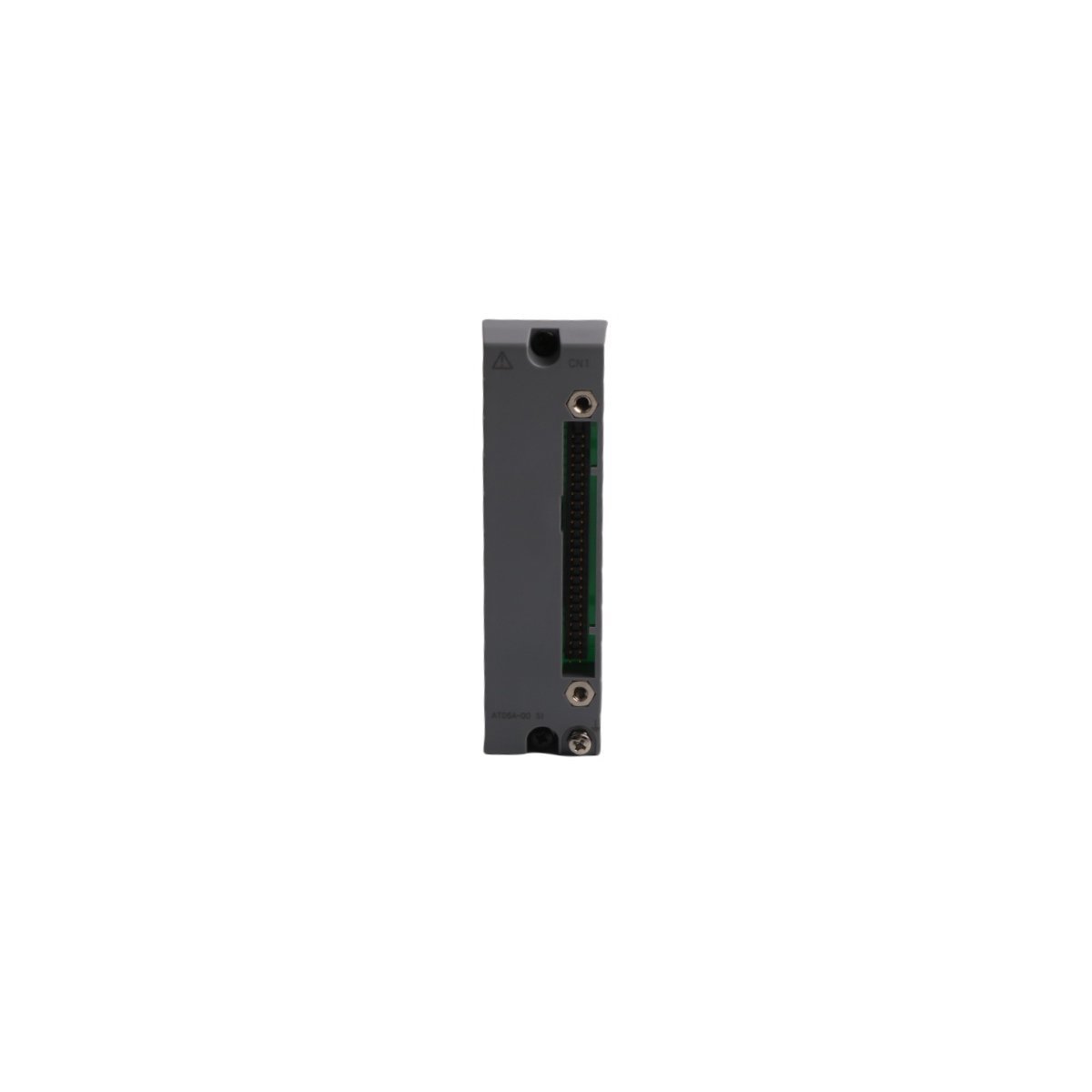

Yokogawa ADV151-P03 S2 Digital Input Module

Technical Specifications Summary

The Yokogawa ADV151-P03 S2 is a high-density digital input module engineered for the CENTUM VP Distributed Control System (DCS). This module features 32 isolated input channels, allowing it to monitor a vast array of field device states simultaneously. By consolidating 32 points into a single unit, the ADV151-P03 S2 significantly reduces the required cabinet space and simplifies the overall system architecture. It serves as a critical interface for detecting the status of dry contacts, switches, and other binary sensors commonly found in power plants, refineries, and chemical processing facilities.

Precise Voltage Thresholds and Signal Integrity

To ensure reliable operation in electrically noisy industrial environments, the ADV151-P03 S2 utilizes specific voltage threshold logic for state detection. The module operates with a nominal 24 VDC rated input and maintains strict “ON” and “OFF” parameters to prevent false triggering. An input signal between 18 and 26.4 VDC registers as an “ON” state, while any signal dropping to 5.0 VDC or less confirms an “OFF” state. This clear differentiation ensures that the DCS receives accurate data despite potential voltage fluctuations in the field wiring.

Key technical characteristics include:

• 32-channel high-density binary processing.
• 24 VDC rated input voltage for standard industrial compatibility.
• Input current regulation at 4.1 mA per channel to prevent system overload.
• Pressure clamp terminal support for secure physical connections.
• Compatibility with AKB331 and MIL connector cables for streamlined integration.
