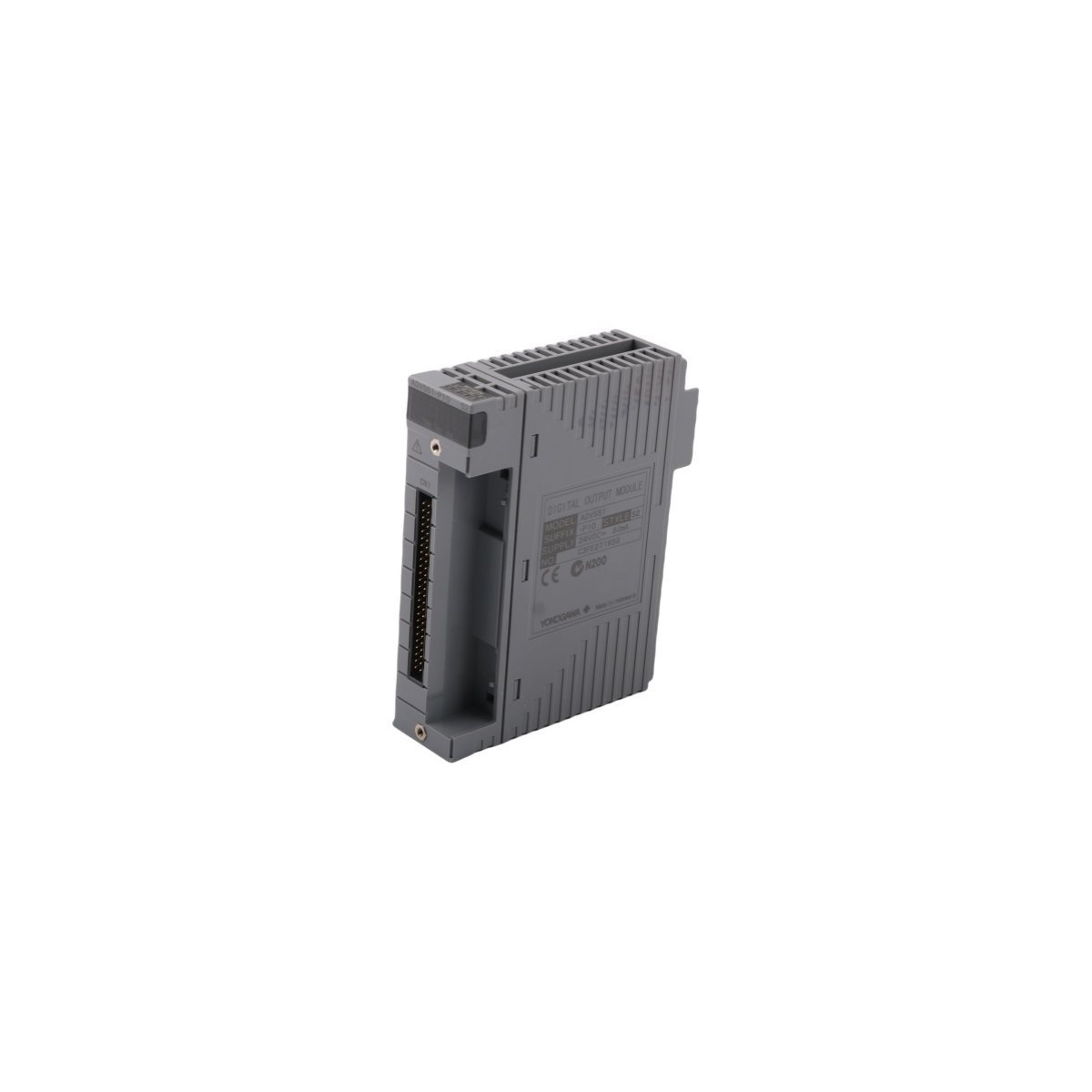

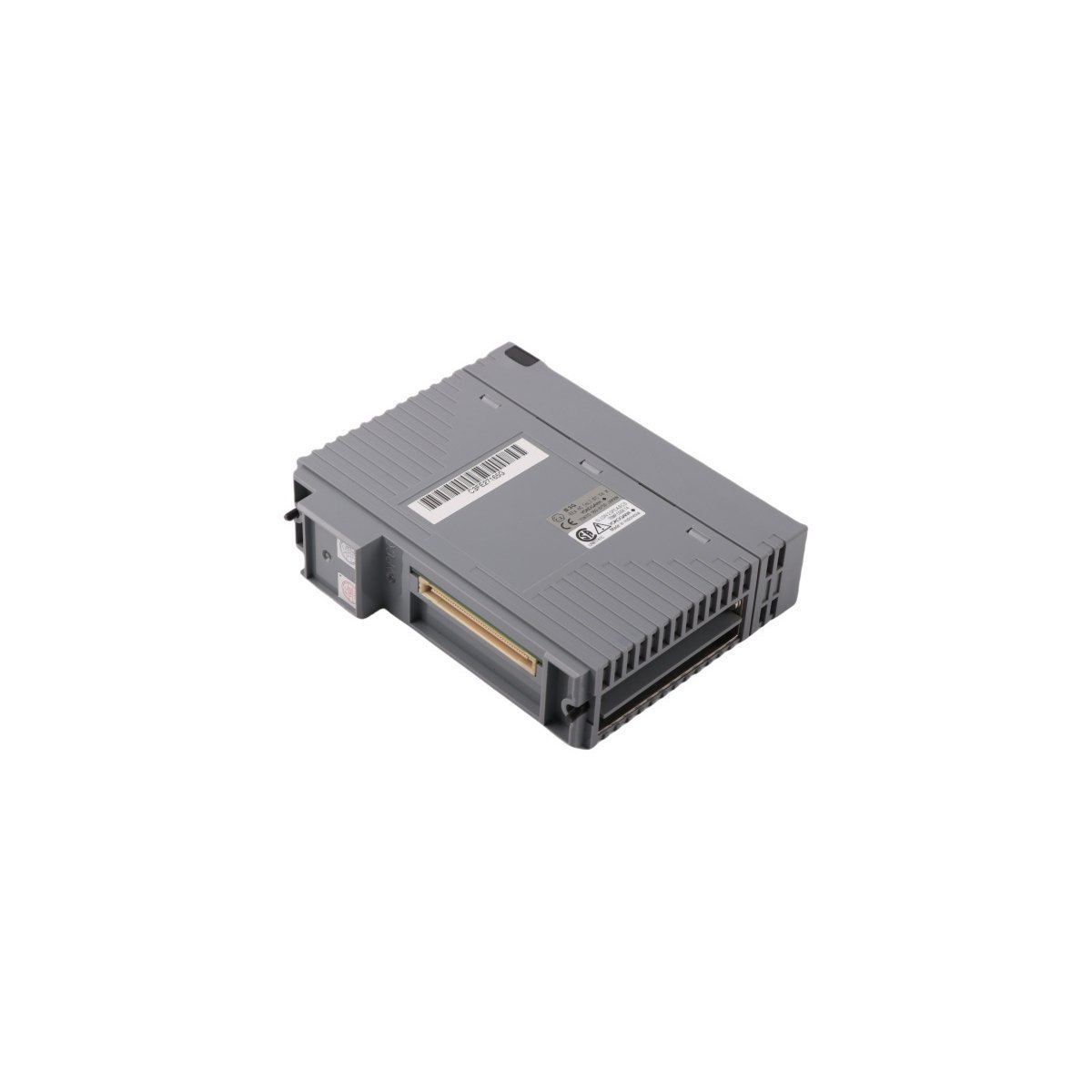

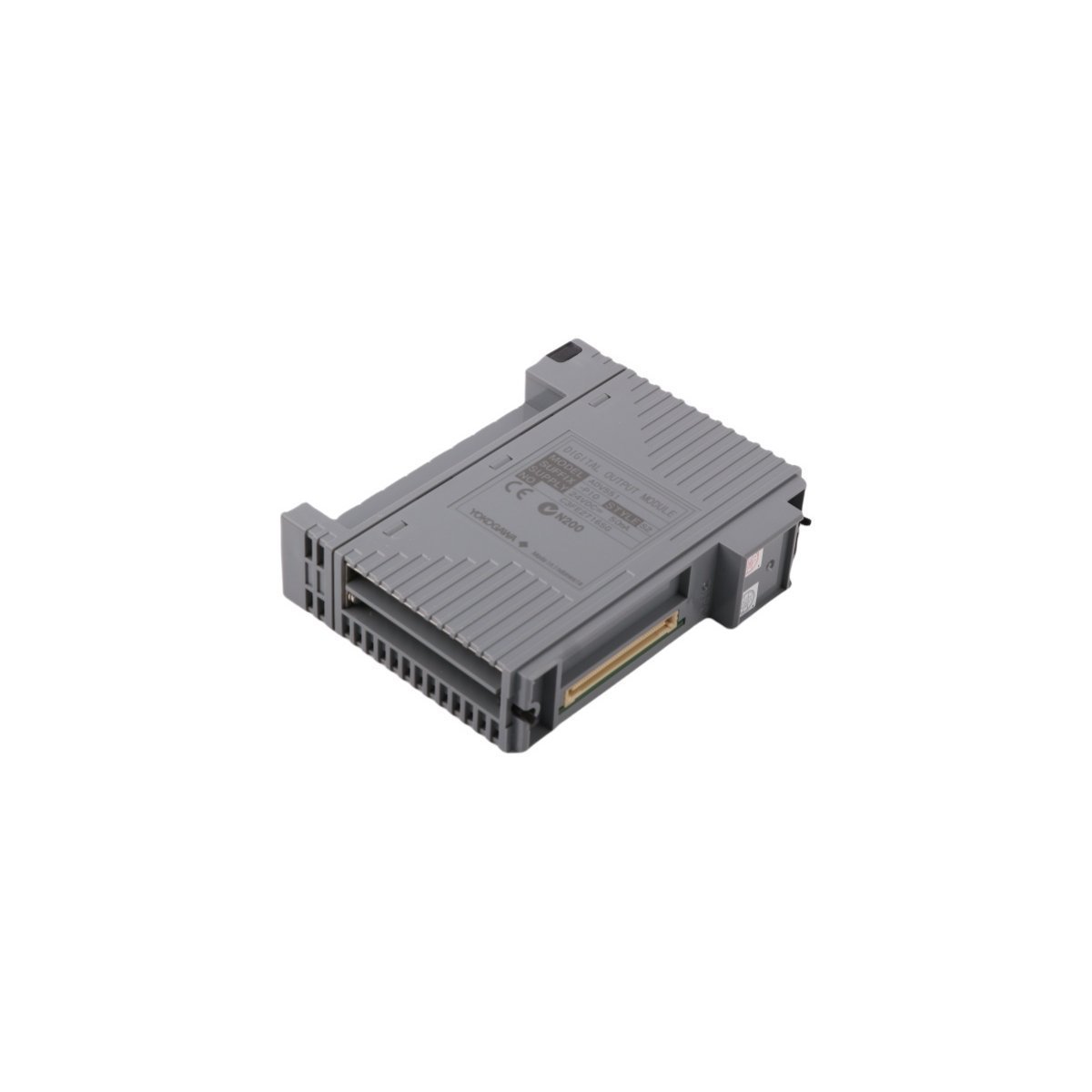

The Yokogawa ADV551-P10 S2 is a high-density digital output interface designed for the CENTUM VP and CS 3000 Distributed Control Systems (DCS). This module serves as the primary control link between the system logic and field-side discrete equipment. It is engineered to drive up to 32 independent channels, providing the 24VDC signals required to actuate solenoid valves, relays, and motor starters. The “S2” hardware revision represents an updated circuitry design that enhances signal stability and extends the module’s operational lifecycle in continuous process environments.
Technical Specifications
| Feature | Specification Details |
| Manufacturer | Yokogawa Electric Corporation |
| Model Number | ADV551-P10 S2 |
| Output Type | Digital Output (Discrete) |
| Number of Channels | 32-Channel, Isolated |
| Rated Voltage | 24V DC |
| Maximum Load Current | 100mA per channel (at 24V DC) |
| System Interface | FIO (Field network I/O) |
| Weight | 0.20 kg |
| Dimensions | 3.2 x 10.8 x 13.0 cm |
| Country of Origin | Japan |
Typical Industrial Applications
- Valve Actuation: Precise control of solenoid-operated valves in fluid processing.
- Motor Control: Signaling to contactors and variable frequency drives (VFDs).
- Alarm Systems: Driving audible sirens and visual beacon indicators.
- Safety Interlocks: Providing status signals for equipment interlocking and sequencing.
