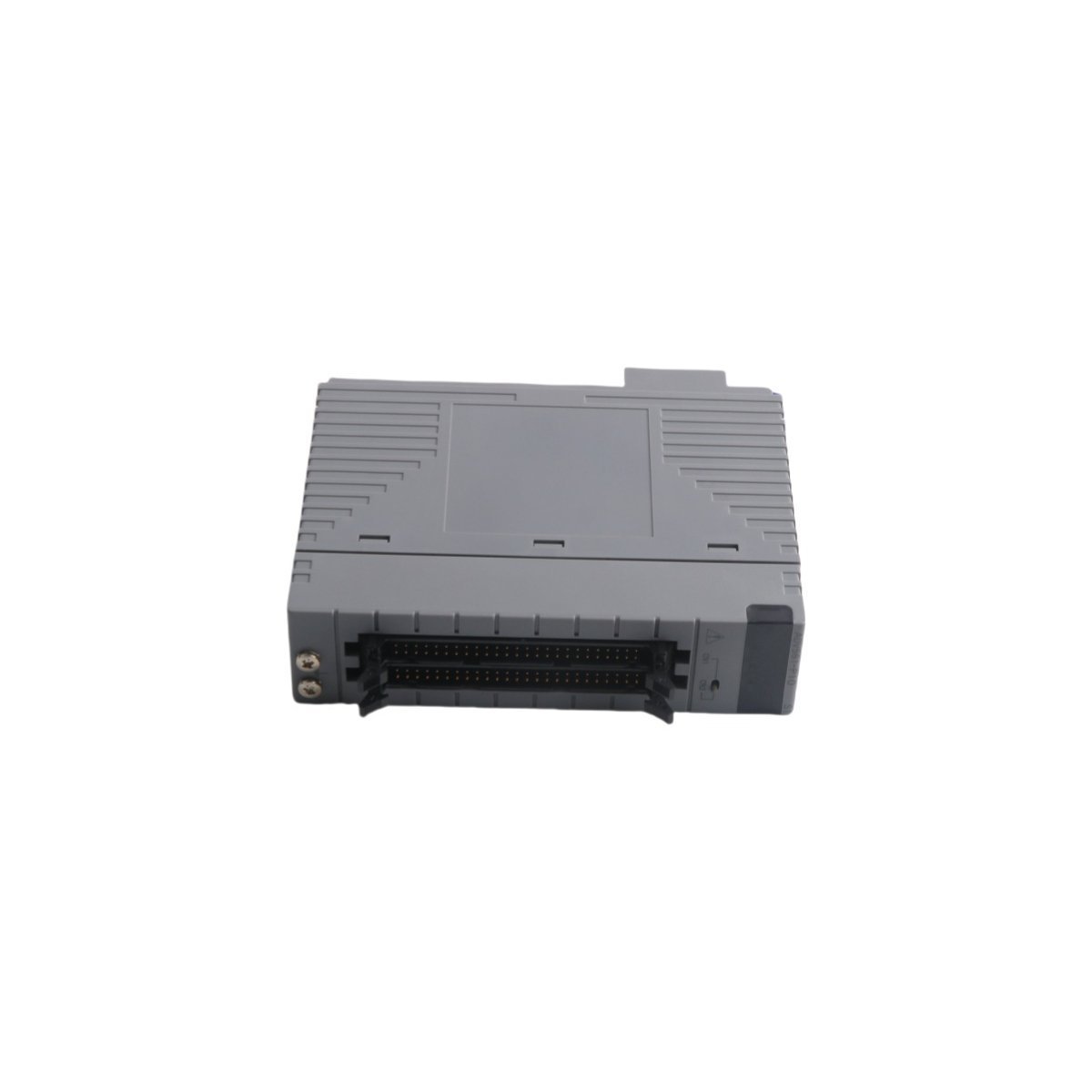

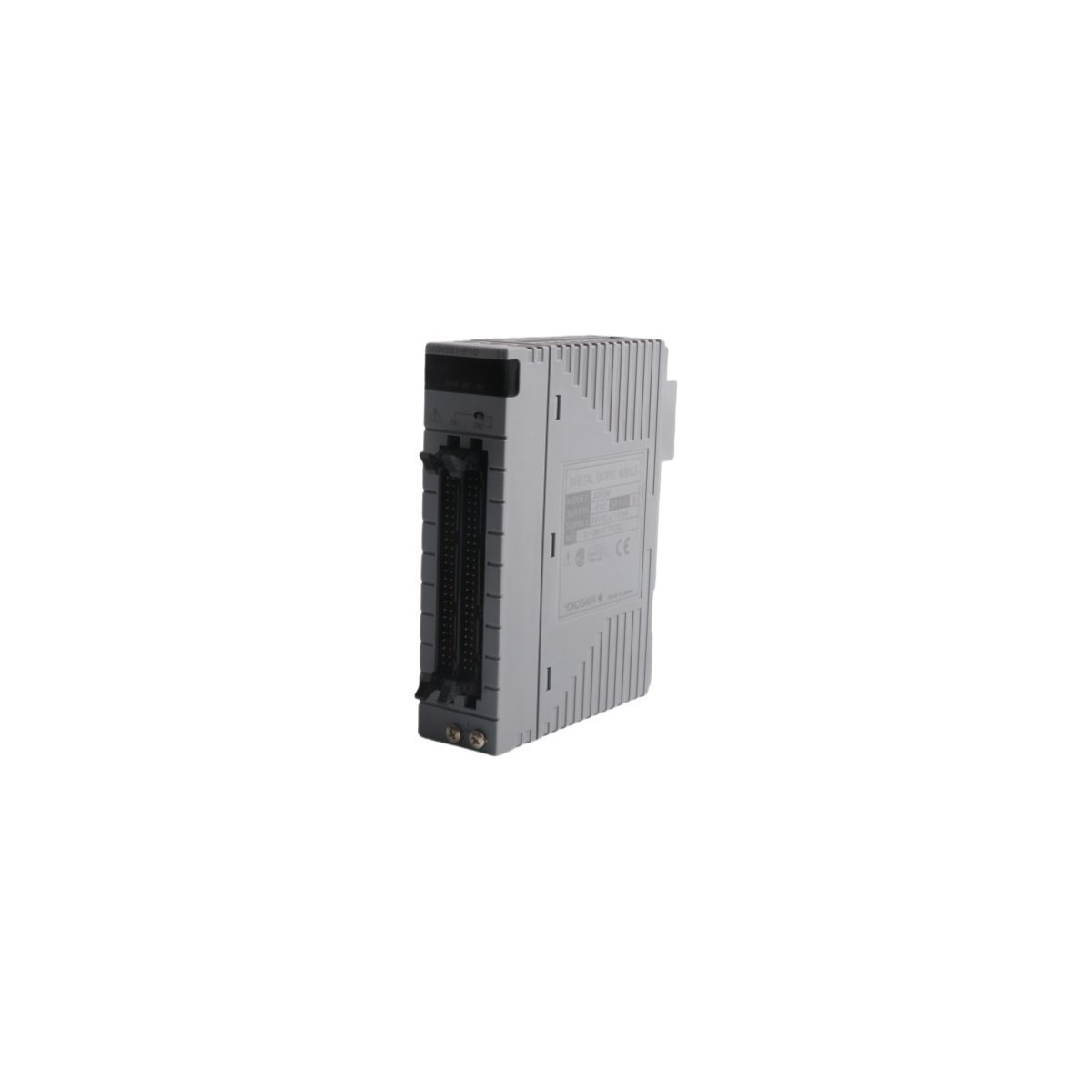

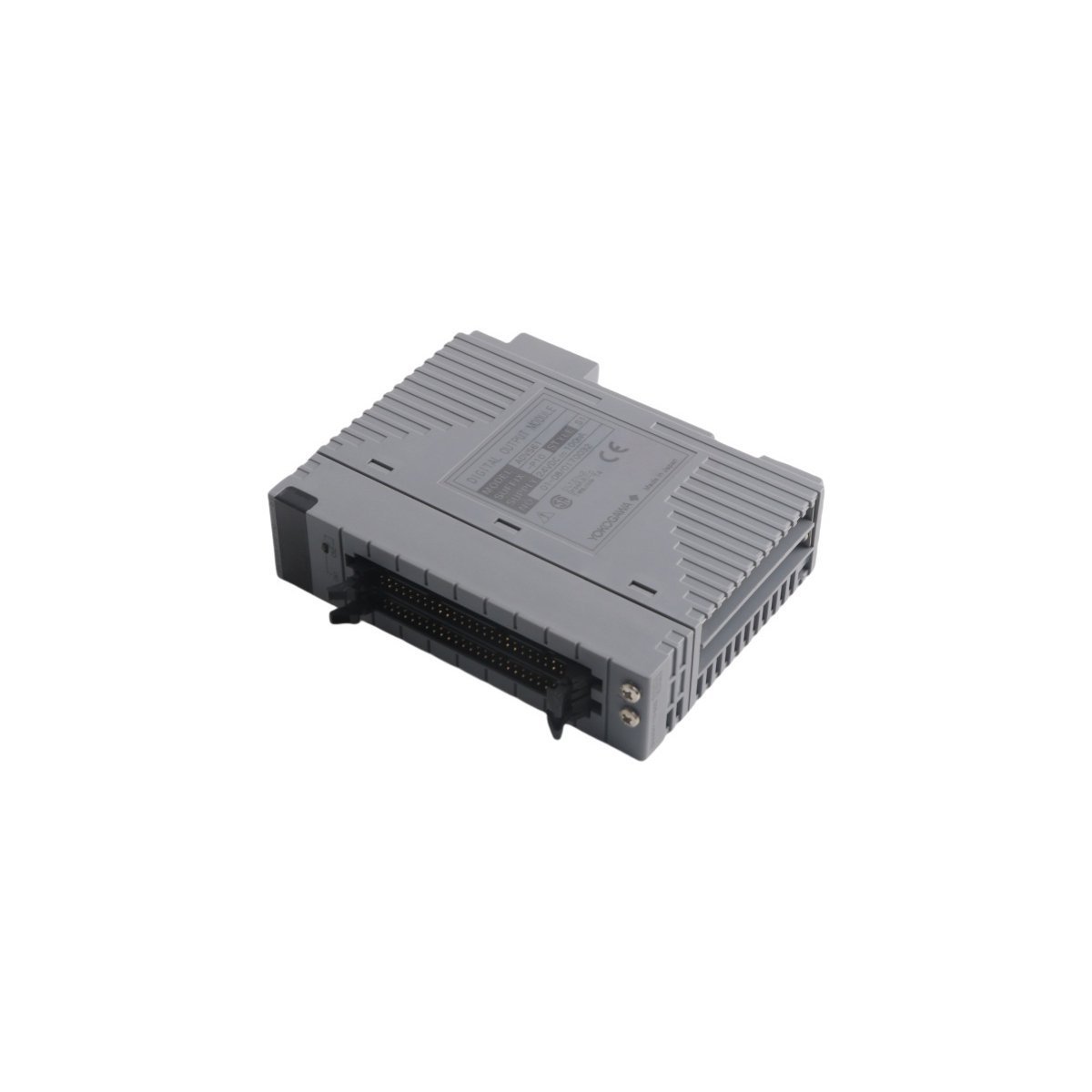

The Yokogawa ADV561-P10 S1 acts as a critical interface for discrete control within the CENTUM VP system. This digital output module provides 64 channels for managing various field actuators. It excels in high-density installations requiring efficient signal distribution. By converting internal logic commands into external electrical signals, it drives relays and solenoid valves. The module maintains high operational availability for large-scale industrial automation.
Functional Technical Characteristics
This module features a 64-channel common ground configuration to optimize cabinet space. It utilizes a 24 VDC power supply for stable signal transmission. Photocoupler isolation protects internal system circuits from field-side electrical surges. Furthermore, the module supports redundant configurations to eliminate single points of failure. The hardware detects internal errors through continuous self-diagnostic routines. Consequently, it ensures high reliability for mission-critical process control tasks.
Equipment Specifications
| Parameter | Technical Detail |
| Channel Count | 64 isolated channels |
| Output Type | Sink/Source transistor output |
| Rated Load Voltage | 24 VDC |
| Maximum Load Current | 100 mA per channel |
| Response Time | 1 ms maximum |
| Power Consumption | 3.5 W typical |
| Operating Temperature | -10 to 55 degrees Celsius |
| Dimensions | 3.2 x 12 x 13 cm |
System Integration and Application
Engineers primarily deploy the ADV561-P10 S1 in heavy industry sectors. It provides reliable control for motor starters and indicator lamps in refineries. Chemical plants use it to manage sequenced valve operations during batch processing. Because the module fits standard FIO bases, installation remains straightforward and fast. Additionally, the high channel density reduces the total number of required hardware components. This efficiency significantly lowers the overall cost of the control system.
