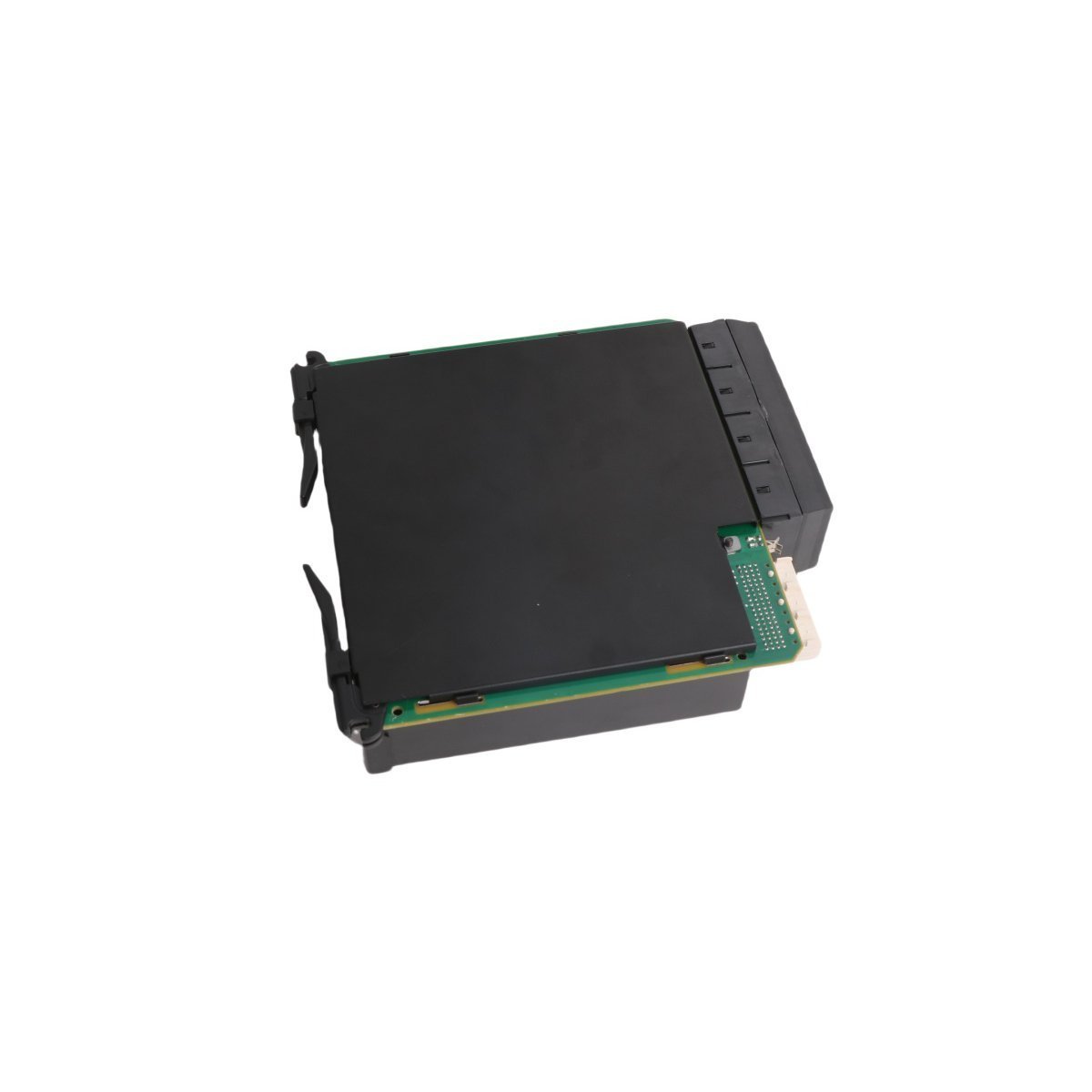

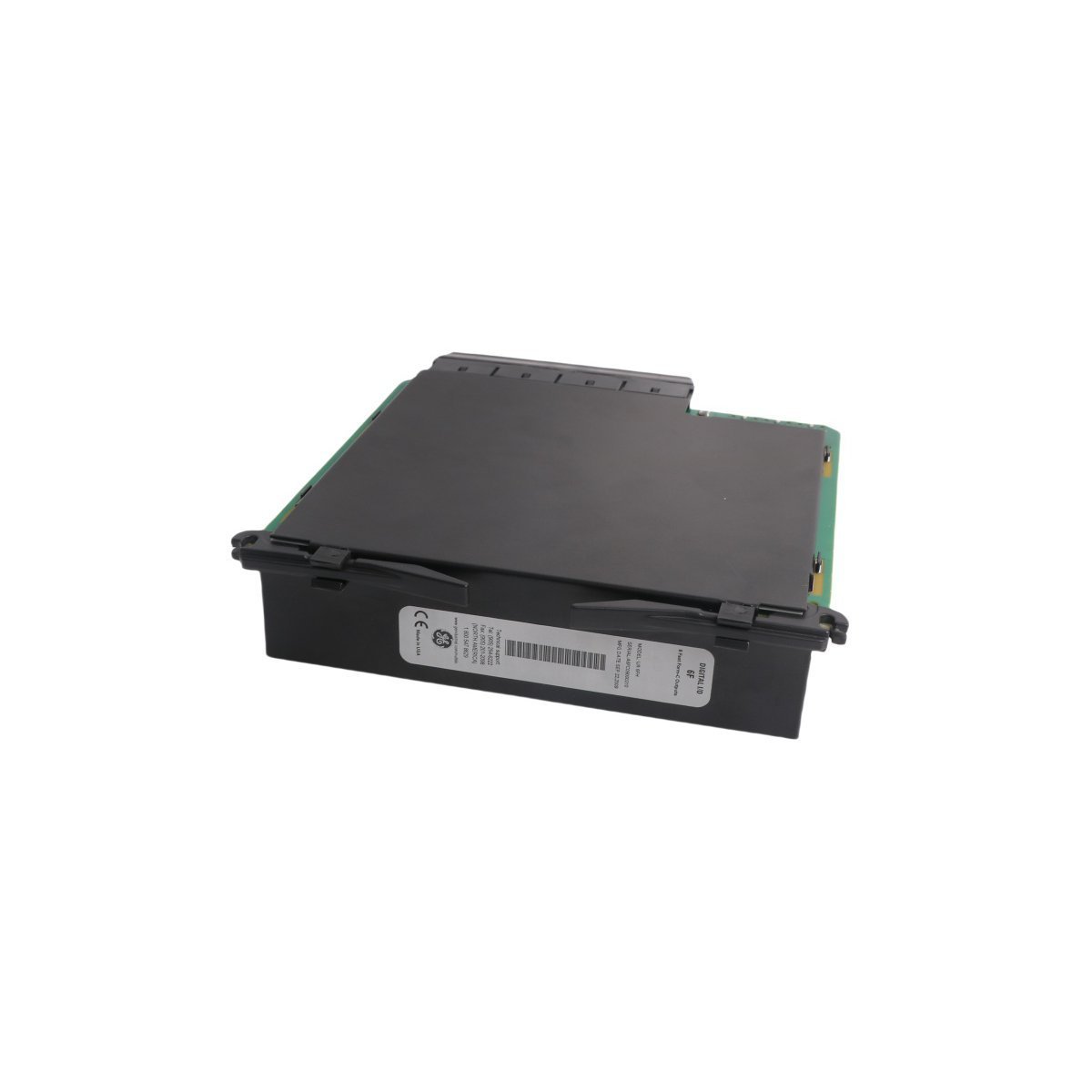

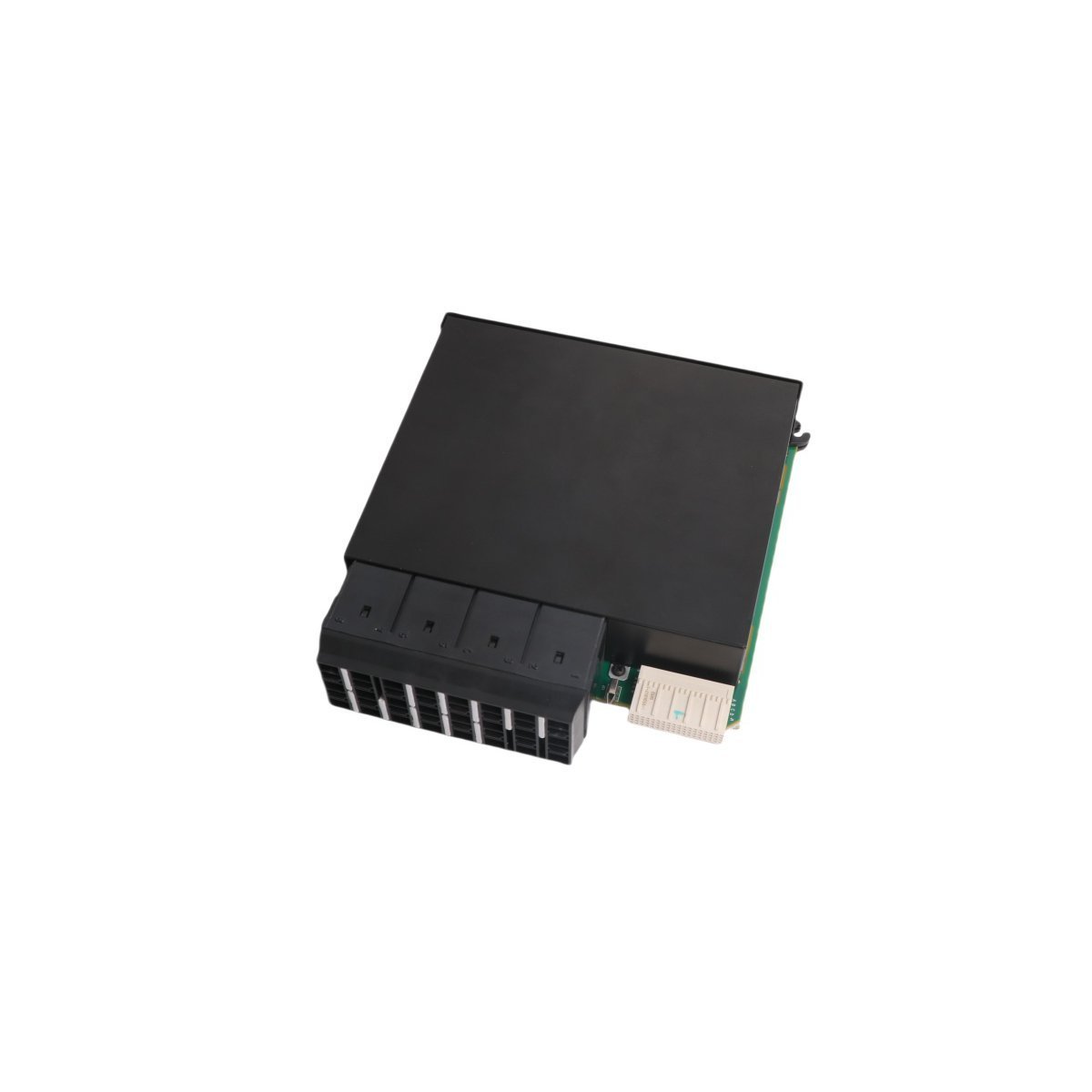

General Electric UR6FH Multilin Digital I/O Module

The GE Multilin UR6FH serves as a high-performance expansion component for the Universal Relay (UR) family. This module facilitates critical communication between the relay logic and primary power system equipment. Furthermore, the hardware provides high-speed binary signal processing for protection and control applications. It ensures precise monitoring of field contacts while executing rapid command outputs. Industrial facilities rely on this module for stable performance in high-voltage substation environments.

Primary Technical Specifications

Advanced High-Speed Switching Capabilities

The UR6FH excels in applications requiring near-instantaneous response times. Specifically, the module utilizes eight Form-C outputs designed for high-speed operation and security. These outputs provide flexible normally-open and normally-closed contact configurations. Consequently, protection schemes can execute trip or close commands with minimal latency. This speed is essential for mitigating faults in power distribution networks. The module also features robust insulation to prevent electrical interference from affecting the logic.

Industrial Integration and Protection

The UR6FH integrates seamlessly into any standard UR series chassis. This modularity allows users to scale their I/O capacity based on specific site requirements. Additionally, the unit features comprehensive self-diagnostics to monitor contact health and internal circuitry. If a hardware failure occurs, the relay notifies the central management system immediately. This proactive monitoring reduces the risk of undetected signal failures. The hardware also complies with international standards for electromagnetic compatibility in utility environments.

Reliable Utility and Automation Performance

GE builds the UR6FH to thrive in demanding industrial settings and outdoor substations. The board utilizes high-grade materials to resist thermal stress and mechanical vibration. Moreover, the hardware design minimizes current draw to reduce the overall thermal load on the relay chassis. This efficiency contributes to a longer service life for the entire protection system. For automated grid management, this I/O module remains a foundational tool for secure signal routing.
