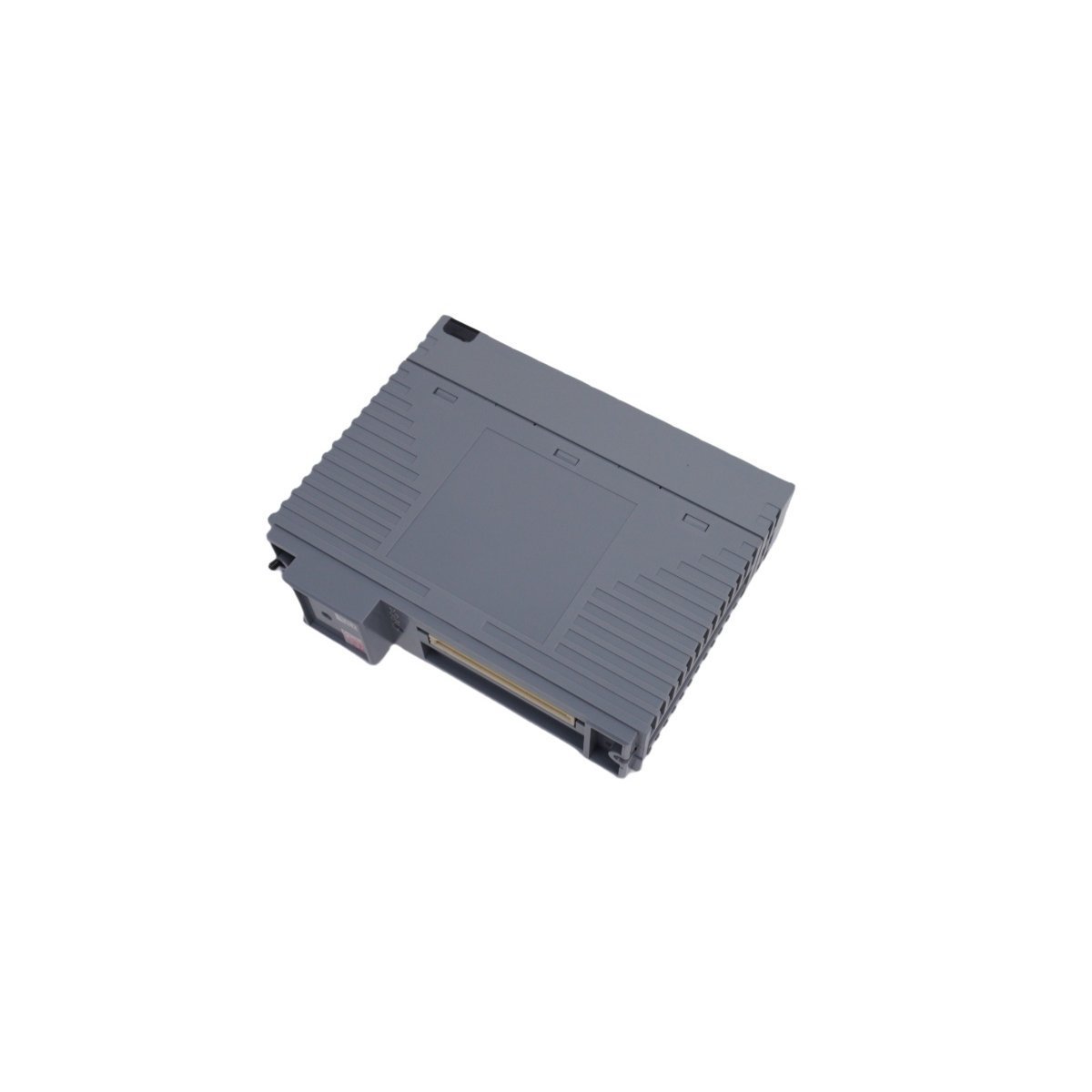

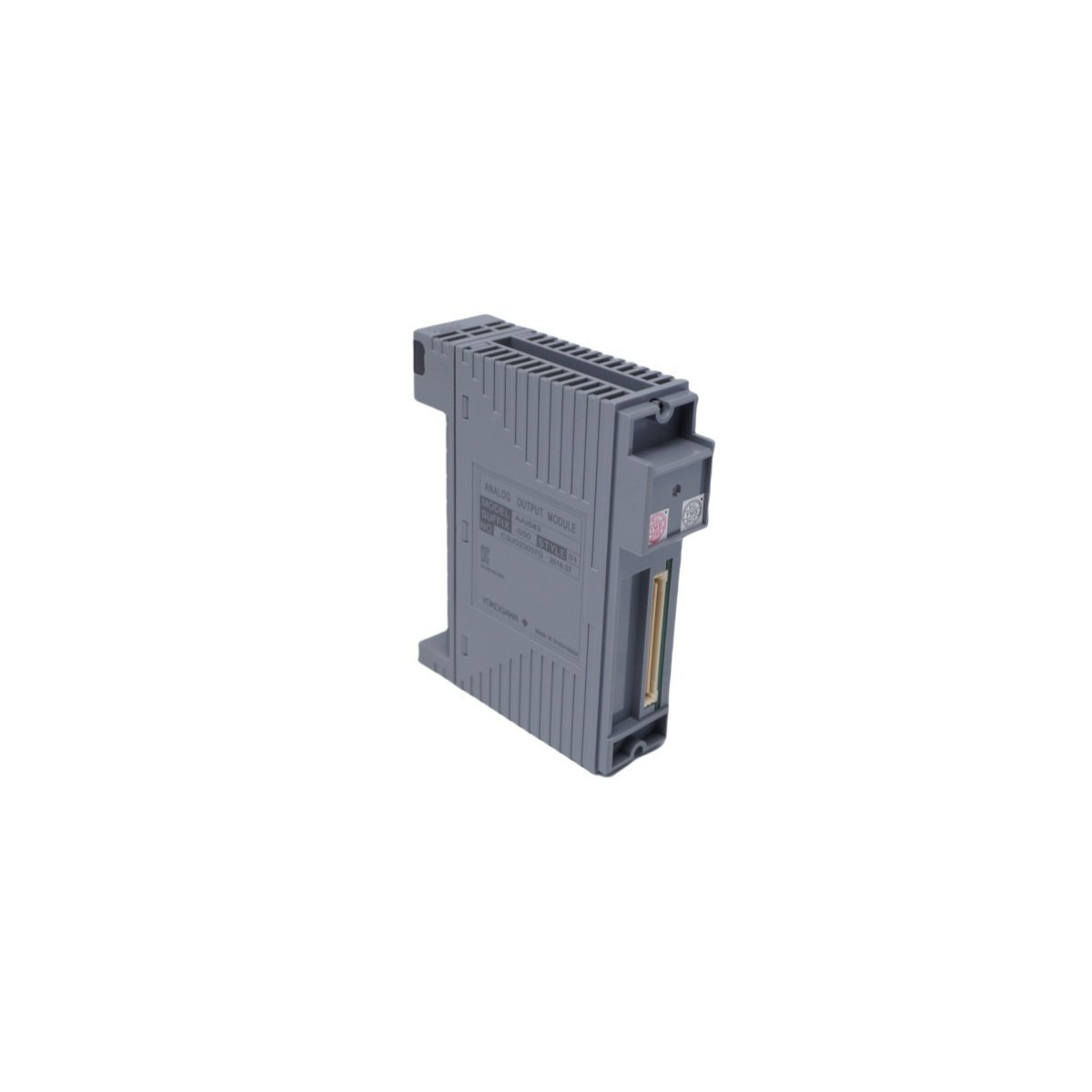

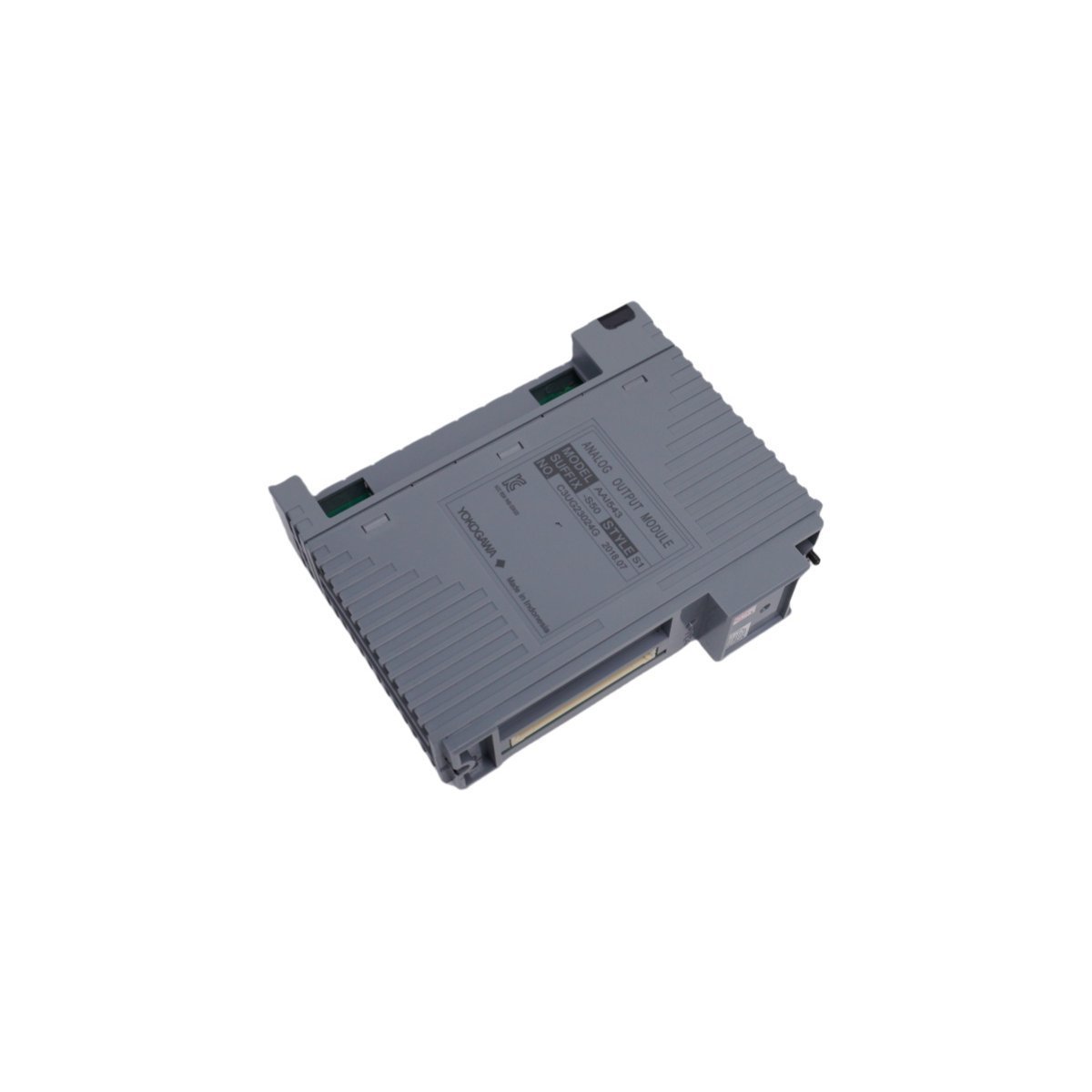

Yokogawa AAI543-S50 Analog Output Module

Technical Specifications Summary

The Yokogawa AAI543-S50 stands as a sophisticated solution for managing field actuators and control elements within the CENTUM VP Distributed Control System (DCS). This module provides 16 isolated channels, delivering a precise 4 to 20 mA current signal to drive valves, positioners, and other modulating devices. A primary advantage of the AAI543-S50 is its native support for the HART communication protocol. By superimposing digital data onto the analog signal, the module allows the DCS to retrieve diagnostic information and device status directly from smart field instruments, facilitating proactive asset management and predictive maintenance.

Precision Performance in Critical Environments

Engineering teams prioritize the AAI543-S50 because it maintains a high accuracy rating of ±0.1% of full scale. This level of precision remains consistent even across the module’s broad operating temperature range of -20 to 70°C. Furthermore, the hardware features a hot-swappable architecture, which allows technical staff to replace modules without interrupting system power or process control. To ensure maximum uptime in hazardous or high-interference locations, each channel possesses individual electrical isolation, preventing ground loops and protecting the internal system bus from external electrical surges.

Key technical attributes include:

• 16-channel current output (4 to 20 mA).
• Integrated HART communication for smart device diagnostics.
• SIL2 safety integrity level certification for process safety applications.
• Compliance with ATEX and IECEx standards for hazardous zones.
• High-density design with a net weight of only 0.32 kg.
