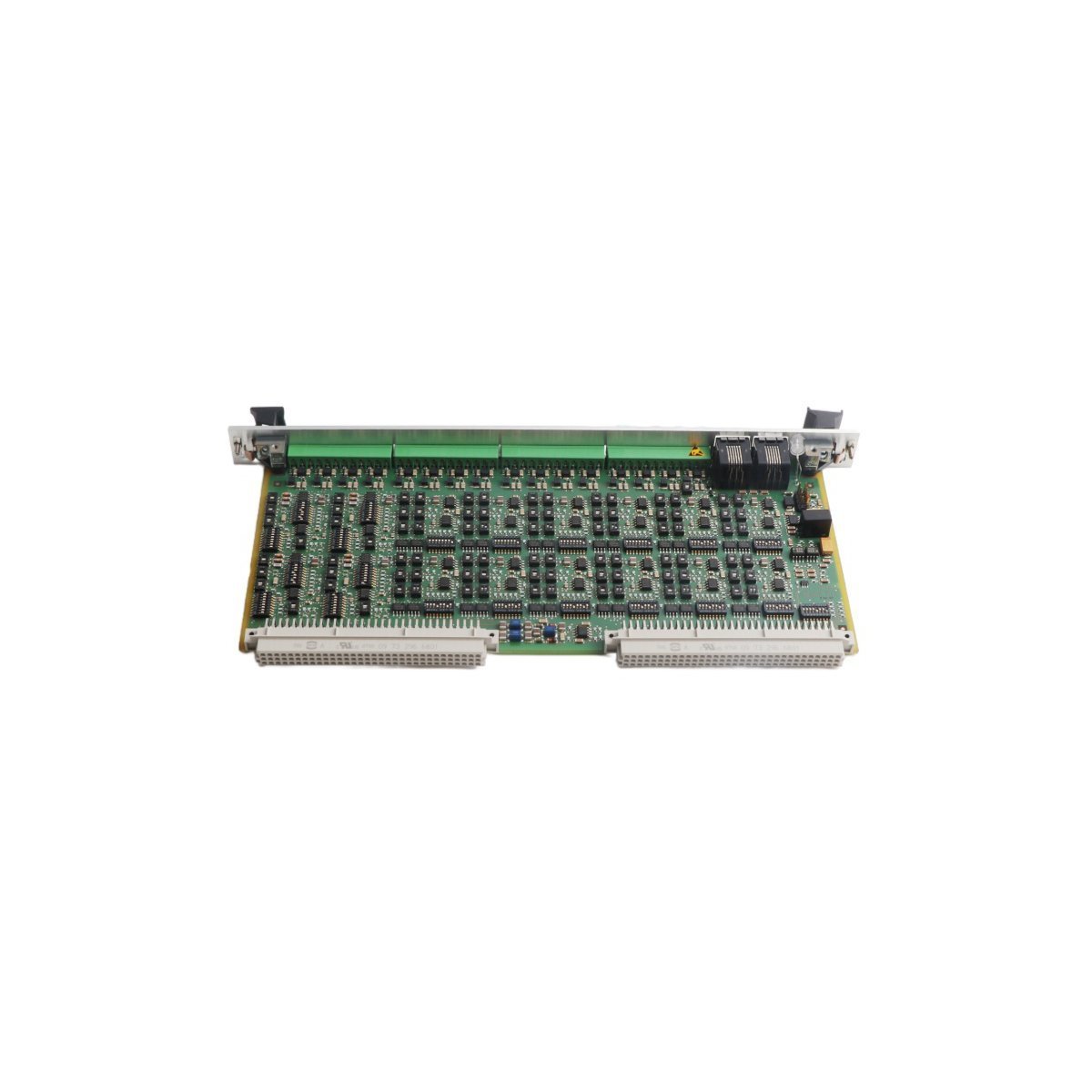

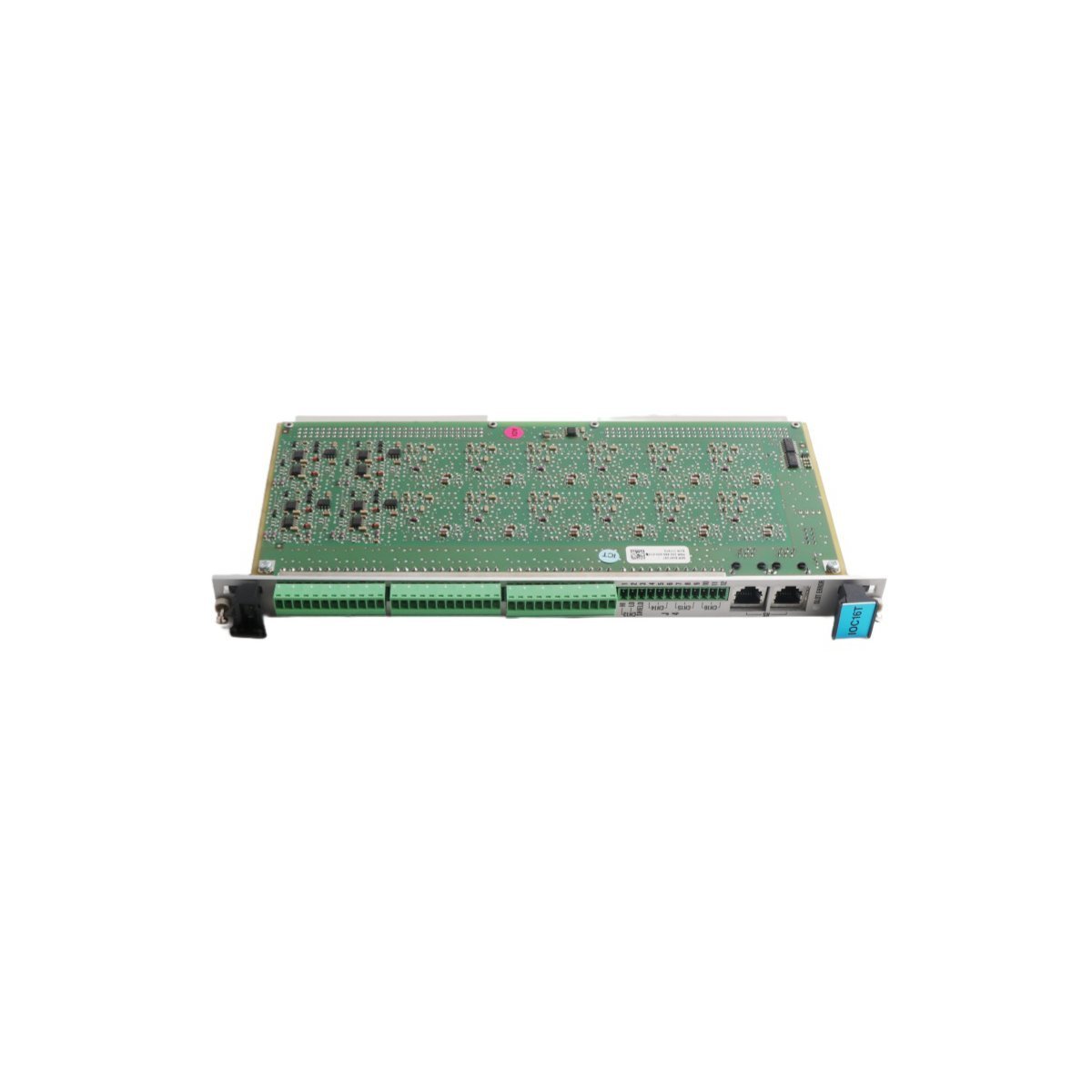

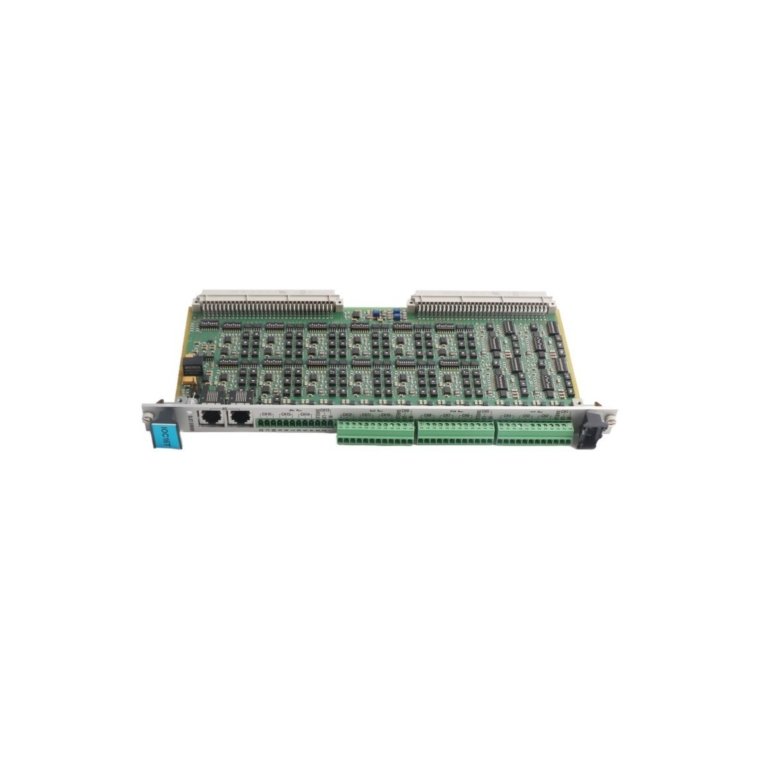

The Vibro-Meter IOC16T (Part Number 200-565-000-013) acts as the primary hardware interface for the MPC4 machinery protection card within the VM600 system architecture. This 16-channel I/O module installs in the rear position of the VM600 rack to facilitate direct communication with the rack backplane. By operating in slave mode, the card utilizes an Industry Pack (IP) interface to manage high-speed data transfer between external measurement chains and the central processing unit. This structural design ensures that critical machinery health signals remain accurate throughout the entire processing loop.
Industrial Durability and System Integration
The compact and rugged construction of the IOC16T ensures long-term reliability in demanding environments like power stations and refineries. Because it occupies a small footprint of 3.2 x 10.6 x 13 cm, it allows for high-density rack configurations. The module effectively bridges the gap between field sensors and complex control room environments by providing standardized analog outputs. Consequently, maintenance teams can rely on the IOC16T for consistent performance in predictive maintenance programs and emergency shutdown loops.
Advanced Signal Processing and Conversion
- Input Connectivity: The front panel features high-quality screw-terminal connectors for secure wiring of sensors and signal conditioners.
- Signal Transformation: Four integrated digital-to-analog converters (DACs) translate digital data into standard 0–10 V voltage signals.
- Flexible Current Loops: Four voltage-to-current converters provide 4–20 mA outputs, which users can easily configure via onboard jumpers.
- Protection Standards: The circuit design incorporates heavy-duty filtering to meet strict industrial EMI and EMC compatibility requirements.
- Data Routing: The module efficiently routes raw dynamic vibration and speed signals to the associated MPC4 for real-time analysis.
