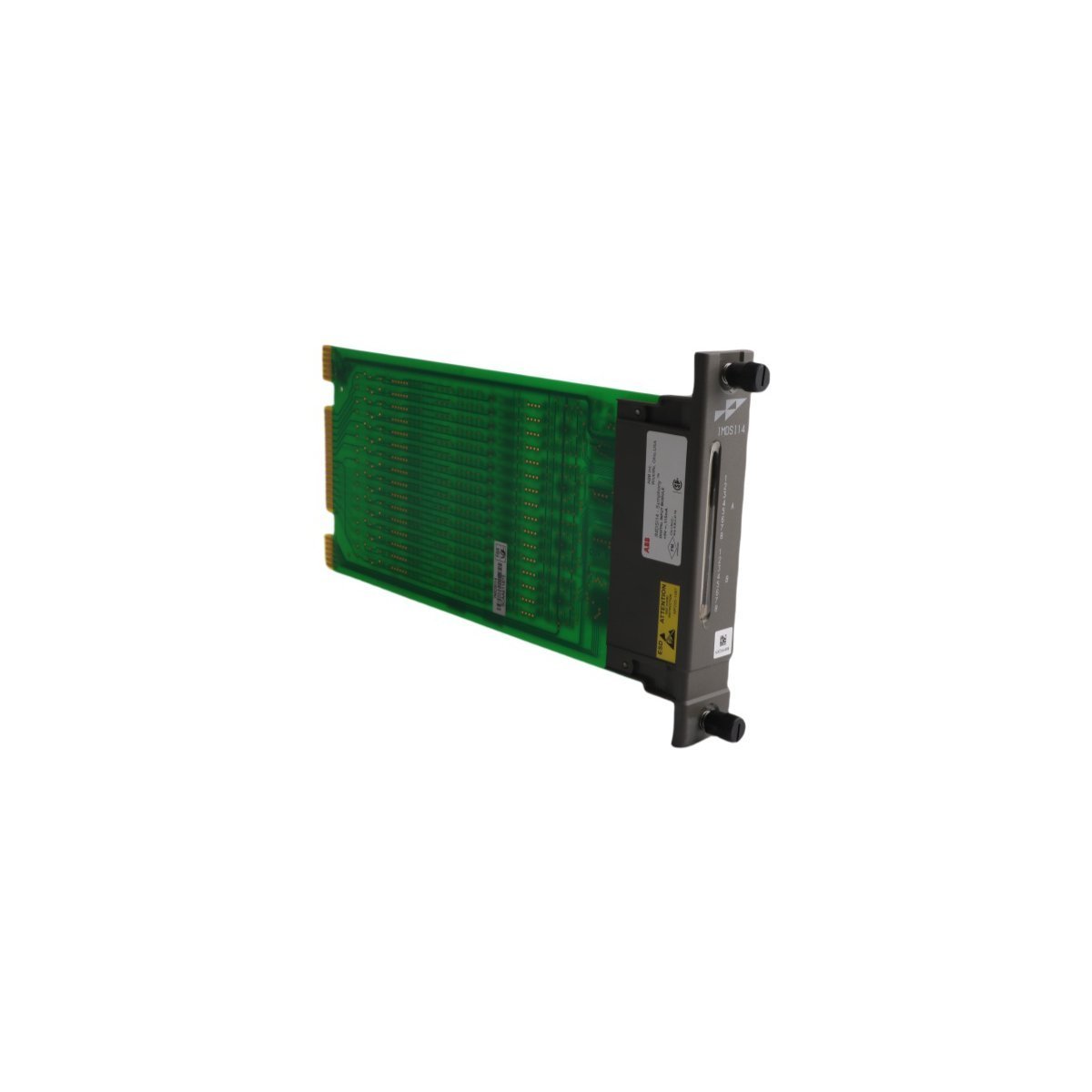

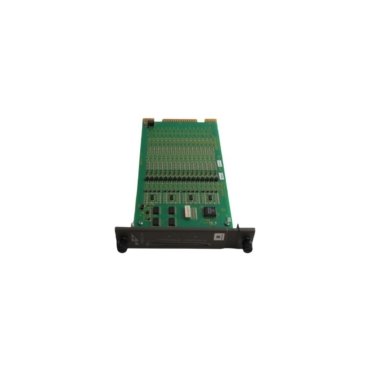

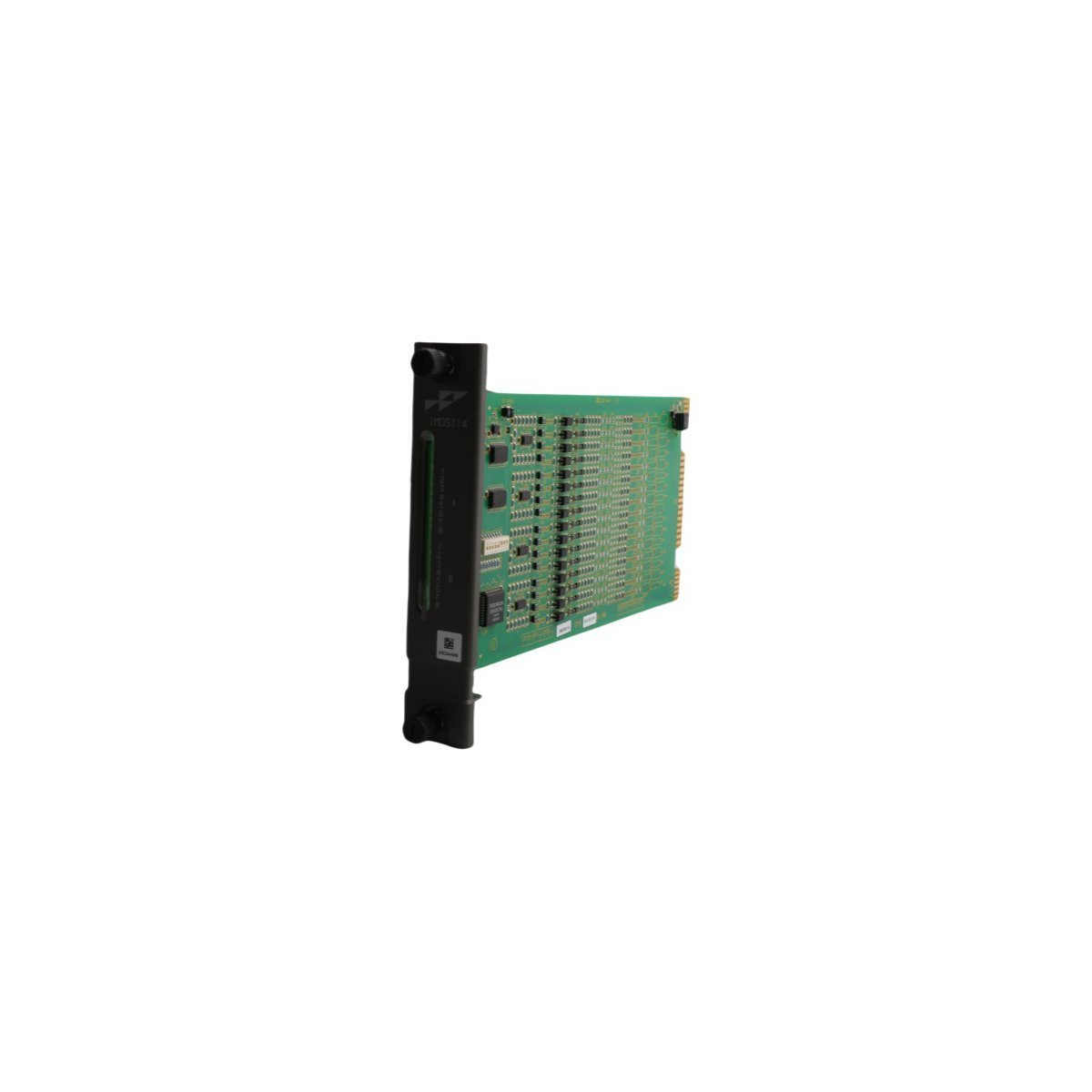

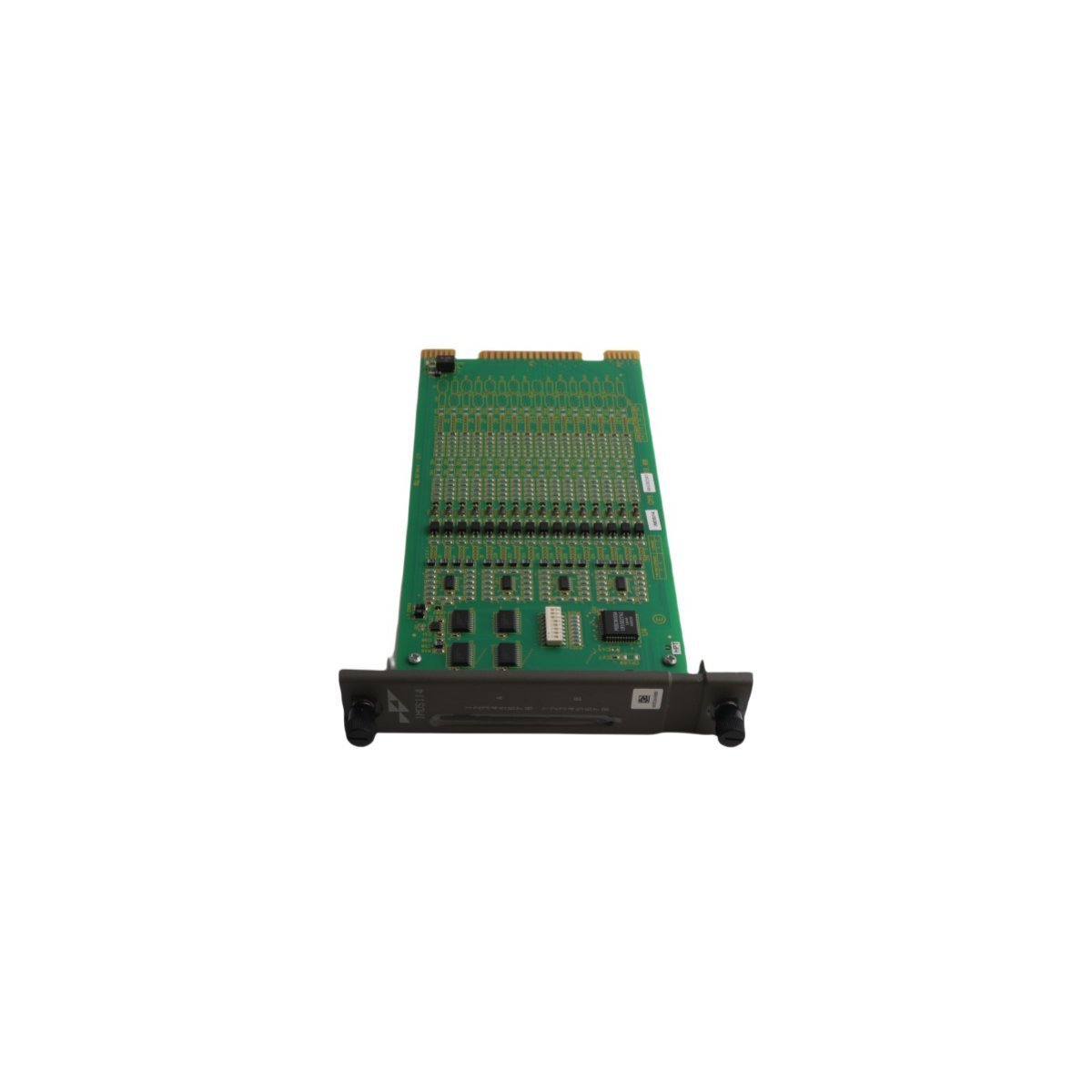

The ABB IMDSI14 is a high-density digital slave input module designed for the Harmony Rack (HR) I/O ecosystem. This module provides 16 isolated input channels specifically rated for 48 VDC operation. Within a Symphony Plus or INFI 90 Distributed Control System (DCS), the IMDSI14 serves as the primary interface for binary field signals, such as equipment status contacts, limit switches, and alarm outputs. By converting these 48 VDC field voltages into digital logic for the controller, the module enables precise real-time monitoring of industrial processes.
Technical Specifications Summary
- Brand: ABB
- Model Number: IMDSI14
- Series: Harmony Rack (HR) I/O
- Input Type: 48 VDC Digital Input
- Channel Count: 16 Points
- Module Weight: 0.2 kg
- Dimensions: 3.5cm x 31cm x 17.6cm
- Country of Origin: Sweden
- System Compatibility: Symphony Plus, INFI 90, Harmony DCS
- HS Code: 8537101190
Industrial Applications and Environmental Resilience
Engineered in Sweden, the IMDSI14 meets the stringent quality requirements of the DCS market. It performs reliably in temperatures ranging from standard control rooms to more demanding industrial zones. Furthermore, the 48 VDC input rating makes it particularly suitable for utility and energy sectors where higher voltage signaling is preferred for long-distance field wiring. Because the module utilizes a solid-state architecture, it requires virtually no routine maintenance, effectively lowering the total cost of ownership for the facility.
