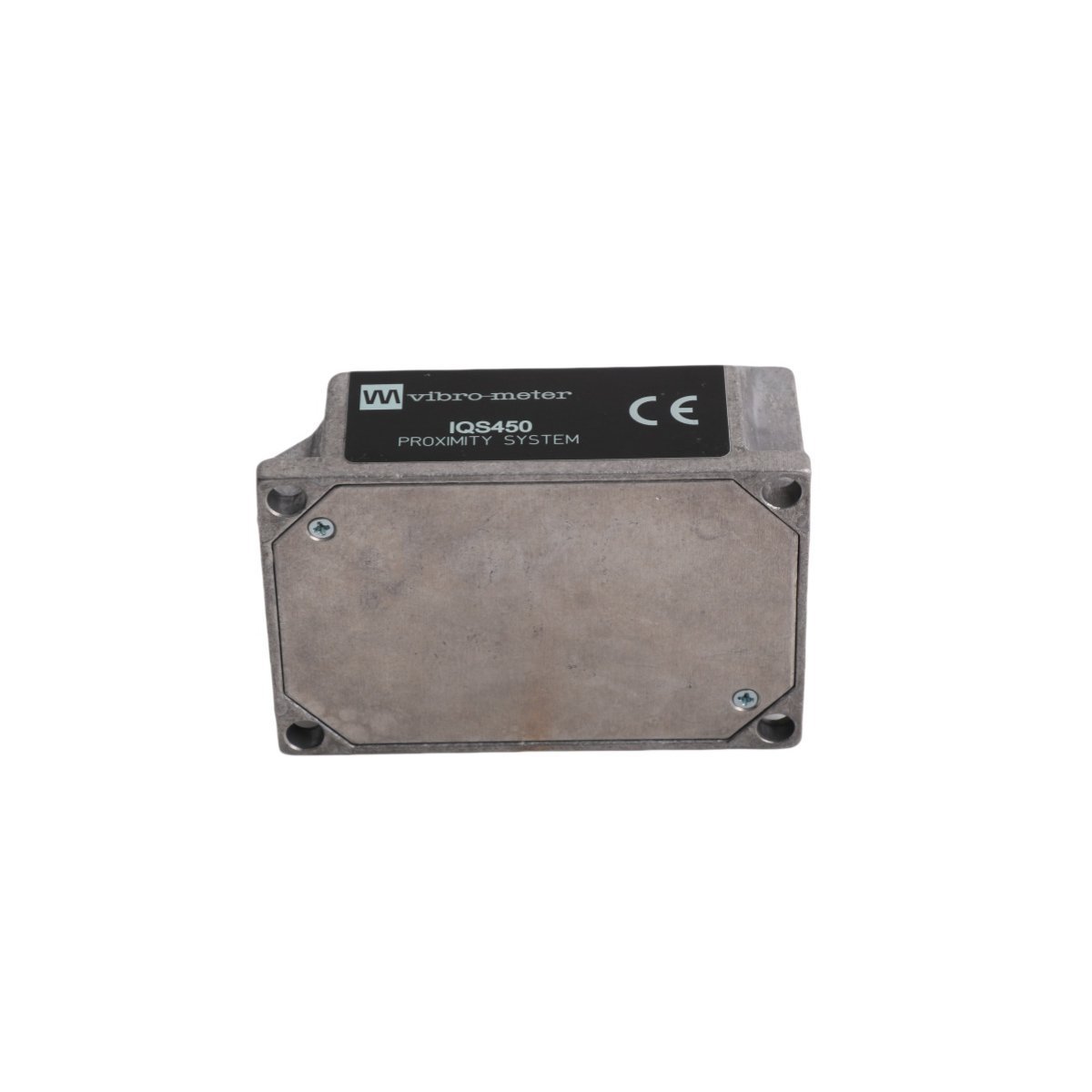

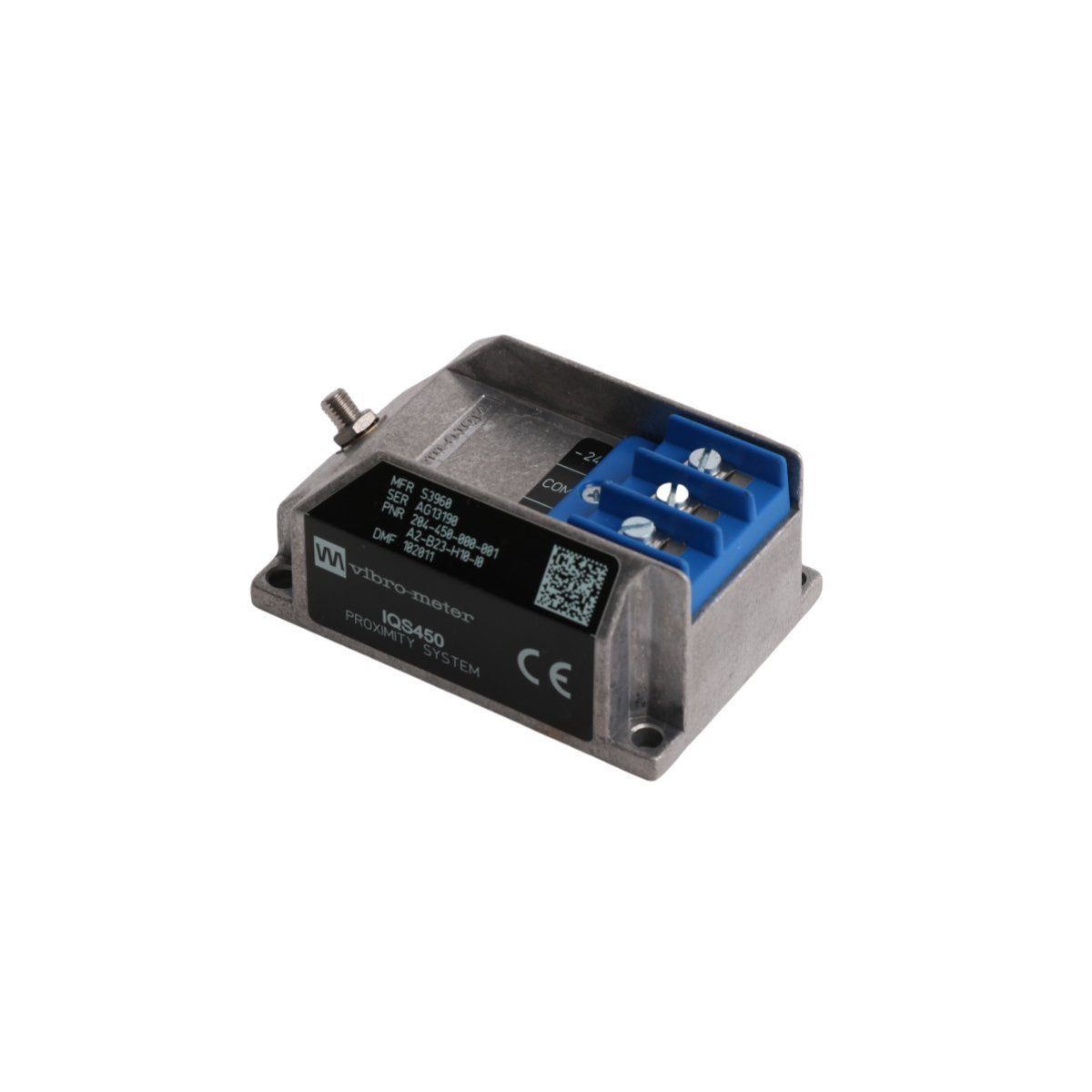

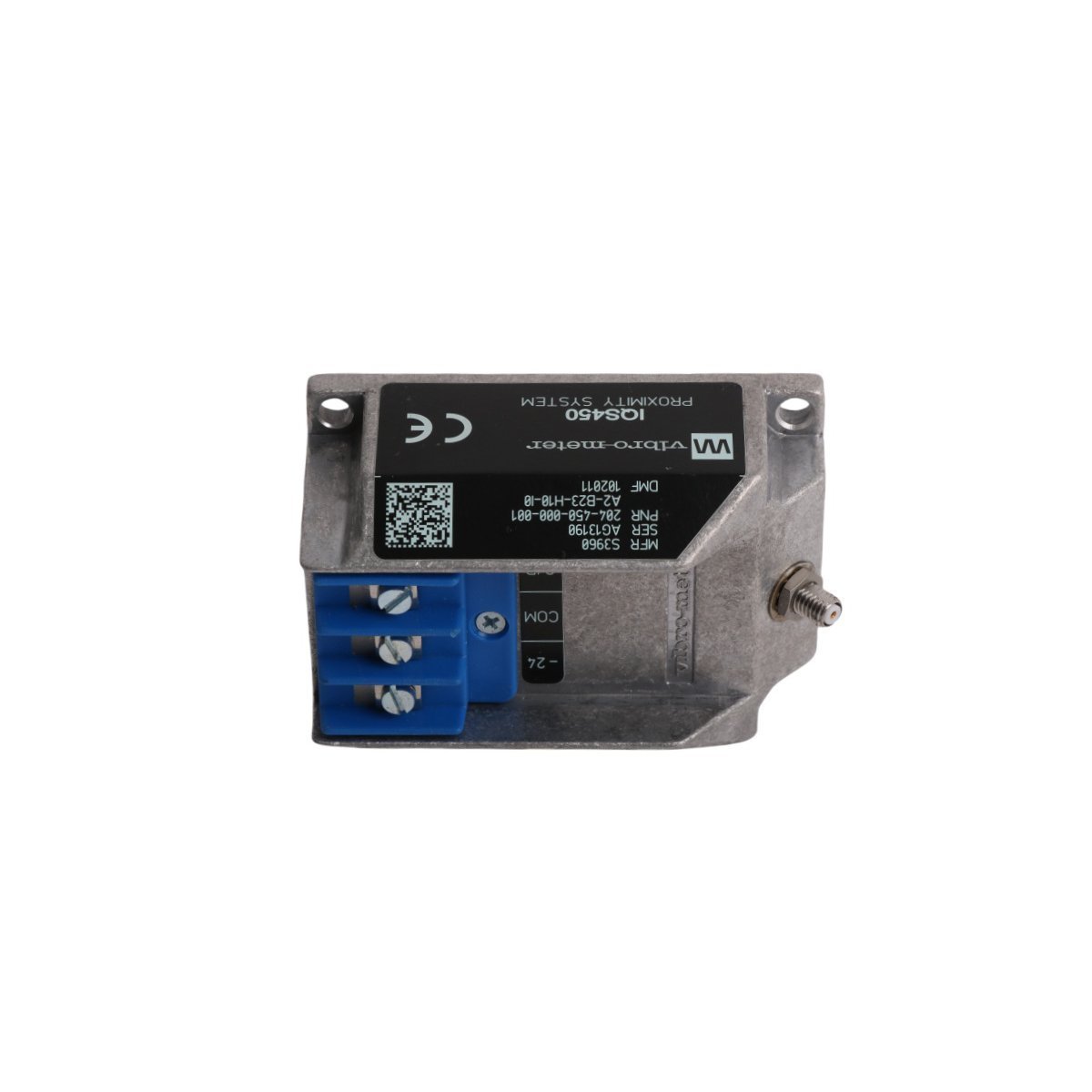

The Vibro-Meter IQS450 204-450-000-001 acts as a central processing unit for proximity measurement systems. This signal conditioner converts raw eddy current data into precise voltage or current signals. It primarily works alongside the TQ series of non-contact sensors to monitor rotating machinery.
The device excels in demanding environments where accuracy remains a top priority. Operators rely on this module to track shaft vibration and axial displacement. Its rugged aluminum housing protects internal electronics from industrial interference and physical wear.
Technical Capabilities
- High-frequency modulation and demodulation ensure exceptional signal clarity.
- The unit supports a wide dynamic output range from -1.6V to -17.6V.
- Integrated short-circuit protection limits current to 45mA for hardware safety.
- Diagnostic features allow for constant monitoring of sensor health and cable integrity.
- Low output impedance enables signal transmission over long distances without degradation.
- The modular design permits sensor replacement without time-consuming system recalibration.
Technical Specifications
| Feature | Details |
| Manufacturer | Vibro-Meter (Meggitt) |
| Model Number | IQS450 |
| Part Number | 204-450-000-001 |
| Input Voltage | -20 VDC to -32 VDC |
| Supply Current | 13 mA (Typical) |
| Output Impedance | 500 Ω |
| Operating Temperature | -35°C to +85°C |
| Weight | 0.32 kg |
| Housing Material | Extruded Aluminum |
