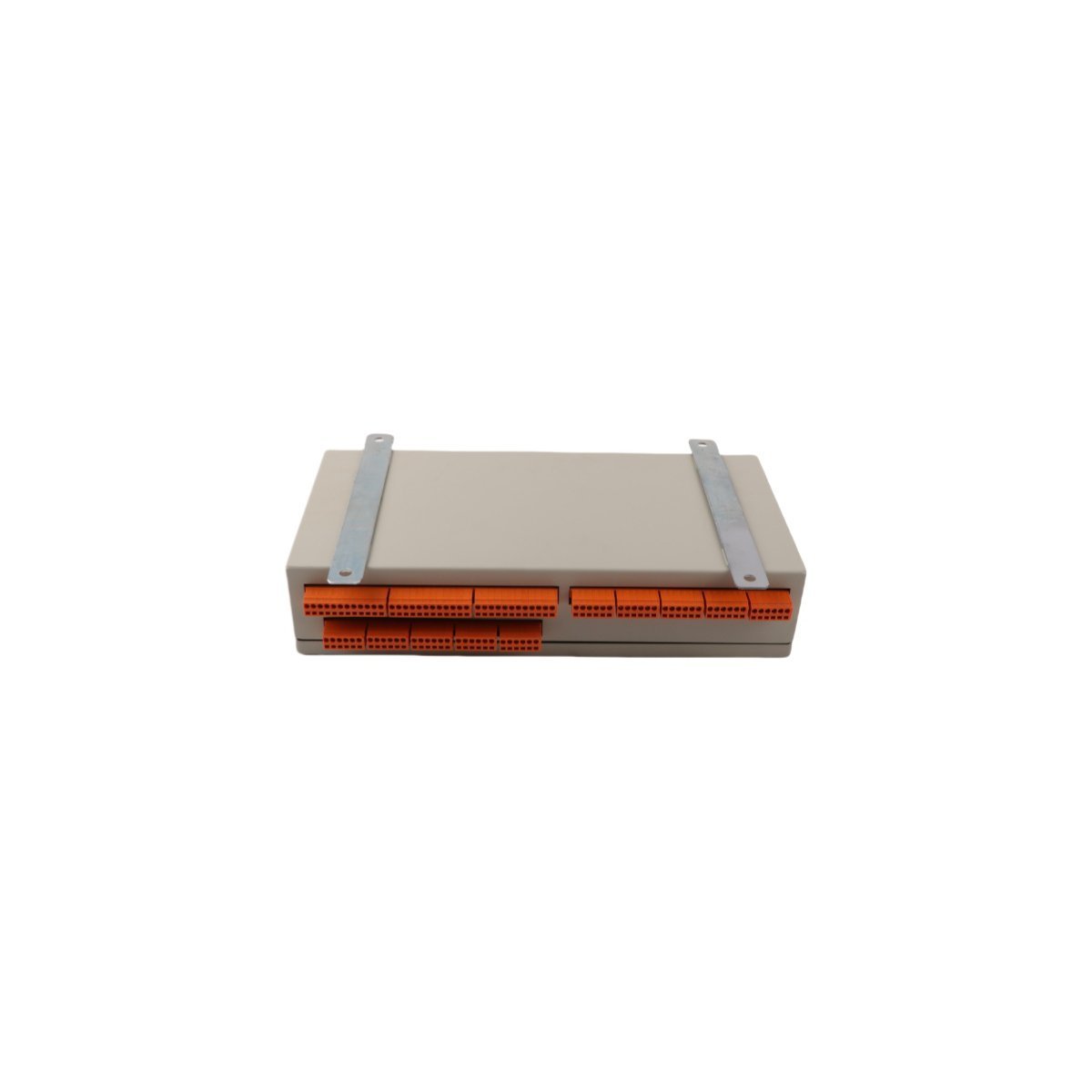

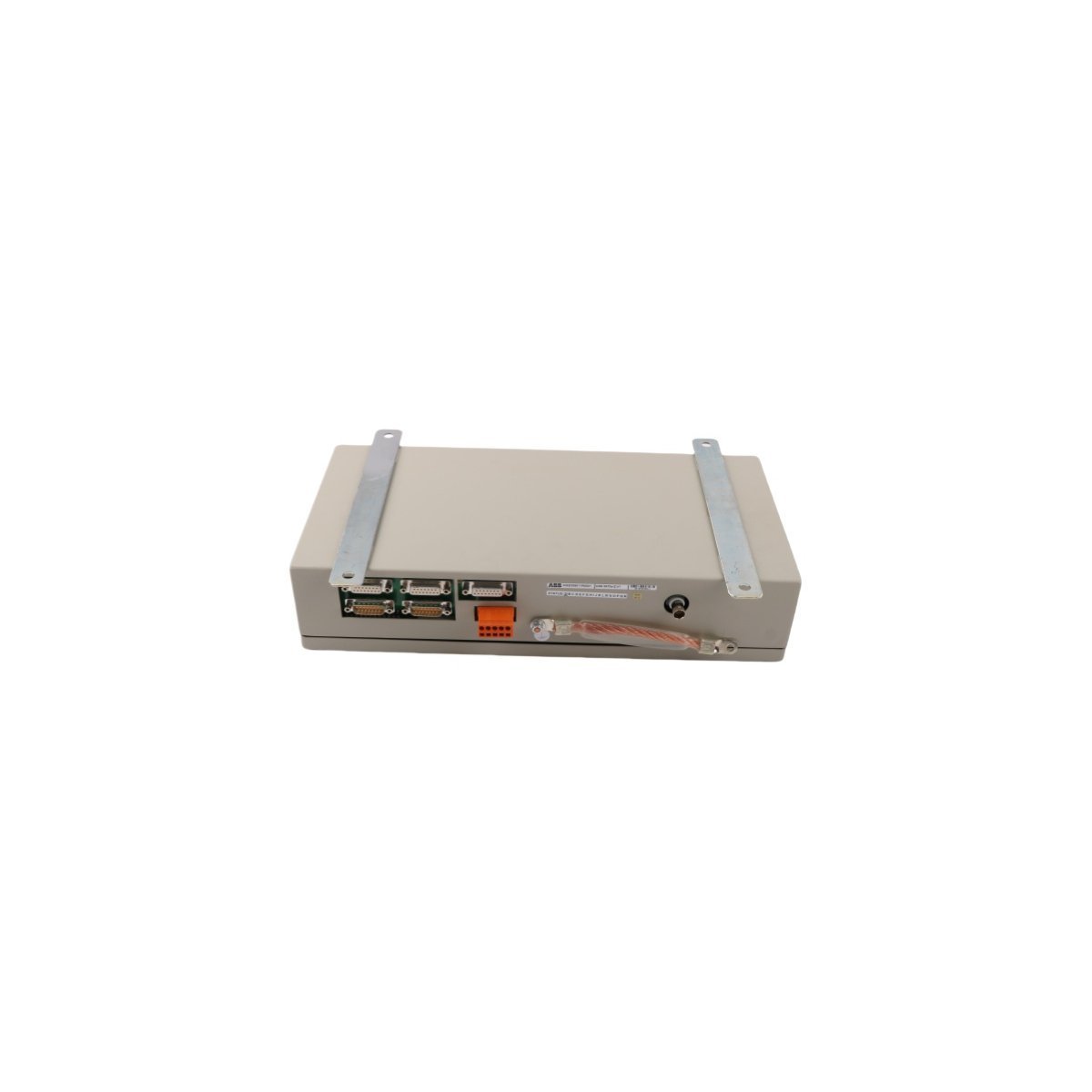

UNS3670A-Z,V1 ABB HIEE205011R0001 DCS Cabinet Power Interface Module

Product Overview

The ABB HIEE205011R0001 UNS3670A-Z,V1 acts as a central power control and panel interface unit within the UNITROL 5000 excitation series. This heavy-duty module handles critical distribution paths and conditions control signals for power semiconductor drives.

Applications and System Functions

This power control module coordinates vital power-switching operations within distributed control systems (DCS) and heavy utility generator setups. Because modern power grids require constant stabilization, this hardware manages demanding electrical loads directly while protecting sensitive control circuits. Operators deploy this card to maintain optimal voltage regulation during abrupt grid load changes. Furthermore, the unit supports multi-protocol bridging across Modbus TCP/IP, EtherCAT, and DeviceNet networks to simplify factory integration.

Technical Characteristics

• High Load Capacity: Safely manages elevated current thresholds within industrial excitation loops without thermal degradation.
• Smart Diagnostics: Features built-in predictive monitoring tools that report board-level health metrics to minimize unexpected downtime.
• Industrial Protocols: Supports seamless multi-bus connectivity including Ethernet routing, Modbus TCP/IP, EtherCAT, and DeviceNet interfaces.
• Heavy-Duty Construction: Features a robust 4.24kg chassis built specifically to resist high electromagnetic interference and continuous mechanical vibration.

Technical Specifications
