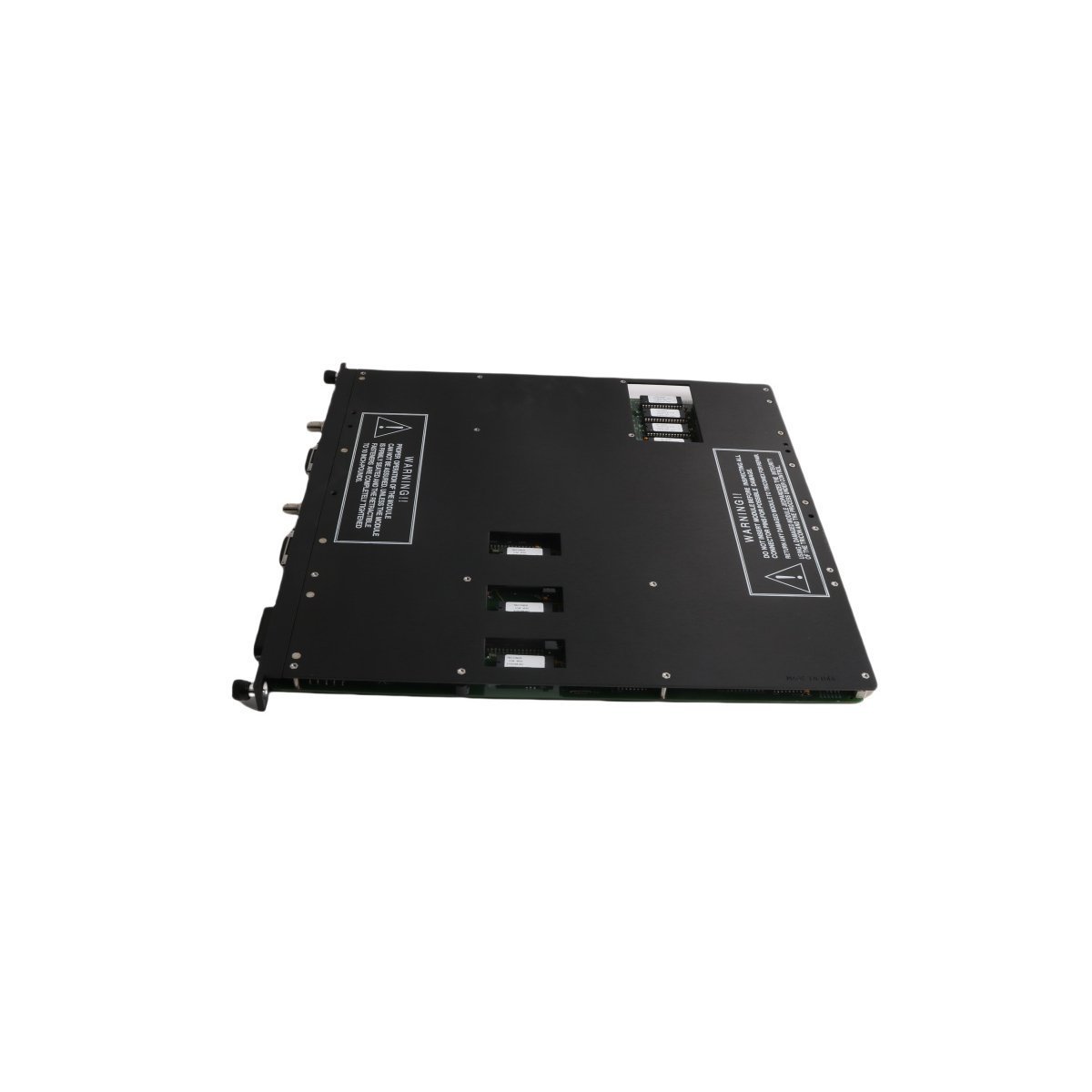

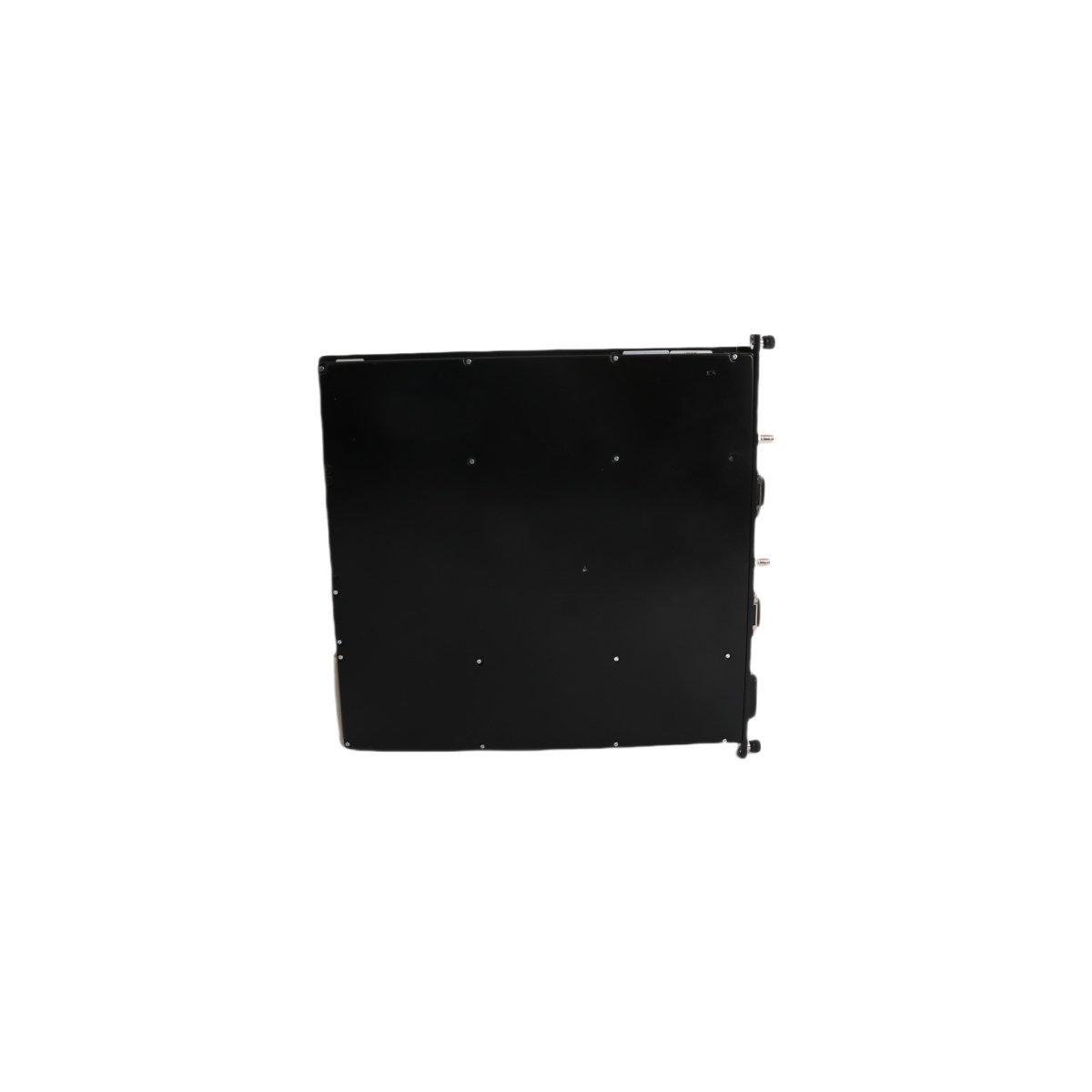

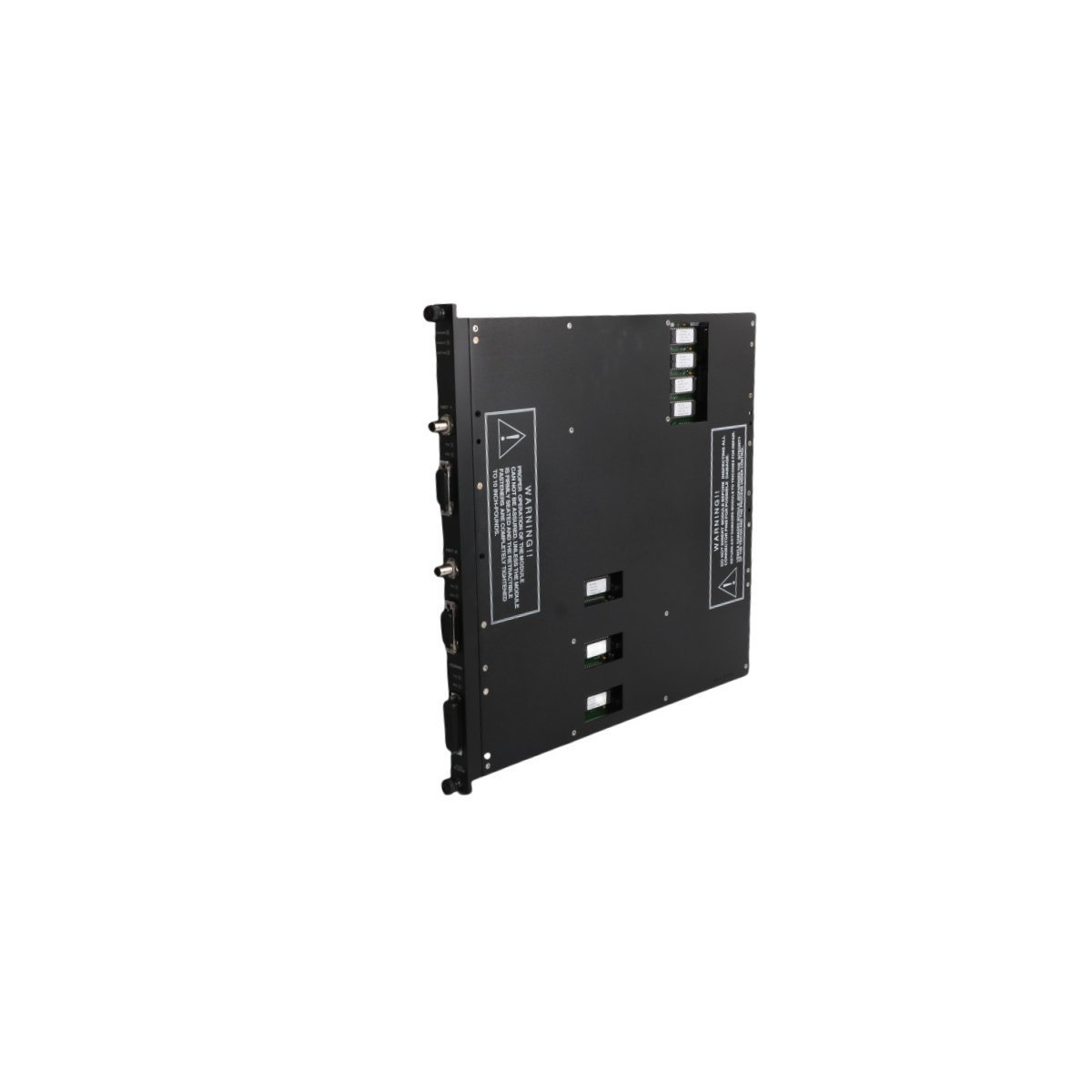

The Triconex 4329 acts as a high-performance bridge between Tricon safety controllers and external Ethernet-based networks. This Network Communication Module (NCM) facilitates seamless data exchange within distributed control systems (DCS). It supports critical monitoring and engineering tasks in high-hazard industrial environments.
Engineers utilize the 4329 module to integrate safety instrumented systems (SIS) with plant-wide information architectures. The module ensures that process data reaches operator workstations and management systems without latency. It maintains the isolation necessary between safety functions and standard control functions.
Core Functionality and Application
This communication interface supports various industry-standard protocols to simplify network integration. It excels in large-scale facilities such as oil refineries, chemical processing plants, and power generation stations. The 4329 module enables remote diagnostics and real-time data visualization across the enterprise.
The hardware utilizes a triple-modular redundant (TMR) architecture to prevent single points of failure. This design ensures continuous availability of safety data during critical events. The module also includes built-in cybersecurity features to protect the safety network from unauthorized access.
Technical Specifications
- Manufacturer: Schneider Electric (Triconex)
- Model Number: 4329
- Module Category: Network Communication Module (NCM)
- System Compatibility: Tricon Systems Version 9–11
- Physical Weight: 2.38 kg (5.25 lbs)
- External Dimensions: 2.2 x 41 x 39.8 cm
- Primary Protocol: Ethernet (TCP/IP)
- Interface Type: Fiber Optic or Copper (Configuration Dependent)
- Installation Location: Main Chassis or Expansion Chassis
- Operating Status: Active / Supported
