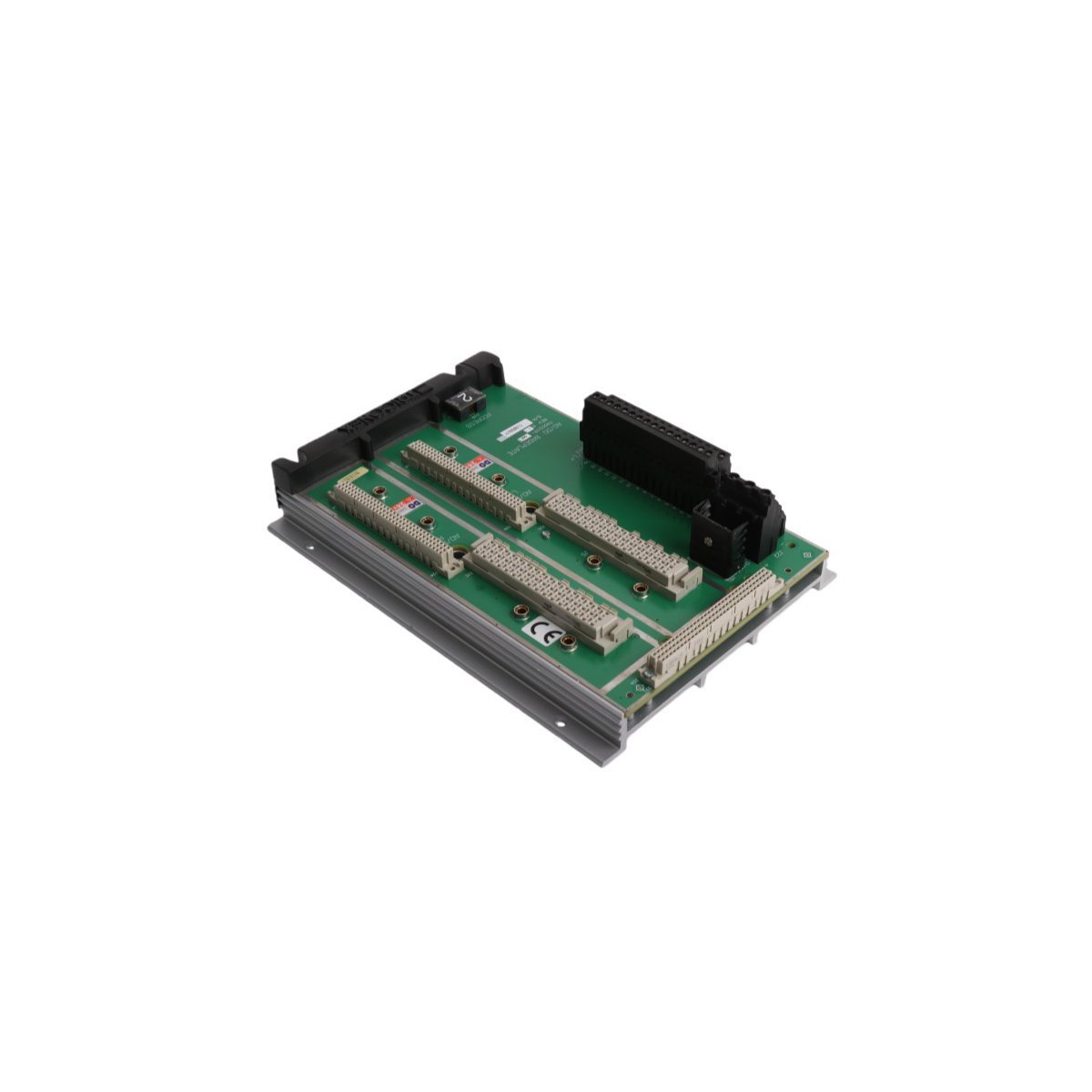

The Triconex DO2401 HS2 7400219-040 serves as a critical interface for digital output signal processing. This baseplate supports the high-speed execution of safety logic within the Tricon platform. It facilitates the secure connection between the main safety controller and field-actuated devices. Because it forms part of a Triple Modular Redundant (TMR) system, it ensures continuous operation. Consequently, the hardware prevents single points of failure from compromising plant safety.
Operational Reliability and Redundancy
This digital output baseplate excels in Emergency Shutdown (ESD) and Fire and Gas (F&G) applications. The 7400219-040 model provides the physical and electrical foundation for redundant output modules. Furthermore, the baseplate design allows for hot-swapping modules during active system runtime. This feature eliminates the need for process interruptions during maintenance or hardware upgrades. The robust circuitry maintains signal stability even in high-vibration industrial settings.
Technical Performance and Environmental Resilience
Engineers deploy this baseplate in high-risk sectors like oil, gas, and power generation. The DO2401 HS2 configuration meets SIL3 safety requirements according to IEC 61508 standards. Moreover, the hardware withstands broad temperature ranges typical of offshore and refinery environments. Each channel features dedicated protection against short circuits and electrical surges. This comprehensive protection ensures the longevity of both the baseplate and connected field equipment.
Technical Specifications
- Manufacturer: Triconex (Schneider Electric)
- Model Number: DO2401 HS2
- Part Number: 7400219-040
- Product Type: Digital Output Baseplate
- Architecture: Triple Modular Redundancy (TMR)
- Safety Rating: IEC 61508 SIL3 Certified
- System Compatibility: Tricon v10 / v11 Systems
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Mounting Type: Panel mount / Rack mount
- Unit Weight: 1.24 kg
- Country of Origin: USA
