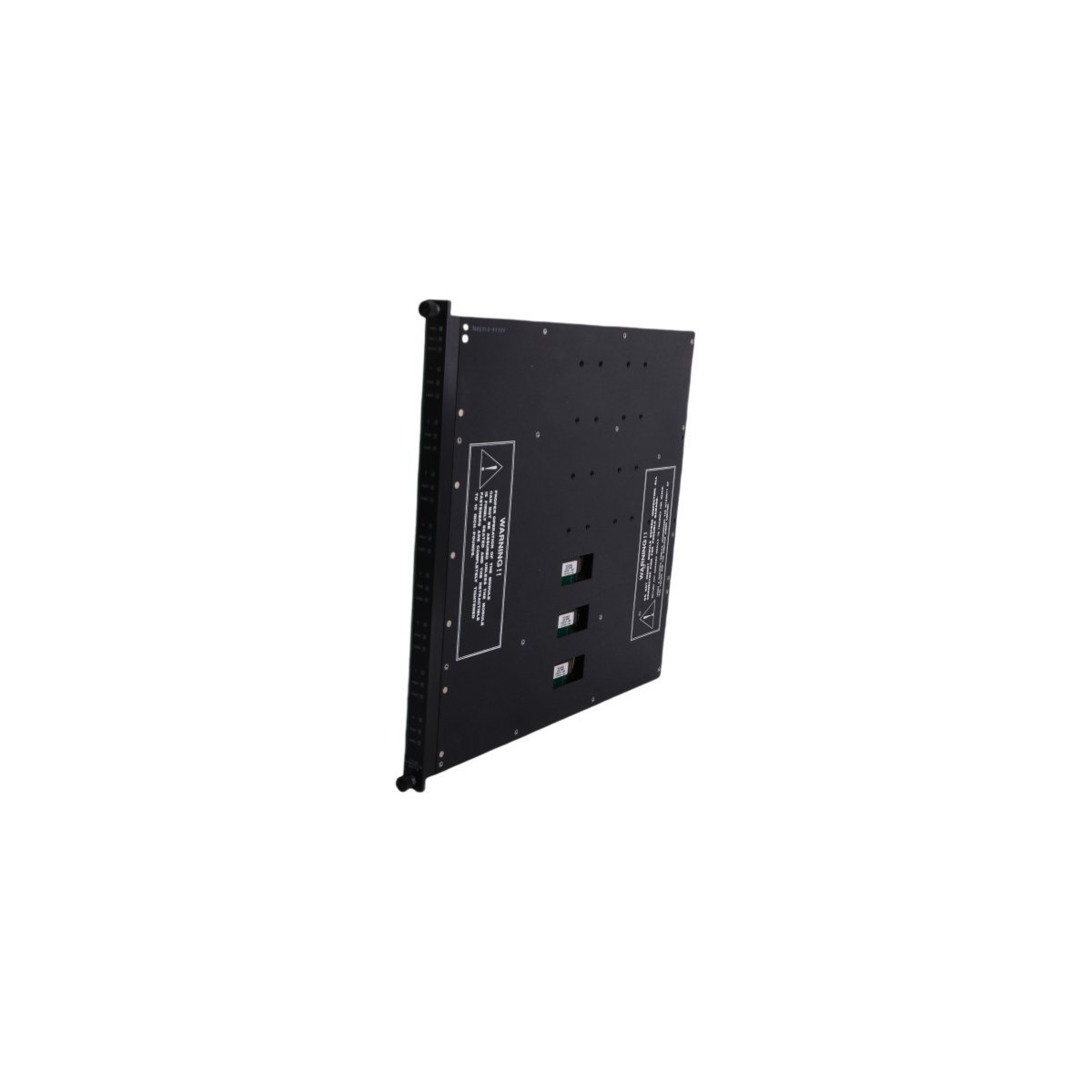

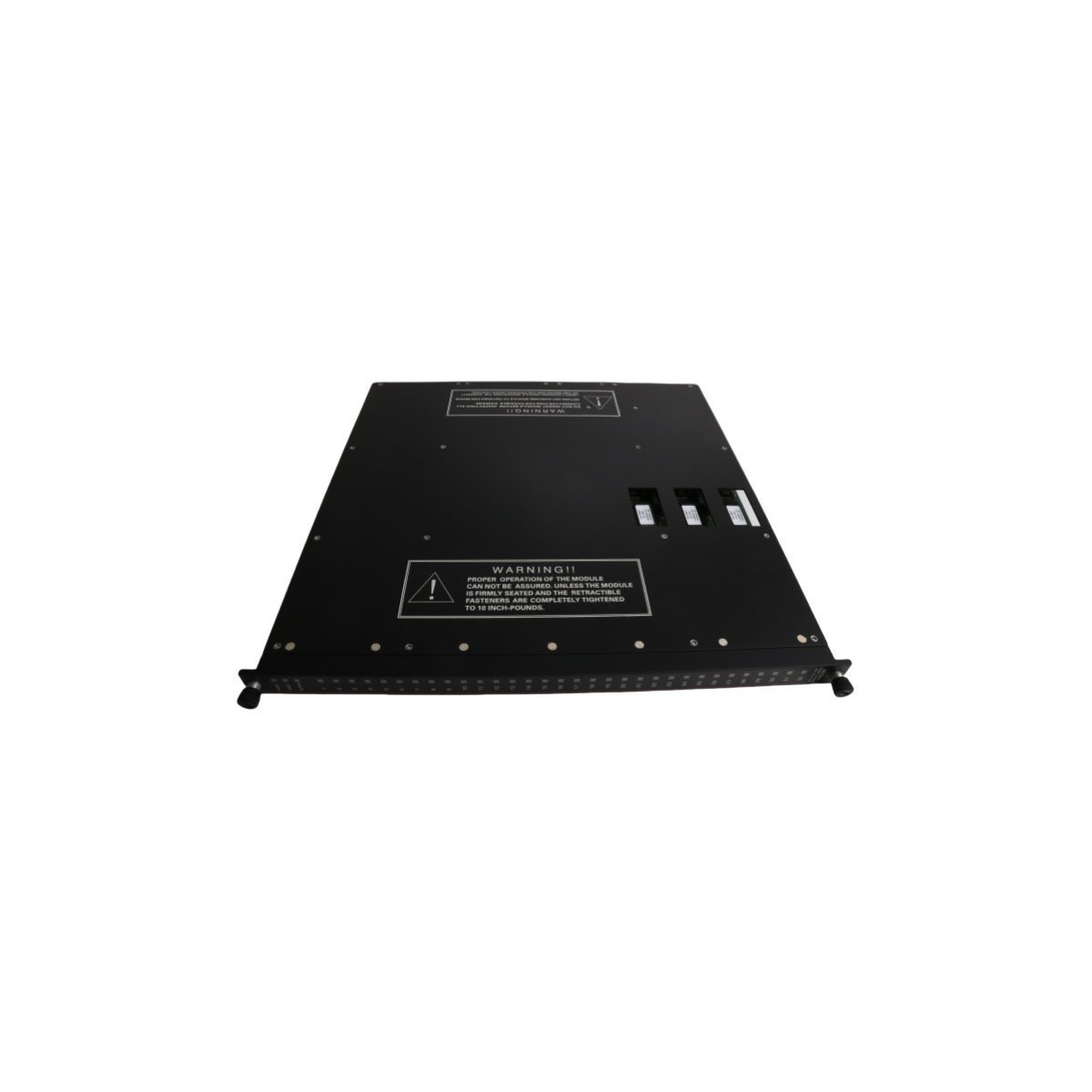

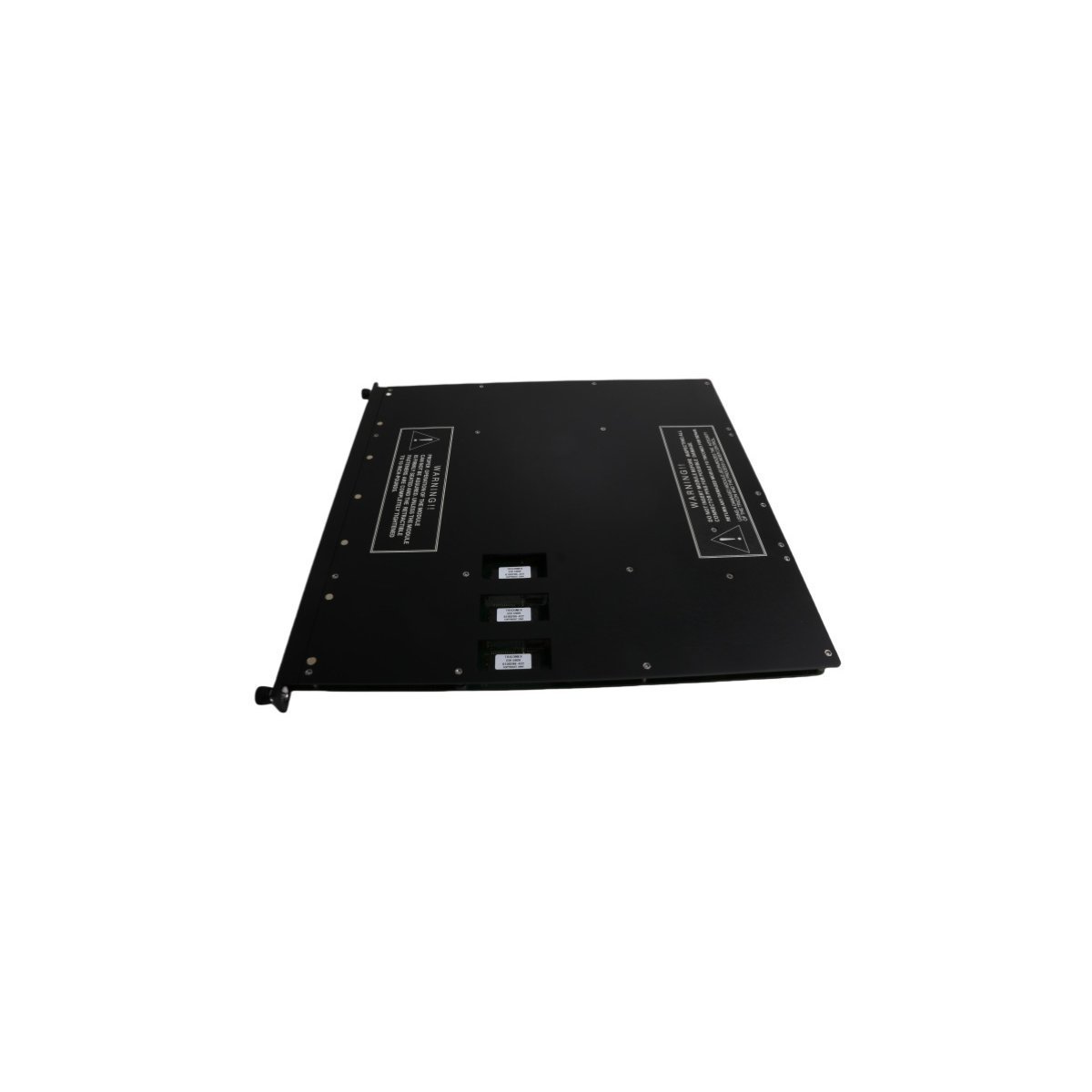

Triconex 3503E Digital Input Module

The Triconex 3503E functions as a high-density digital input module for critical safety systems. This module features 32 isolated input channels designed for 24V DC signals. It utilizes Triple Modular Redundant (TMR) architecture to ensure maximum process uptime. Three independent processing paths vote on every signal to eliminate hardware errors. Consequently, the module identifies and bypasses internal faults without interrupting the industrial process. This capability makes it a standard choice for high-integrity pressure protection systems.

Application in Critical Environments

Engineers primarily specify the 3503E for emergency shutdown and fire protection services. It excels in monitoring field switches, pushbuttons, and industrial contactors. Furthermore, the module maintains signal accuracy in high-interference electrical environments. It serves vital roles in offshore oil platforms and chemical processing facilities. The rugged design resists moisture and corrosive atmospheres common in heavy industry. Plant operators benefit from real-time diagnostics that identify field wiring issues immediately.

Performance and System Integration

This digital input card integrates seamlessly into Tricon v9 through v11 controller racks. The hot-swappable design allows for module replacement while the safety system remains active. Moreover, advanced signal conditioning filters eliminate contact bounce and electrical noise. The module continuously performs self-tests to verify the integrity of the input circuitry. Because it meets SIL3 safety standards, it provides ultimate protection for personnel and assets. This reliability reduces the risk of nuisance trips and unplanned shutdowns.

Technical Data and Specifications

• Manufacturer: Triconex (Schneider Electric)
• Model Number: 3503E
• Input Type: Digital (Discrete)
• Channel Count: 32 Channels
• Voltage Rating: 24V DC (Commoned)
• Redundancy Architecture: Triple Modular Redundancy (TMR)
• Response Time: < 10 ms (Standard)
• Safety Rating: IEC 61508 SIL3 certified
• Module Weight: 2.85 kg
• Country of Origin: USA
