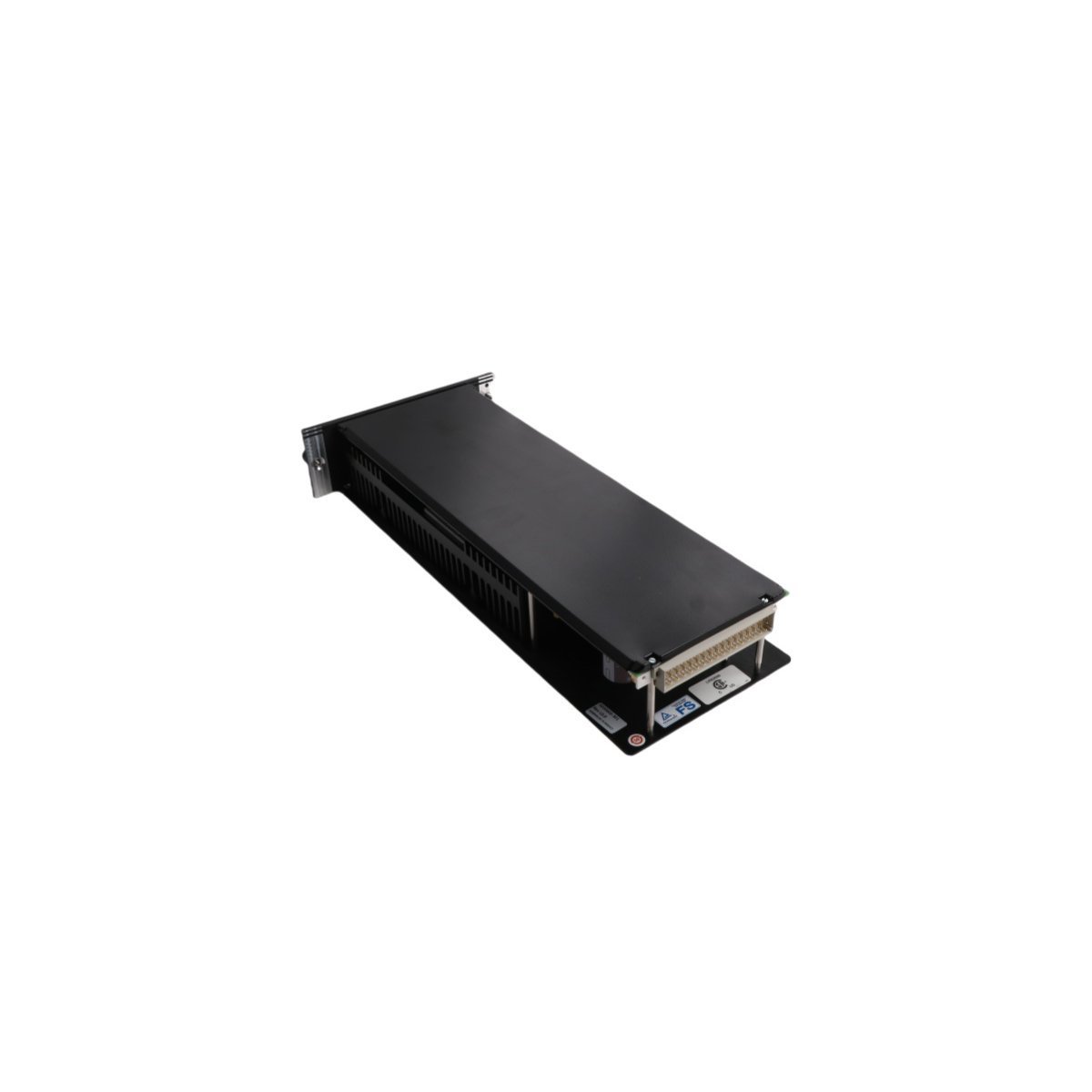

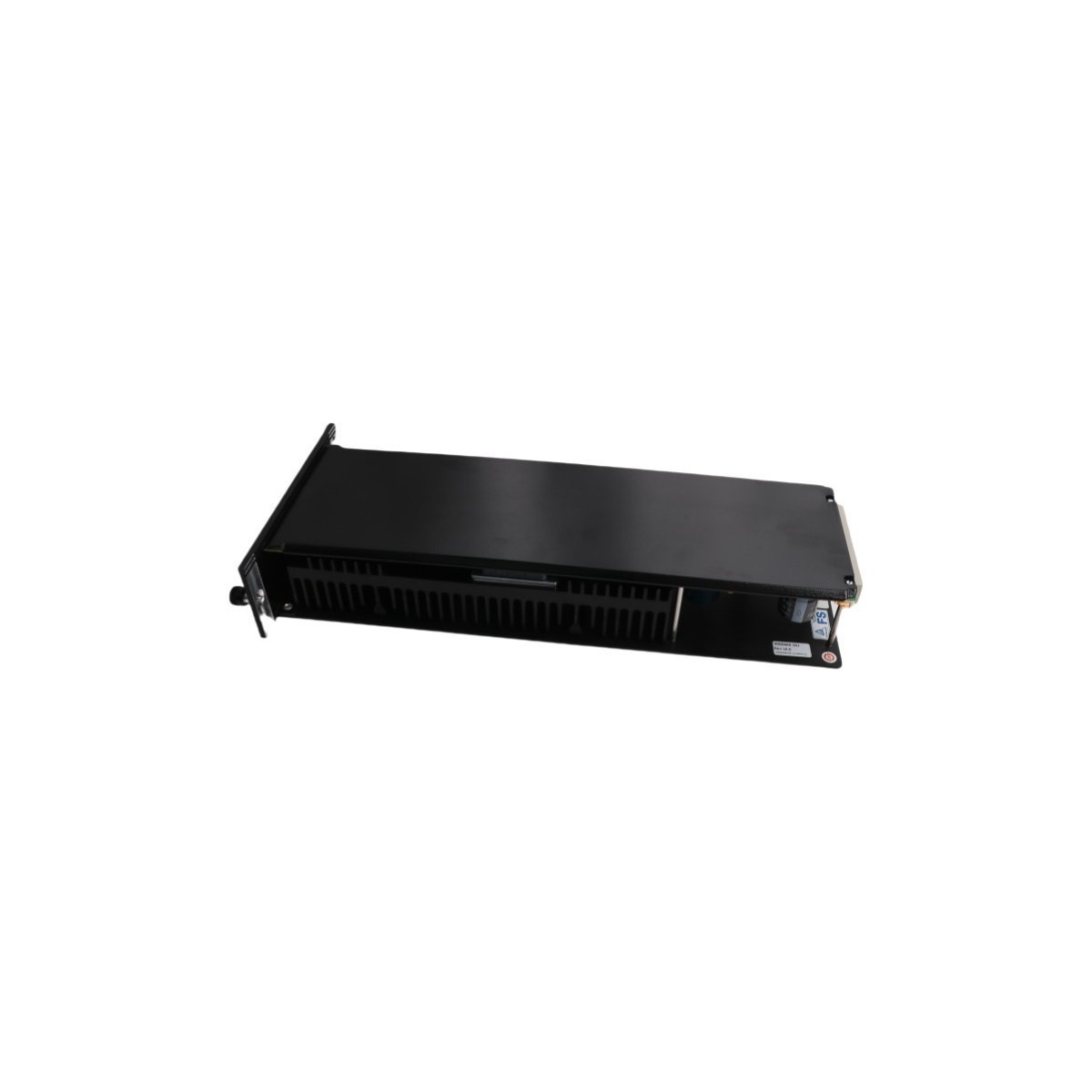

Triconex 8311 Power Supply High Density Module

The Triconex 8311 serves as a high-density power source for Tricon safety systems. It provides the necessary voltage to drive internal modules and field circuitry. Because it uses advanced regulation technology, the module maintains a stable output during load fluctuations. This stability prevents logic errors and hardware stress across the system rack. The 8311 specifically supports the Triple Modular Redundant (TMR) architecture by ensuring power availability.

Operational safety depends on a consistent energy supply. Consequently, this module incorporates protective features to handle input spikes. It effectively isolates sensitive electronics from industrial electrical noise. This design choice extends the lifespan of the entire safety instrumented system.

Durability and Environmental Protection

The 8311 utilizes premium industrial-grade components to survive harsh environments. It functions perfectly in areas with high humidity and dust accumulation. Furthermore, the rugged chassis dissipates heat efficiently without external cooling fans. This passive cooling method reduces mechanical failure points within the power rack.

Engineers can install the module in geographically remote locations. It withstands extreme temperature cycles while maintaining peak efficiency. Because the module resists vibration, it suits heavy machinery environments. This durability ensures the safety system remains active during seismic events.

Installation and Maintenance Efficiency

The high-density design maximizes cabinet space by consolidating power output. Therefore, users can reduce the overall footprint of their control hardware. The 8311 supports hot-swap replacement to ensure zero downtime. Technicians can replace a failing unit while the parallel supply maintains the load.

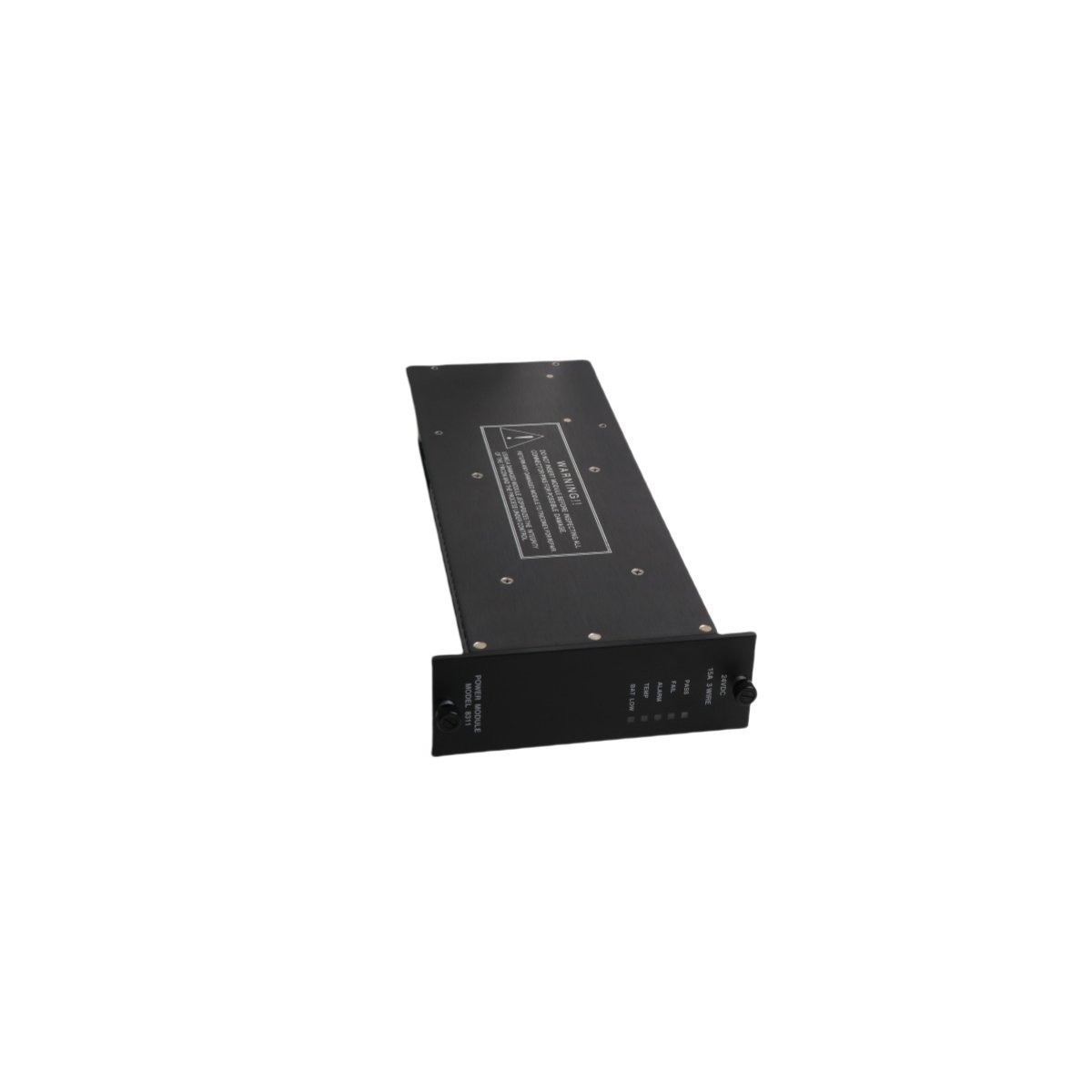

Status indicators on the front panel display real-time health data. These LEDs help maintenance crews identify power faults immediately. Moreover, the module integrates seamlessly with Tricon v9 through v11 systems. This compatibility simplifies the process of upgrading older safety installations.

Technical Specifications and Hardware Details
