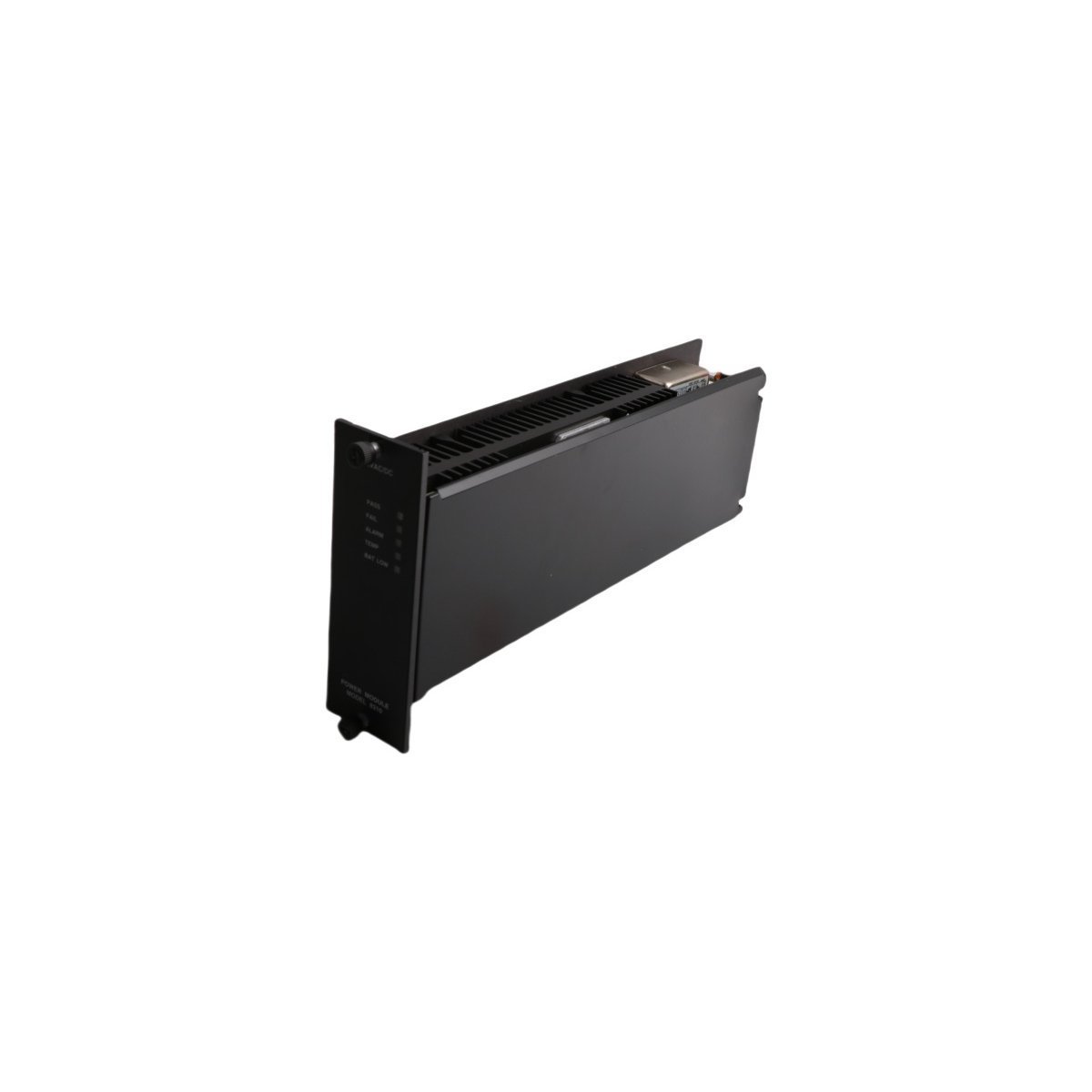

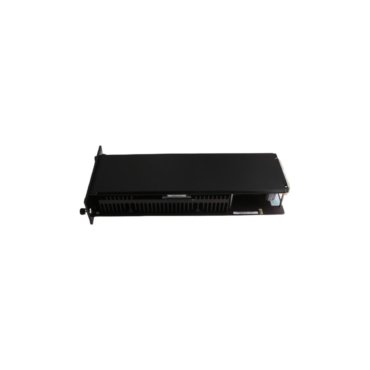

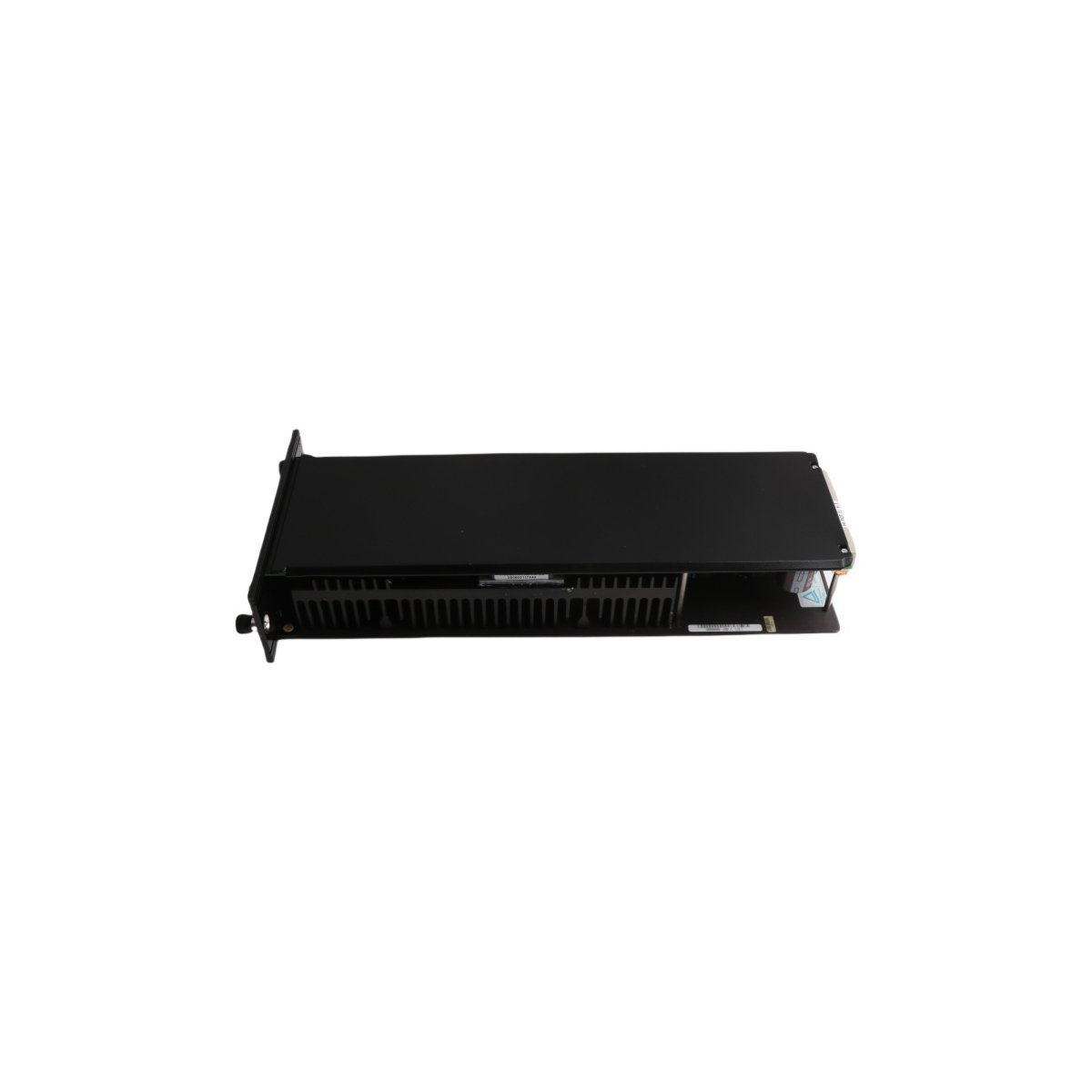

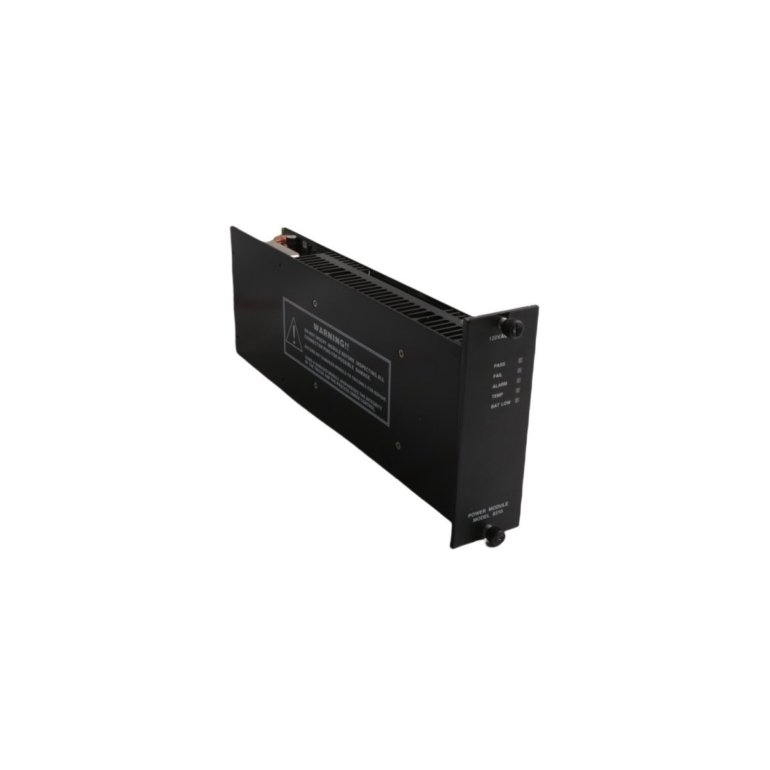

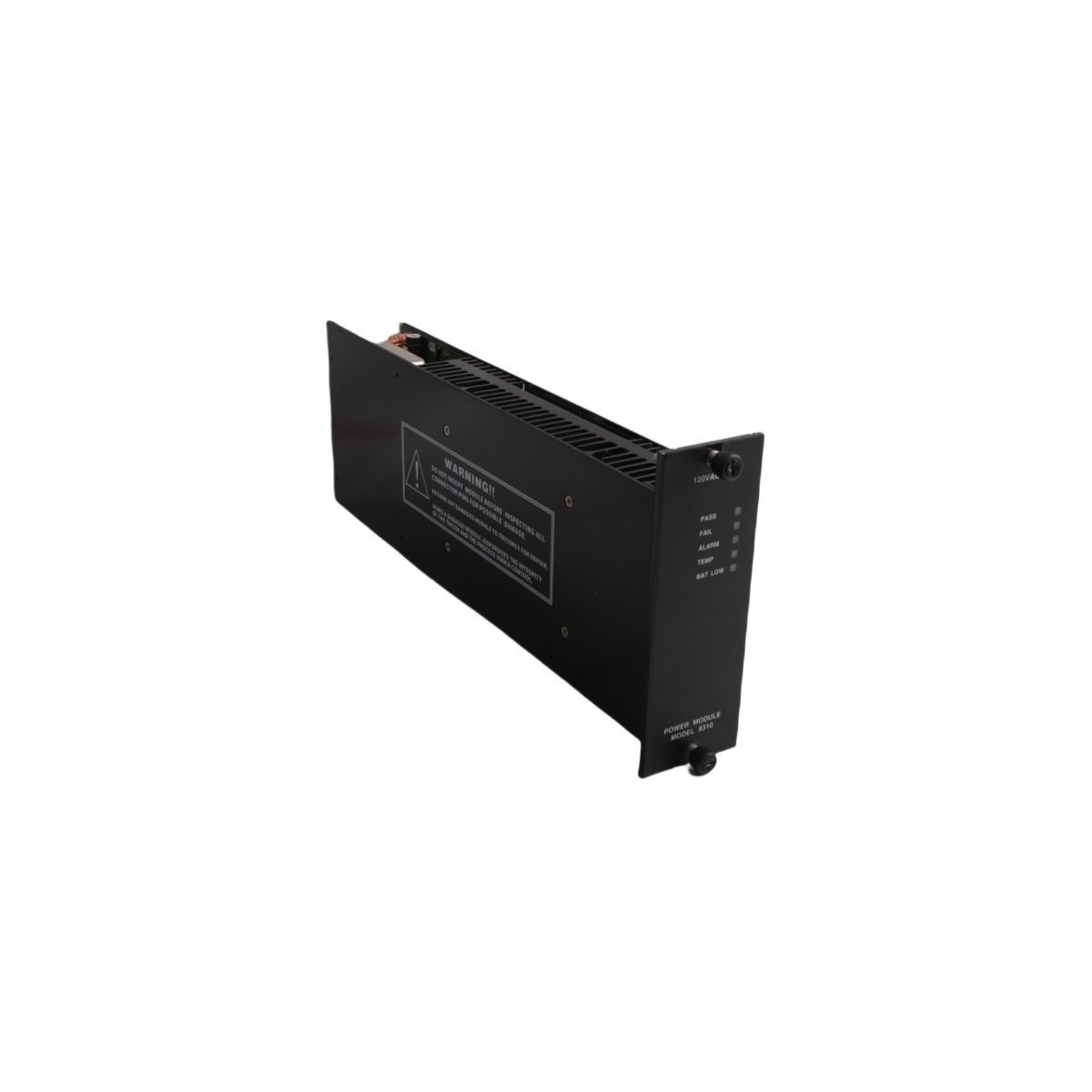

The Triconex 8310 serves as a robust energy source for Tricon Triple Modular Redundancy (TMR) systems. This module delivers regulated power to the system backplane reliably. It maintains steady operation for processors and I/O modules under harsh conditions. Furthermore, the unit converts raw source voltage into precise DC power for internal logic circuits.
Technical Specifications and Overview
| Feature | Specification Details |
| Manufacturer | Schneider Electric / Triconex |
| Model Number | 8310 |
| Input Voltage | 120 VAC/VDC (Nominal) |
| System Compatibility | Tricon v9, v10, and v11 Systems |
| Module Weight | 2.8 kg |
| Dimensions | 6.1 cm x 41 cm x 17.7 cm |
| Output Protection | Integrated time-delay fuse |
| Mounting | Standard Tricon Chassis Slot |
Core Functional Capabilities
- Proactive Diagnostics: The module monitors its own health and output levels constantly. It sends fault reports to main processors to trigger alarms.
- Galvanic Isolation: The hardware provides strong isolation between the source and internal buses. This protects sensitive components from electrical noise.
- Dual Redundancy: Users can install these modules in pairs for maximum uptime. This configuration supports hot-swapping without interrupting the system.
- Seamless Integration: The module works perfectly with 4351B communication cards. Consequently, power delivery never disrupts high-speed data transmission.
