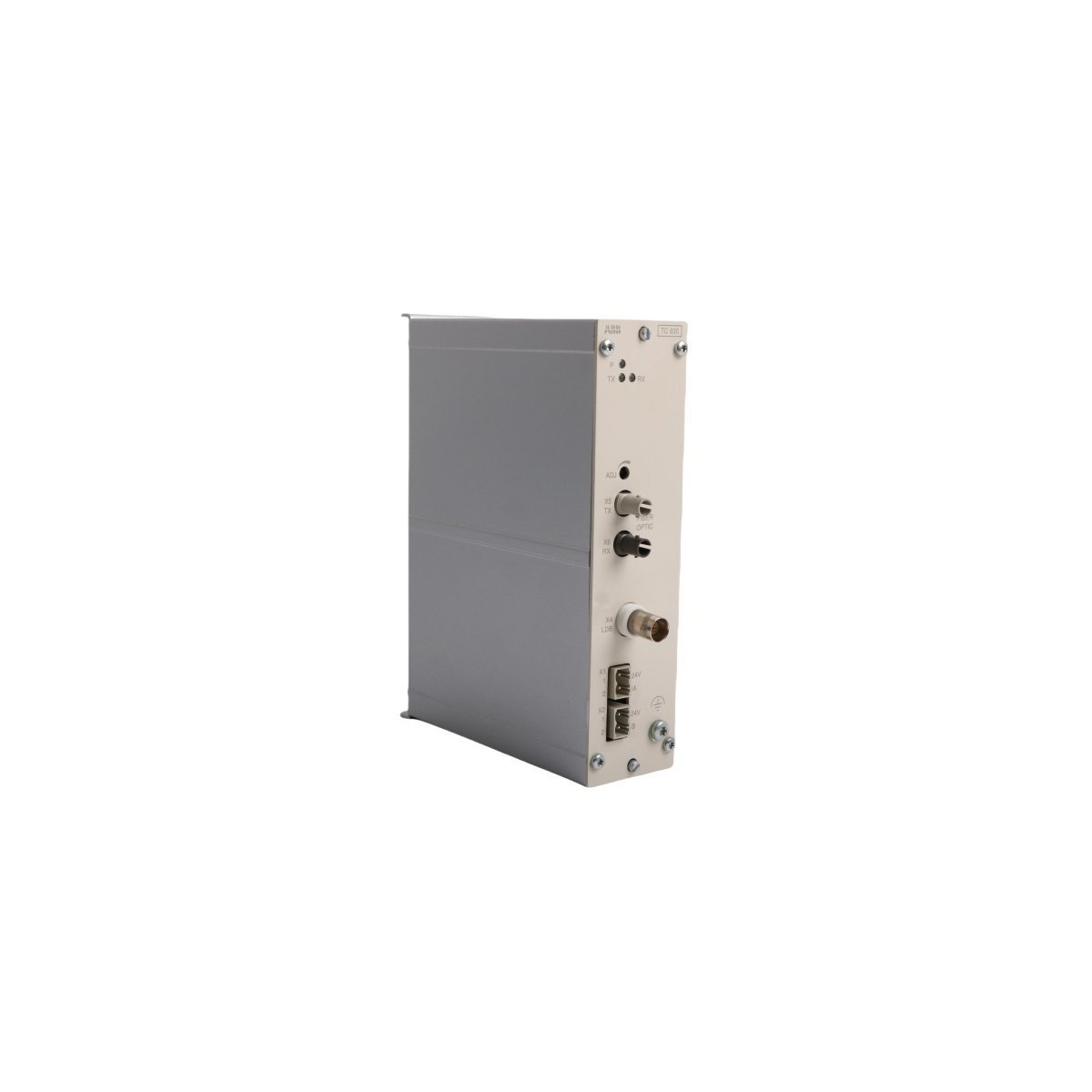

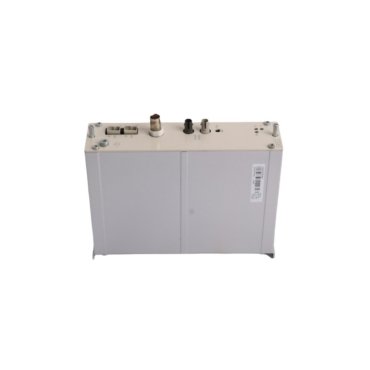

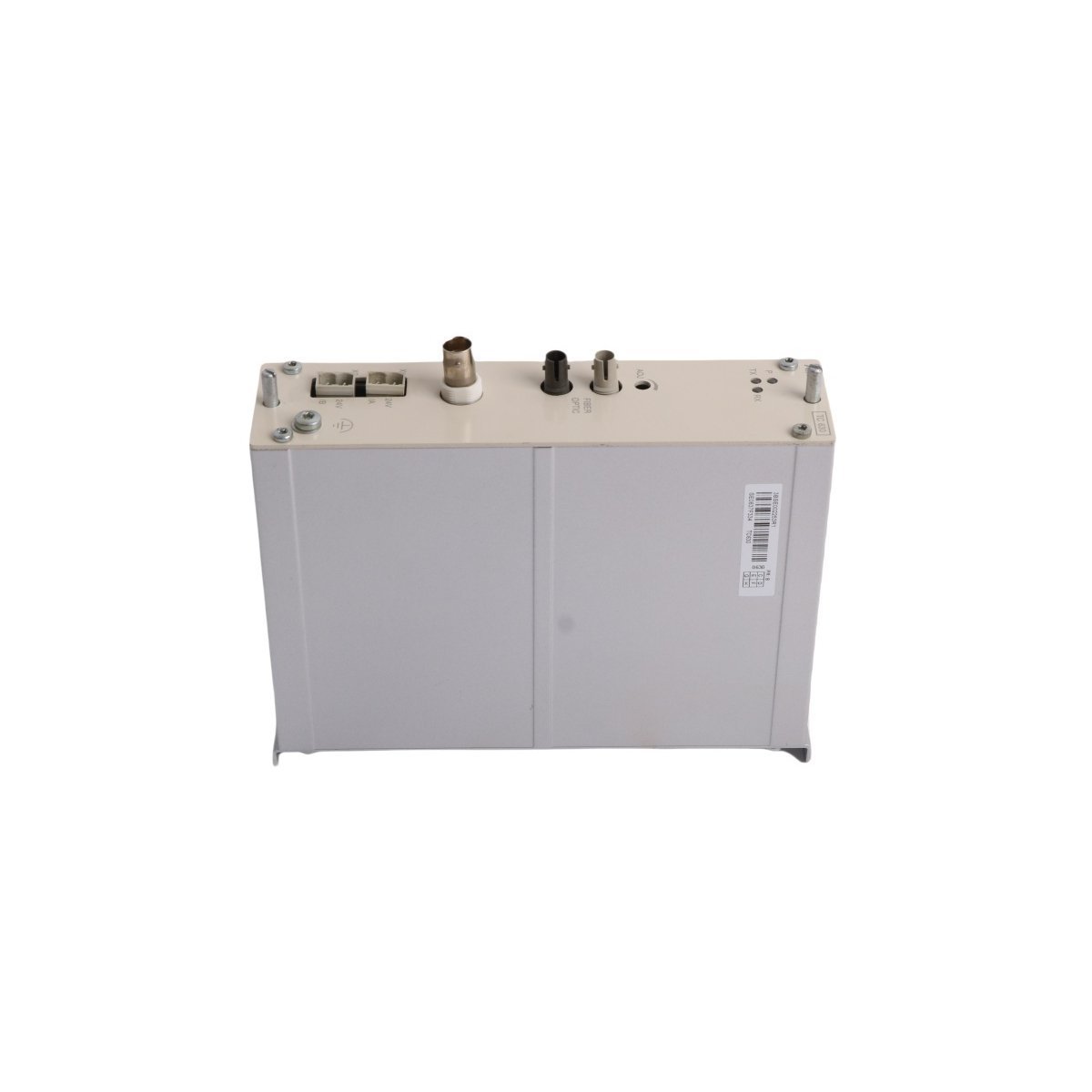

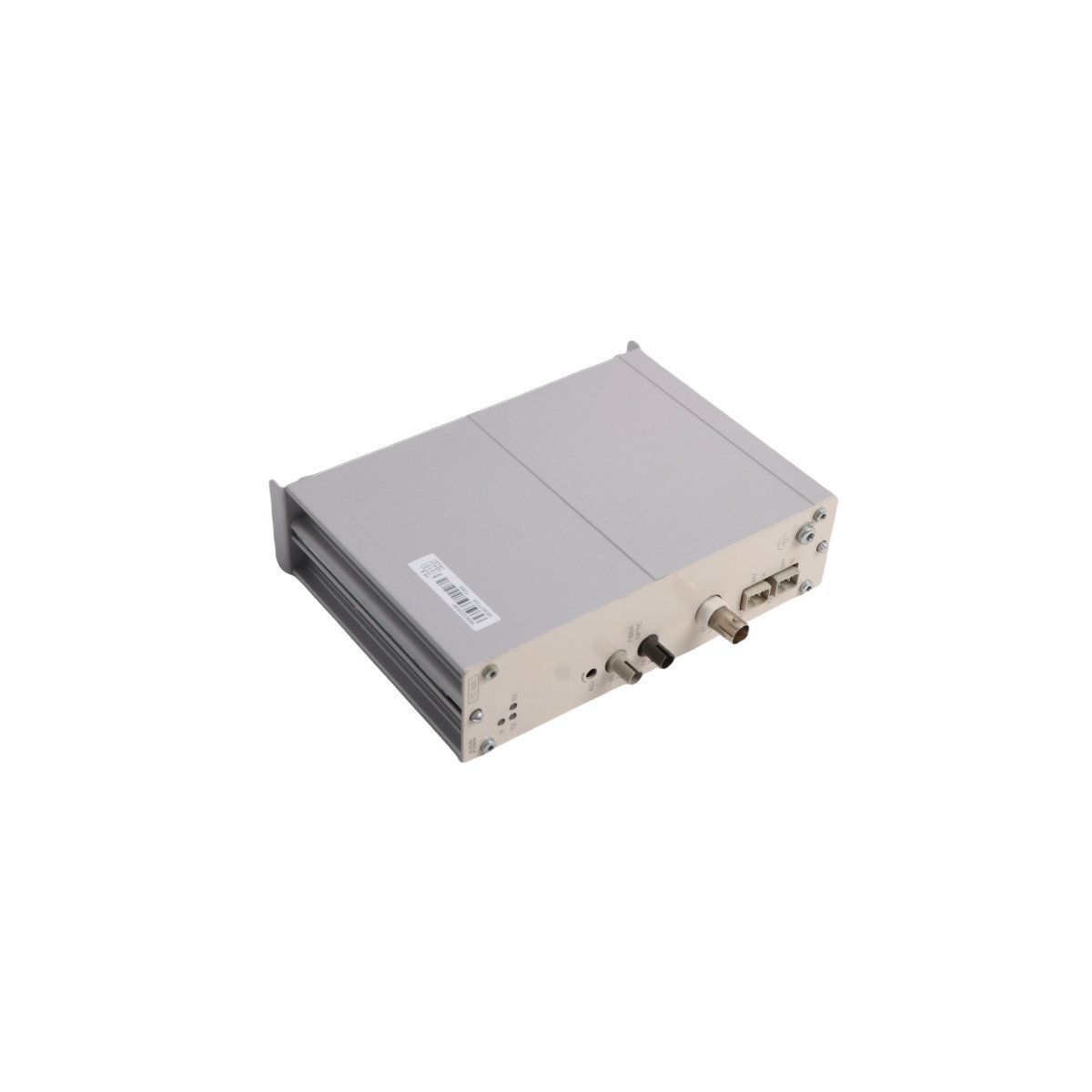

ABB TC630 3BSE002253R1 Communication Module

The ABB TC630 3BSE002253R1 is a specialized optical cable modem designed for the Advant Fieldbus 100 (AF100) network infrastructure. This communication module facilitates a point-to-point duplex link between two separate coaxial network segments. By utilizing fiber optic media, the TC630 extends the reach of the control network beyond the distance limitations of standard copper cabling. The modem operates with total transparency, meaning it does not interfere with bus protocol or data telegrams. It simply acts as a physical layer converter to ensure seamless data flow across diverse media types.

Essential Technical Specifications

As a critical networking component within the Symphony and Advant OCS ecosystems, the TC630 adheres to strict industrial standards.

• Manufacturer: ABB
• Model Number: TC630
• Order Code: 3BSE002253R1
• Interface Type: Coaxial to Fiber Optic conversion
• Communication Protocol: Advant Fieldbus 100 (AF100)
• Cable Equivalent: 150 meters per modem for bus length calculations
• Dimensions: 4.4 x 15.0 x 17.6 cm
• Weight: 0.7 kg
• Manufacturing Origin: Sweden

Operational Architecture and Connectivity

A functional optical link always requires a pair of TC630 modems to establish a complete bridge. One unit converts the coaxial signal into light pulses, while the second unit at the far end reconstructs the signal for the receiving coaxial segment. This configuration effectively isolates different parts of the plant, protecting the network from ground loops and electromagnetic interference. Engineers often combine the TC630 with other AF100 modems, such as the TC513 or TC514 series, to create complex, multi-segment bus topologies that span across large industrial facilities.

Reliability and System Compatibility

The TC630 is built for continuous operation in harsh Distributed Control System (DCS) environments. Its optical interface provides inherent galvanic isolation, which is crucial for communication between buildings or areas with different electrical potentials. Furthermore, the module’s diagnostic capabilities allow the AF100 system to maintain high availability. Although ABB moved the TC630 to the classic lifecycle phase in 2018, it remains a vital spare part for maintaining the integrity of existing Advant Fieldbus 100 installations. Its robust Swedish design ensures long-term stability even in high-vibration or high-EMI settings.
