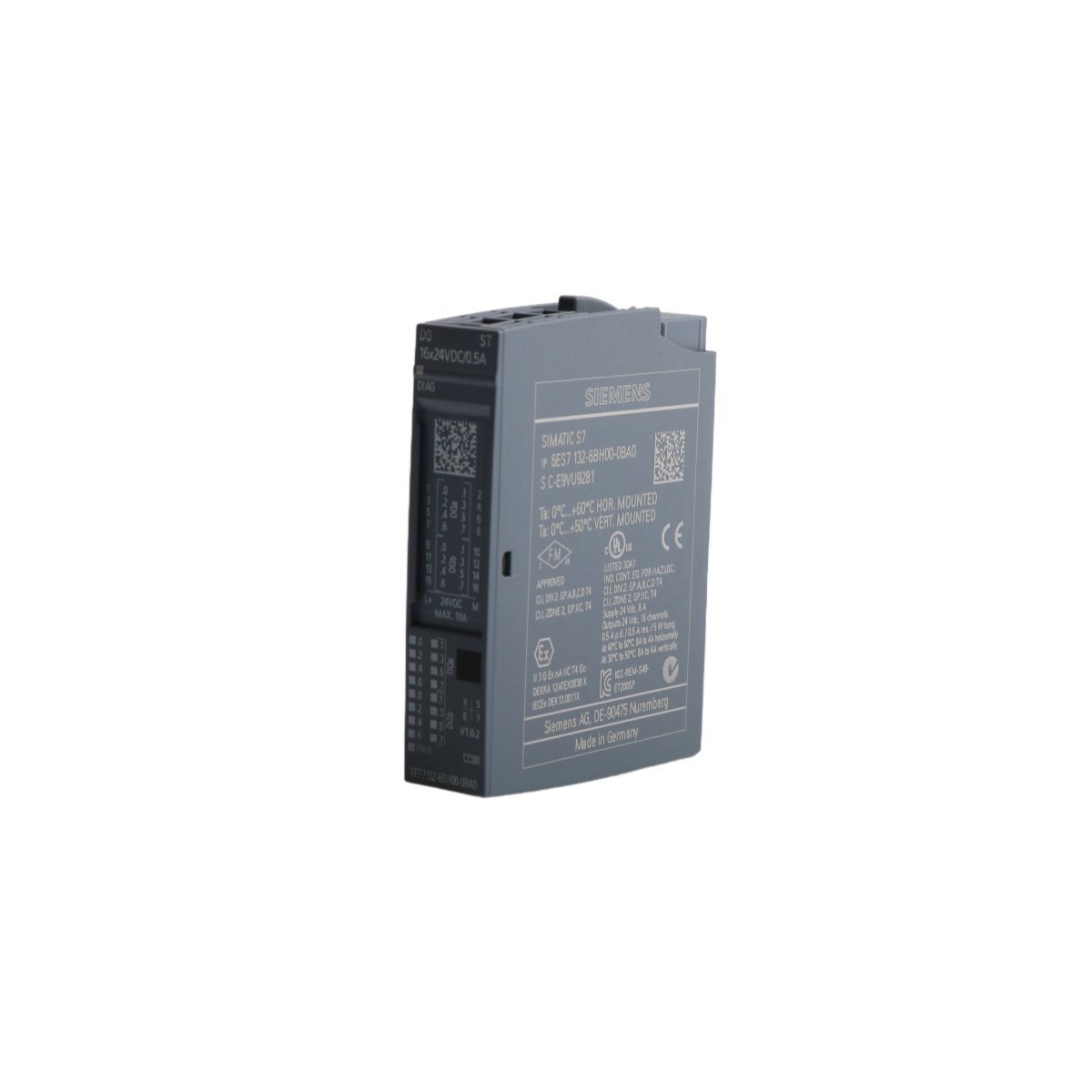

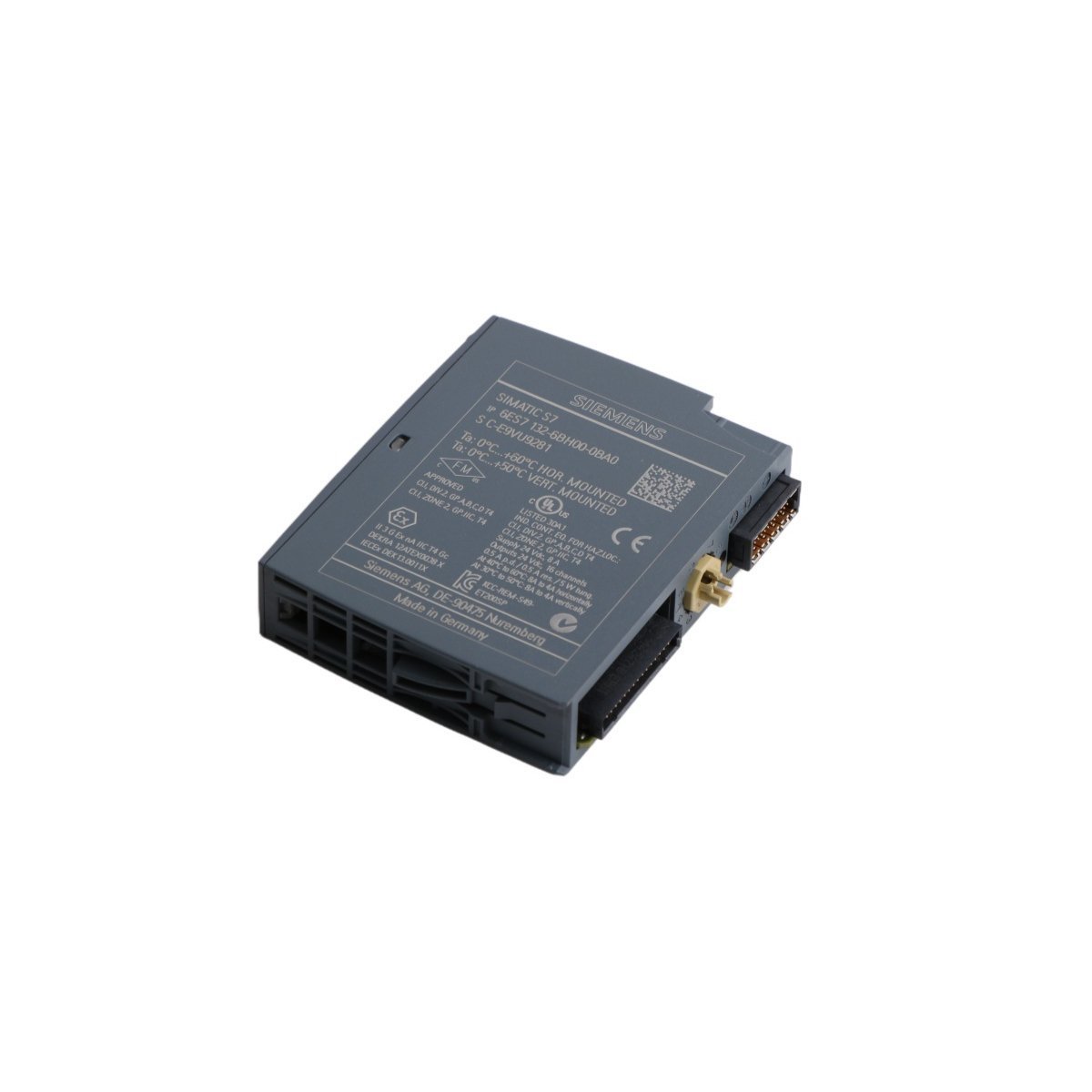

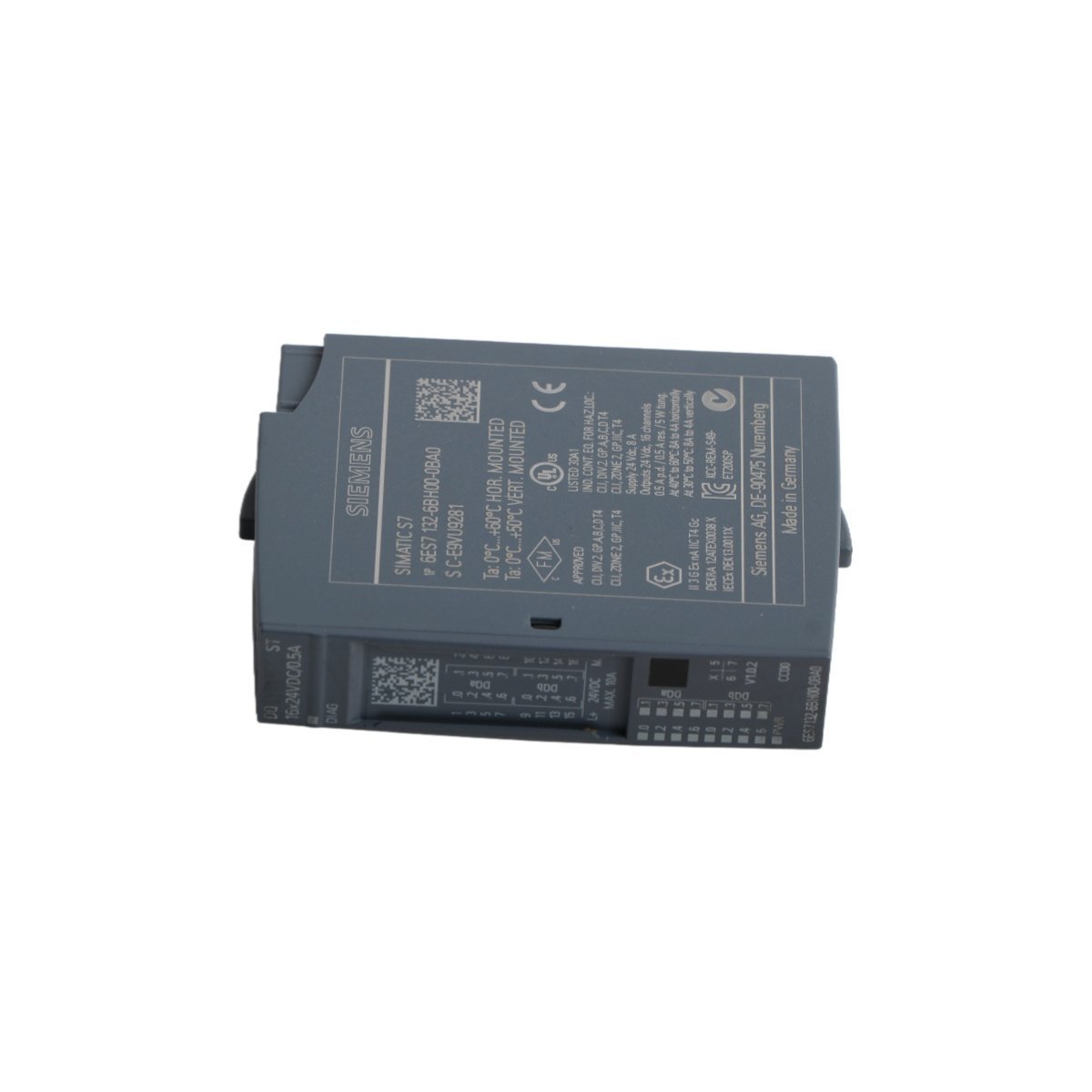

The Siemens 6ES7132-6BH00-0BA0 expands the control capabilities of SIMATIC ET 200SP distributed stations. This module provides sixteen source-switching digital outputs in a standard 15mm width. Each channel handles a rated load current of 0.5A at 24V DC. Consequently, it efficiently manages solenoids, actuators, and contactors in complex automated lines. The compact design allows engineers to maximize I/O density within small control cabinets. This hardware supports source output (PNP) logic for standard industrial field devices.
Advanced Safety and Signal Reliability
This electronic module prioritizes system safety through a configurable substitute value feature. Users can define specific output states in the event of a communication failure. Furthermore, the internal circuitry protects against inductive kickback when switching solenoids. The module also manages power consumption effectively with a low typical power loss of 1.0W. This efficiency prevents excessive heat buildup within the station. These technical characteristics ensure long-term stability in continuous manufacturing processes.
Technical Specifications
- Manufacturer: Siemens
- Article Number: 6ES7132-6BH00-0BA0
- Product Series: SIMATIC ET 200SP
- Output Channels: 16 Digital Outputs
- Load Voltage: 24V DC
- Current Capacity: 0.5A per channel (total current 8A)
- Switching Frequency: 100 Hz (resistive) / 2 Hz (inductive)
- BaseUnit Compatibility: Type A0
- Color Code: CC00
- Weight: 0.028 kg
- Dimensions: 15 x 73 x 58 mm
Integration and Engineering Support
The 6ES7132-6BH00-0BA0 integrates seamlessly via PROFINET or PROFIBUS through the interface module. It requires a BU-type A0 BaseUnit for proper electrical termination and grounding. Engineers can configure all parameters within the TIA Portal or STEP 7 software environment. This compatibility streamlines the design process for new automation projects. Moreover, the module supports hot-swapping to reduce downtime during maintenance cycles. This product represents a reliable choice for high-performance distributed control systems.
