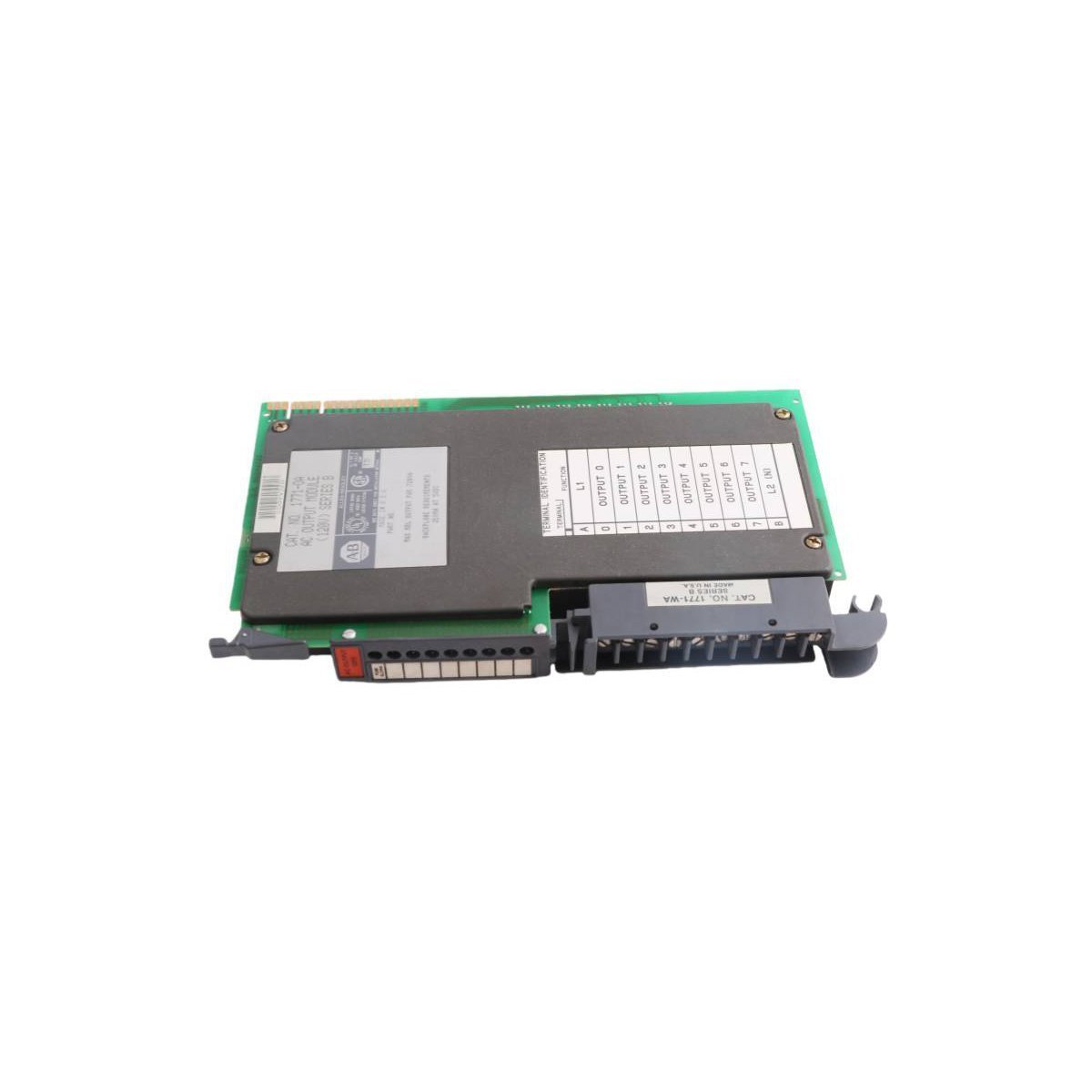

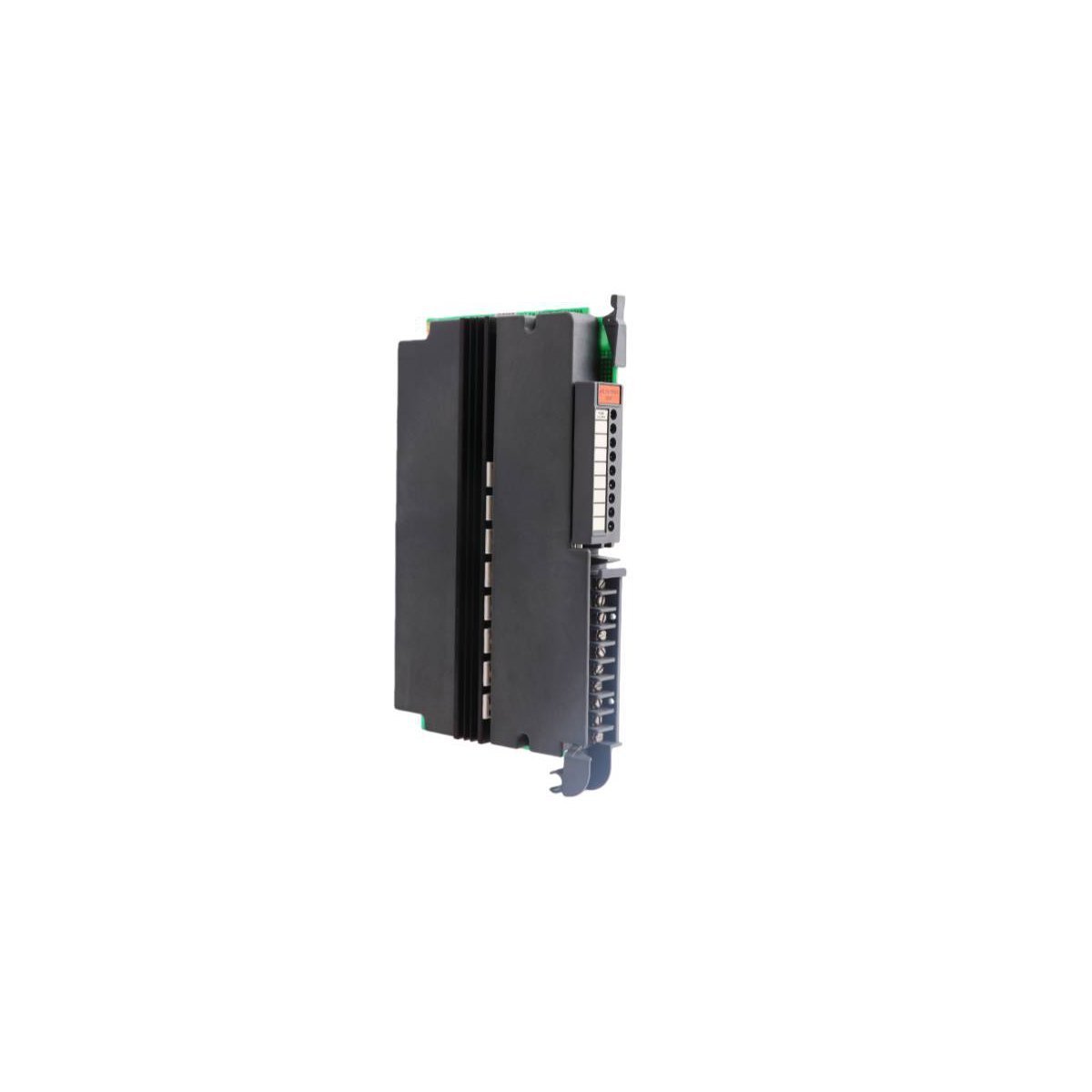

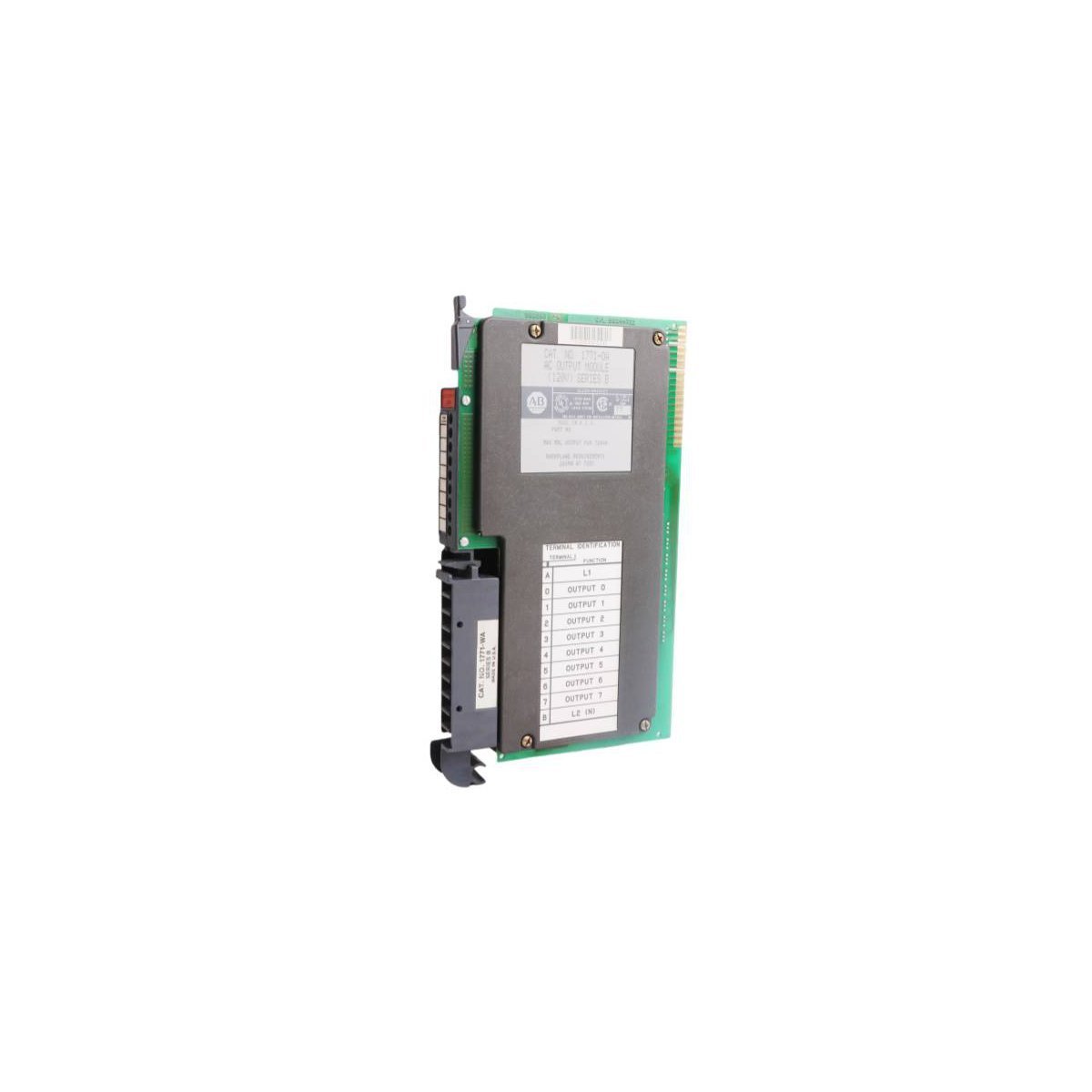

Essential Technical Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1771-OA
- Equipment Type: Digital AC Output Module
- Output Channels: 8 Points
- Operating Voltage: 92–138V AC (47–63 Hz)
- Continuous Current: 1.5A per channel (max 6A total per module)
- Surge Current: 4.0A for 8.3ms (repeatable every 2 seconds)
- Backplane Current: 210mA @ 5V DC
- Power Dissipation: 10.5 Watts (maximum)
- Off-State Leakage: 5.0mA (maximum)
- Dimensions: 3.5 x 13.0 x 14.5 cm
- Weight: 0.9 kg
Integrated Protection and Diagnostics
The 1771-OA incorporates comprehensive safety features to shield your automation hardware. Each module includes built-in 2A, 250V fuses to prevent overcurrent damage. Furthermore, a dedicated fuse condition indicator alerts operators to any blown circuits immediately. This visual feedback significantly accelerates the troubleshooting process during system failures.
Beyond circuit protection, the module features eight individual status LEDs. These indicators provide real-time confirmation of the logic state for every output. Moreover, the hardware design ensures minimal leakage current when the outputs remain inactive. This precision prevents “ghost” activation of sensitive high-impedance loads.
Installation and Environmental Compliance
Successful deployment requires specific module keying between positions 4–6 or 12–14. The unit supports field wiring sizes ranging from 14 to 22 AWG. Furthermore, technicians should utilize wire rated for at least 75°C to ensure thermal stability. The rugged USA-manufactured housing withstands typical industrial vibrations and electrical noise.
Always disconnect the chassis power before installing or removing the module. This practice protects the gold-plated backplane connectors from electrical arcing. Consequently, the 1771-OA remains a durable choice for long-term machine control applications. It provides the heavy-duty switching capacity required for demanding manufacturing environments.
