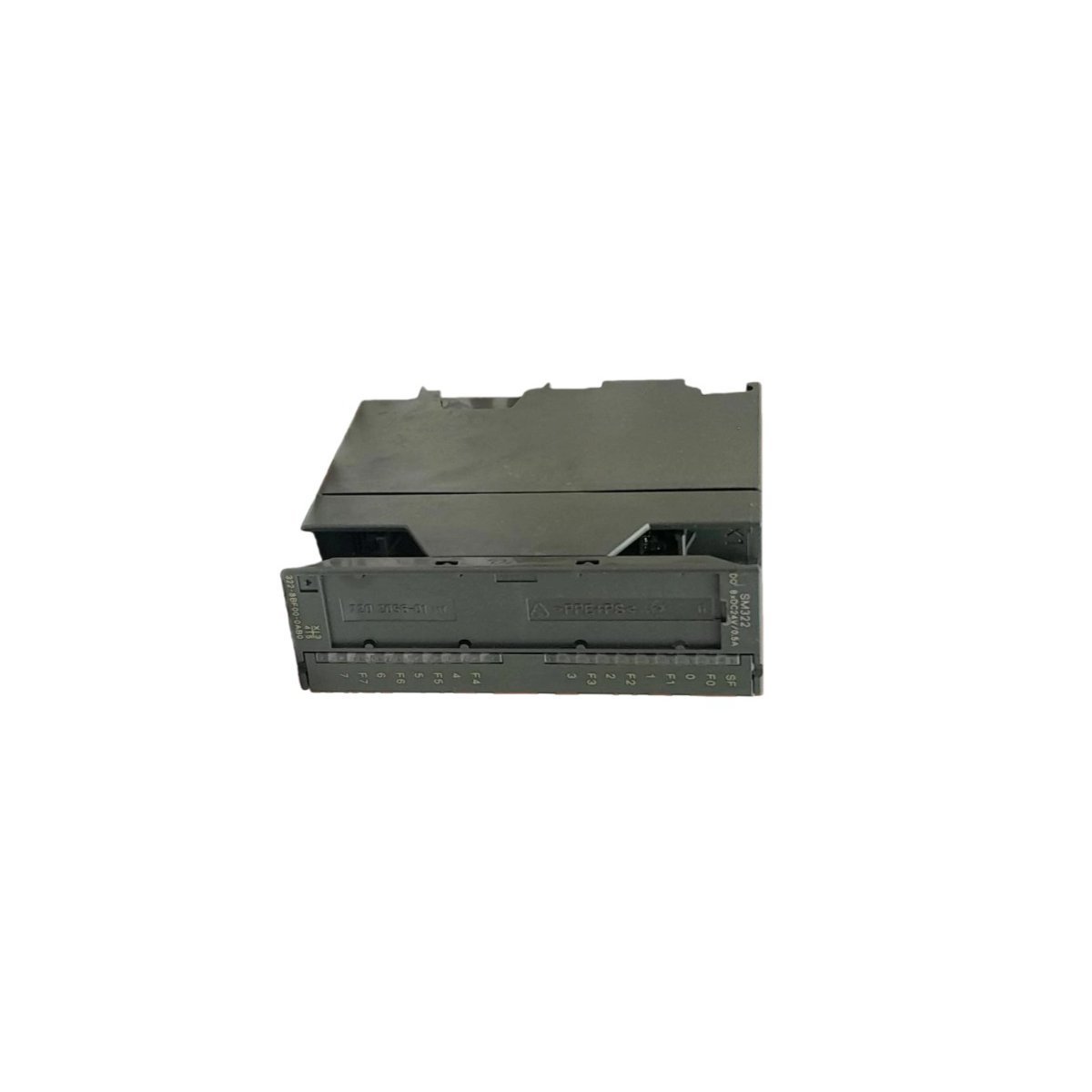

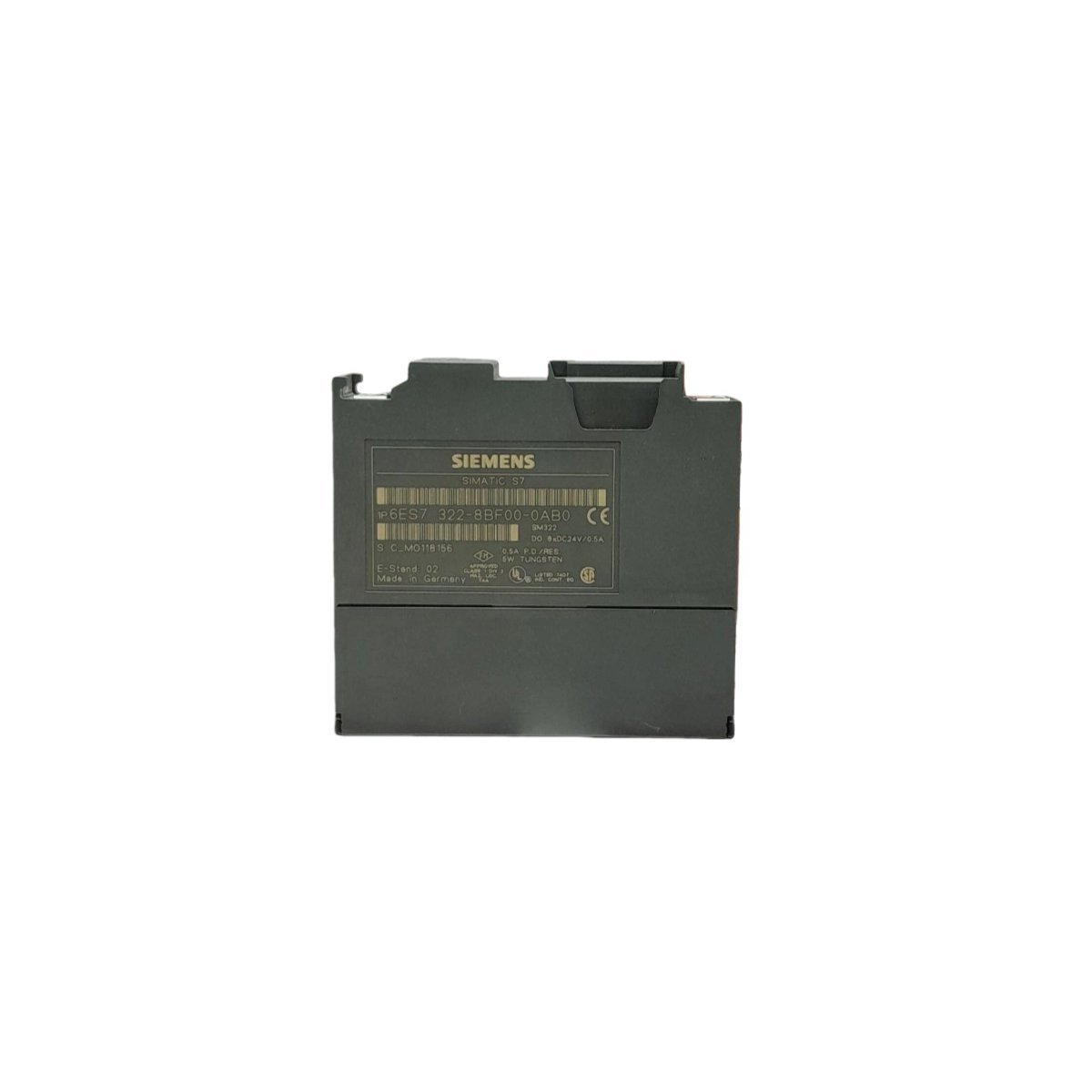

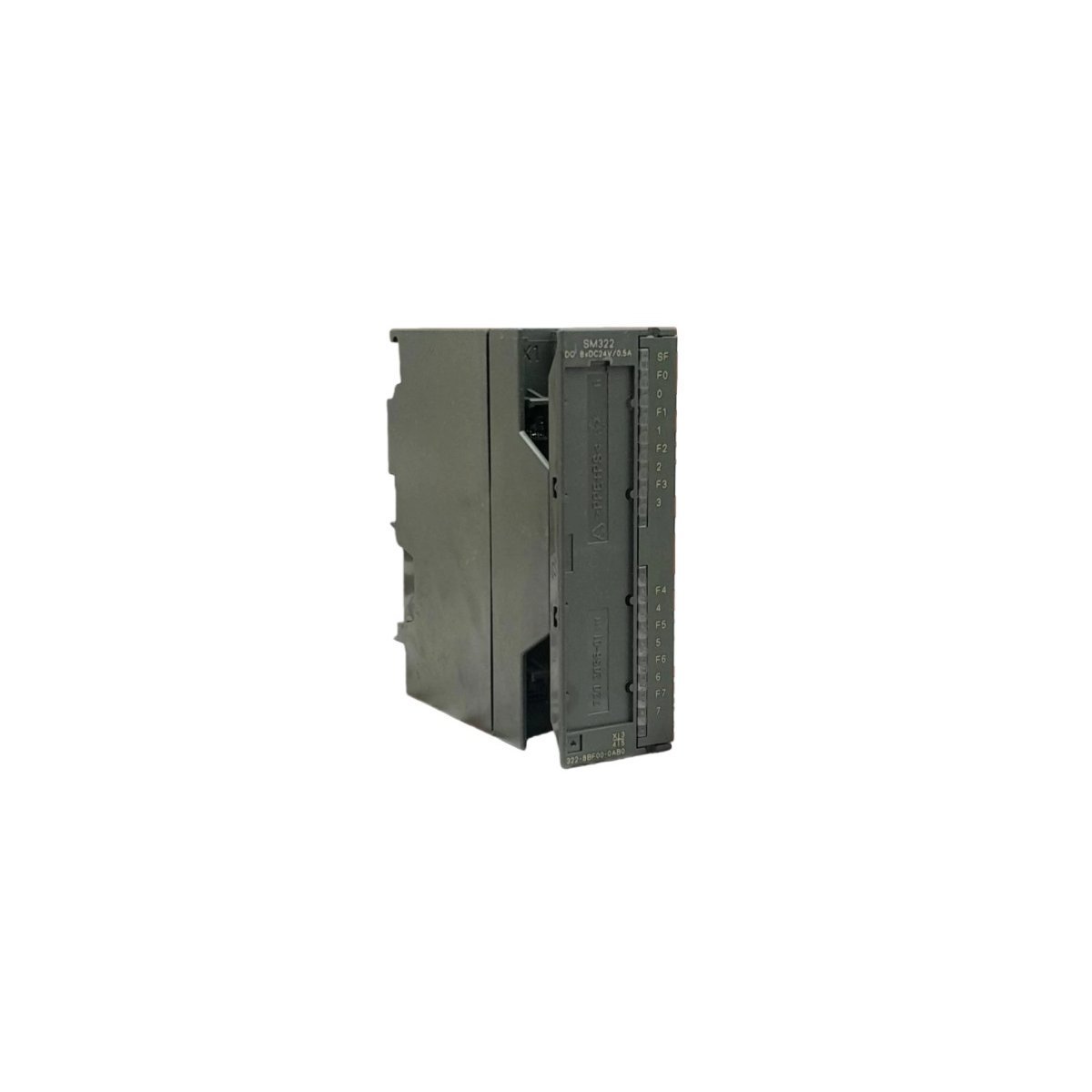

Siemens 6ES7322-8BF00-0AB0 Digital Output Module

The Siemens 6ES7322-8BF00-0AB0 serves as a high-performance digital output component for the SIMATIC S7-300 PLC range. This module provides eight dedicated channels for managing industrial field devices. It primarily converts internal controller logic into 24V DC signals for physical hardware. Engineers utilize this module to drive solenoids, small contactors, and optical indicators precisely. Furthermore, the unit fits seamlessly into standard S7-300 rail configurations. It bridges the gap between software commands and mechanical action efficiently.

Advanced Protection and Integrated Diagnostics

Operational safety remains a core feature of the 6ES7322-8BF00-0AB0 hardware design. The module incorporates sophisticated internal circuitry to prevent damage from short circuits or overloads. If a fault occurs, the integrated diagnostics immediately identify the problematic channel. This real-time monitoring significantly reduces troubleshooting time in complex production lines. Additionally, the unit features galvanically isolated outputs to protect the central processor. These barriers block electrical noise and voltage surges from entering the backplane bus.

Optimized Hardware Integration

Installing the 6ES7322-8BF00-0AB0 is straightforward due to its compact form factor. The module utilizes a standard 20-pole front connector for all external wiring. Because the terminals are organized clearly, technicians can complete electrical commissioning quickly. The rugged housing resists industrial vibrations and supports a wide temperature range. Consequently, the module maintains stable performance in harsh manufacturing plants. It also consumes minimal power from the backplane bus to maximize system efficiency.

Versatility in Automation Applications

This digital output module supports a variety of automation tasks across different industries. It excels in discrete manufacturing, water treatment, and process control systems. Since it integrates with Step 7 and TIA Portal, configuration is highly intuitive. Users can easily parameterize output behavior to suit specific safety or performance requirements. The module remains a trusted choice for engineers demanding high uptime and diagnostic transparency. It ensures that every connected actuator receives a clean, reliable switching signal.

Technical Specifications
