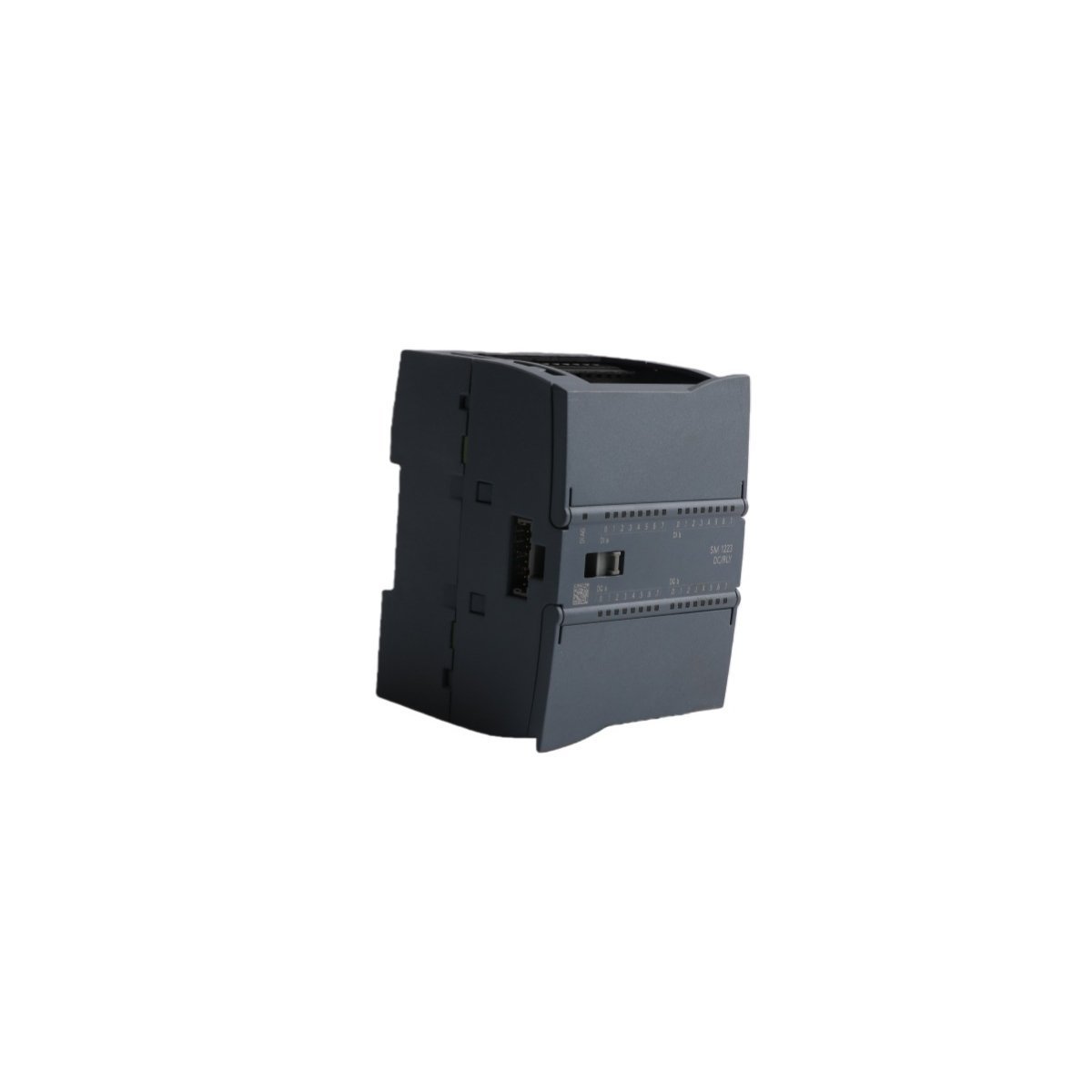

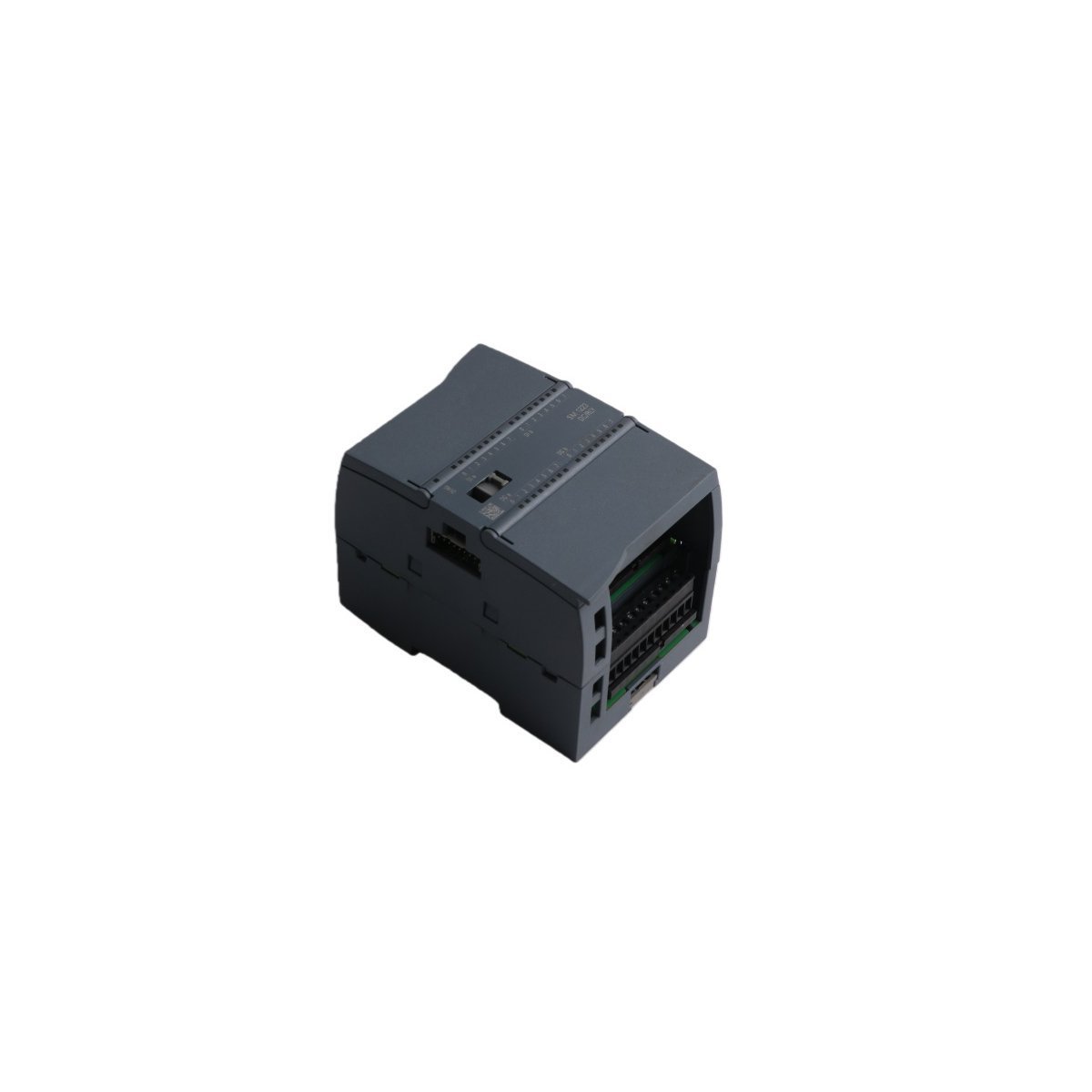

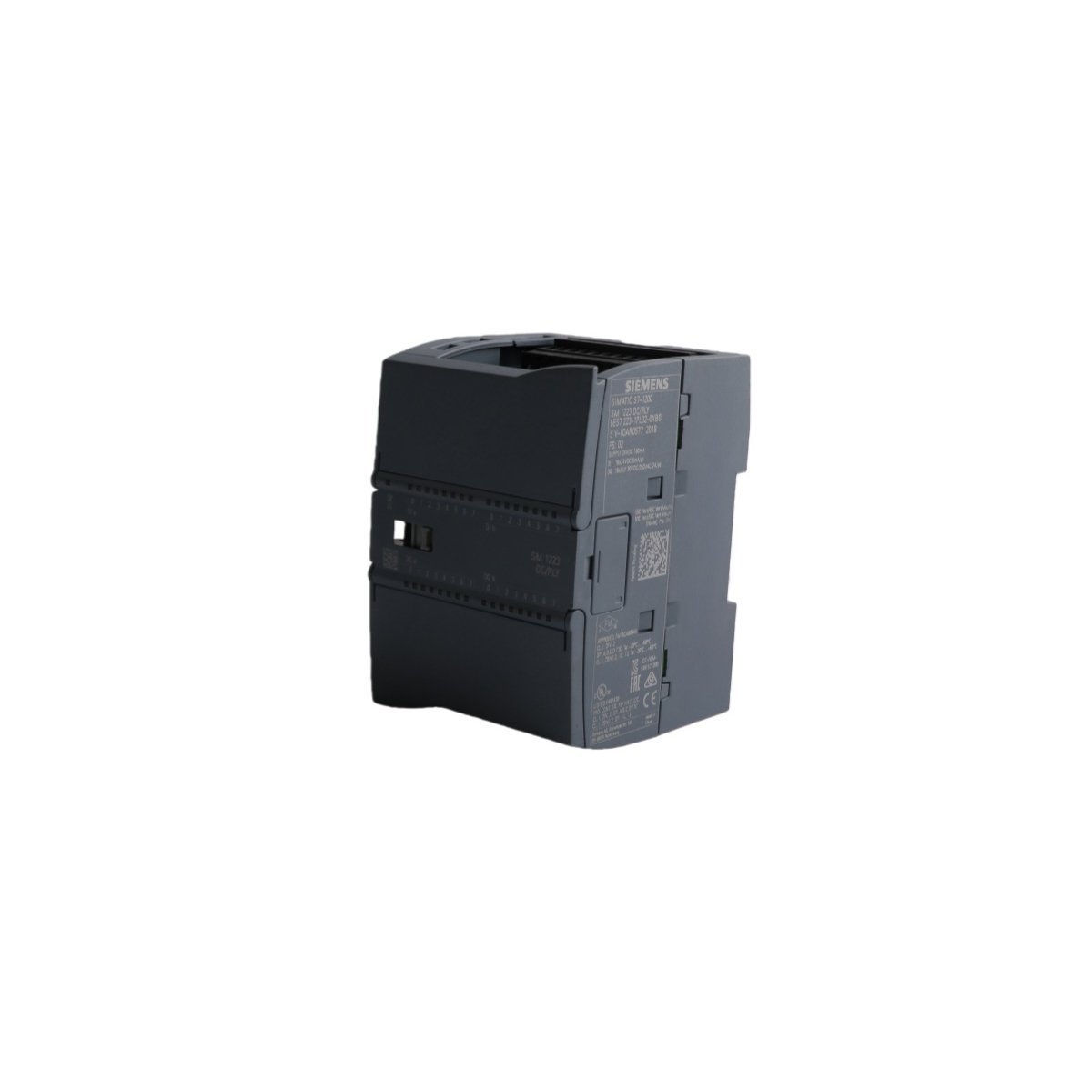

Siemens 6ES7223-1PL32-0XB0 Digital I/O Module

The Siemens 6ES7223-1PL32-0XB0 serves as a comprehensive expansion solution for the S7-1200 PLC series. This SM 1223 digital combination module integrates 16 inputs and 16 outputs into one unit. Therefore, it significantly increases the available signal points without expanding the controller footprint. The module bridges the gap between the central CPU and various field devices. It handles signals from sensors and switches while managing power to industrial actuators. This dual-function design optimizes both cabinet space and hardware costs.

High-Performance Digital Inputs and Relay Outputs

The input section features sixteen 24V DC channels with versatile sink and source compatibility. Moreover, users can configure input filters to eliminate electrical noise effectively. These filters offer selectable delay times ranging from 0.2ms to 12.8ms. On the output side, the module utilizes 16 robust relay contacts. Each relay switches loads up to 2A for contactors and solenoid valves. Since the relays provide galvanic isolation, they protect the CPU from voltage spikes. This ensures high operational safety in demanding factory environments.

Reliable Integration and Thermal Management

Siemens engineered this module for stable performance under varying electrical conditions. It operates reliably within a DC voltage range of 20.4V to 28.8V. Additionally, the thermal design supports full channel utilization at 50°C ambient temperatures. The hardware includes clear LED indicators for monitoring the status of every I/O point. Furthermore, the removable screw terminals facilitate quick wiring and module replacement. This design minimizes potential downtime during system maintenance or upgrades. It maintains a secure connection even in high-vibration machinery.

Industrial Standards and Application Versatility

The 6ES7223-1PL32-0XB0 complies with international quality standards for global industrial use. It frequently appears in packaging machines, material handling systems, and small-scale process plants. Because it follows IEC 61131 Type 1 standards, it works with most industrial sensors. The module integrates seamlessly into the TIA Portal software environment. Consequently, engineers benefit from simplified configuration and advanced diagnostic tools. This combination of flexibility and durability makes it a staple for modern automation.
