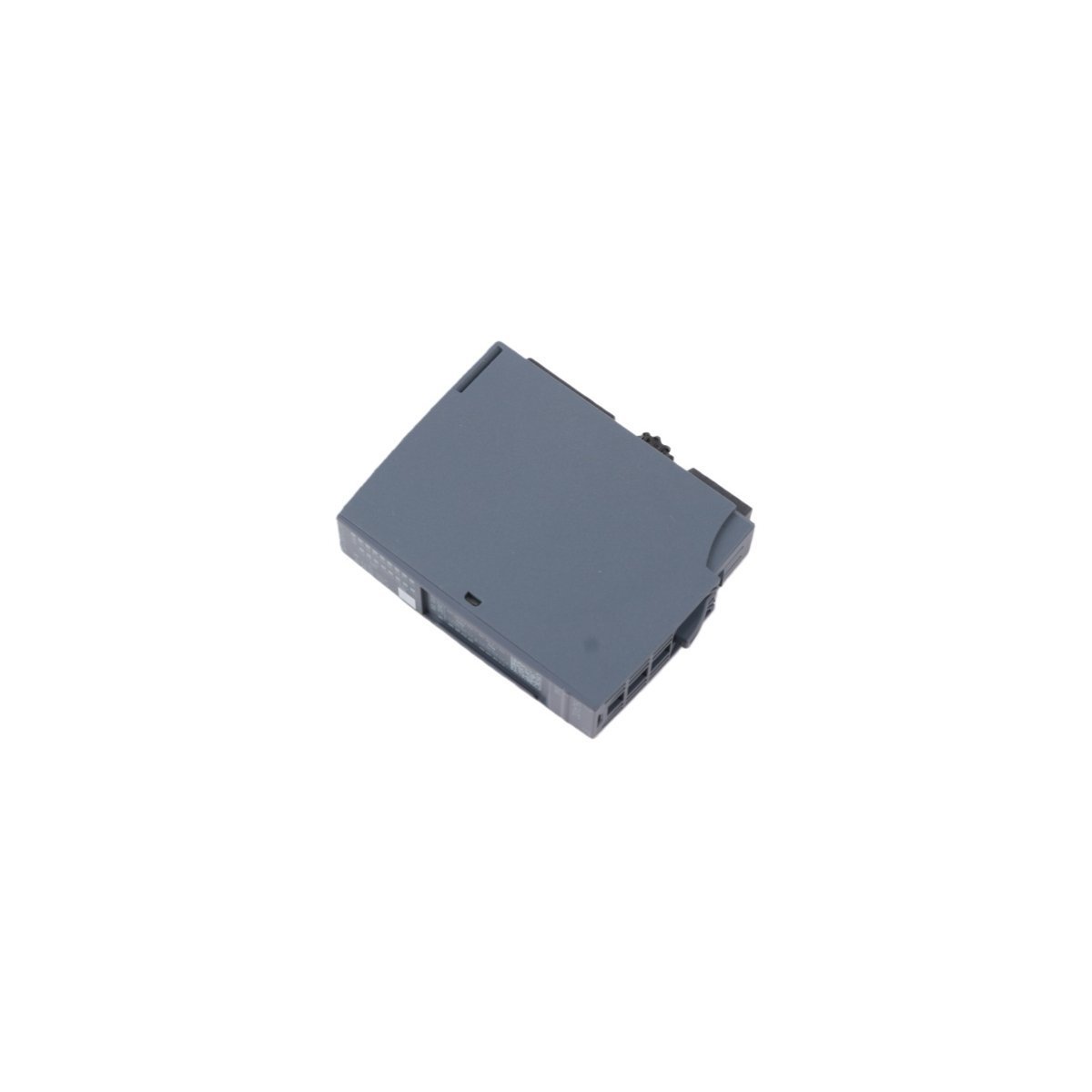

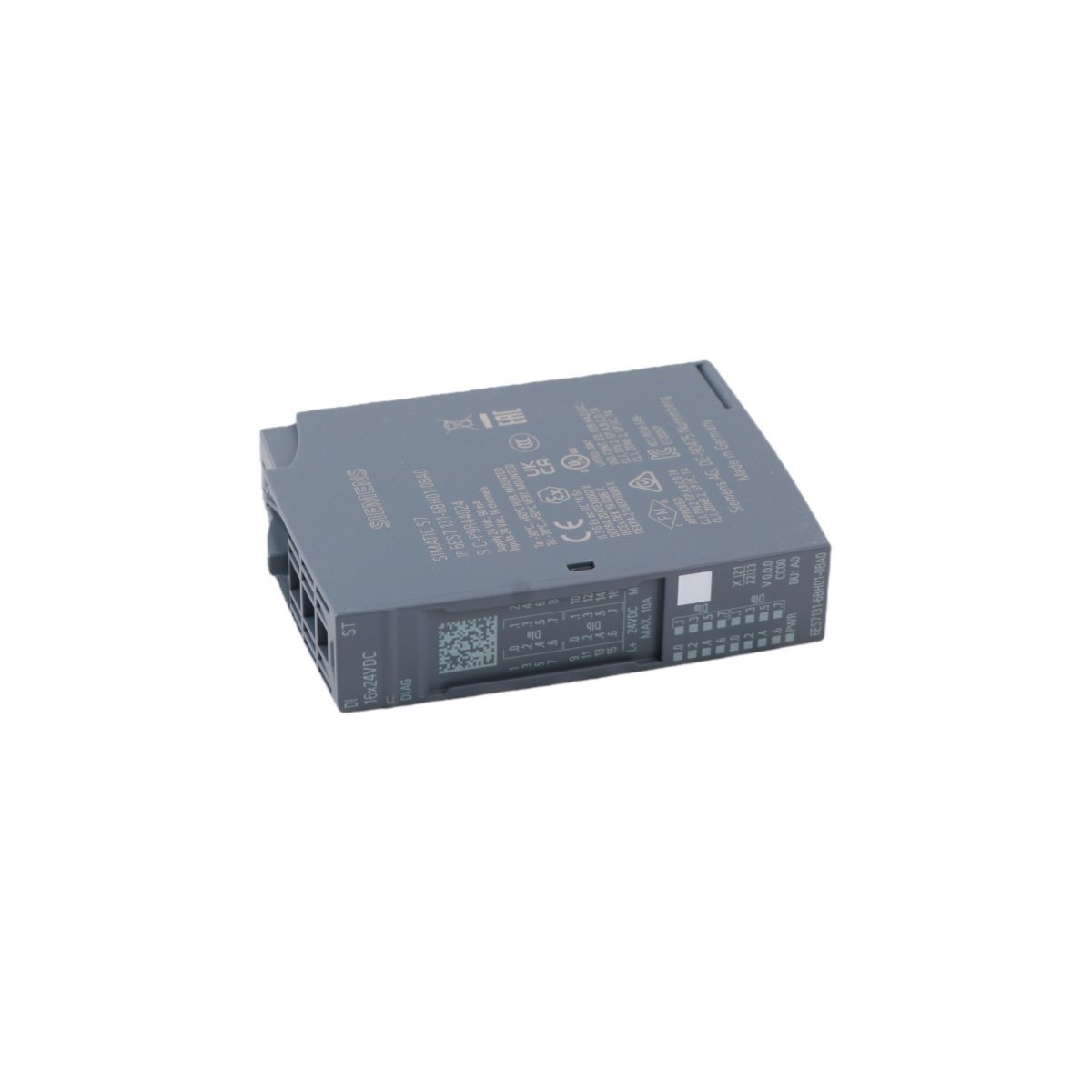

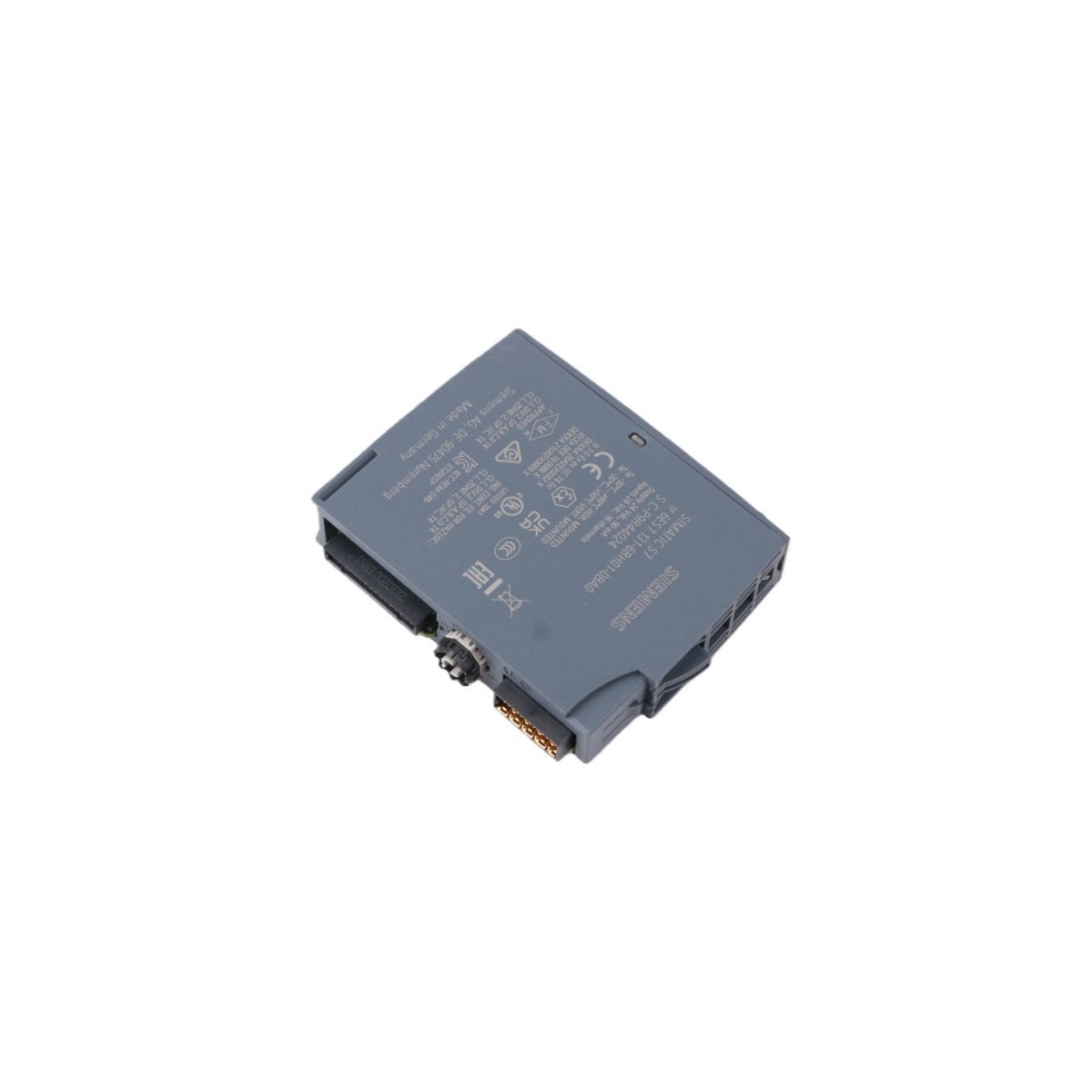

The Siemens 6ES7131-6BH01-0BA0 serves as a high-density digital input interface for the SIMATIC ET 200SP system. This module provides sixteen channels for 24V DC signal processing within a very slim housing. Consequently, users can significantly reduce the required space in control cabinets. The hardware supports PNP (sink) input logic and adheres to IEC 61131 Type 3 standards. It reliably detects signals from sensors, switches, and proximity probes. Therefore, it is ideal for high-volume data collection in modern manufacturing plants.
Advanced Configuration and Signal Processing
Operational flexibility is a primary feature of this electronic module. Users can adjust input delay times from 0.05ms up to 20ms through the engineering software. This capability allows the module to filter electrical noise effectively. Furthermore, it can capture rapid pulses for high-speed automated processes. The unit operates within a standard voltage range of 19.2V to 28.8V DC. It also includes reverse polarity protection to prevent damage during installation. These technical parameters ensure stable performance across various industrial environments.
Key Technical Specifications
- Manufacturer: Siemens
- Order Number: 6ES7131-6BH01-0BA0
- Input Channels: 16 Digital Inputs
- Rated Voltage: 24V DC
- Input Logic: Sink (PNP)
- Input Delay: Adjustable (0.05 ms to 20 ms)
- BaseUnit Compatibility: Type A0
- Color Code: CC00
- Power Loss: Typical 1.5 W
- Dimensions: 15 x 73 x 58 mm
- Weight: 0.028 kg
Industrial Architecture Integration
This module fits perfectly into the modular ET 200SP station layout. It utilizes the standard BU-type A0 BaseUnits for quick installation. The push-in terminals facilitate tool-free wiring for field devices. Furthermore, the compact design allows for higher I/O density per linear meter of DIN rail. This efficiency lowers overall infrastructure costs for large-scale automation projects. Ultimately, this digital input module provides a robust and scalable solution for complex control systems.
