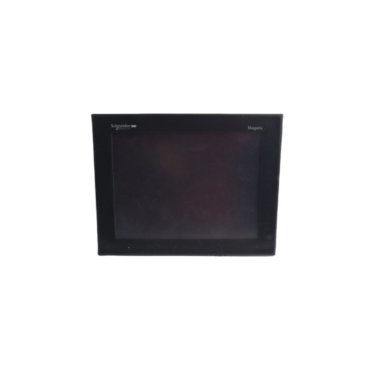

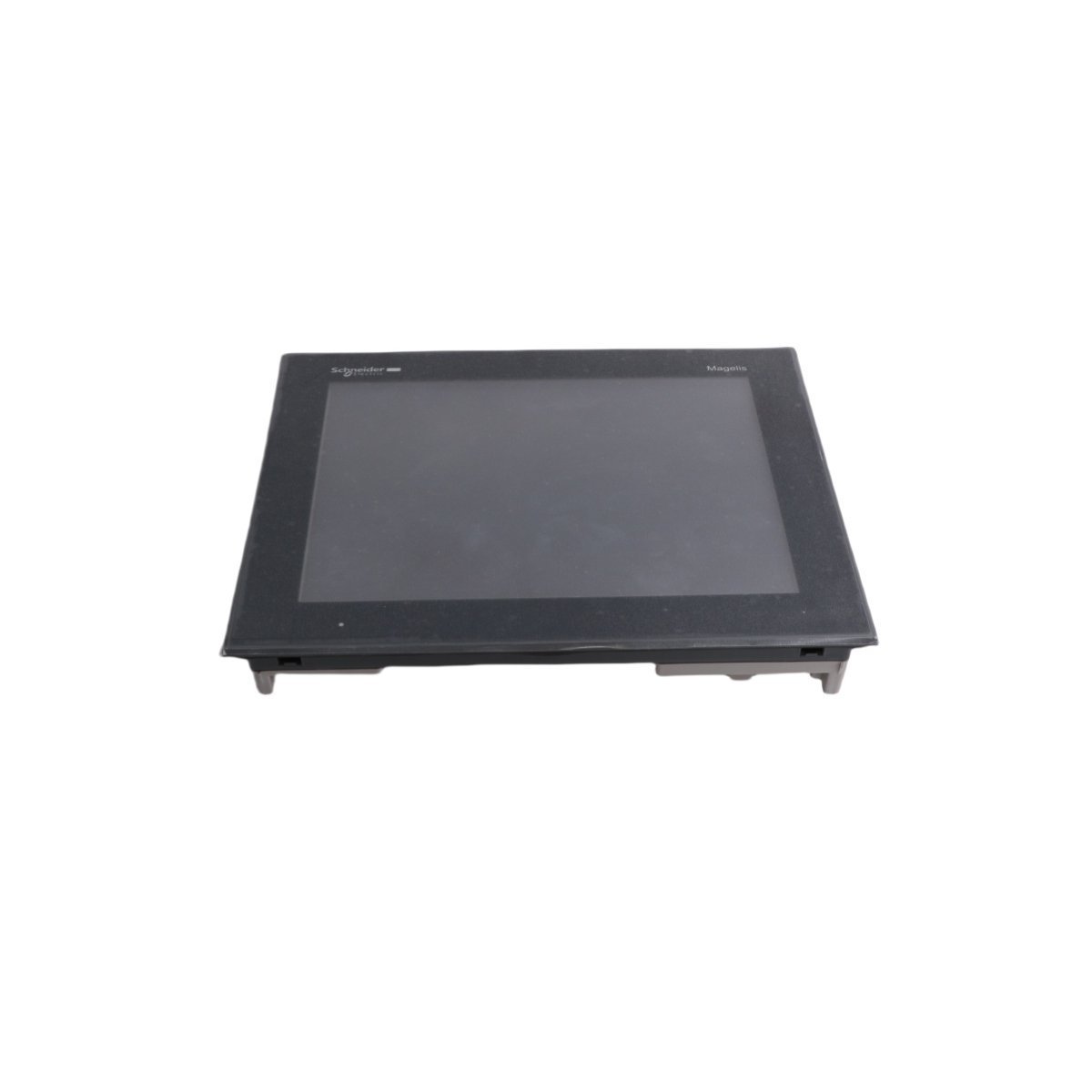

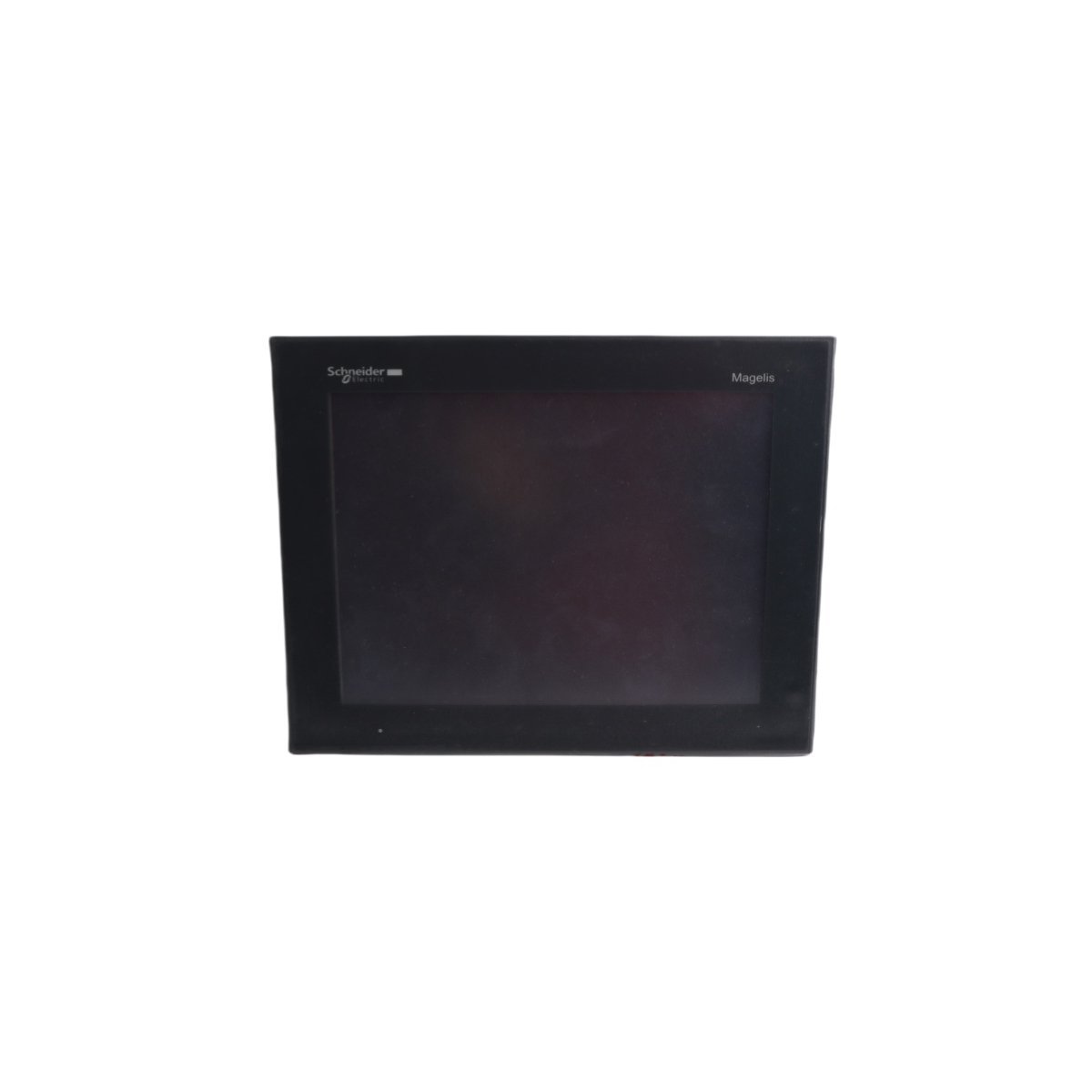

Schneider Electric HMIGTO5310 Touch Screen

The Schneider Electric HMIGTO5310 serves as a premium Human Machine Interface (HMI) for modern industrial environments. This unit features a 10.4-inch VGA TFT display for crisp process monitoring. It provides a resolution of 640 x 480 pixels for clear graphical representation. Furthermore, the high-quality backlit screen ensures visibility in various lighting conditions. Operators can manage complex automation sequences through this intuitive touch interface. Consequently, it significantly improves the efficiency of localized machine control.

Advanced Memory and Data Management

This Harmony GTO panel includes 96 MB of built-in flash memory for application storage. It also utilizes 512 kB of internal RAM for critical data backup during operation. Users can expand the storage capacity easily using SD or SDHC cards. The system supports external memory cards up to 32 GB for extensive logging. Moreover, a dedicated lithium battery protects internal data for long-term reliability. These features make it suitable for data-intensive manufacturing applications.

Connectivity and Protocol Support

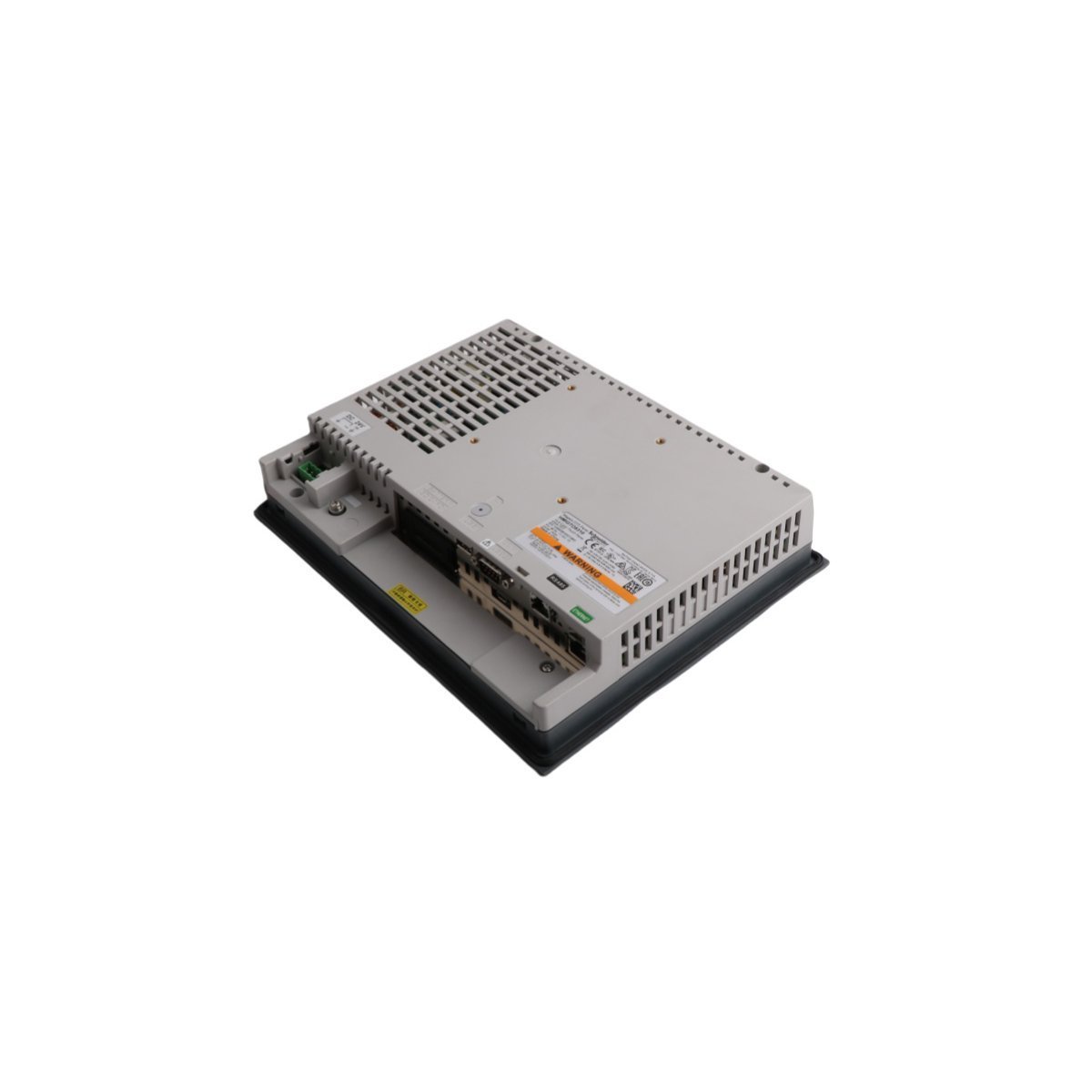

The HMIGTO5310 offers versatile communication options for diverse industrial networks. It includes an Ethernet 10/100BASE-TX port for high-speed plant integration. Additionally, the unit features COM1 RS232C and COM2 RS485 serial interfaces. It supports multiple standard protocols like Modbus TCP and EtherNet/IP. The panel also communicates with third-party hardware from Siemens, Rockwell, and Mitsubishi. This broad compatibility ensures seamless integration into existing multi-brand automation architectures.

Rugged Design for Demanding Environments

Schneider Electric engineered this HMI to withstand harsh factory settings. It operates reliably in temperatures ranging from 0°C to 55°C. The fanless cooling design prevents internal dust accumulation over time. Furthermore, the rugged front bezel resists common industrial chemicals and moisture. This durability makes the HMIGTO5310 a dependable choice for continuous 24/7 industrial processes.

Technical Specifications and Dimensions

• Display Type: 10.4-inch TFT color LCD
• Backlight Life: 50,000 hours at 25°C
• Input Voltage: 24V DC nominal range
• Power Consumption: 12W maximum during operation
• Unit Weight: 1.9 kg
• Housing Dimensions: 27.9cm x 21.6cm x 6.3cm
• Degree of Protection: IP65 front panel rating
• Software Environment: Vijeo Designer version 6.1 or higher
