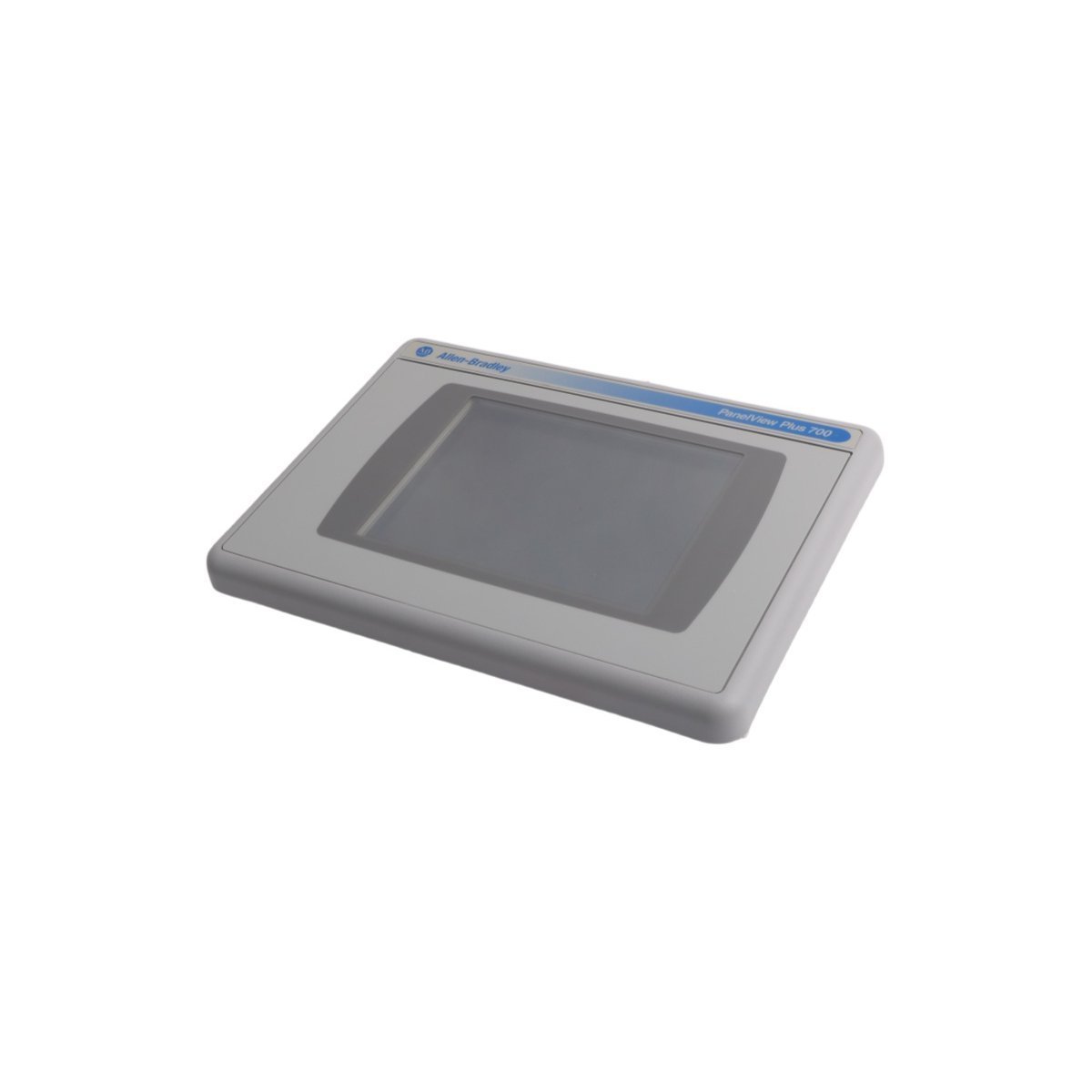

2711P-RDT7CM Allen Bradley 6.5-inch TFT Color Touchscreen Interface

Product Description

The Allen Bradley 2711P-RDT7CM serves as a high-performance visualization interface for the PanelView Plus 700 series terminals. This 100% Brand New original display module features a 6.5-inch active-matrix TFT color display that provides sharp resolution for complex industrial graphics. By utilizing a resistive touchscreen interface, the unit allows operators to input commands accurately even while wearing industrial gloves. This module functions as the primary human-machine interface (HMI) for monitoring real-time process data and controlling automated machinery across various manufacturing sectors.

Technical Specifications

Engineering Advantages

• Superior Visual Clarity: The TFT color display utilizes an active-matrix architecture to deliver high contrast and wide viewing angles. This ensures that operators can monitor critical alarms and process variables clearly from various positions on the factory floor.
• Rugged Touch Interface: The resistive touchscreen technology accommodates the harsh realities of industrial environments. It responds to pressure from fingers, gloved hands, or styluses, maintaining operational continuity in the presence of dust or moisture.
• Seamless Modular Integration: The 2711P-RDT7CM integrates directly with PanelView Plus 700 logic modules and communication bases. This modularity allows facilities to replace only the display component during maintenance, significantly reducing total repair costs.
• Industrial-Grade Sealing: When properly panel-mounted, the front face achieves an IP65 rating. This protection level blocks ingress from dust and low-pressure water jets, protecting the sensitive internal electronics in wash-down applications or heavy manufacturing zones.
• Optimized Thermal Management: The hardware handles significant temperature fluctuations, operating reliably up to 55°C. Advanced internal heat dissipation ensures the backlight and touch sensors maintain a long service life during continuous 24/7 operations.

FAQs

• Can I use the 2711P-RDT7CM with any PanelView Plus 700 logic module?
  • Yes. This display module acts as a standardized interface for the PanelView Plus 700 platform. It connects to the logic module via a multi-pin connector to provide power and signal transmission for the graphics and touch interface.
• Is the touchscreen field-replaceable?
  • While the 2711P-RDT7CM is a complete display assembly, replacing the entire module is the recommended method for restoring touch functionality. This ensures the factory seal and display alignment remain intact.
• Does this display module support outdoor use?
  • The NEMA 4X and IP65 ratings apply to indoor environments. If your application involves direct sunlight or outdoor exposure, you should provide an additional protective enclosure to prevent UV damage and glare.
