Safety System Power Distribution Board Honeywell FC-PDB-0824

Honeywell FC-PDB-0824 Safety System Power Distribution Board

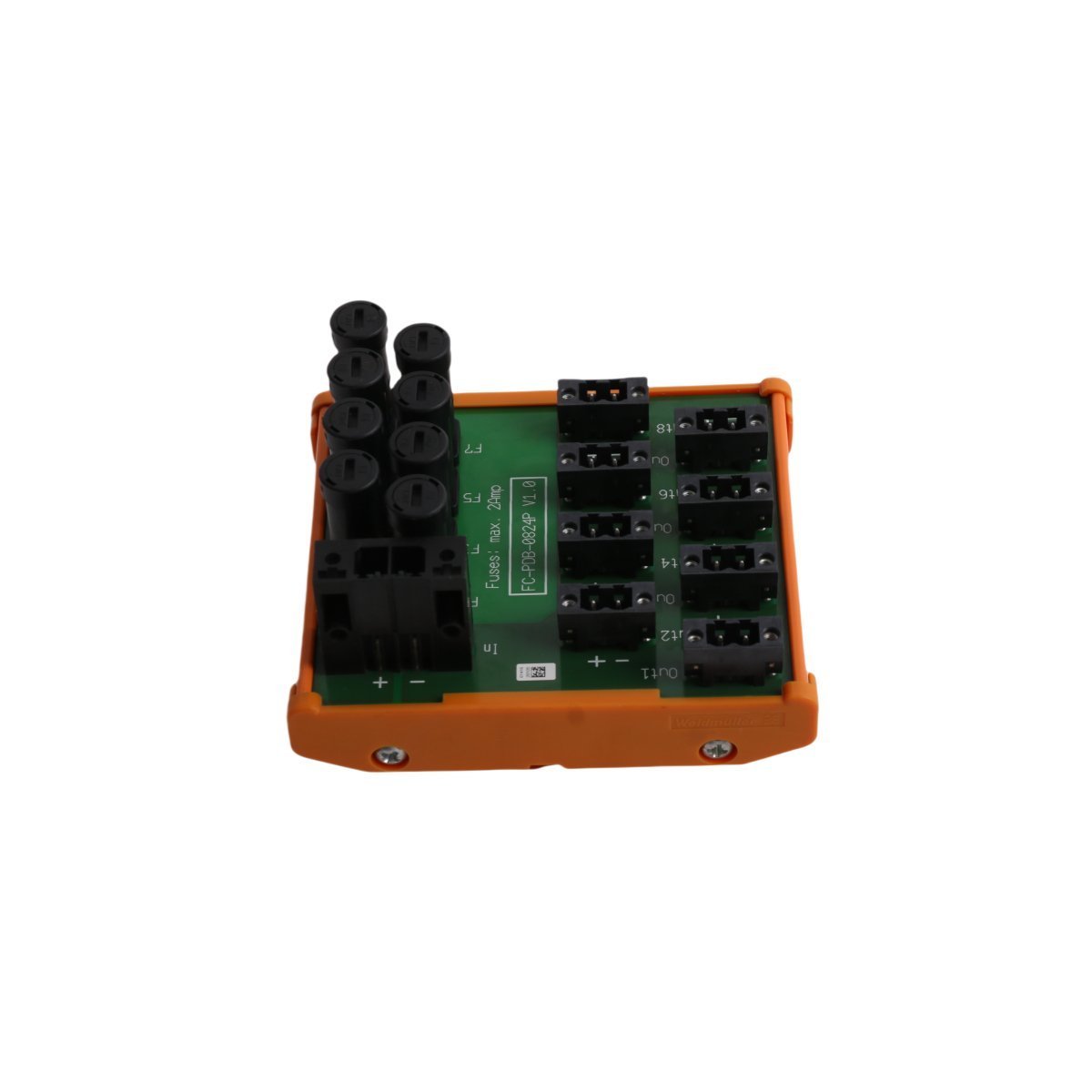

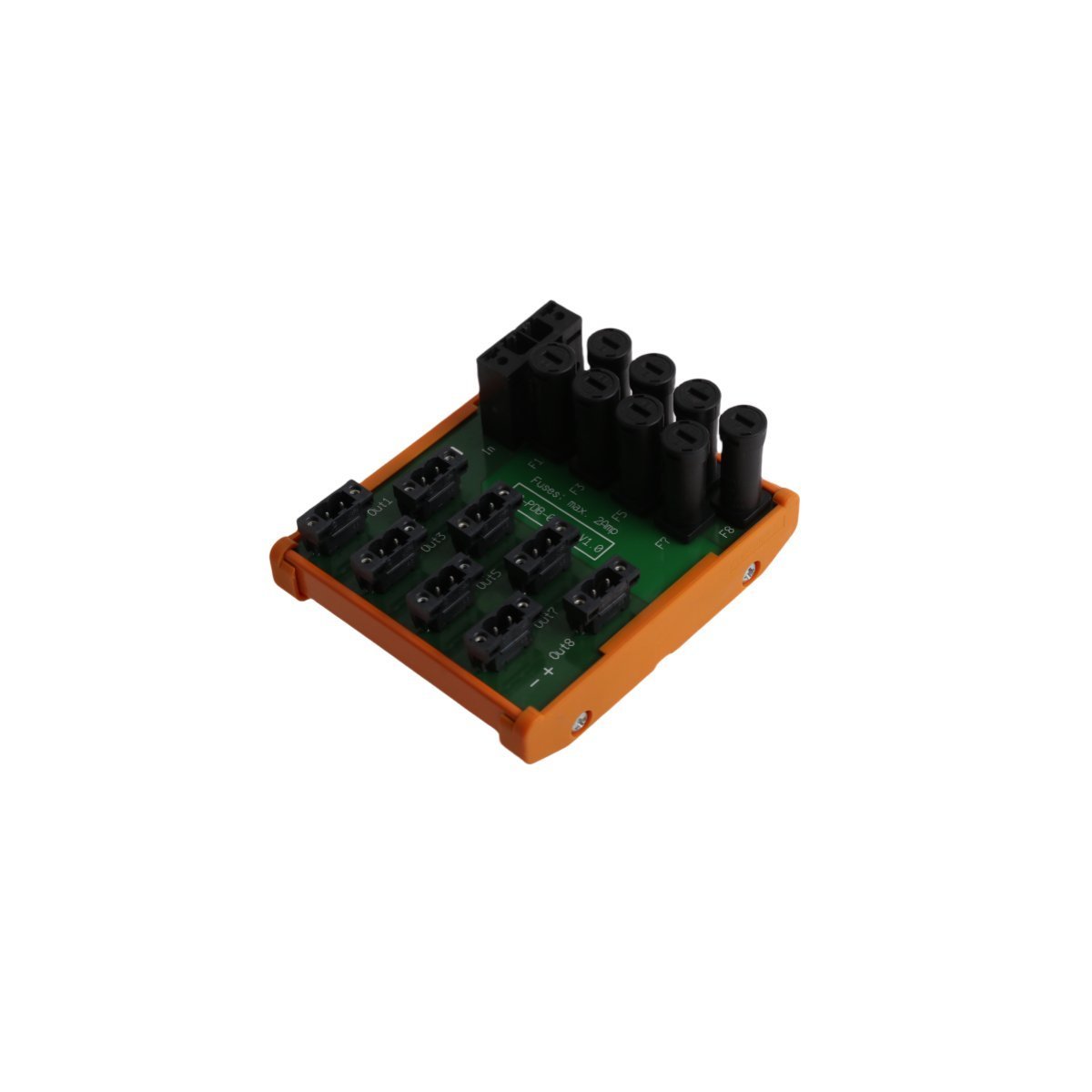

The Honeywell FC-PDB-0824, also cataloged as the FC-PDB-0824 Power Distribution Board, operates as a dedicated hardware component for 8-channel DC power branching and circuit protection within Fail Safe Controller safety system architectures. Automation engineers install this DIN-rail mounted module to distribute redundant system power rails directly to downstream field devices and I/O termination units. The hardware manages power buses actively while maintaining galvanic isolation between field distribution channels and upstream control backplanes.

Hardware Specifications

Channel Isolation and Galvanic Protection

The power distribution board incorporates robust channel-to-channel isolation networks alongside 4-20 mA HART loop protocol compatibility on adjacent field interfaces. Internal solid-state bus barriers decouple individual power output branches, so short circuits or severe overvoltage spikes on a single load line cannot collapse the main 24 VDC system bus. Furthermore, onboard filter circuits suppress high-frequency electromagnetic noise, whereas individual channel fuse components interrupt overcurrent conditions before thermal stress causes backplane power drops across connected safety controller racks.

Frequently Asked Questions

Q: Does the FC-PDB-0824 support hot-swapping or individual fuse replacement while connected circuits remain powered?

A: Technicians can replace individual channel fuses while the main supply bus remains active, but they must isolate external load field wiring prior to pulling terminal blocks.

Q: How does the power distribution board handle input power rail redundancy?

A: Internal diode-ORing circuits merge dual 24 VDC power feed lines into a unified power distribution bus, which prevents back-feeding if one primary supply fails.

Field Installation Guidelines

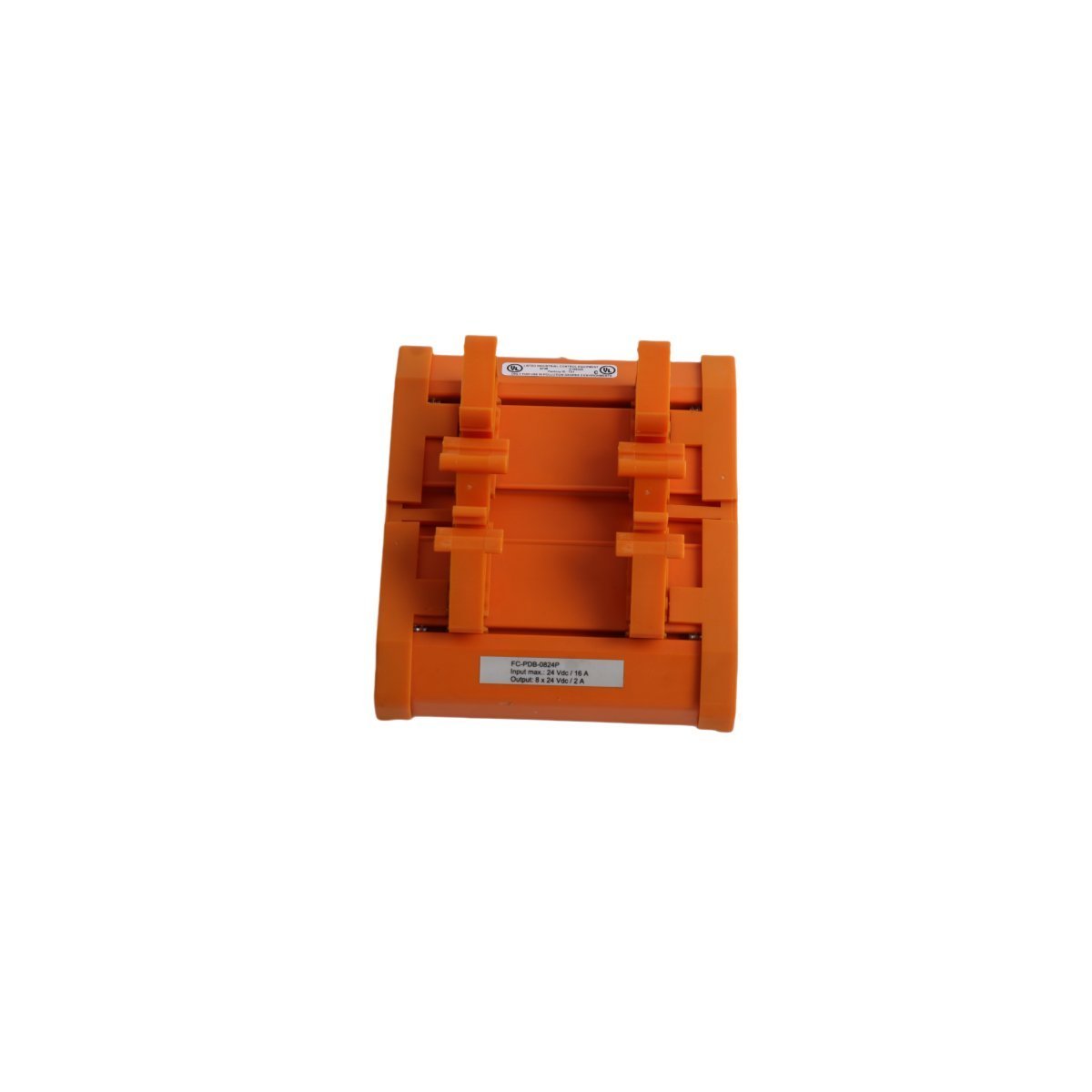

Mount the module directly onto a standard 35 mm DIN rail inside the enclosure, and verify that the metallic mounting clip locks firmly onto the rail surface. Strip input and output wire ends to 7 mm, insert conductors into screw terminals, and torque each terminal screw to 0.5 Nm. Route high-current DC power cables through separate wire channels away from low-voltage instrument signal lines, and connect the primary cabinet earth bonding strap directly to the module ground screw to ensure proper surge discharge paths.
