MC-PAOX03 51309152-175 Honeywell MU-T UCN Analog Output Card

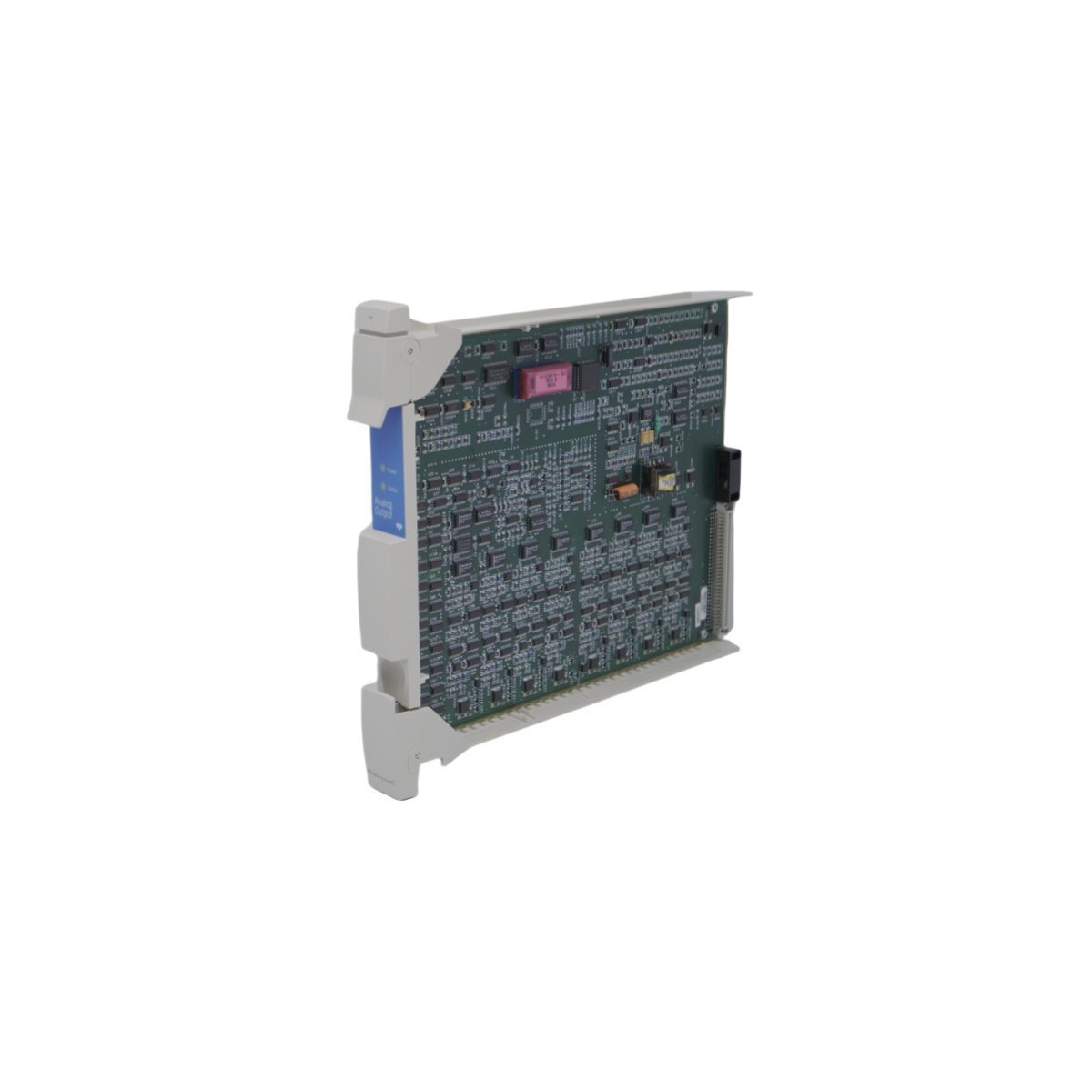

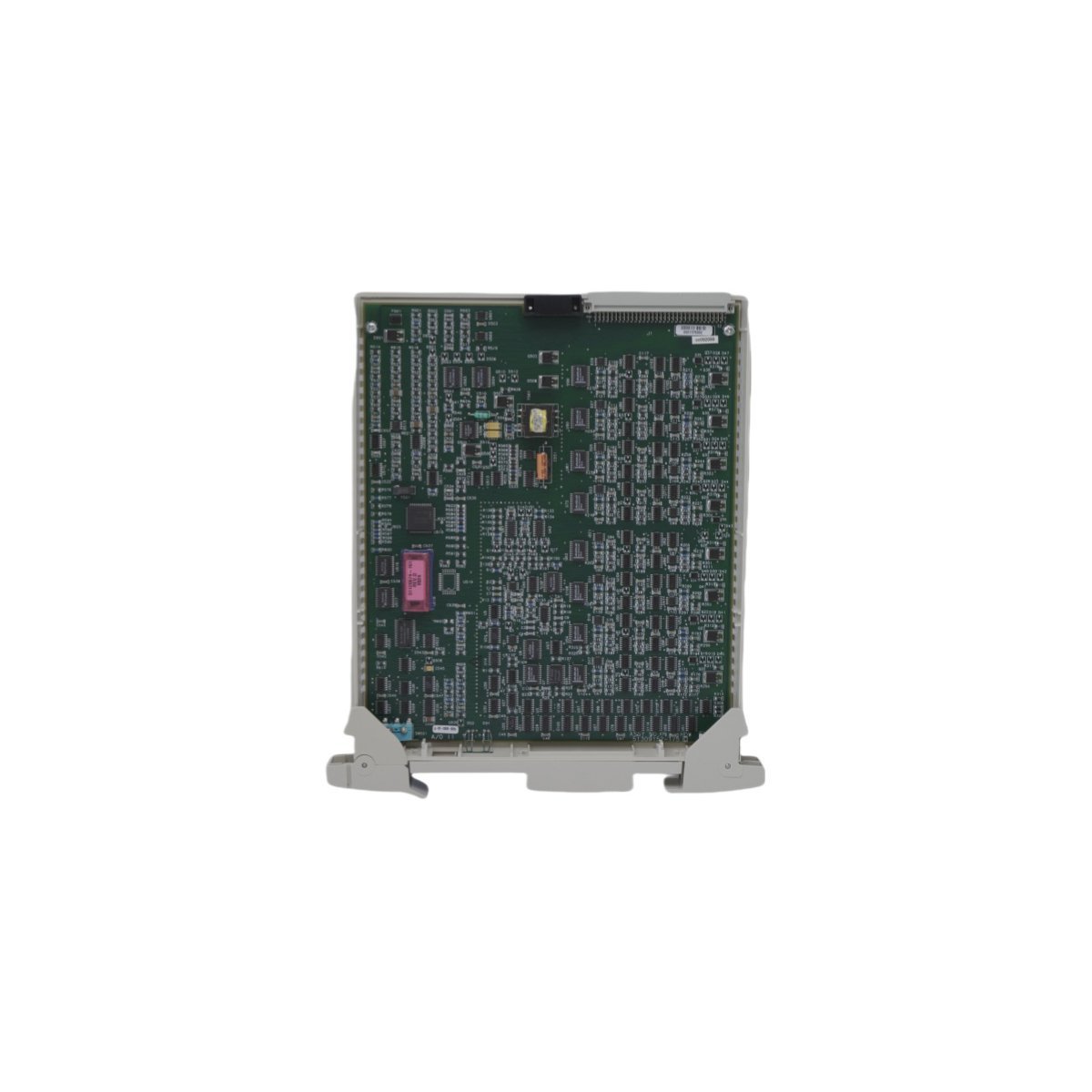

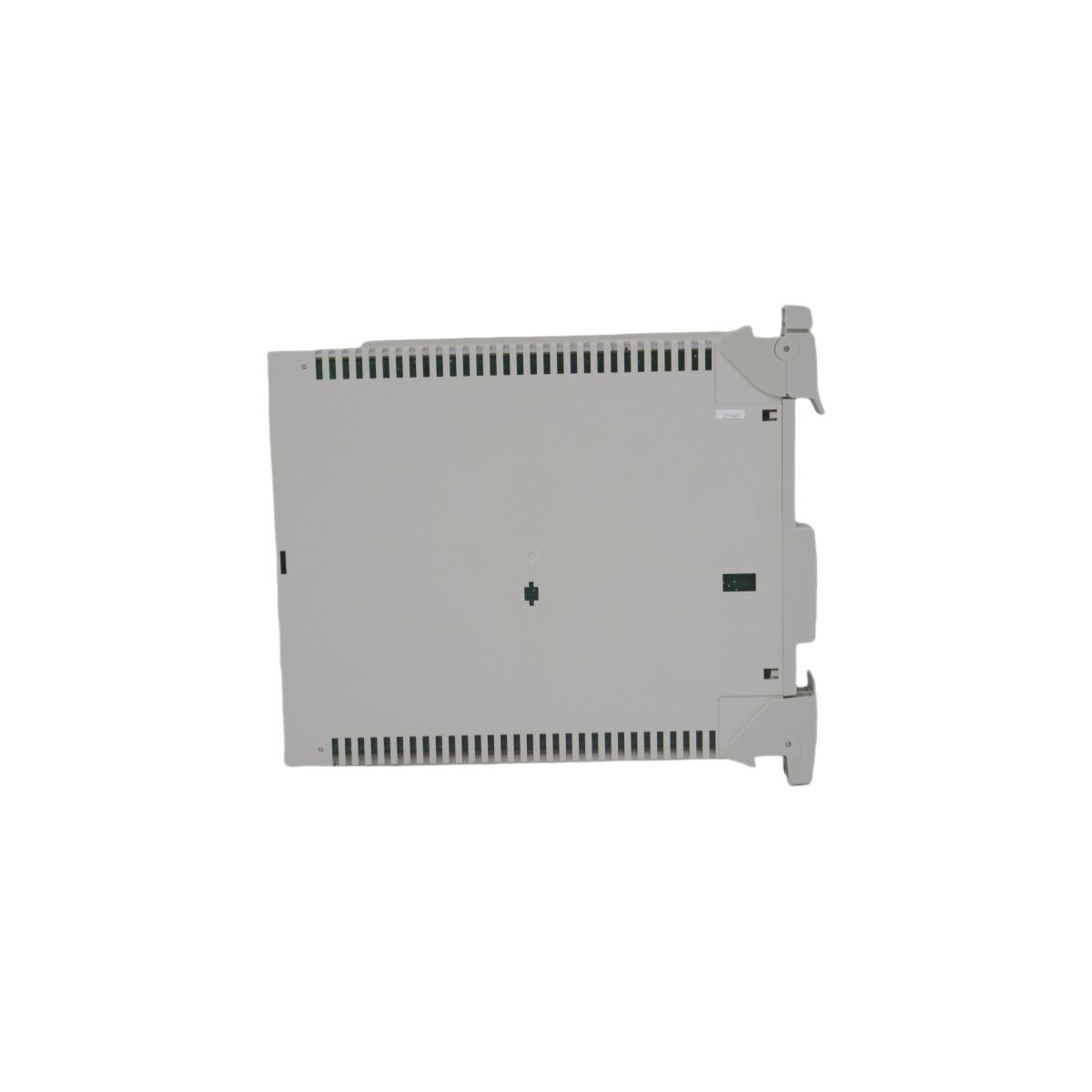

Honeywell MC-PAOX03 51309152-175 MU-T Series UCN Analog Output Card

Configured for precise current loop driving and analog control execution in Universal Control Network platforms, the Honeywell MC-PAOX03 51309152-175 (MC-PAOX03 Analog Output Card) provides direct physical/electrical execution. The assembly converts digital positioning commands from the processor rack into proportional analog signals, which directly modulate field final control elements. Automation engineers integrate this module to drive control valves, variable speed drives, and electro-pneumatic positioners while maintaining continuous closed-loop feedback across the process network.

Hardware Specifications

Analog Loop Protocol and Channel-to-Channel Isolation

The module integrates 4-20 mA HART loop protocol routing and dedicated channel-to-channel isolation circuits to prevent ground loops from corrupting critical analog outputs. Internal digital-to-analog converters transform system logic values into precise, low-drift current signals, whereas onboard surge suppression networks clamp high-voltage field transients before electrical noise reaches the main backplane. Furthermore, independent galvanically isolated output driver loops prevent field wiring faults on a single channel from degrading output stability across adjacent process control loops.

Frequently Asked Questions

Q: Does the MC-PAOX03 output card support hot-swapping during active DCS operation?

A: Technicians can perform live slot replacement of the card while the backplane remains powered, provided they lock output loops to a manual fallback state prior to extraction.

Q: How does the card handle open-circuit fault detection on the 4-20 mA loop lines?

A: Onboard monitoring circuitry continually measures loop resistance and drives an internal diagnostic status bit high whenever field wire continuity drops below minimum threshold limits.

Field Installation Guidelines

Align the module card edge with the upper and lower slot guide tracks before sliding the assembly into the rack frame. Press the front faceplate firmly until both top and bottom ejector latches snap fully into the retention position. Connect field output cables to the designated field termination assembly (FTA), and torque terminal screw connections to 0.5 Nm. Route signal-level 4-20 mA wiring through grounded metallic conduit away from high-voltage AC motor leads, and anchor individual cable drain wires directly to the cabinet signal ground bus bar to optimize noise suppression performance.
