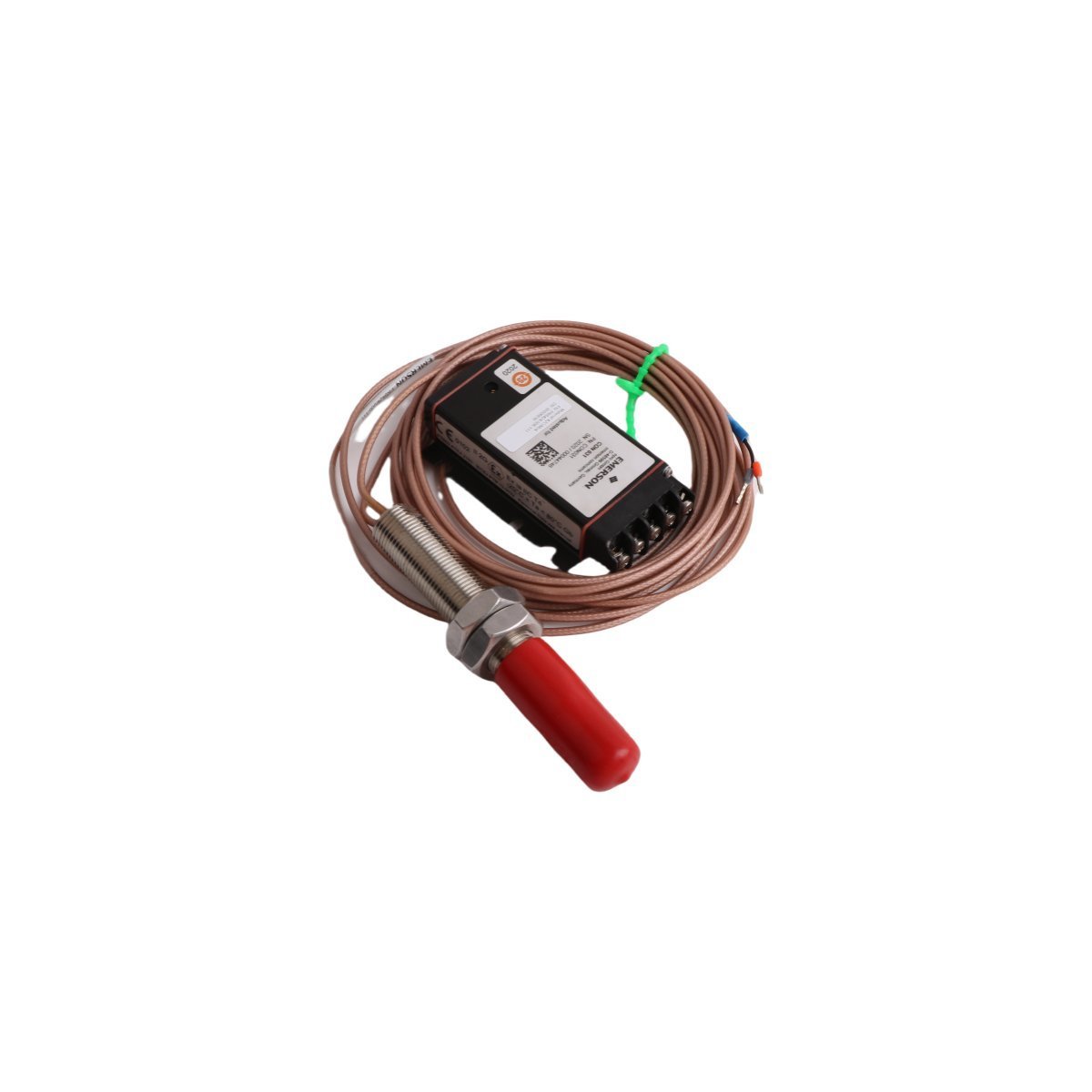

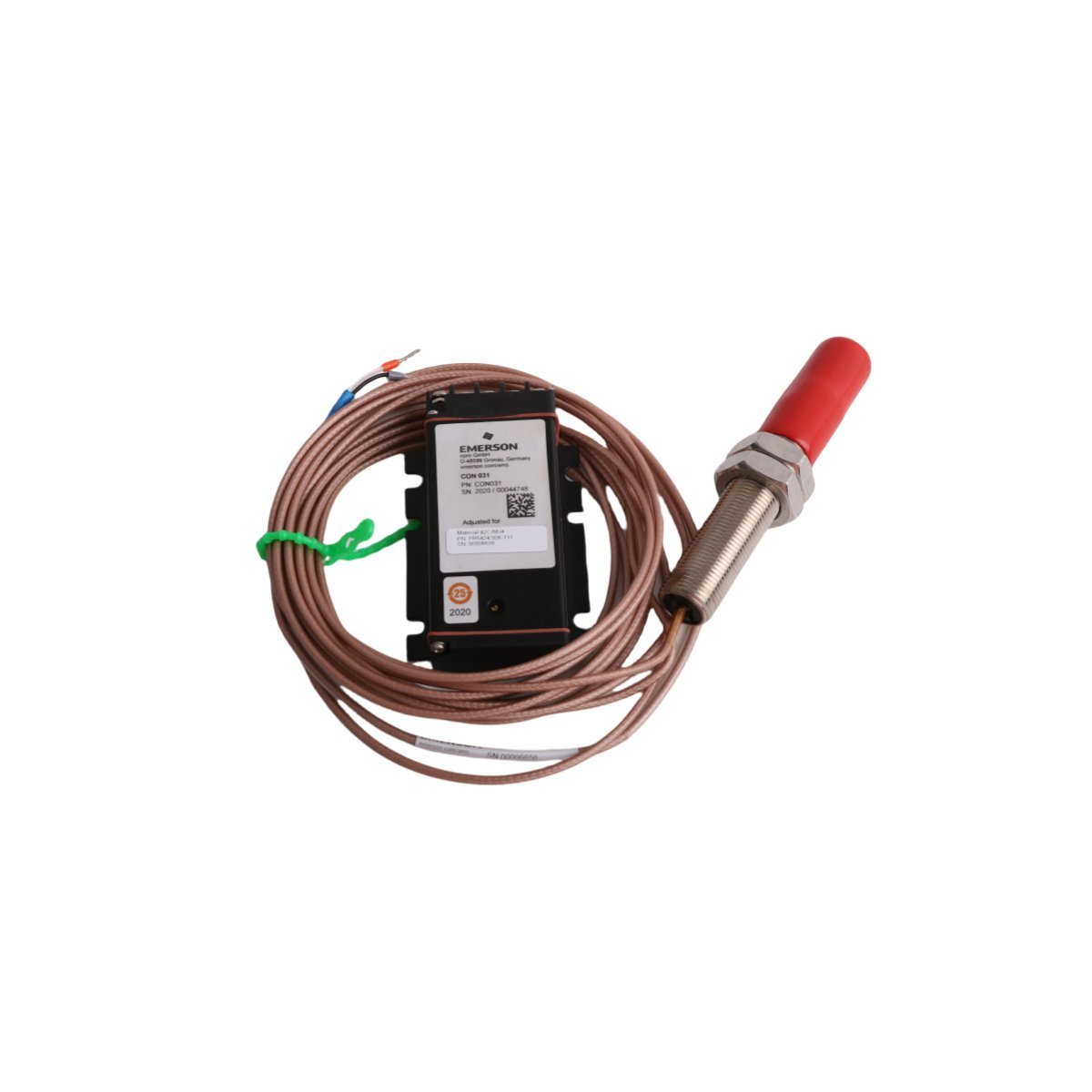

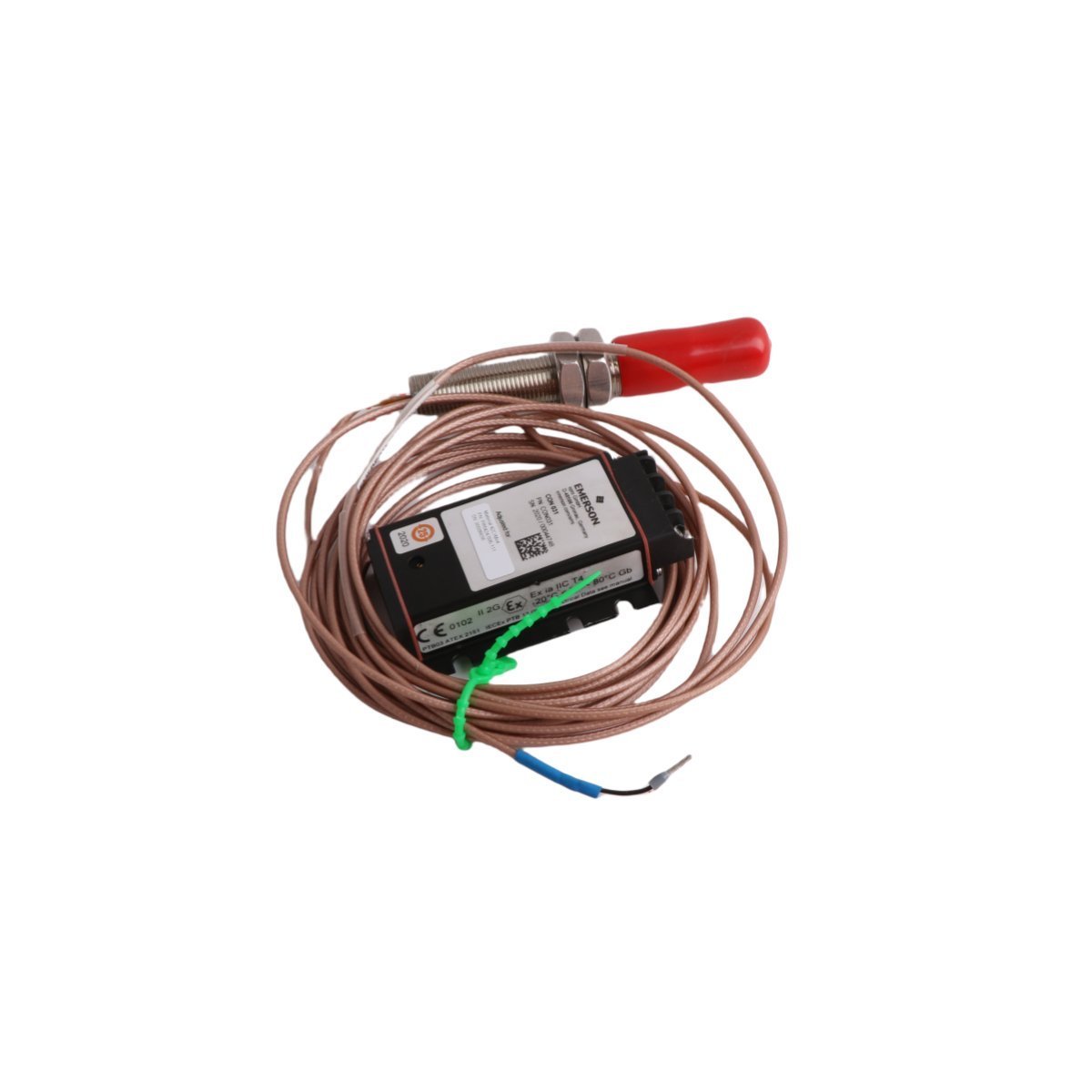

PR6424/006-111 Emerson CON031 Non-Contact Displacement Monitoring Probe

Technical Functional Overview

The Emerson EPRO PR6424/006-111 CON031 operates on the eddy current principle to provide non-contact displacement measurements. This sensor specifically targets the monitoring of shaft vibration, axial thrust, and thermal expansion in critical rotating assets. By generating a high-frequency electromagnetic field, the probe detects minute changes in the distance between the sensor tip and the conductive target material.

Furthermore, the system converts these physical changes into proportional voltage signals. This data allows control systems and operators to monitor machine health continuously. Because the sensor does not physically touch the shaft, it eliminates wear and tear, providing a long-term solution for predictive maintenance programs.

Key Technical Specifications

Engineering Characteristics and Applications

Engineers designed the PR6424/006-111 to excel in the harshest industrial climates. The probe features a robust construction that shields the signal from electromagnetic interference (EMI) and high-pressure conditions. Consequently, the sensor maintains high sensitivity and linear accuracy even when subjected to rapid temperature fluctuations.

Typical industrial applications include:

• Monitoring radial shaft vibration in high-speed steam and gas turbines.
• Measuring axial shaft position to prevent catastrophic thrust bearing failure.
• Tracking eccentricity and thermal expansion in large power plant generators.
• Providing feedback for compressors and pumps in oil and gas refineries.

Asset Protection and Integration

Integrating the PR6424/006-111 CON031 into a Distributed Control System (DCS) or PLC environment enhances overall asset protection. Transitioning from reactive to proactive maintenance becomes possible as the sensor identifies early-stage mechanical imbalances or misalignments. By delivering precise and stable output signals, this displacement model helps facilities reduce unplanned downtime and significantly extend the service life of expensive rotating equipment.
