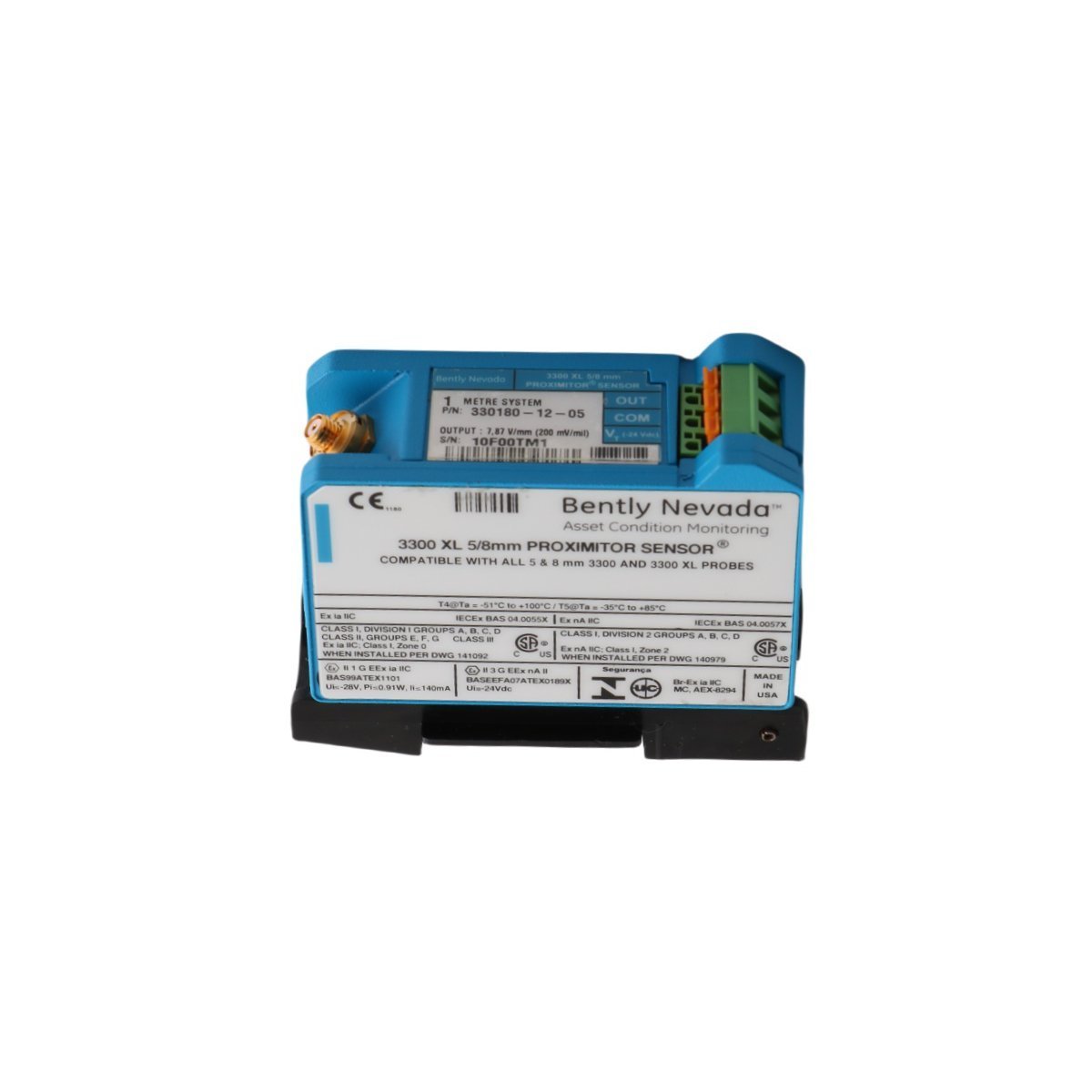

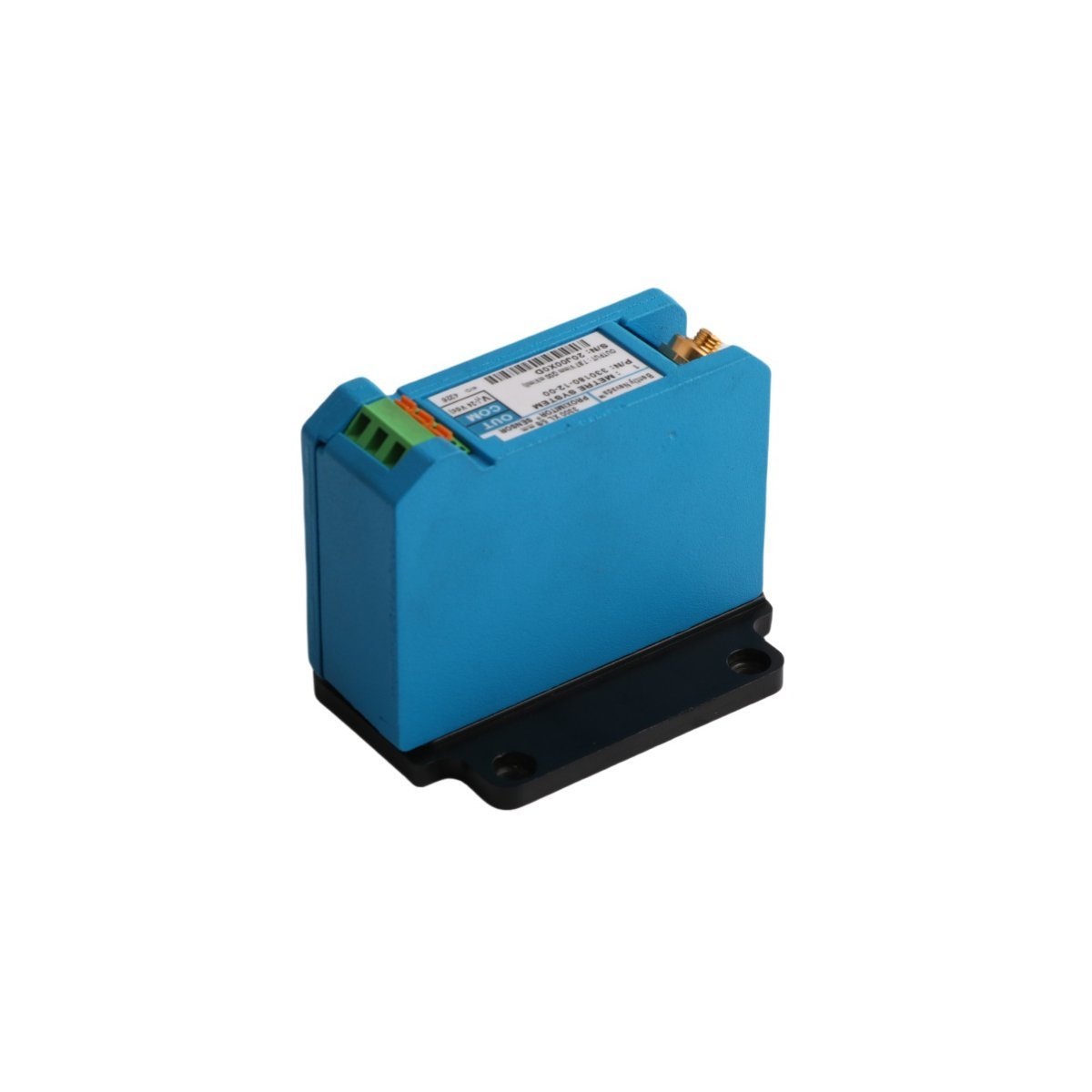

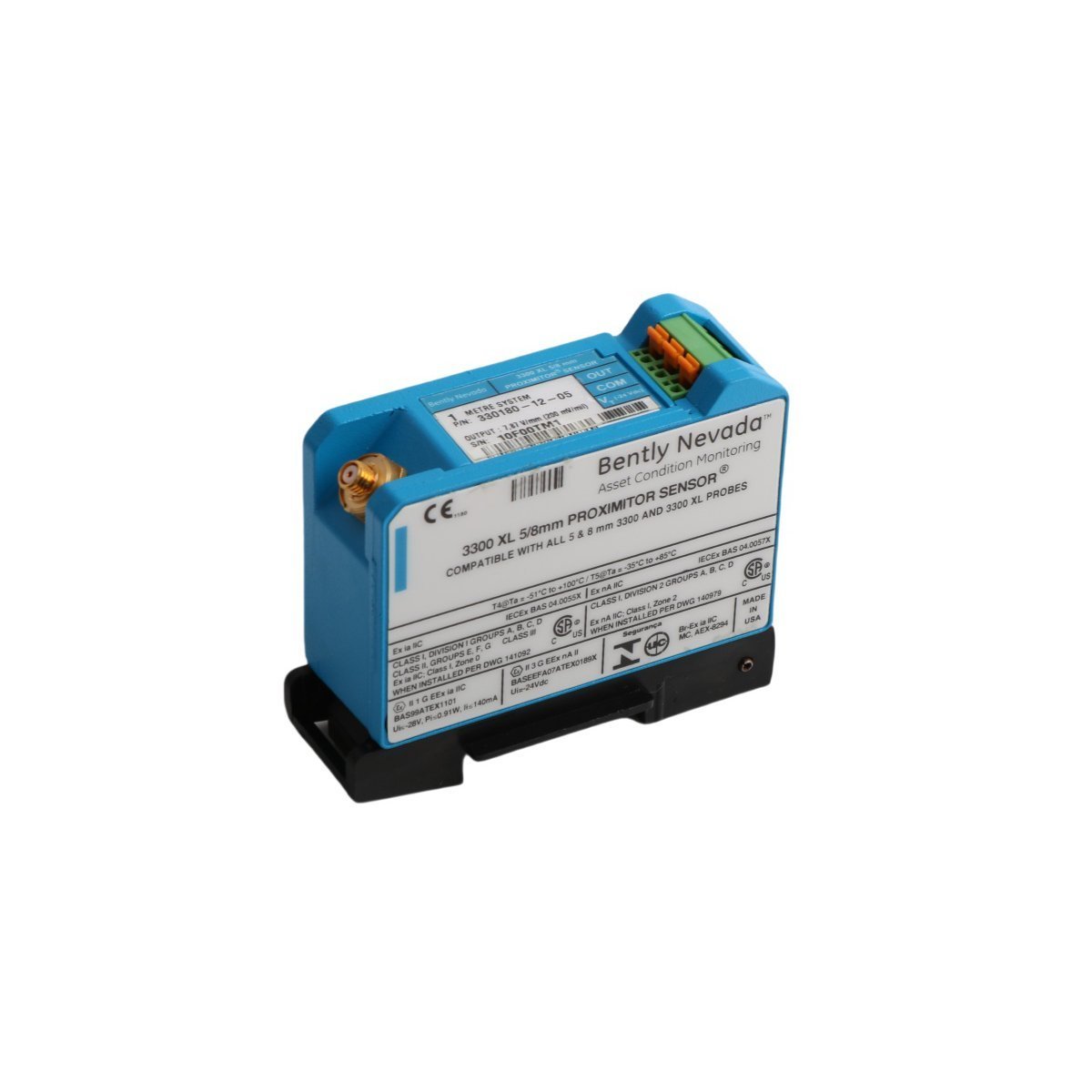

Bently Nevada 330180-10-05 3300 XL Proximitor Sensor

The Bently Nevada 330180-10-05, also cataloged as the 330180-10-05 Proximitor Sensor, operates as a dedicated hardware component for signal conditioning and proximity gap voltage processing within TSI platforms. Engineers specify this transducer module to drive eddy-current proximity probes directly, converting mechanical shaft displacement into linear analog voltage signals for continuous machinery protection.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling & Gap Voltage Validation

Because the unit processes high-frequency RF signals generated at the probe tip, field technicians must execute precise eddy-current probe scaling during initial setup. Consequently, maintenance personnel verify gap voltage validation targeting -10 VDC at the mid-point of the physical linear range. Proper field calibration guarantees signal linearity over dynamic shaft excursions while maximizing cross-talk suppression between closely spaced probe channels, allowing the monitoring rack to evaluate complex rotor dynamics without signal degradation.

Frequently Asked Questions

Q: How do SpringLoc terminal strips simplify field wiring connections on the 330180-10-05?

A: Technicians insert stripped field conductors directly into the SpringLoc spring-clamp terminals, which automatically maintain constant clamping force to prevent wire vibration looseness without using specialized hand tools.

Q: Why does the 330180-10-05 eliminate the need for separate isolator plates during installation?

A: The internal circuit design provides galvanically isolated signal paths and housing construction, so installers can mount the sensor directly onto metal baseplates or fiberglass enclosures without creating ground loop interference.

Field Installation Guidelines

Installers mount the Proximitor Sensor onto standard 35 mm DIN rails or secure the baseplate using four mounting screws through the pre-drilled panel holes. Next, technicians connect the 1.0 m extension cable from the proximity probe to the input coaxial connector, ensuring theClickLoc coupling locks firmly into position. Field crews then land the field wiring onto the SpringLoc terminal strips, connecting the -24 VDC power, power return, and raw signal output conductors. Finally, maintenance teams bond the shield drain wire to the dedicated system ground terminal at the monitor rack, preventing external RFI/EMI noise ingress along the signal path.
