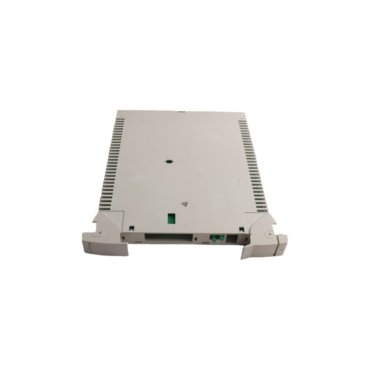

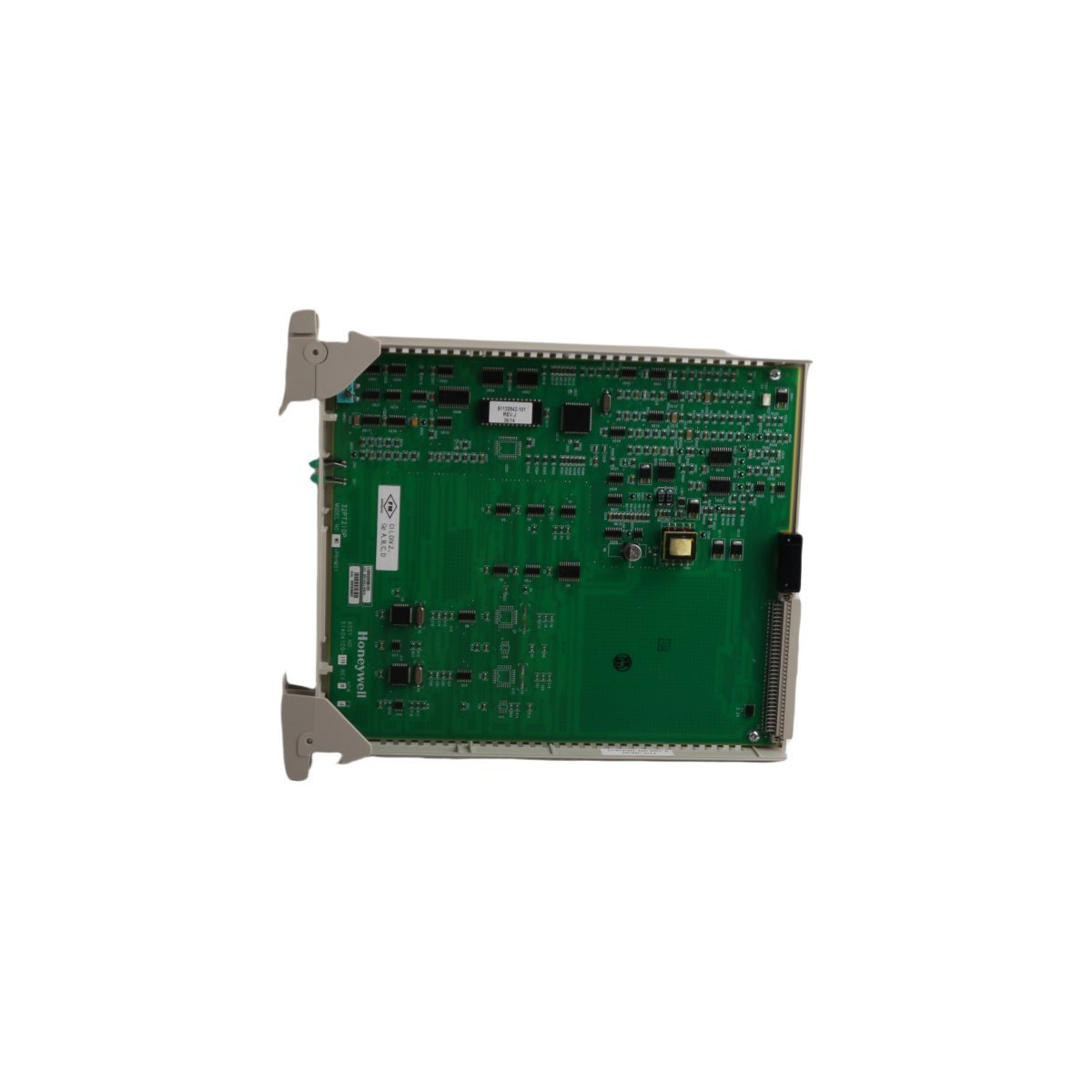

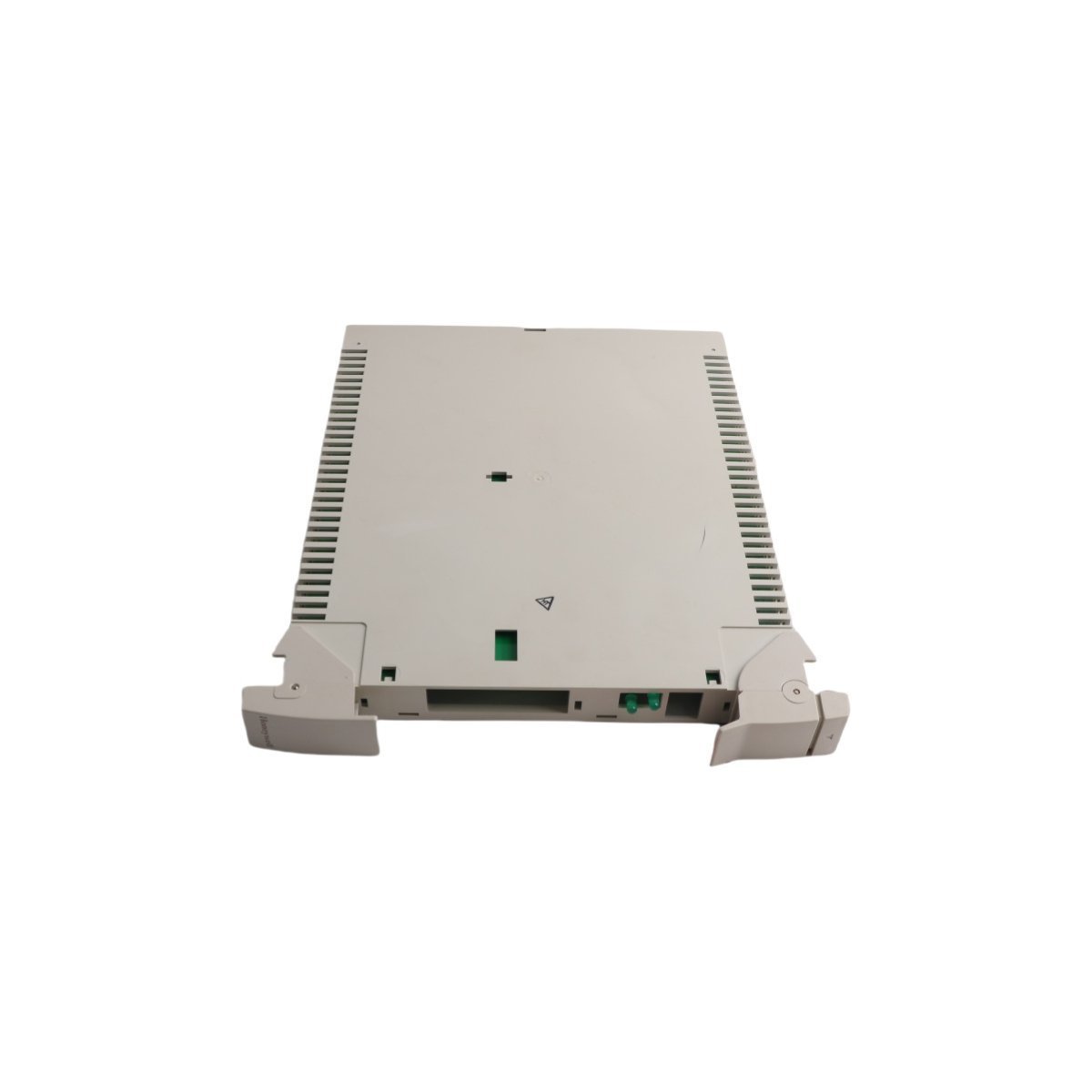

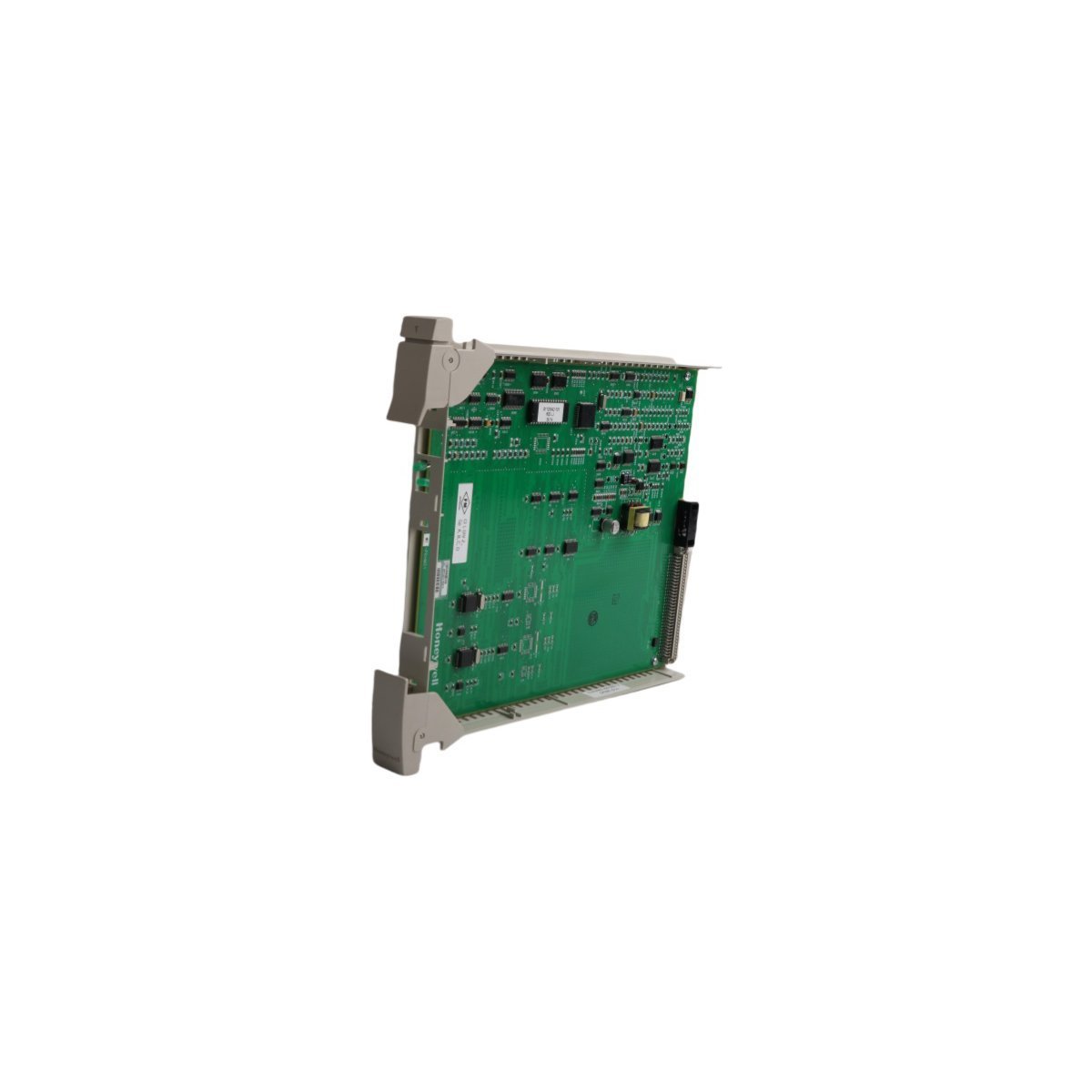

Honeywell MC-PRHM01 51404109-175 Analog Input Module

The MC-PRHM01 module functions as a critical bridge between field instruments and the Honeywell DCS. This hardware processes diverse analog signals from industrial sensors with extreme accuracy. Because it uses a 16-bit microprocessor, the unit delivers superior timing resolution. The module converts physical measurements into digital data for the controller. Consequently, it supports high-integrity process monitoring in complex automation environments. This component ensures that the control system receives reliable and consistent input values.

Rugged Engineering for Remote Environments

Honeywell designed the 51404109-175 for deployment in demanding “Remote Hardened” locations. The hardware features a robust IP20-rated housing to protect internal electronics from debris. Furthermore, the module withstands high-vibration conditions up to 5g without performance loss. Since it operates across a wide thermal range, it suits unconditioned equipment rooms. The compact 0.52kg design allows for efficient installation in crowded control cabinets. Therefore, the unit provides long-term reliability for heavy industrial and automotive applications.

Intelligent Integration and Diagnostics

The MC-PRHM01 supports seamless communication across PROFIBUS, Modbus, and Ethernet/IP industrial networks. This versatility allows engineers to implement complex control logic without extra hardware. Moreover, the module includes onboard LED indicators for immediate status verification. Because the system performs continuous self-diagnostics, maintenance teams can identify faults quickly. This capability reduces the time required for troubleshooting and system repairs. These features collectively enhance the overall uptime of the distributed control system.

Technical Specifications
