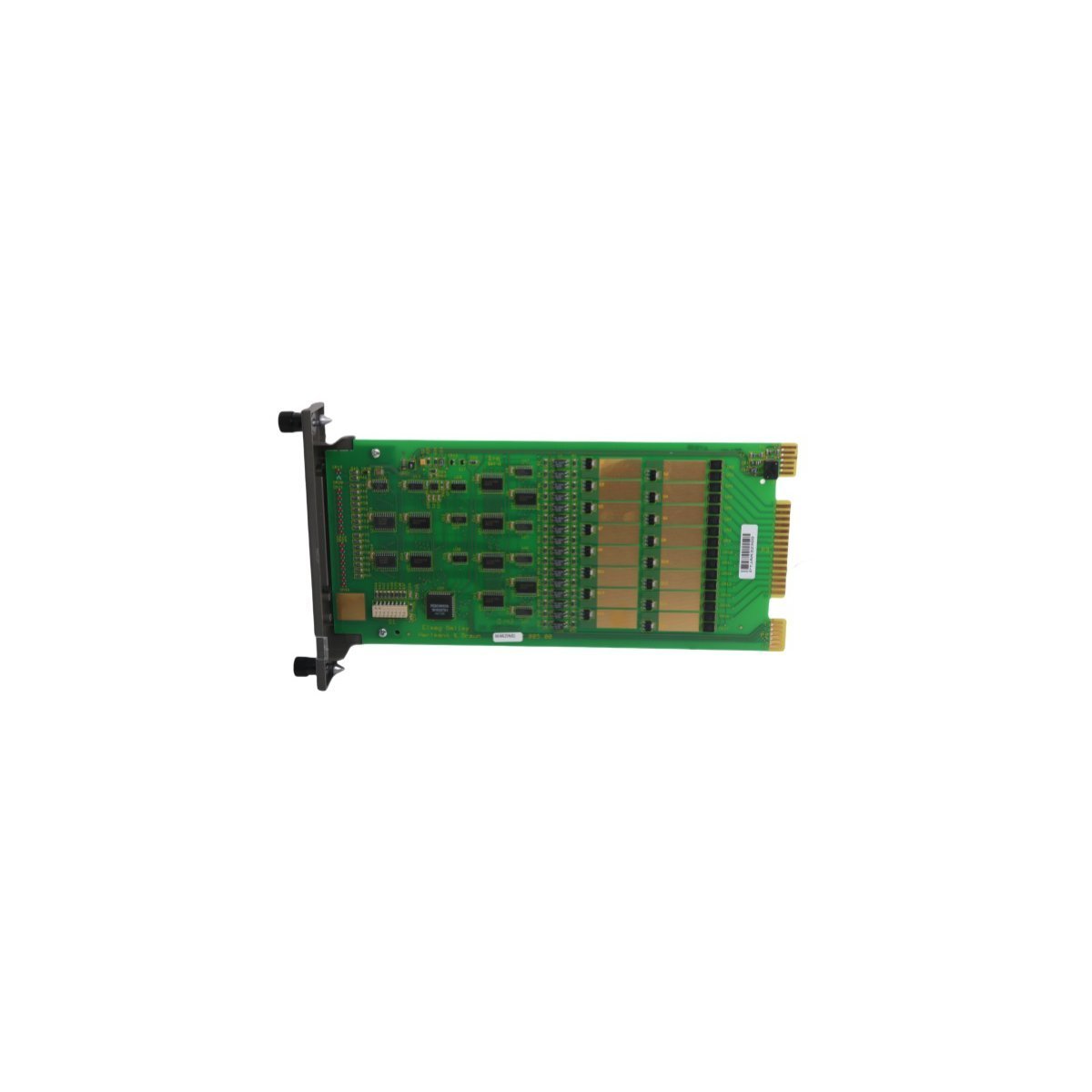

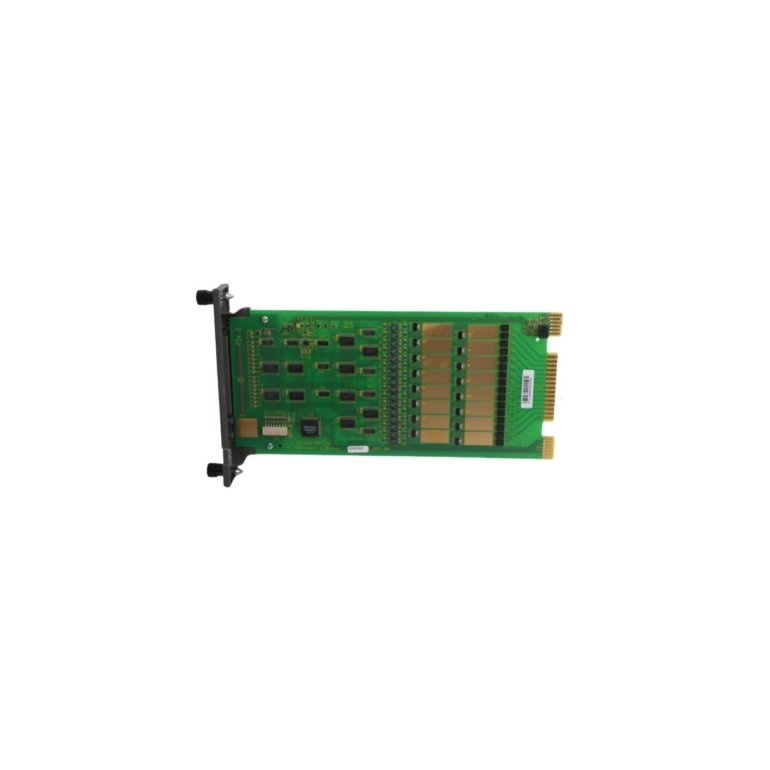

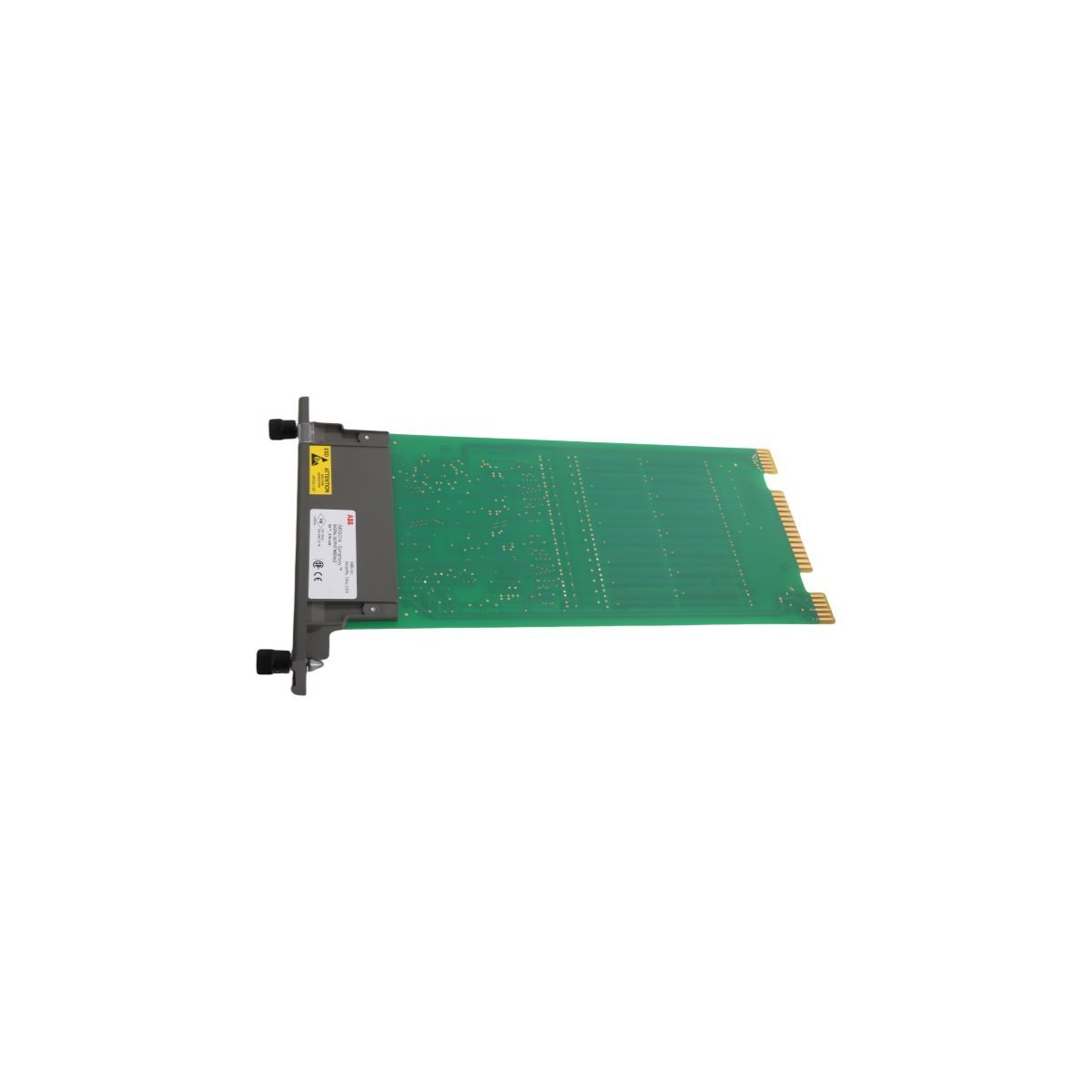

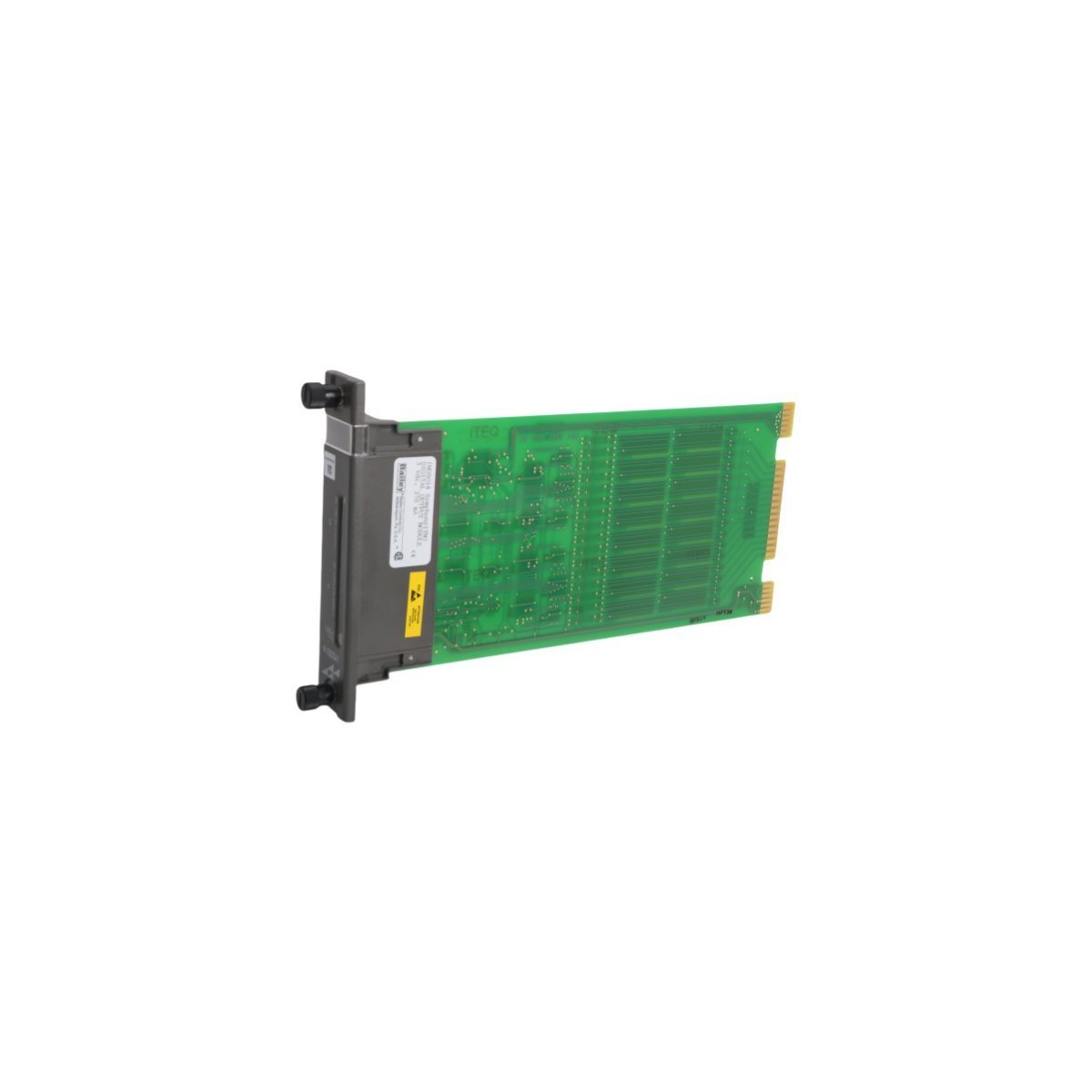

The ABB IMDSO14 operates as a high-precision digital slave output module within the Harmony Rack (HR) series. This component specialize in managing hydraulic servo systems and discrete field devices. It receives digital commands from a master controller and converts them into actionable field signals. Consequently, the unit provides the rapid response times necessary for critical turbine control and heavy industrial positioning.
Furthermore, the module employs a Frequency Shift Keying (FSK) communication protocol to ensure signal purity. This robust transmission method prevents data corruption in areas with high electromagnetic interference. The IMDSO14 remains a vital interface for maintaining stability in complex distributed control systems.
Core Technical Specifications
- Manufacturer: ABB / Bailey
- Model Identifier: IMDSO14
- Module Category: Digital Slave Output / Hydraulic Servo
- Product Line: Harmony Rack (HR Series)
- Communication Protocol: FSK (Frequency Shift Keying)
- Physical Weight: 0.2 kg
- Unit Dimensions: 3.7 x 31.7 x 17.8 cm
- Manufacturing Origin: Sweden
- System Application: DCS / Turbine Control
- Installation Condition: Brand New
Functional Adaptability and System Performance
The IMDSO14 features a flexible hardware design to support varying voltage and current requirements. It adapts easily to different industrial load profiles without sacrificing output accuracy. Moreover, the internal diagnostics continuously monitor the module health to prevent unexpected process interruptions.
Additionally, the lightweight and slim architecture facilitates high-density mounting in standard Harmony racks. This design choice simplifies cabinet cooling and internal wire routing during system upgrades. Therefore, plant engineers can expand control capabilities while minimizing the physical footprint of the hardware.
