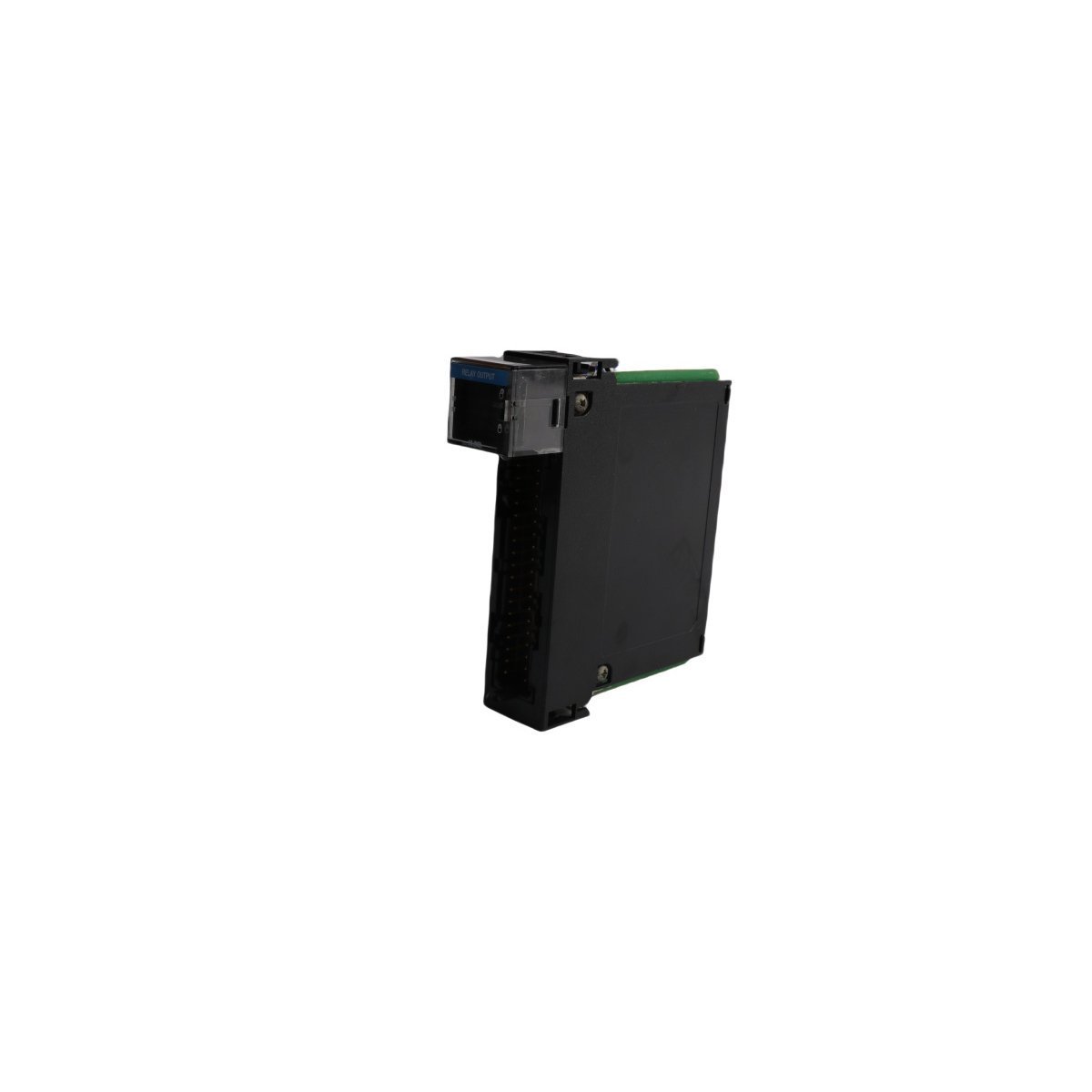

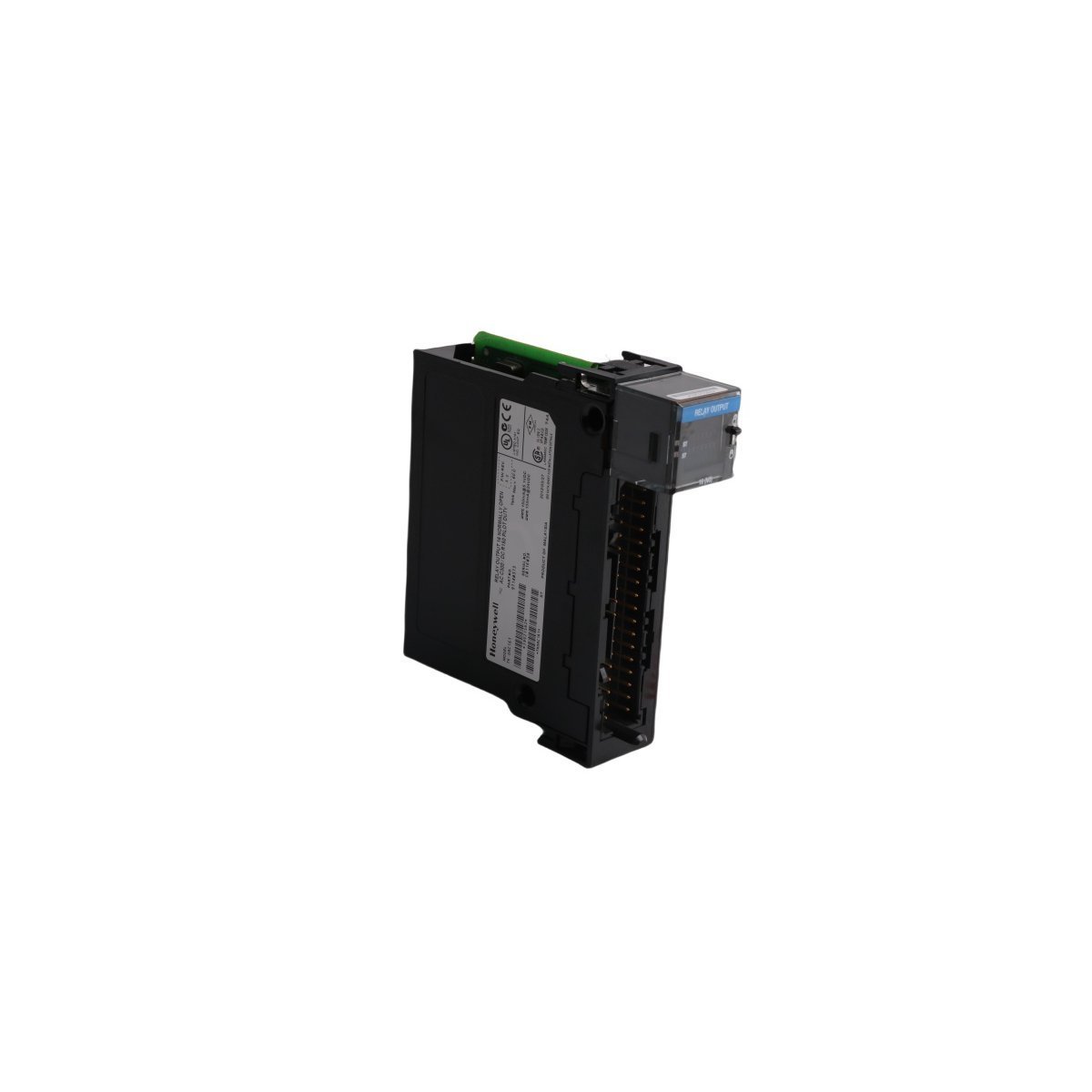

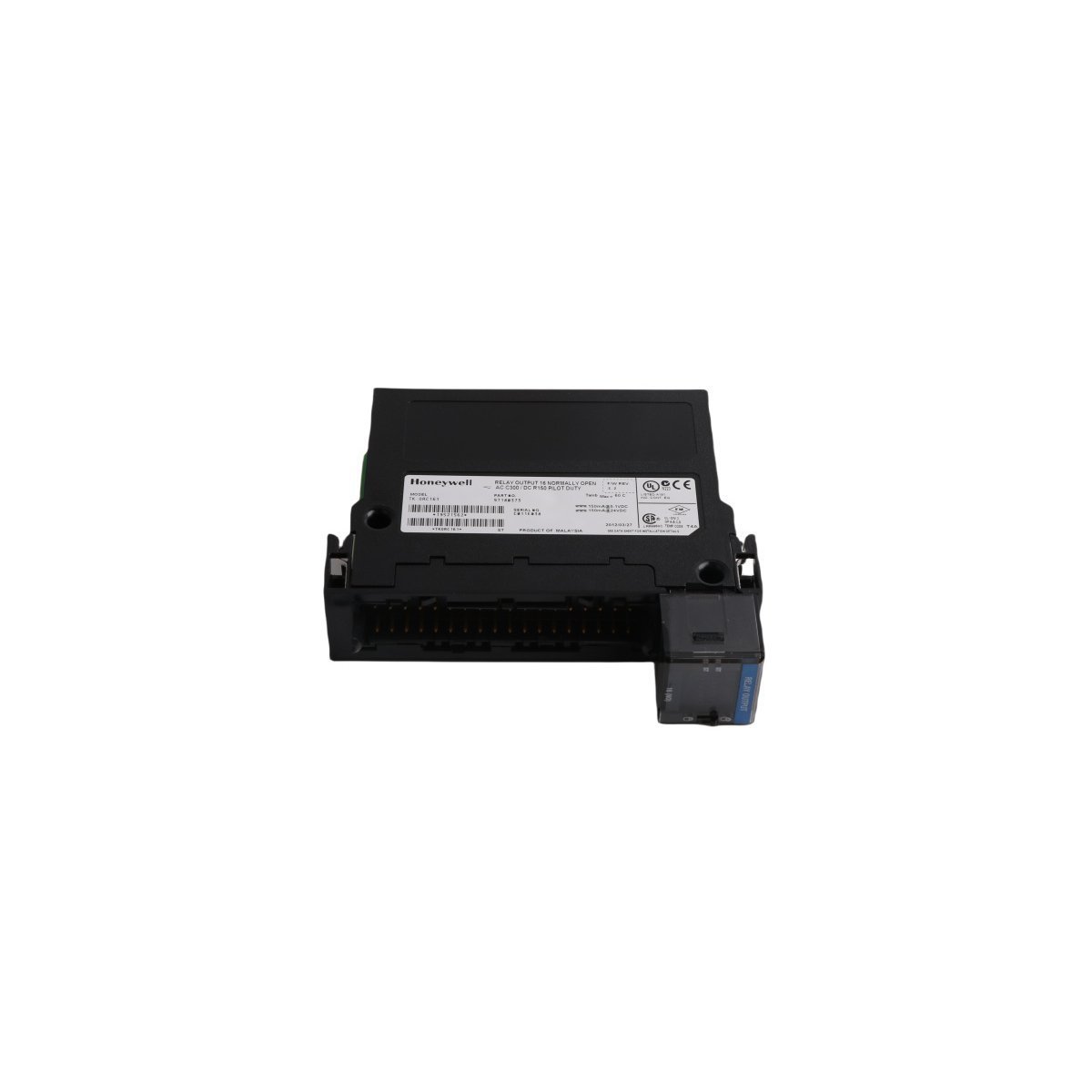

Honeywell TK-ORC161 97180373 Experion LS Relay Output Module

Honeywell TK-ORC161 97180373 Relay Output Module

The Honeywell TK-ORC161 97180373, also cataloged as the TK-ORC161 Relay Output Module, operates as a dedicated hardware component for discrete load switching and electrical isolation execution within Experion LS platforms.

Hardware Specifications

Process Control & Channel-to-Channel Isolation

System engineers deploy the module within Experion LS cabinets to command field-side actuators, interlocks, and alarm annunciators. While analog modules process continuous variables through 4-20 mA HART loop protocol connections, this relay unit executes physical contact closure to isolate high-voltage field circuits from internal logic processors. Channel-to-channel isolation prevents electrical transients, ground loops, and inductive back-EMF spikes from propagating into the backplane, while on-board diagnostic circuits continuously track channel switching states to report output discrepancies back to the DCS controller.

Frequently Asked Questions

Q: Does the TK-ORC161 relay module support hot-swapping during live system operation?

A: Technicians can safely replace the module while the system power bus remains energized, provided they isolate external field voltage sources on the terminal block assembly prior to module extraction.

Q: How do integrated diagnostic circuits detect contact failures across individual output channels?

A: Internal monitoring logic checks real-time driver circuit feedback against commanded output states. Consequently, the DCS controller flags any coil actuation delay or contact continuity mismatch immediately within the system diagnostic log.

Q: What measures prevent inductive load spikes from damaging internal relay contacts?

A: System integrators must install suppressors or flyback diodes across inductive field loads externally. Although channel-to-channel isolation protects backplane logic, external suppression prolongs physical relay contact life.

Field Installation Guidelines

Installers mount the module directly onto the designated chassis slot using standard alignment rails. Field personnel must verify that the housing latches lock firmly into position to maintain stable backplane power and signal connections.

Field teams connect actuator wiring to the corresponding field termination assembly. Technicians must strip wire ends to specified strip lengths, tighten screw terminals to recommended torque values, and route low-voltage control lines separately from high-current AC power cables to eliminate inductive interference.
