HONEYWELL 51308363-175 CC-TAIX01 DCS I/O Termination Assembly

HONEYWELL CC-TAIX01 Input/Output Termination Assembly

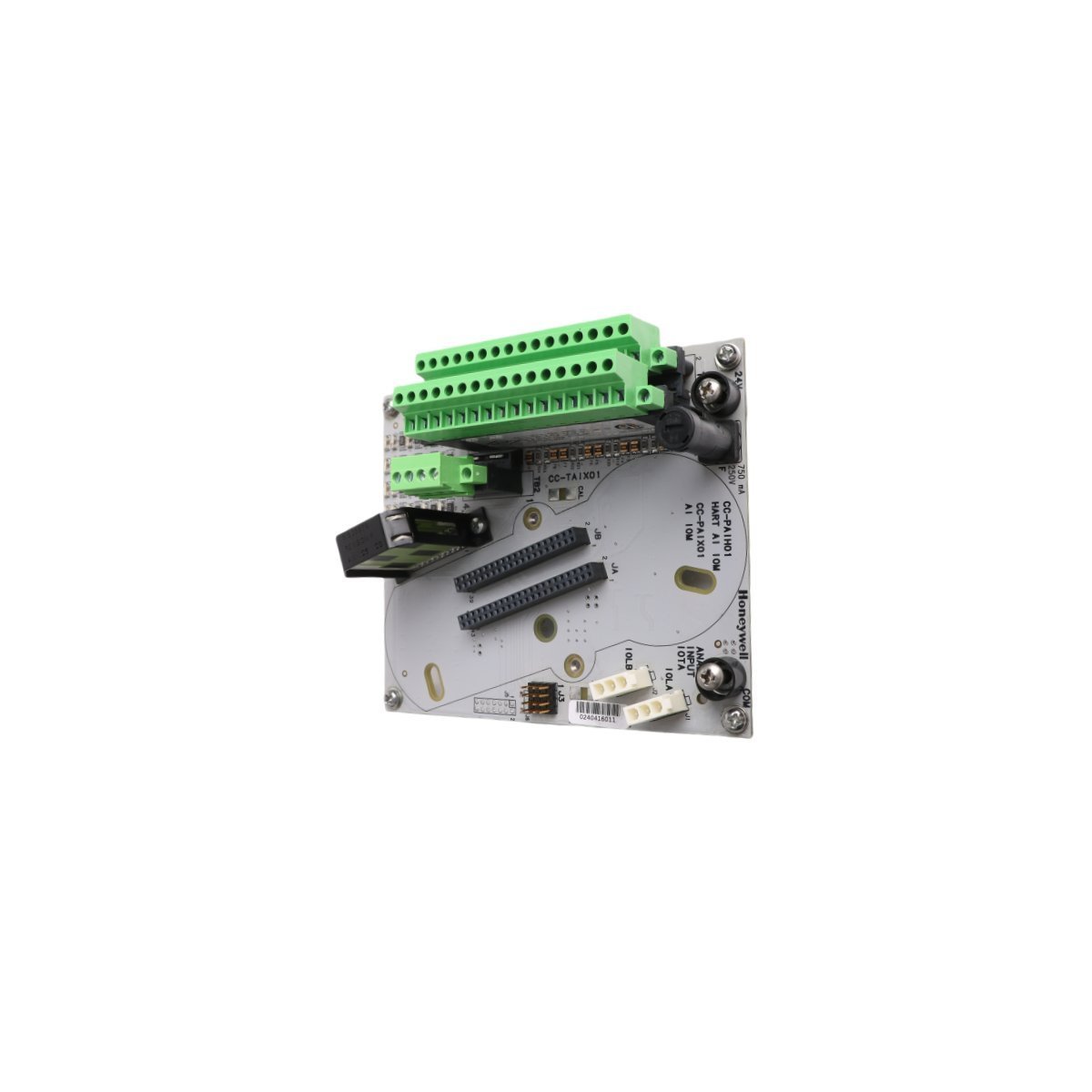

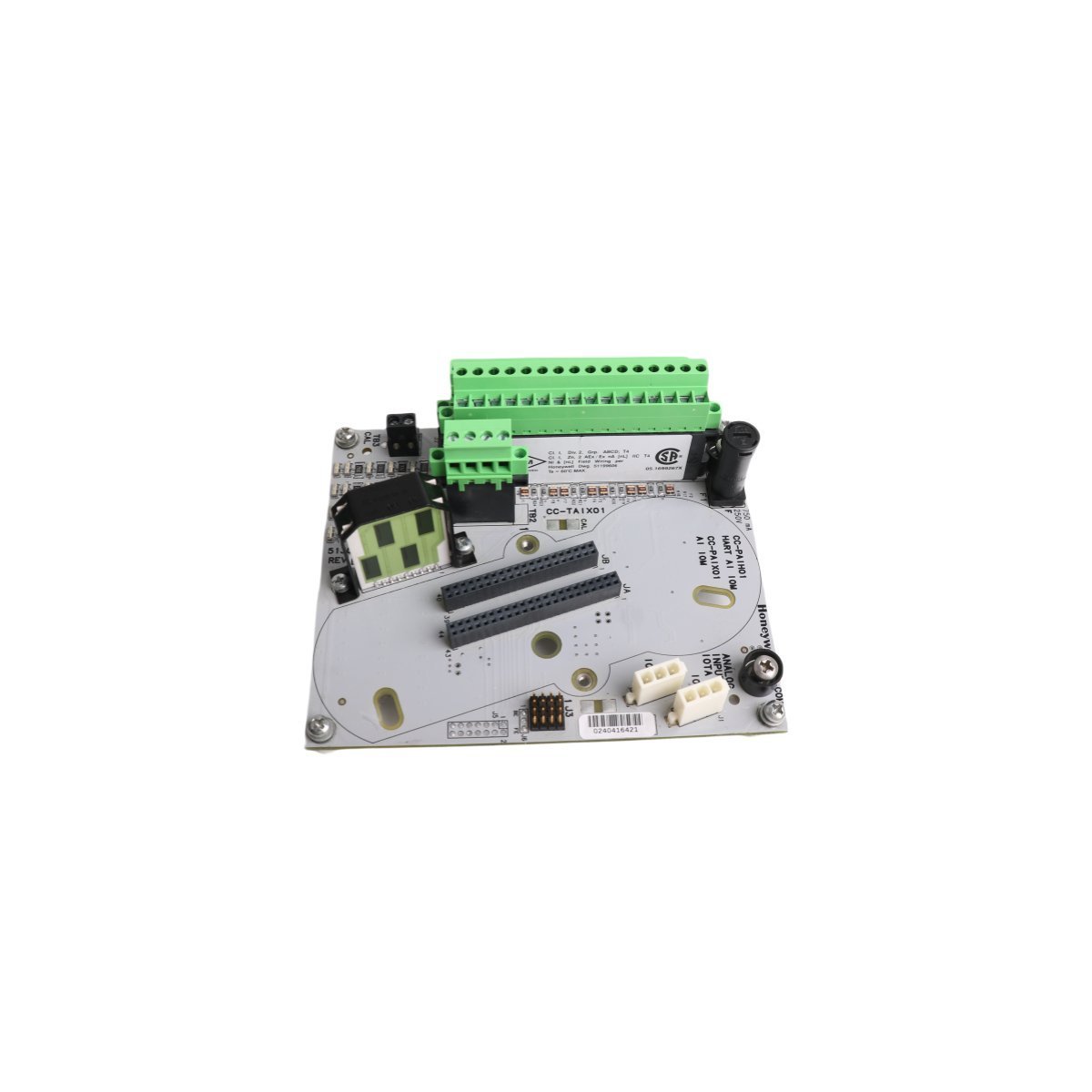

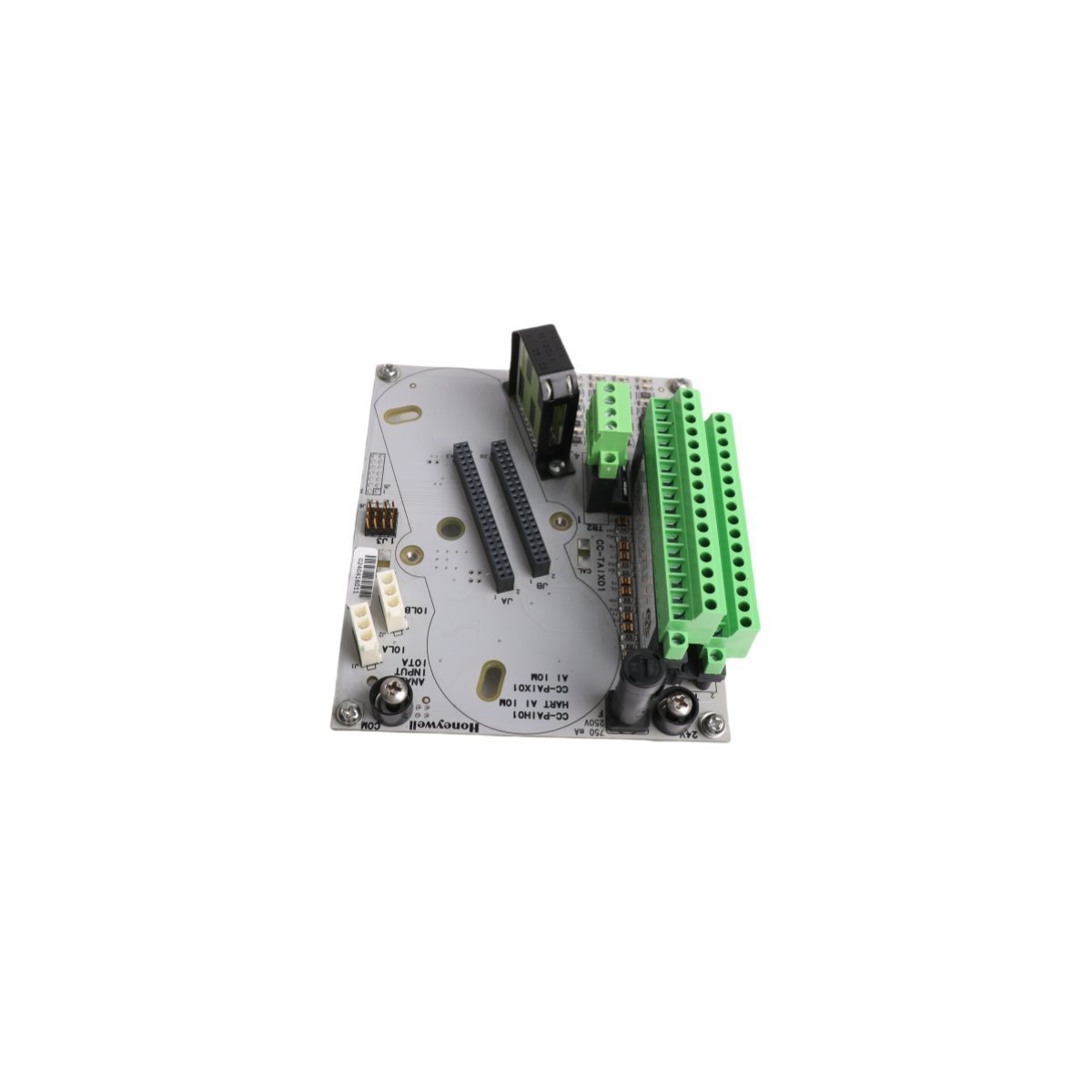

The HONEYWELL CC-TAIX01 51308363-175, also cataloged as the CC-TAIX01 Input/Output Termination Assembly (IOTA), operates as a dedicated hardware component for field signal distribution and termination within Experion PKS DCS platforms.

Suffix Breakdown & Model Matrix

• CC-TAIX01: Identifies the specific termination assembly design for high-density I/O signal management.
• 51308363-175: Represents the unique Honeywell part number variant designating the electrical pinout and terminal layout for interface with C300 controller I/O modules.

Hardware Specifications

Process Control and DCS Connectivity

The CC-TAIX01 facilitates direct interface for 4-20 mA HART loop protocols, which ensures field-to-controller signal continuity. The assembly maintains measurement accuracy because it incorporates internal cold junction compensation (CJC) for thermocouple inputs. Furthermore, it utilizes robust channel-to-channel isolation to prevent electrical crosstalk and common-mode noise propagation throughout the DCS cabinet, which stabilizes signal acquisition in high-density I/O configurations.

Frequently Asked Questions

Q: Does the CC-TAIX01 support redundant I/O configurations?

A: Yes, the CC-TAIX01 allows for redundant I/O module pairings when engineers couple it with the appropriate controller hardware and backplane configuration.

Q: Is this assembly field-repairable at the component level?

A: No, the assembly functions as a sealed termination unit. Consequently, technicians should limit field repair to terminal block replacement or wiring maintenance; board-level repairs void the hardware integrity.

Field Installation Guidelines

• Cabinet Mounting: Technicians must secure the IOTA to the mounting channel within the control cabinet using the integrated fastening clips. Then, they should verify that the unit sits flush against the backplane to permit proper airflow.
• Wiring Termination: Installers ought to use high-quality ferrules for all field-connected wiring. Moreover, they should torque terminal screws to the values specified in the Honeywell installation manual to avoid connection degradation.
• Shield Grounding: Operators should connect field cable shields to the dedicated ground bus provided on the IOTA chassis. This action diverts induced noise to the cabinet common ground, which prevents input fluctuations.
• Clearance: Designers should maintain a minimum clearance of 5 cm above and below the assembly. This spacing allows for heat dissipation and ensures future accessibility for maintenance or wiring modifications.
