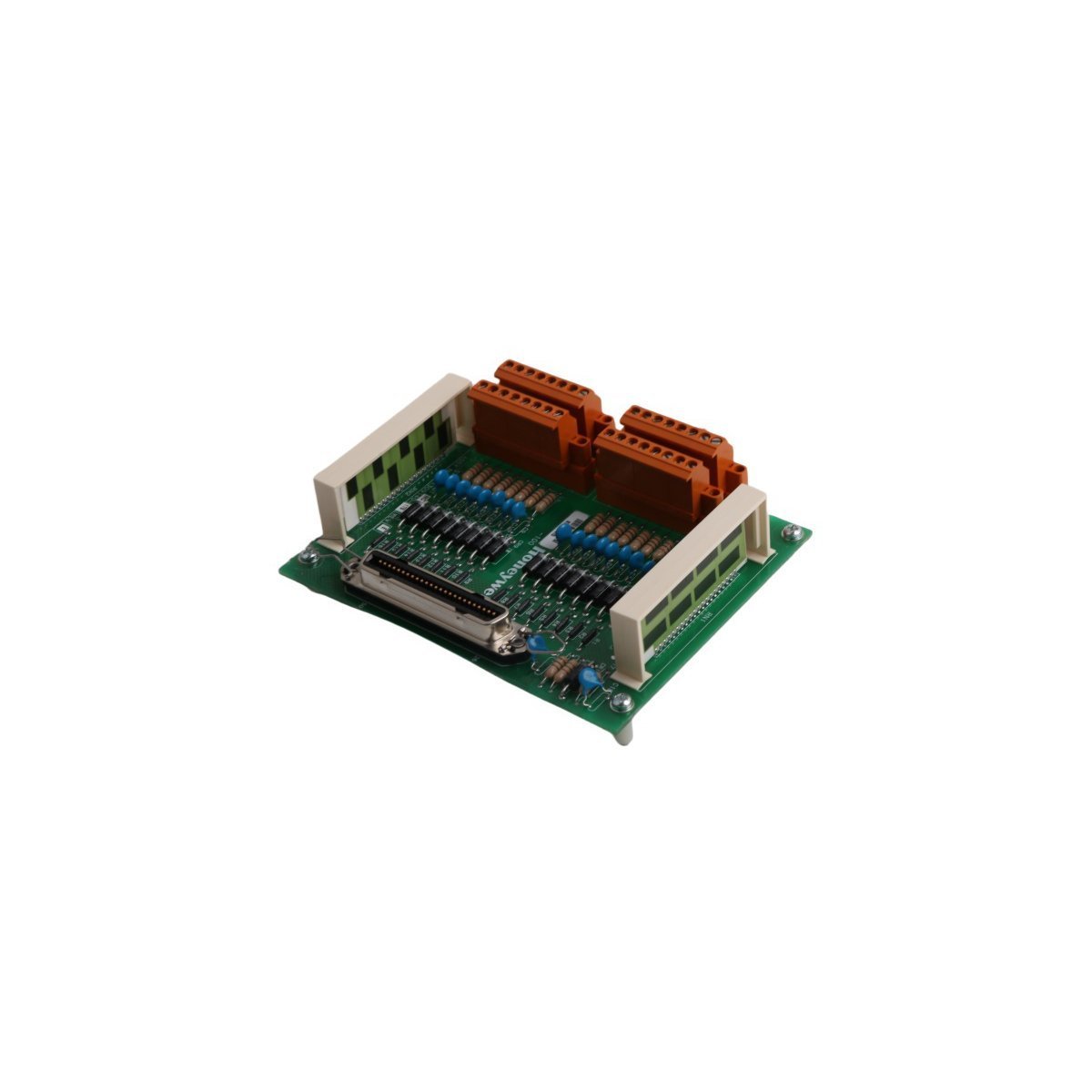

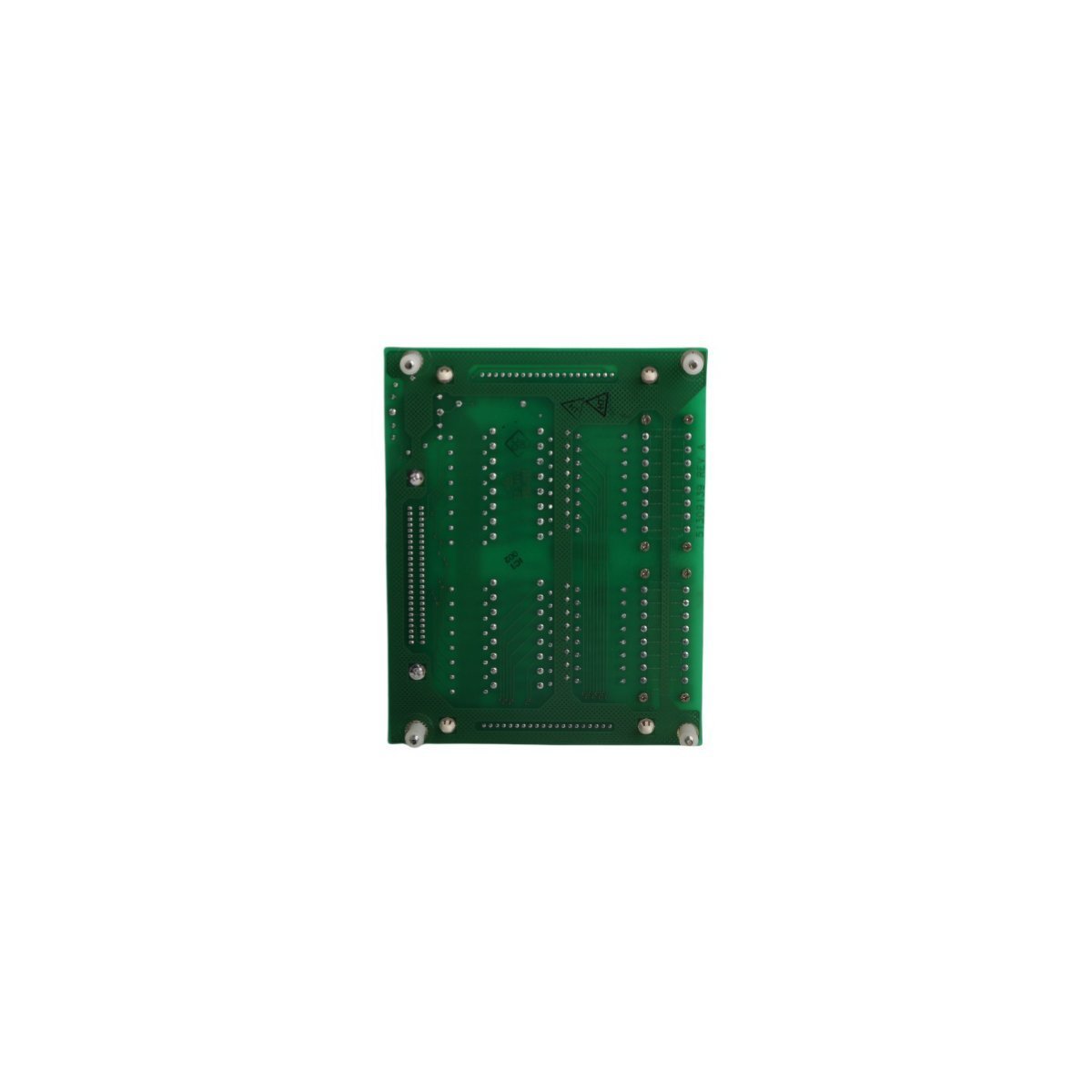

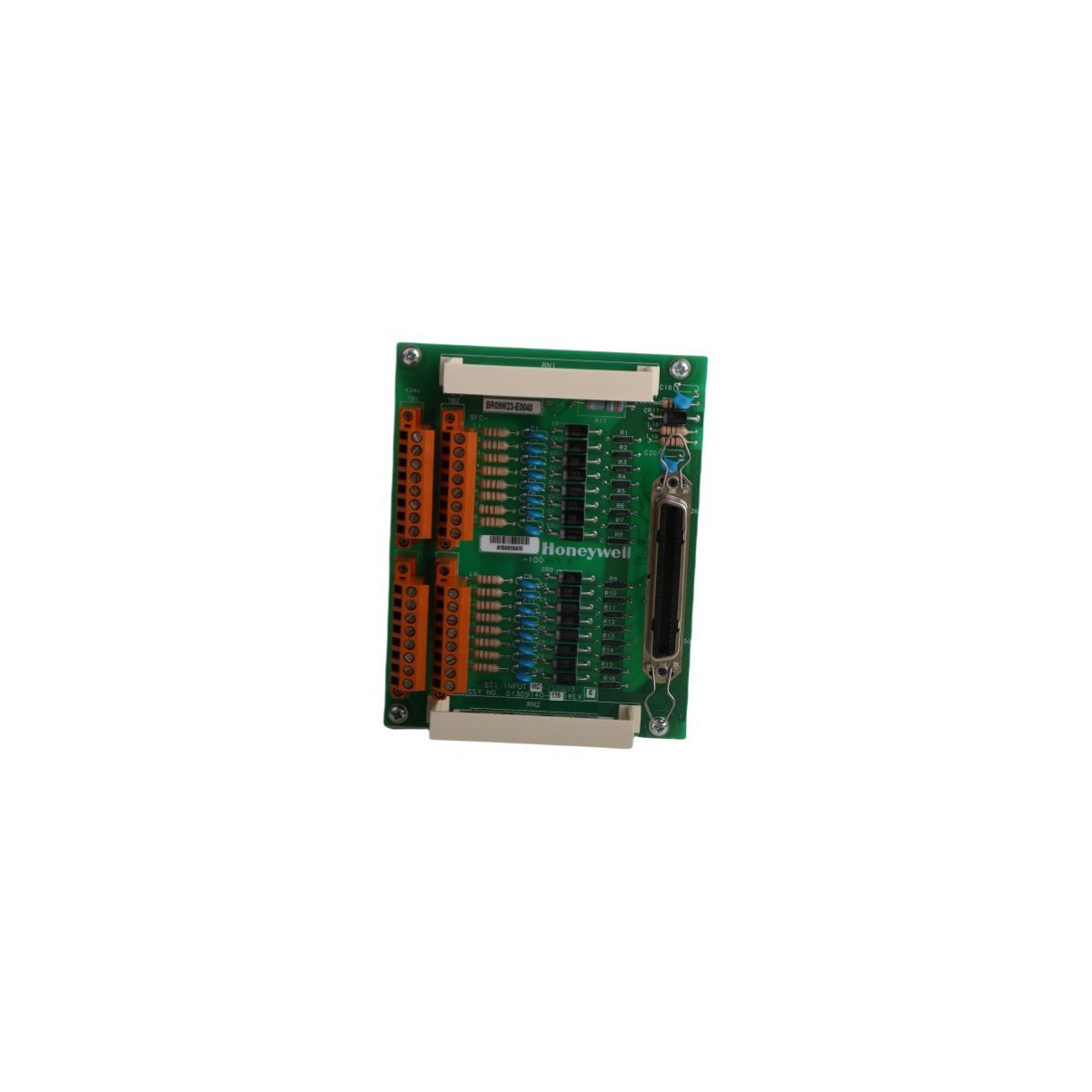

Honeywell MU-TSIM12 51303932-426 Interface I/O Processor Module

Product Overview

The Honeywell MU-TSIM12 51303932-426 acts as a dedicated processor link that optimizes communication between serial field subsystems and the central DCS architecture. This high-reliability module executes localized data conversion to alleviate primary control network traffic.

Technical Specifications

• Manufacturer: Honeywell
• Model Number: MU-TSIM12
• Part Number: 51303932-426
• Product Series: MU-T Series (TDC 3000 Architecture)
• Module Type: Serial Interface I/O Processor
• System Application: Distributed Control System (DCS)
• Physical Footprint: 15.1 cm x 12.0 cm x 5.5 cm
• Net Weight: 0.32 kg
• Customs Tariff Classification (HS Code): 8537101190
• Country of Manufacture: United States

Key Technical Characteristics

Advanced Processing Architecture

This I/O module contains dedicated onboard processing units to manage low-level communications independently. Consequently, it frees up central processing memory while maintaining strict update intervals for critical loops.

Protocol Subsystem Integration

The processor establishes stable serial communication paths to translate multi-vendor sub-networks into the native Honeywell control scheme. Furthermore, this integration enables precise diagnostic polling across disparate manufacturing hardware platforms.

Data Validation and Integrity

Advanced noise-filtering circuitry shields internal registers from high electromagnetic interference common in industrial power cabinets. Therefore, the module prevents signal corruption during data transfers to maintain deterministic system behaviors.

Compact Modular Insertion

The hardware features a small form-factor chassis designed for rapid insertion into standard high-density I/O card files. Clear diagnostic LEDs provide visible tracking of active power, communication faults, and transmit-receive states.
