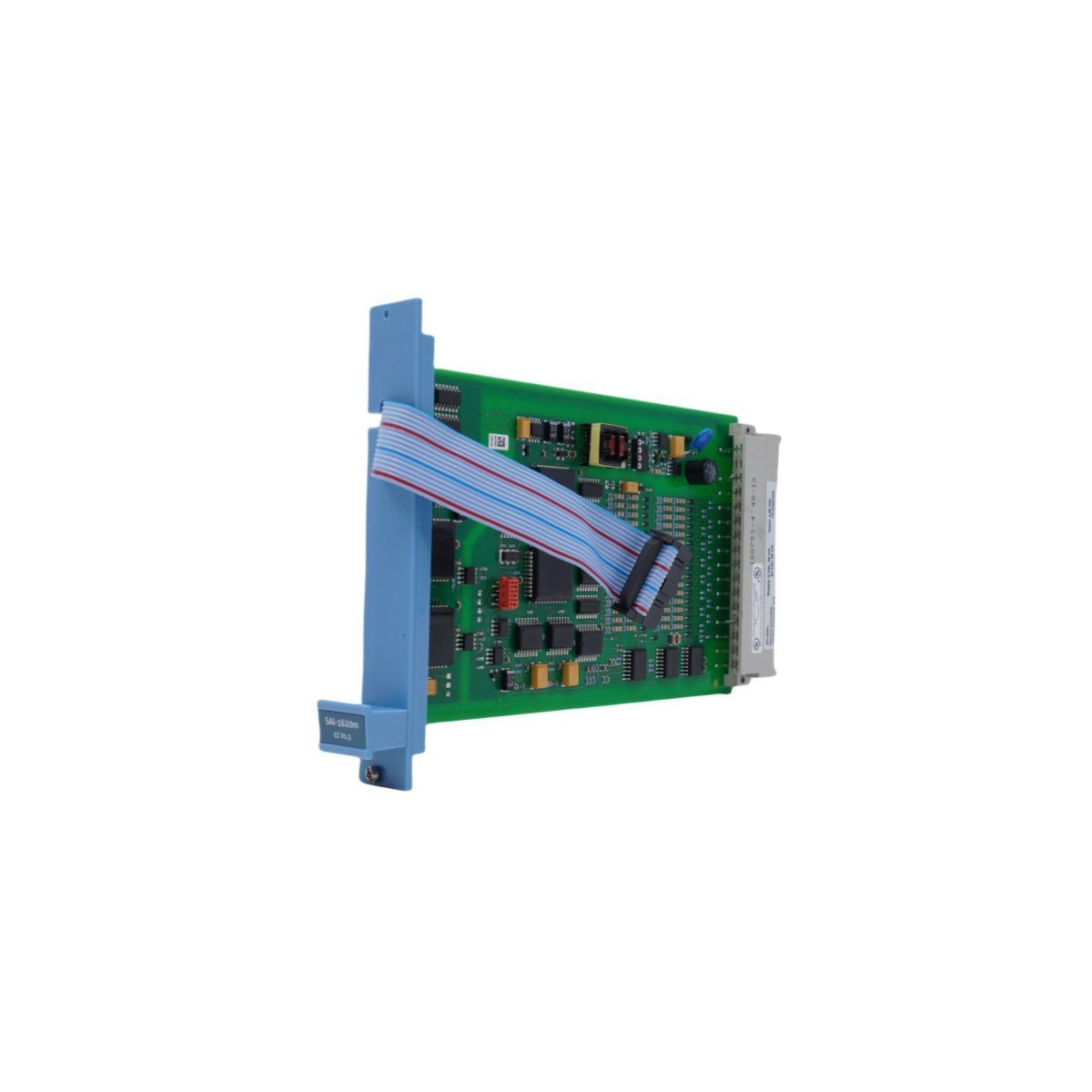

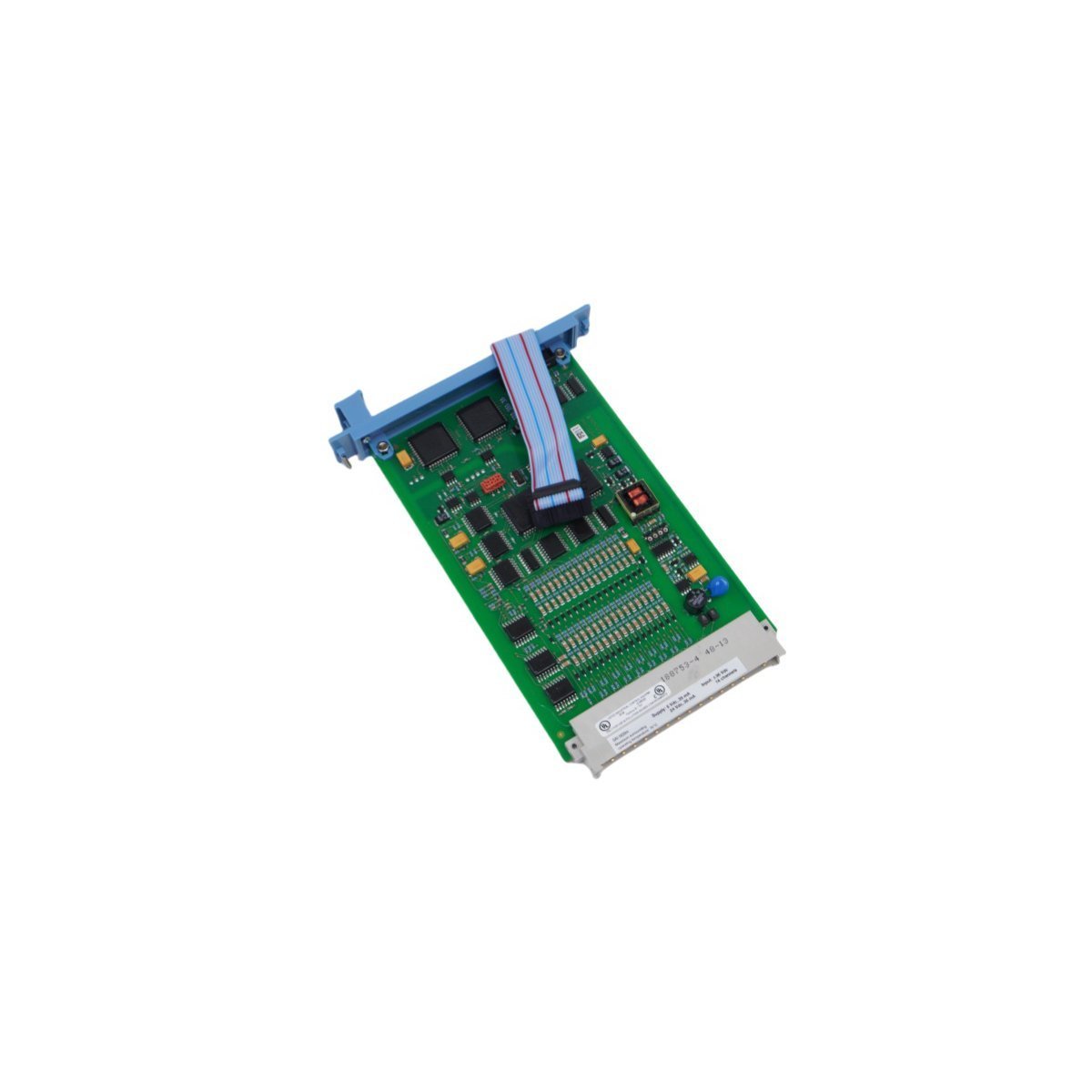

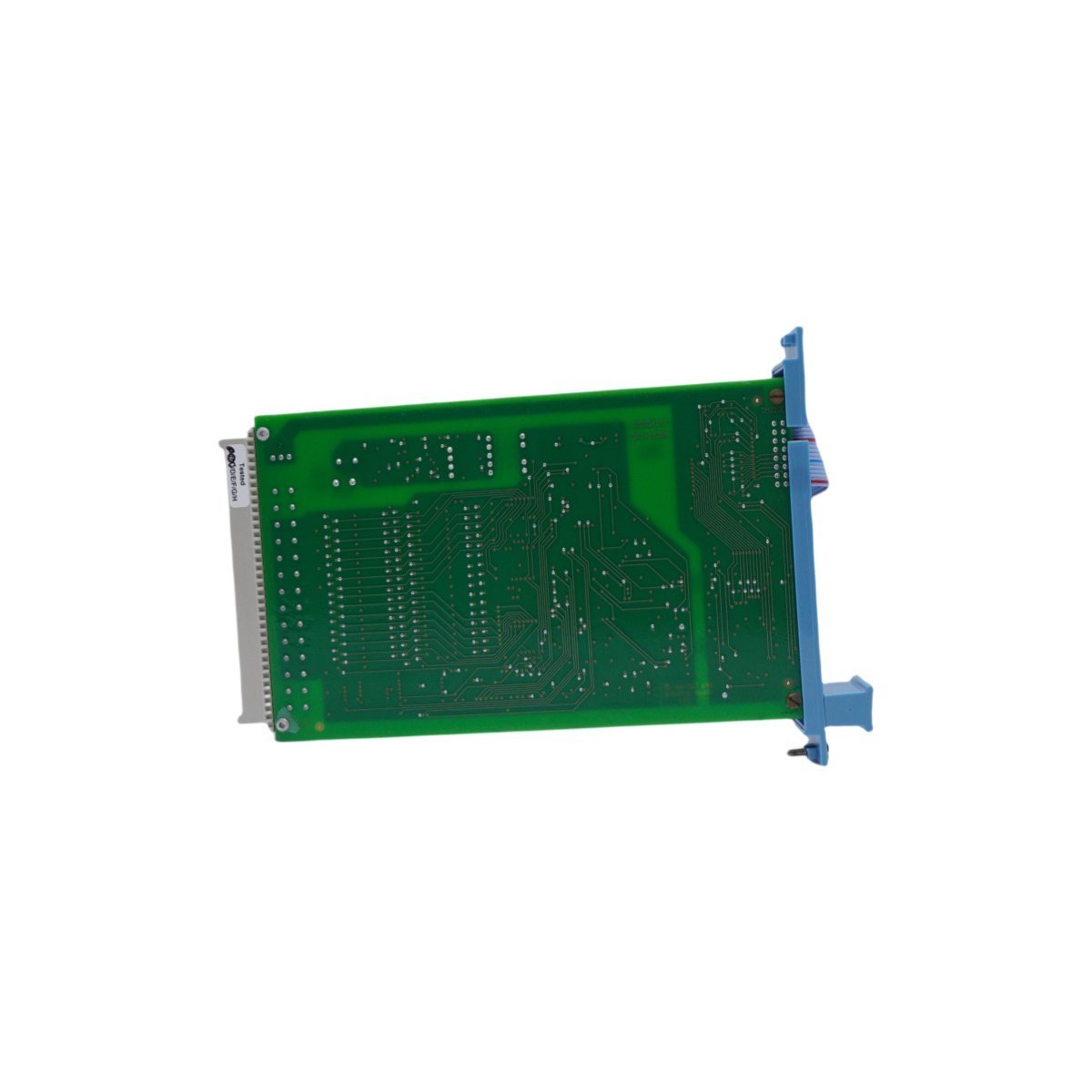

FC-SAI-1620M V1.5 Honeywell SIL2 16-Channel Analog Input Module

Brief Product Description

The Honeywell FC-SAI-1620M V1.5 operates as a high-reliability, 16-channel safety analog input module within the Honeywell Safety Manager framework. This hardware component interfaces directly with critical field instrumentation to translate analog process variables into deterministic data used by safety instrumented functions.

Product Overview

The Honeywell FC-SAI-1620M V1.5 functions as a core safety-isolated data acquisition layer for the Safety Manager system, which integrates into the overarching Experion PKS environment. While typical distributor listings may inherit generic database placeholders such as communication router terms, this card serves purely as an analog input processing module. It actively isolates and digitizes analog field data under strict Safety Instrumented System (SIS) guidelines, operating independently of basic process control systems. By deploying this module, industrial facilities achieve the strict hardware fault tolerance required to monitor hazardous variables without introducing signal leakage or processing lag.

Technical Specification Matrix

Safety Integrity and Diagnostic Capabilities

This safety input card features highly specialized component architecture that actively runs continuous internal self-testing routines. Because version 1.5 introduces updated microcode, the firmware detects internal components drift, cross-talk, and analog-to-digital converter discrepancies at an individual channel tier. The card identifies open circuits, shorted field loops, and out-of-range signal anomalies immediately, flagging these problems via the control interface before they can affect safety-instrumented functions.

In addition to superior basic signal conversion, the circuit design accommodates standard HART data packets alongside the baseline 4-20mA current loops. This capability enables control engineers to poll diagnostic metrics from smart field transmitters directly through the safety chassis. Furthermore, the robust electrical configuration supports active hot-swapping, allowing maintenance personnel to swap out a faulty module under live system power without disrupting neighboring channels or causing a false emergency shutdown.

Process Safety Applications

Industrial operators utilize the Honeywell FC-SAI-1620M V1.5 inside hazardous process sectors that demand certified safety verification layer infrastructure. Typical application environments include chemical process monitoring, boiler safety management, automated safety interlock loops, and high-pressure oil or gas pipeline protection.

The physical assembly employs protective layer designs that shield internal logic elements from external radio frequency interference and high thermal gradients inside electrical cabinets. By integrating this module with Safety Manager and C300 controllers, production plants successfully isolate protective action triggers from normal regulatory feedback mechanisms, thereby maintaining an uncompromised path to safe state execution when field conditions exceed critical limits.
