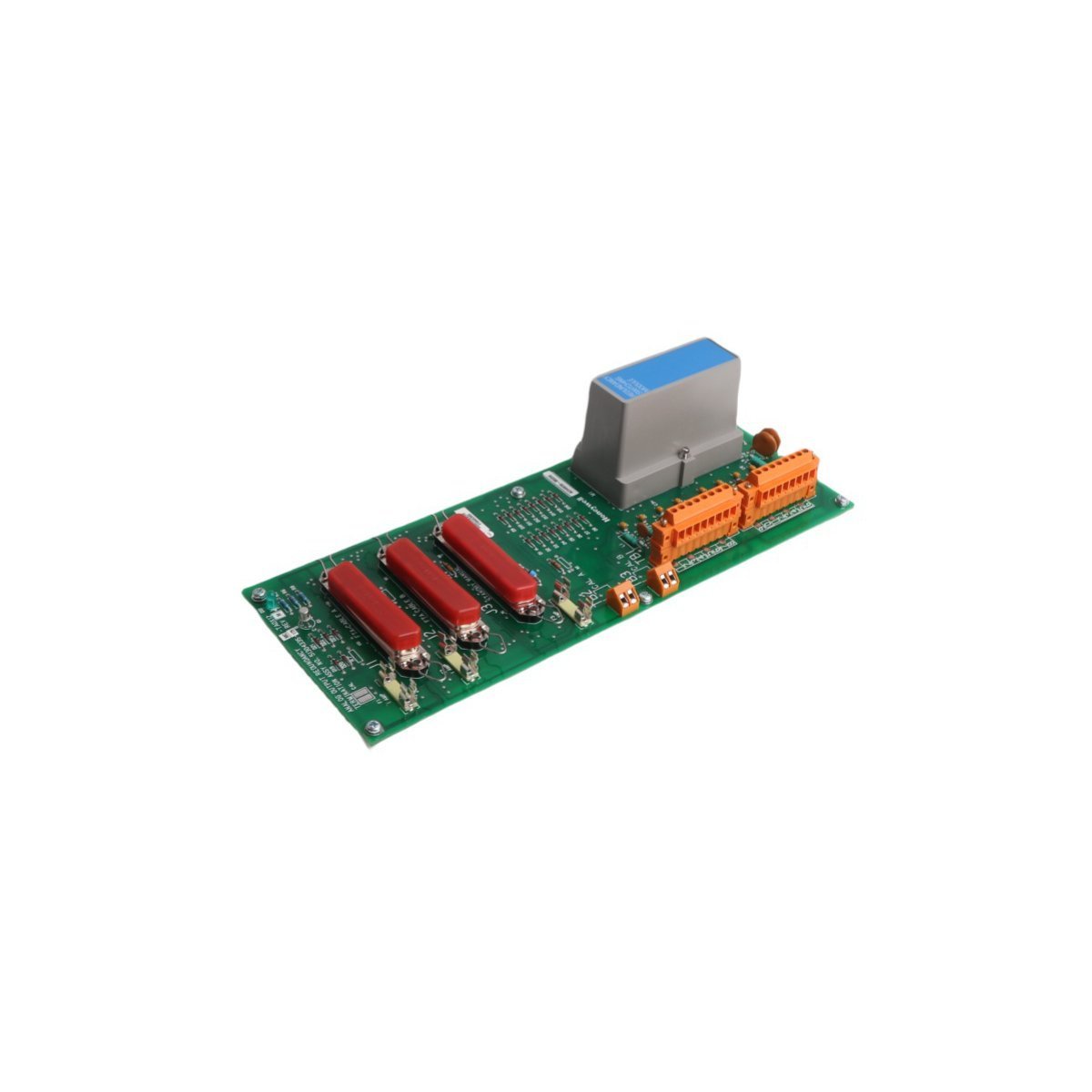

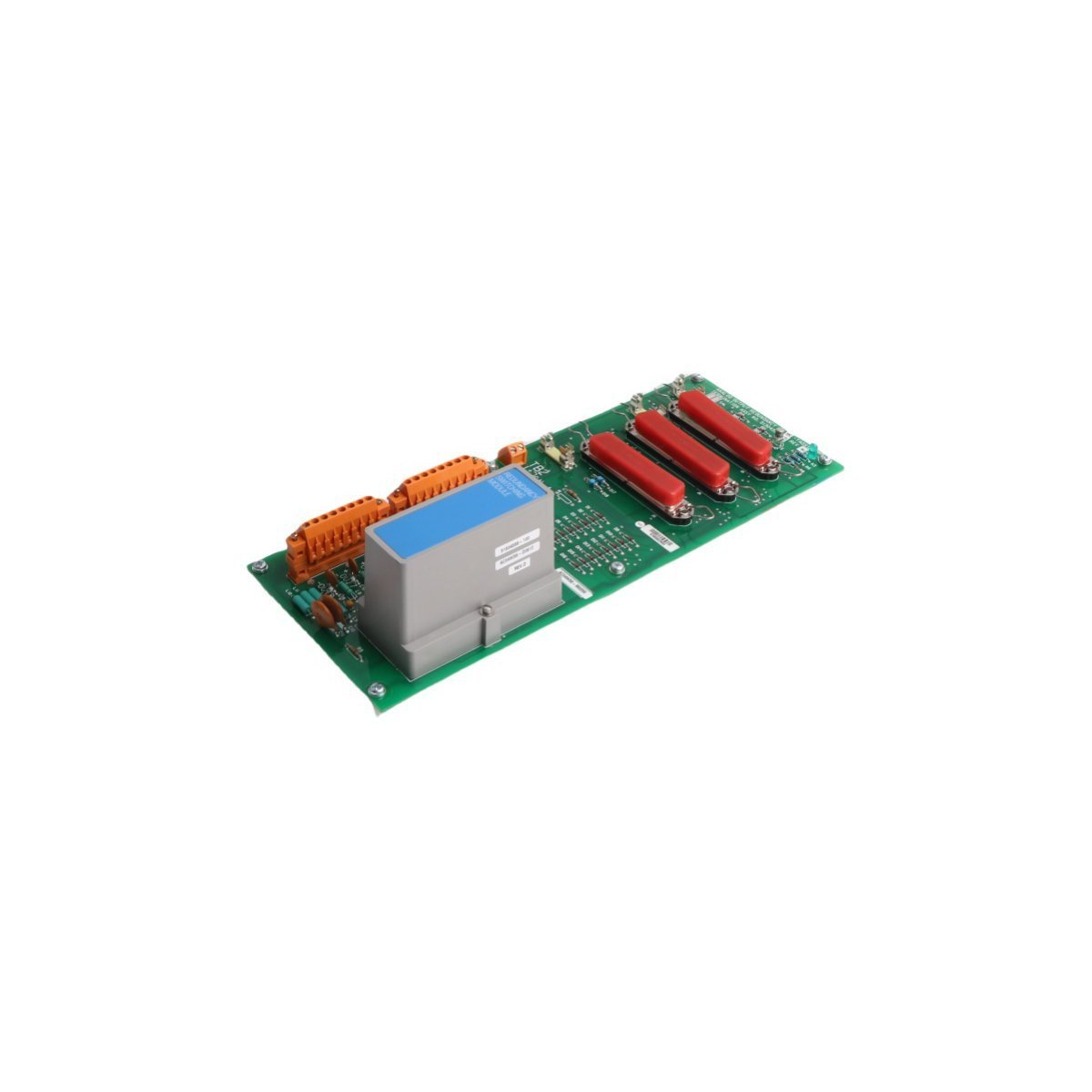

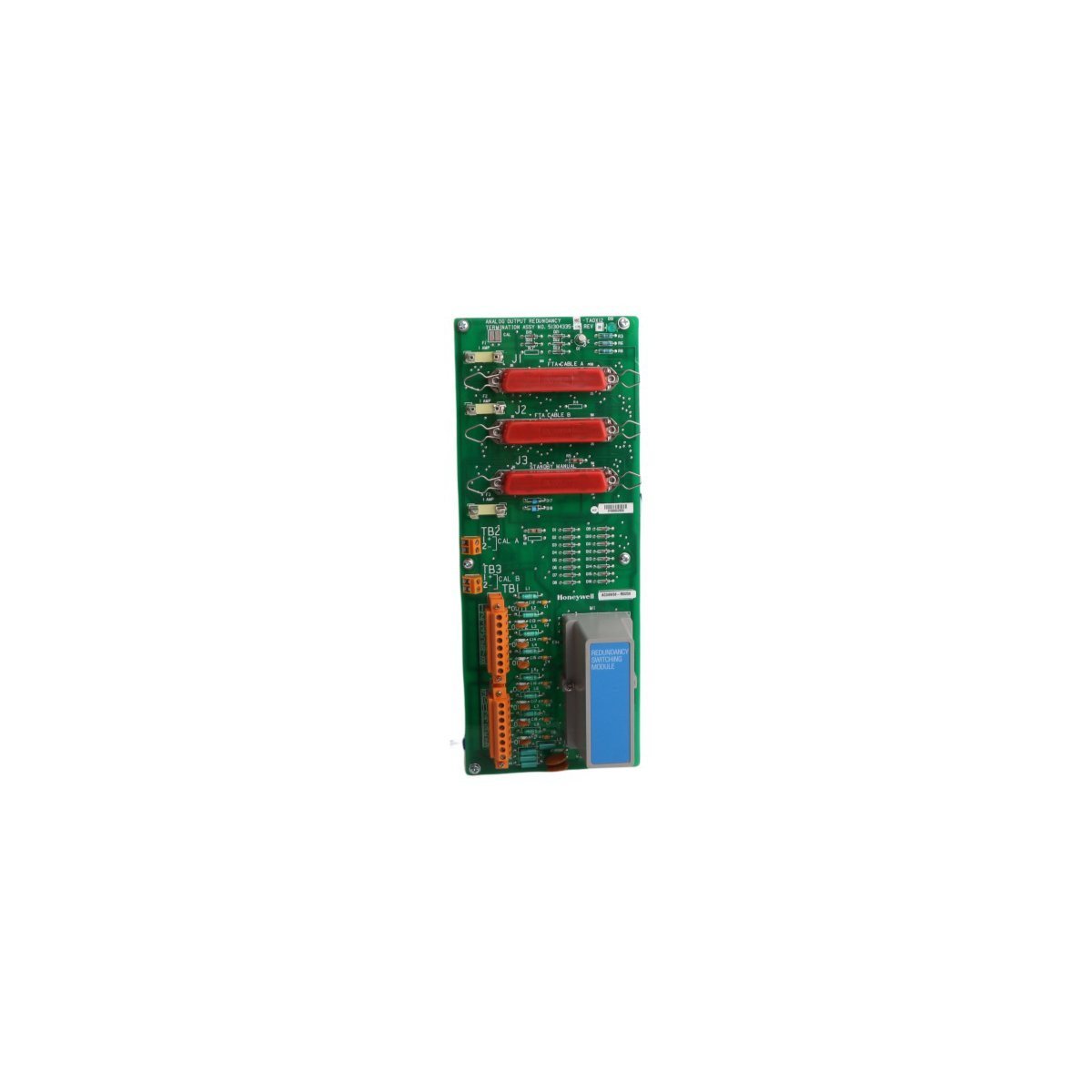

Honeywell MC-TAOX12 51304335-175 UCN Digital Input Termination Assembly

Honeywell MC-TAOX12 51304335-175 UCN Digital Input Field Termination Assembly

Configured for 16-channel discrete signal termination and field conditioning in Universal Control Network (UCN) DCS architectures, the Honeywell MC-TAOX12 51304335-175 (MC-TAOX12 Digital Input Field Termination Assembly) provides direct physical/electrical execution. The assembly routes field sensor signals to central I/O processors through dedicated cabling interfaces, while maintaining signal integrity across industrial operating environments. Engineers integrate this hardware to interface field-side switches and discrete contacts directly with system backplane electronics.

Hardware Specifications

Channel Isolation and Signal Integrity Management

The assembly incorporates individual channel-to-channel isolation circuits to prevent ground loops and electrical transients from propagating back to the UCN backplane. Internal bus structures route incoming discrete contact signals through passive noise-filtering networks, because high-frequency interference generated by switching industrial loads often degrades data accuracy. Furthermore, terminal block connections maintain stable contact voltage levels, so upstream I/O processing cards remain protected against field-side overvoltage conditions.

Frequently Asked Questions

Q: Can technicians hot-swap the MC-TAOX12 assembly while the UCN node remains active? A: Technicians can replace the field termination assembly without powering down the system backplane, provided they isolate external field contact voltage sources prior to disconnecting terminal blocks.

Q: How does the assembly handle cable shielding and electrical noise reduction? A: The hardware incorporates dedicated shield grounding terminals for each input channel, which direct noise currents straight to a common system ground bar.

Field Installation Guidelines

Mount the termination assembly onto the enclosure mounting plate or rack frame before attaching external cables. Maintain at least 50 mm of open clearance above and below the module, because adequate air movement prevents localized heat buildup. Strip field wire ends to 7 mm, insert conductors into screw terminal positions, and torque each terminal screw to 0.5 Nm. Route low-voltage digital input wiring through separate conduits away from AC power lines, and connect cable drain wires directly to the main cabinet ground stud to preserve noise suppression limits.
