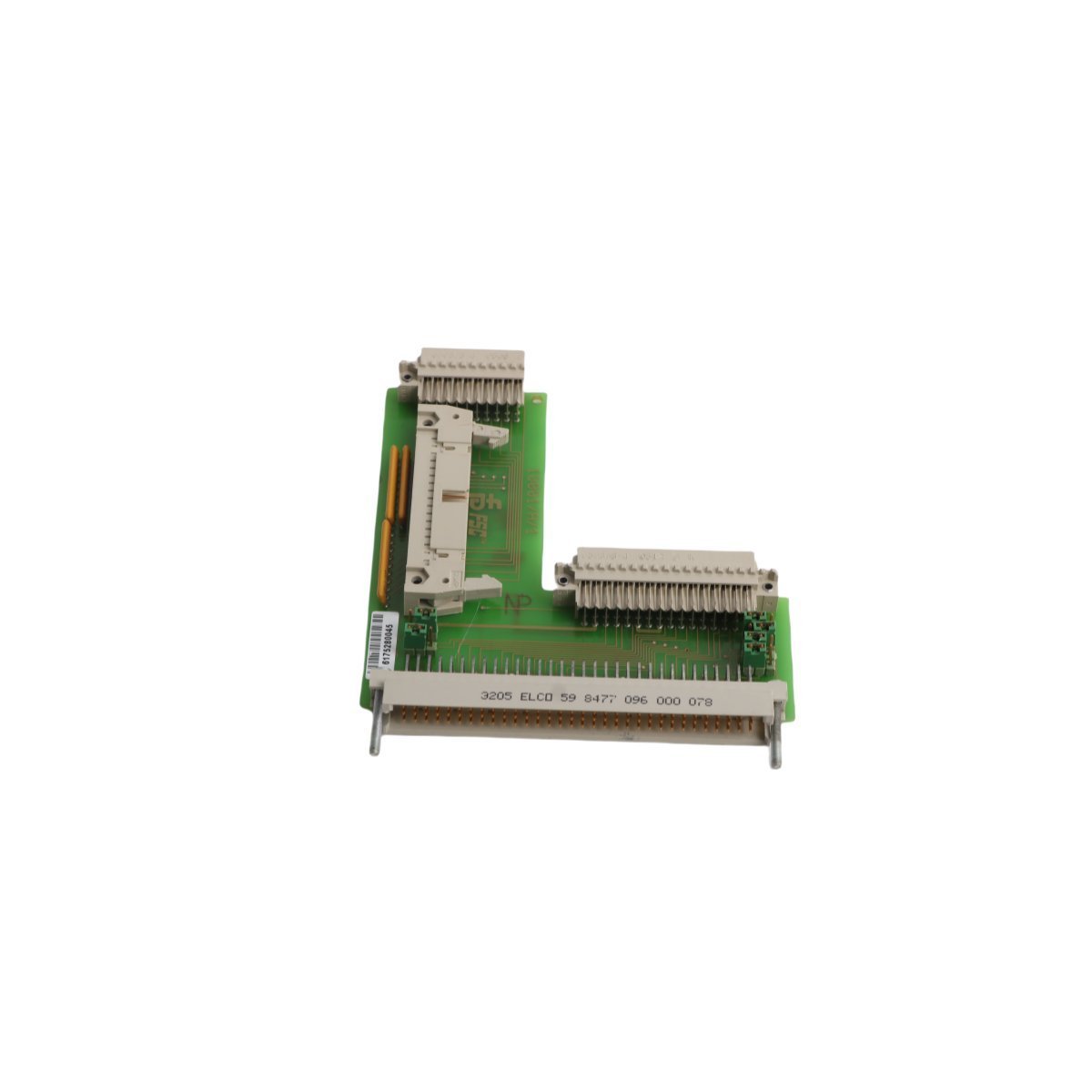

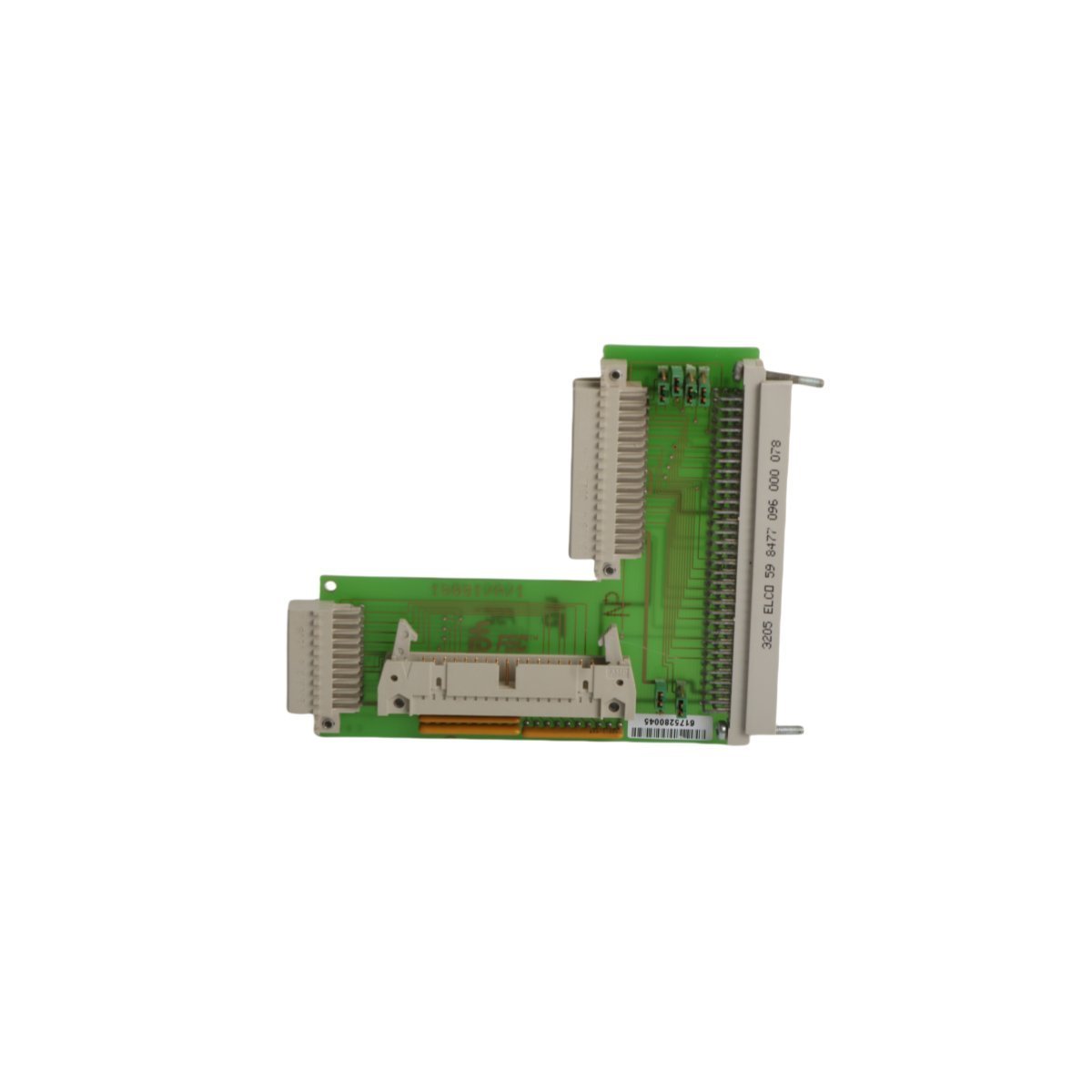

10001/A/1 Honeywell FSC Vertical Bus Driver Card

Honeywell 10001/A/1 FSC Vertical Bus Driver Card

The Honeywell 10001/A/1, also cataloged as the 10001/A/1 Vertical Bus Driver Card, operates as a dedicated hardware component for vertical bus signal driving and backplane data transmission within FSC System platforms. Engineers configure this board to transfer high-speed logic signals between adjacent rack racks while preserving signal synchronization across controller chassis. The module processes incoming bus communications from main processor cards, buffers the differential signal lines, and drives physical backplane interconnects without introducing measurable propagation latencies into the system loop.

Hardware Specifications

Channel Isolation and Bus Signal Integrity

The card incorporates dedicated channel-to-channel isolation circuits to prevent high-voltage ground potential differentials from propagating through the internal rack bus. Because high-density industrial enclosures experience electromagnetic interference from switching loads, onboard RC filtering networks suppress high-frequency noise before signals enter primary processor channels. Furthermore, balanced differential line drivers stabilize communication pulses across the vertical bus structure, whereas standard single-ended networks remain vulnerable to ambient electrical noise. Consequently, this signal conditioning preserves execution timing across connected fail-safe subsystem nodes.

Frequently Asked Questions

Q: Does the 10001/A/1 card support hot-swapping during active system runtime? A: Technicians must de-energize the card rack power bus prior to removing or inserting the card, because unbuffered bus connector pins risk short-circuiting live data lines during insertion.

Q: How does the hardware manage signal ground loops across multiple rack tiers? A: The board separates logic signal return paths from chassis earth ground via onboard decoupling capacitors, which directs parasitic ground currents away from internal bus logic circuits.

Field Installation Guidelines

Attach an ESD grounding strap to the wrist before extracting the circuit board from its anti-static packaging, because static discharges degrade unshielded CMOS IC components. Slide the board edges along the card cage guide tracks until the rear gold-finger connector aligns with the backplane receptacle. Apply firm, even pressure to the front edge to seat the connector completely into the backplane, and tighten cabinet retaining hardware to 0.4 Nm. Route all external communication lines through designated wire trays away from three-phase AC power cables, and ground cable drain wires to the main cabinet earth bar.
