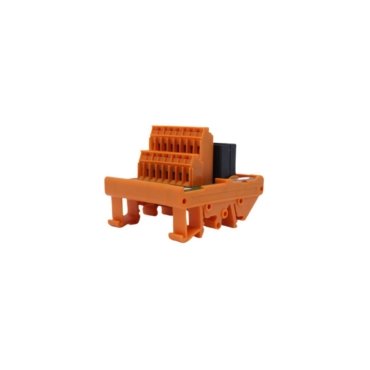

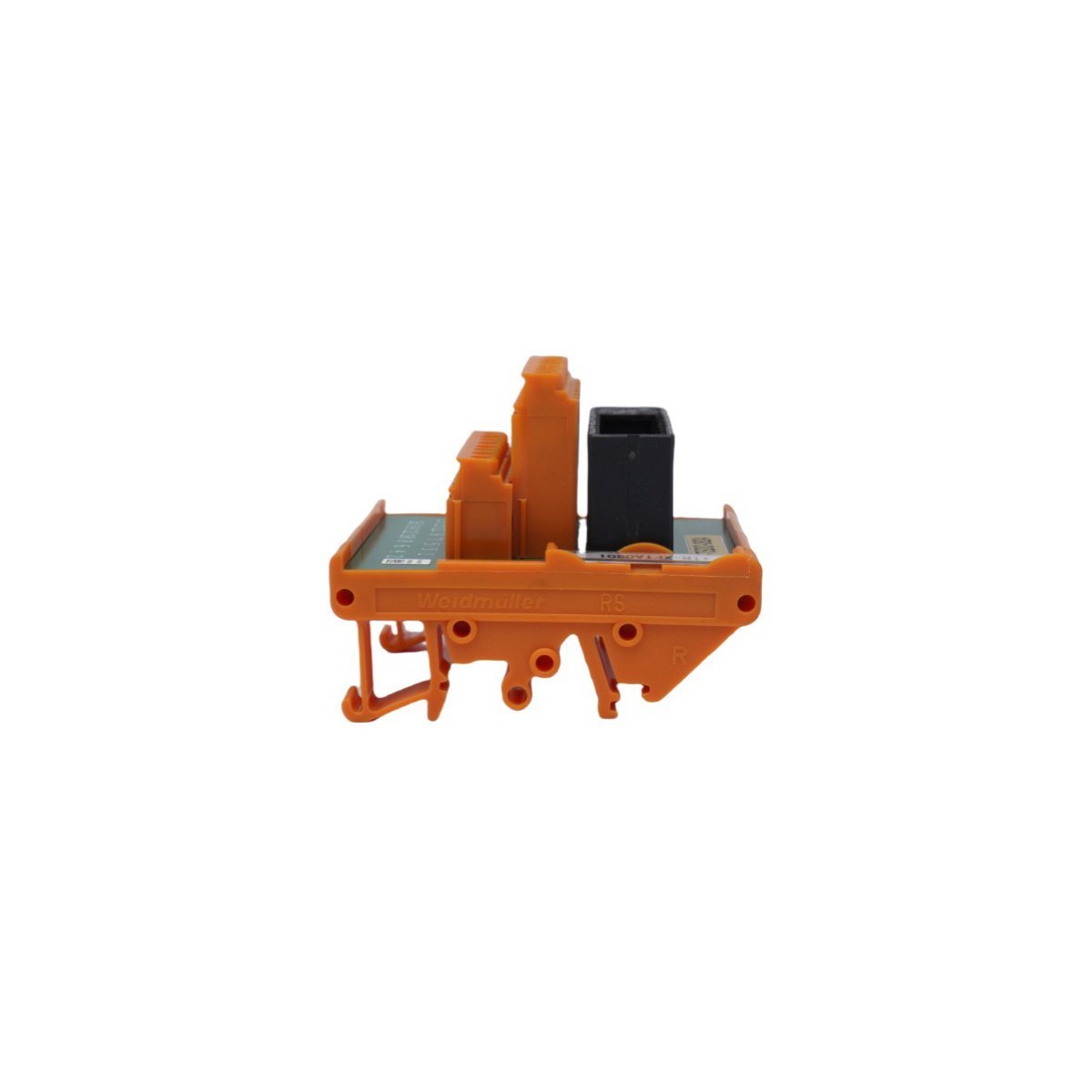

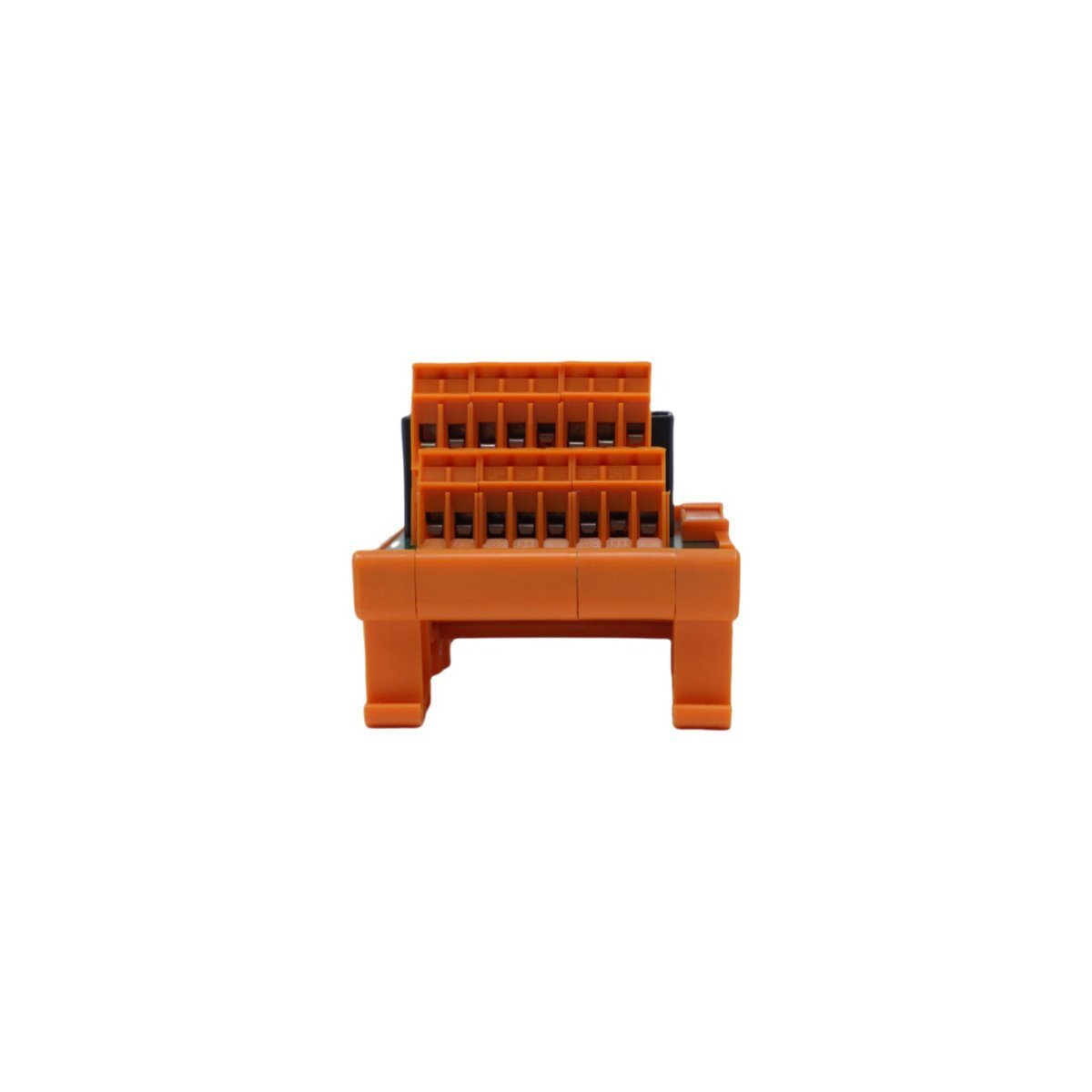

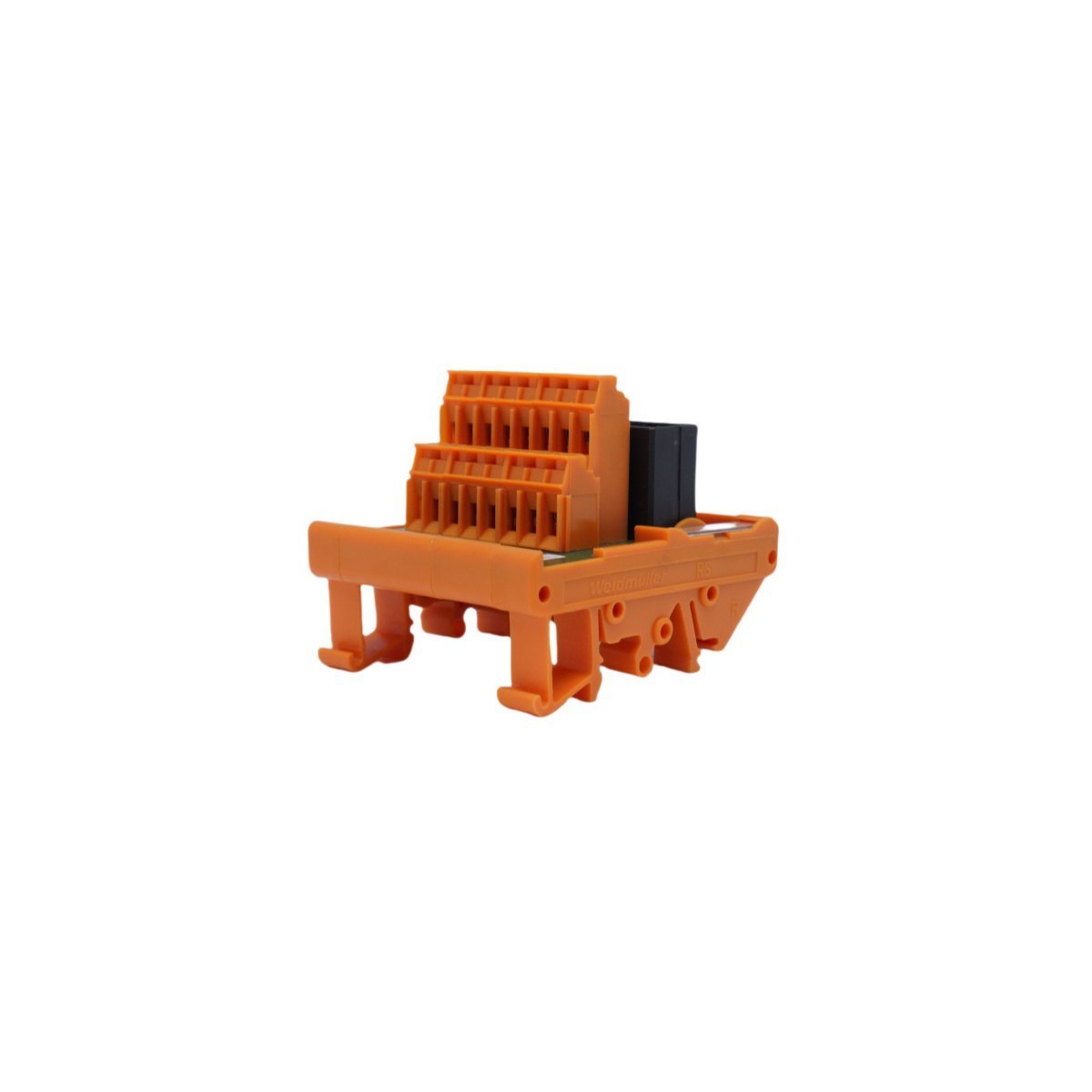

Honeywell FC-TSDO-0824 Digital Output Module

Technical Specifications

Core Functional Characteristics

This module utilizes high-performance relays rated for 1A at 250VAC or 30VDC. These components provide galvanically isolated switching to protect the main safety controller. Furthermore, the unit achieves response times within the millisecond range for rapid shutdowns. The compact form factor allows for high-density installation in standardized control cabinets. Additionally, the IP65-rated enclosure prevents damage from dust and moisture in heavy industrial zones. This robust construction ensures long-term operational stability without frequent hardware failures.

System Integration and Communication

The FC-TSDO-0824 integrates seamlessly with Honeywell Safety Manager and Fail-Safe Controller (FSC) systems. It communicates via high-speed RS-485 interfaces to maintain synchronized data flow. Moreover, the hardware supports the Modbus RTU protocol for broader industrial interoperability. Technicians can easily connect field wiring through the secure terminal points on the FTA. This design choice simplifies the deployment of complex safety instrumented functions. Consequently, the module reduces the overall complexity of safety system wiring and maintenance.

Industrial Resilience

Engineers developed the FC-TSDO-0824 for extreme conditions in the oil and gas sector. It performs consistently across a broad temperature spectrum from -40°C up to +85°C. This resilience makes the module suitable for remote outdoor stations and cold storage areas. Because it features built-in protection against electrical noise, signal integrity remains high. Plant operators depend on this reliability to prevent accidental triggers and costly production downtime. The module therefore serves as a cornerstone for safe and efficient plant automation.
